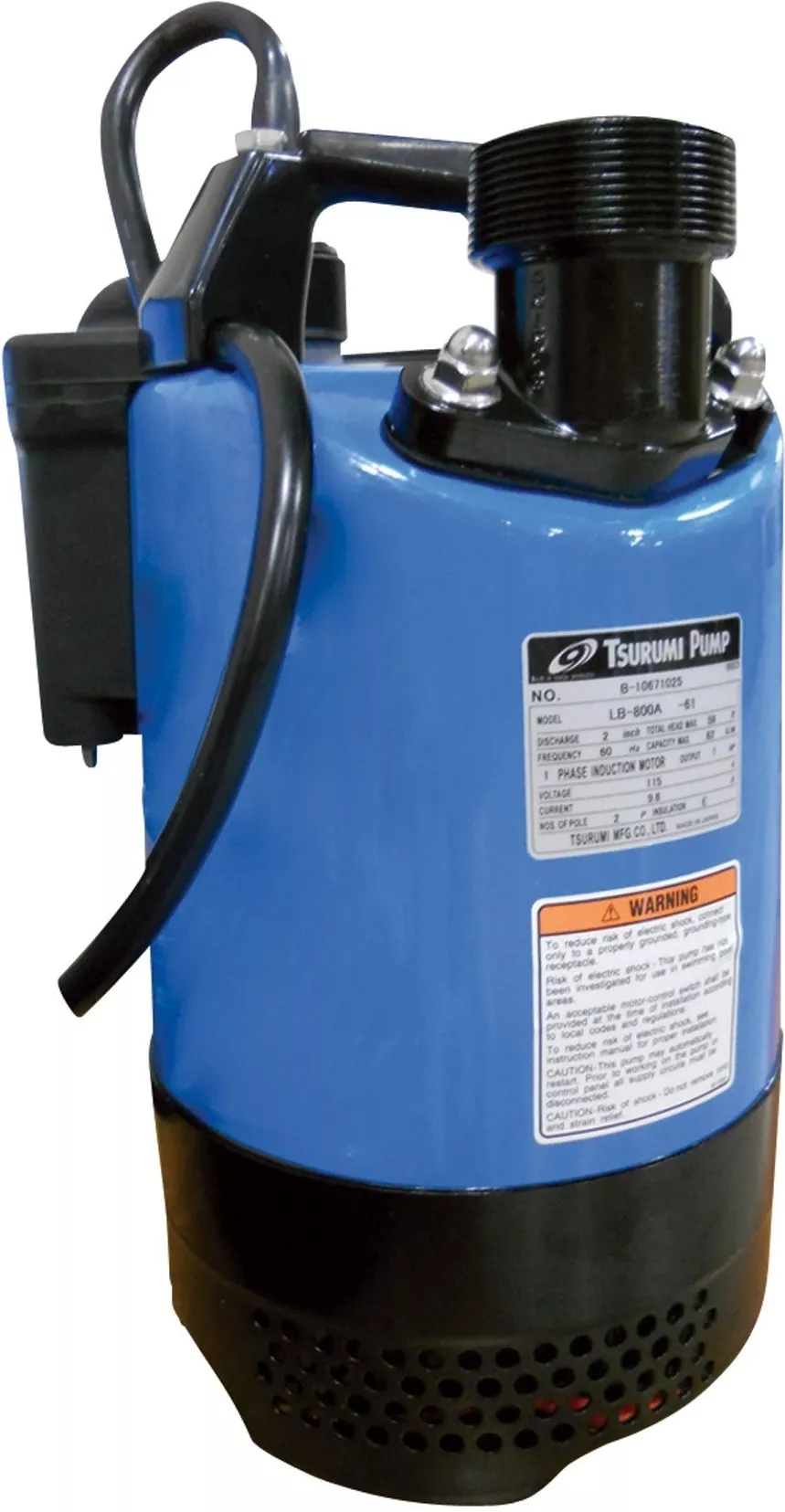

Submersible pump Tsurumi LB-800A (sensor)
Catalogue number: ILBAECRF
EAN: 4944792107843
Gross price
1 399,76 €
Net price: 1 459,00 € 1 138,02 €
Lowest price 30 days before the discount: 1 543,33 € gross
Availability: Available for order
Shipping time: ~3 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Hose Bogdan Gil WV 52-20ŁA 20 m (diameter 52...
Hose Bogdan Gil WV 52-20ŁA 20 m (diameter 52 mm)Gross price
Technical characteristics
Pressure resistance
10 m
Maximum solid handling
6 mm
Maximum performance
320 l/min
Maximum height lift
15 m
Engine power
0,75 kW / 1 KM
Connector diameter
50 mm
Application
Clean water, ground water, sand water
Tension
230 V (single-phase)
Frequency
50 Hz
Current
5 A (znamionowy)
Cable length
10 m
Weight
13.7 kg
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Urethane rubber, chromium iron casting |
| Casing | Ethylene propylene rubber | |
| Suction plate | Steel plate – urethane | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single phase) | |
| Built-in motor protection | Miniature protector, circle thermal cut-out | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E, Insulation class B | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 50 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
