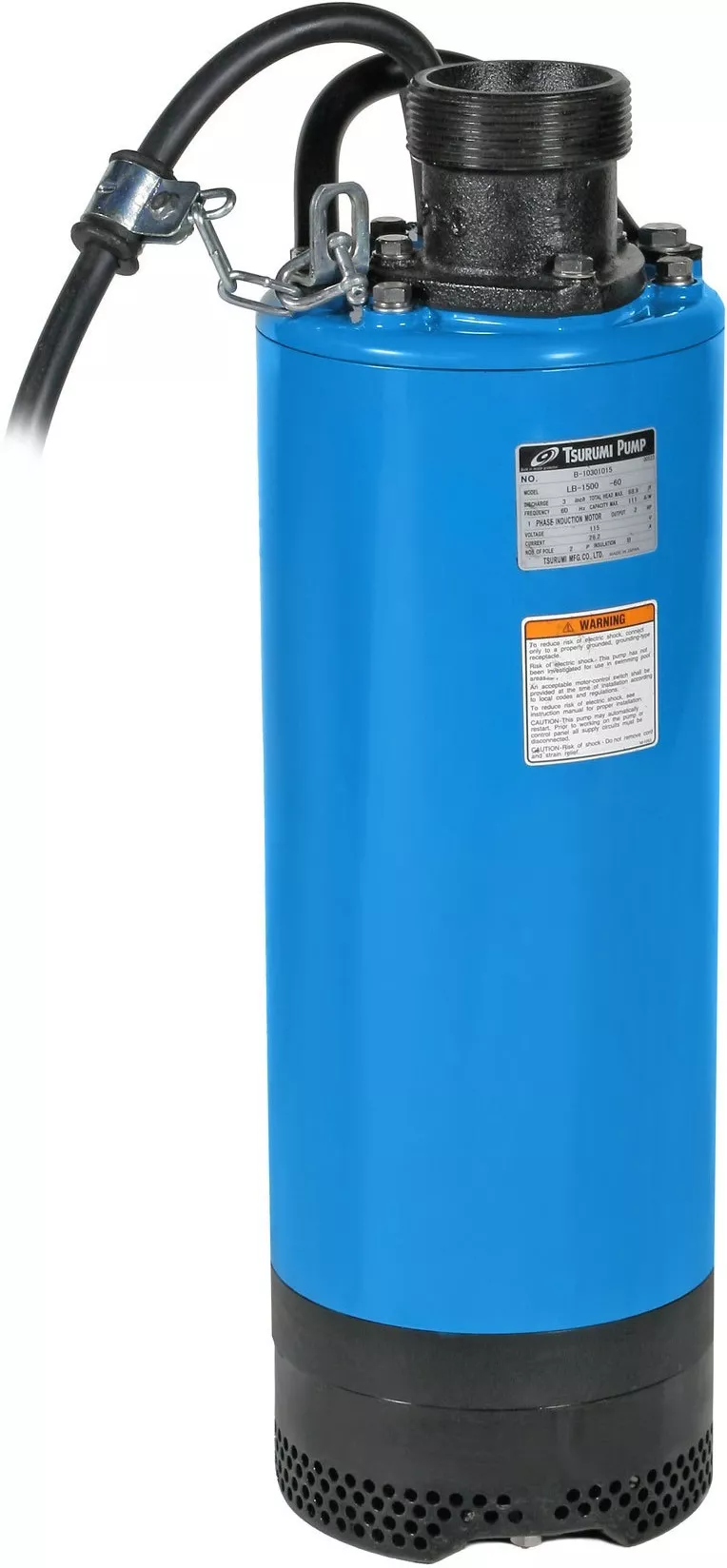

Submersible pump Tsurumi LB-1500

Catalogue number: ILB2FCR4

EAN: 4944792107867

Installments 10x0%

Gross price

2 788,98 €

Net price: ~~2 907,00 €~~ 2 267,46 €

Lowest price 30 days before the discount: 3 075,02 € gross

Availability: Available for order

Shipping time: ~3 days

Delivery price (in Poland): on request

Warranty: 1 year

Comments: 0

Description

Cable lenght

20 m

Pressure resistance

25 m

Maximum solid handling

6 mm

Maximum performance

440 l/min

Maximum height lift

17,5 m

Engine power

1,5 kW / 2 KM

Connector diameter

50 mm

Application

Woda czysta

Weight

33 kg

Current

15,4 A (znamionowy)

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-vortex impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Urethane rubber, chromium iron casting
	Casing	Ethylene propylene rubber
	Suction plate	Steel plate – urethane
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Aluminium die casting
	Shaft	Stainless steel EN-X6CR13
	Cable	Rubber − H07RN-F
Frequency		50 Hz
Voltage		230 V (single phase)
Built-in motor protection		Miniature protector, circle thermal cut-out
Type		Induction motor, 2 poles
Insulation		Insulation class E, Insulation class B
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		50 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
