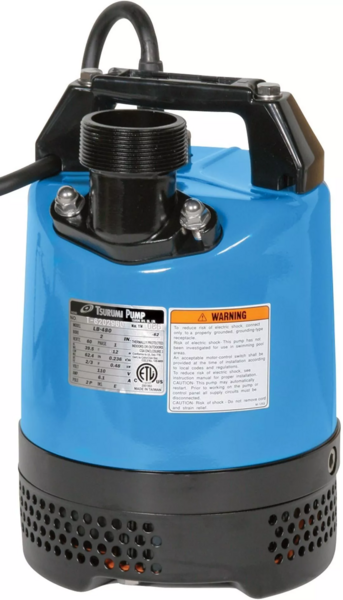

Submersible pump Tsurumi LB-480

Description

Tsurumi Pumps from the LB series are small and powerful submersible pumps of versatile purpose. These devices can be used to drain trenches, ditches, wells or drainage. Their biggest advantage is small dimensions, high efficiency and durability. The pump without any installation requirements is ready to work, just plug it in and ready.

Variant description: Engine power 0.48 kW, lifting height 11m, capacity 225 l/min

Pressure resistance

10 m

Maximum solid handling

6 mm

Maximum performance

225 l/min

Maximum height lift

11 m

Application

Clean water, ground water, sand water

Engine power

0.48 kW

Connector diameter

50 mm

Tension

230 V (single-phase)

Frequency

50 Hz

Current

2.9 A (rated)

Weight

10.4 kg

Cable length

10 m

Advantages

The outlet is directed vertically upwards – forced pump cooling, water flows between the jacket and the engine,
The pump can operate at a low level, as well as when it draws in air.

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-vortex impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Urethane rubber, chromium iron casting
	Casing	Ethylene propylene rubber
	Suction plate	Steel plate – urethane
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Aluminium die casting
	Shaft	Stainless steel EN-X6CR13
	Cable	Rubber − H07RN-F
Frequency		50 Hz
Voltage		230 V (single phase)
Built-in motor protection		Miniature protector, circle thermal cut-out
Type		Induction motor, 2 poles
Insulation		Insulation class E, Insulation class B
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		50 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
