Submersible pump Tsurumi LB-480A (sensor)

Catalogue number: ILATDCRA

Sale

Gross price

~~1 328,40 €~~

1 020,27 €

Net price: ~~1 080,00 €~~ 829,49 €

Lowest price 30 days before the discount: 1 113,04 € brutto

Availability: In stock

Shipping time: 24h

Delivery price (in Poland): on request

Warranty: 1 year

Comments: 0

Description

Pressure resistance

10 m

Maximum solid handling

6 mm

Maximum performance

225 l/min

Maximum height lift

11 m

Engine power

0.48 kW / 0.65 KM

Connector diameter

50 mm

Application

Woda czysta

Current

2.9 A (znamionowy)

Tension

230 V (single-phase)

Frequency

50 Hz

Cable length

10 m

Weight

11 kg

DETAILED SPECIFICATION

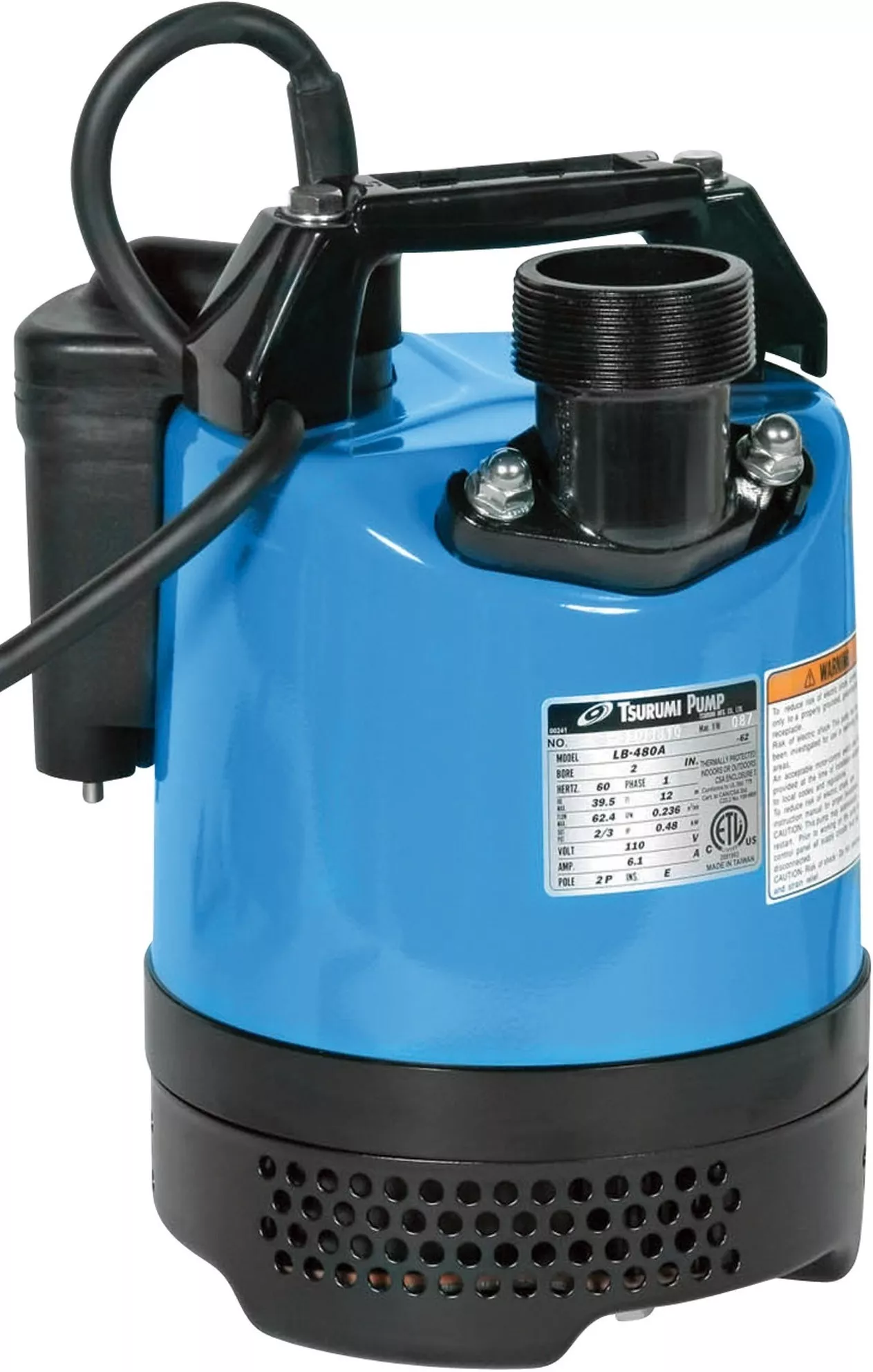

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-vortex impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Urethane rubber, chromium iron casting
	Casing	Ethylene propylene rubber
	Suction plate	Steel plate – urethane
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Aluminium die casting
	Shaft	Stainless steel EN-X6CR13
	Cable	Rubber − H07RN-F
Frequency		50 Hz
Voltage		230 V (single phase)
Built-in motor protection		Miniature protector, circle thermal cut-out
Type		Induction motor, 2 poles
Insulation		Insulation class E, Insulation class B
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		50 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
