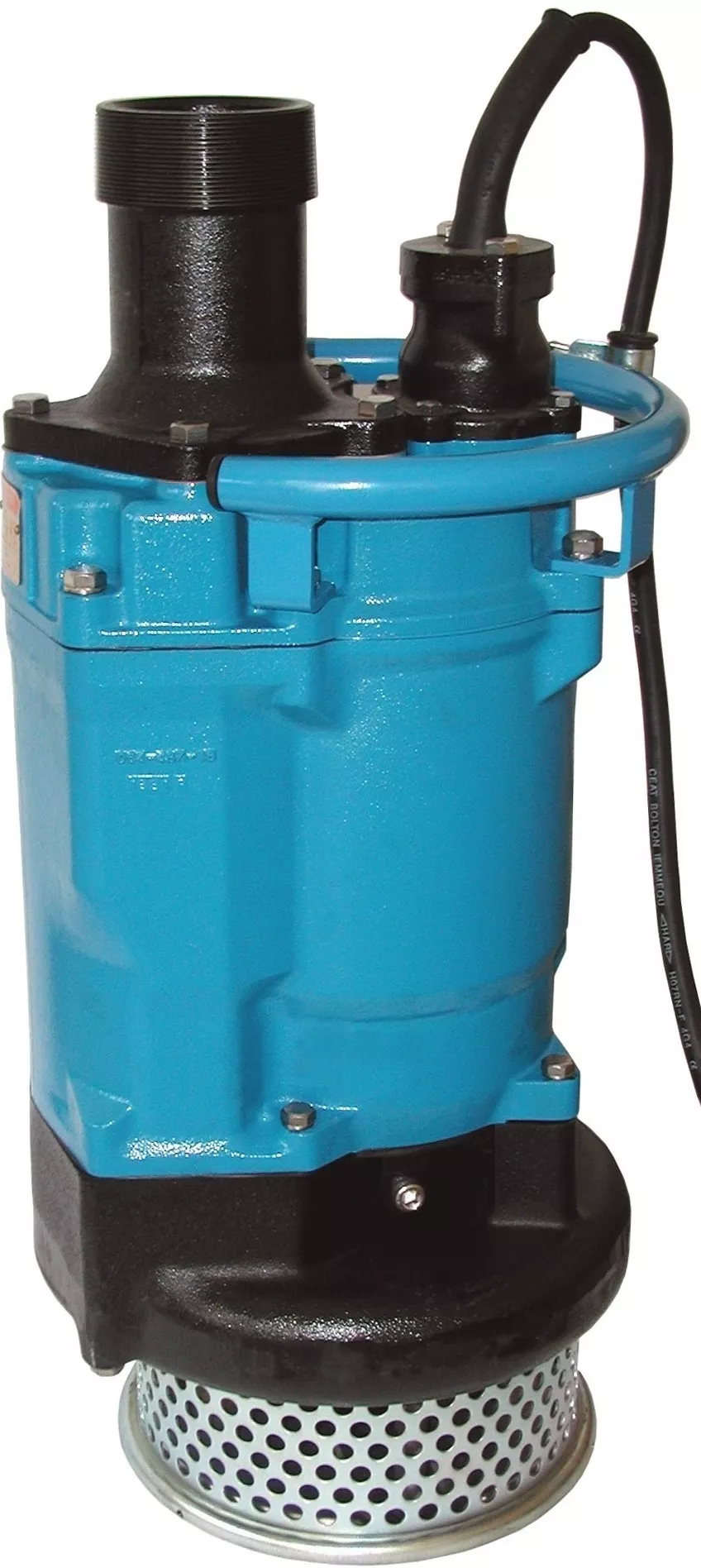

Submersible pump Tsurumi KTZ 43.7

Description

Cable lenght

20 m

Pressure resistance

25 m

Maximum solid handling

8,5 mm

Maximum performance

1440 l/min

Maximum height lift

18 m

Engine power

3,7 kW / 5 KM

Connector diameter

100 mm

Application

Woda czysta

Weight

62.5 kg

Current

7,7 A (znamionowy)

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-open type impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Chromium iron casting
	Casing	Grey iron casting EN-GJL-200
	Suction plate	Ductile iron casting EN-GJS-500-7
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Grey iron casting EN-GJL-200
	Shaft	Stainless steel EN-X30CR13
	Cable	Rubber − NSSHÖU
Frequency		50 Hz
Voltage		400 V (three-phase)
Built-in motor protection		Circle thermal cut-out
Type		Induction motor, 2 poles
Insulation		Insulation class F
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		100 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
