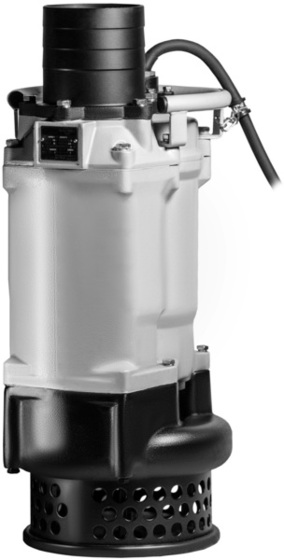

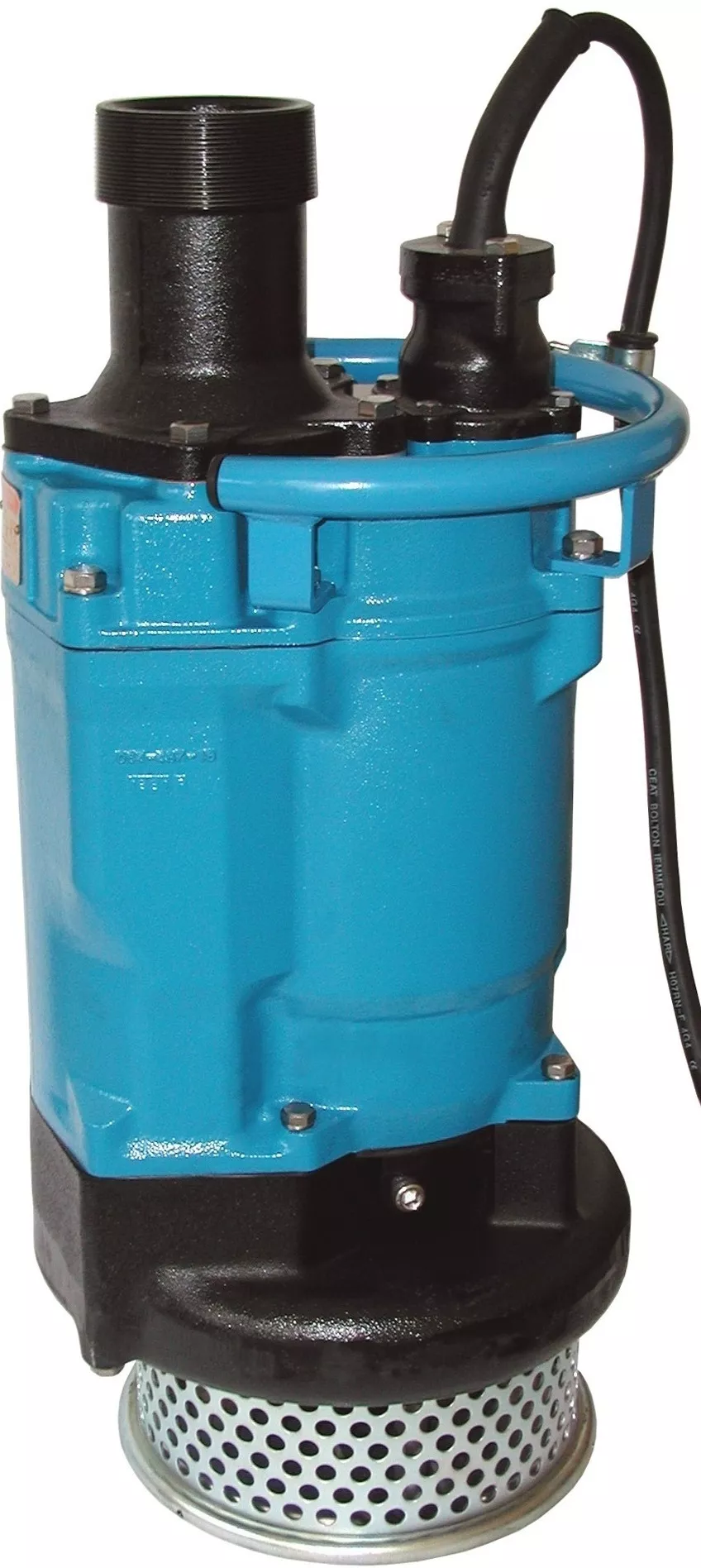

Submersible pump Tsurumi KTZ 35.5

Description

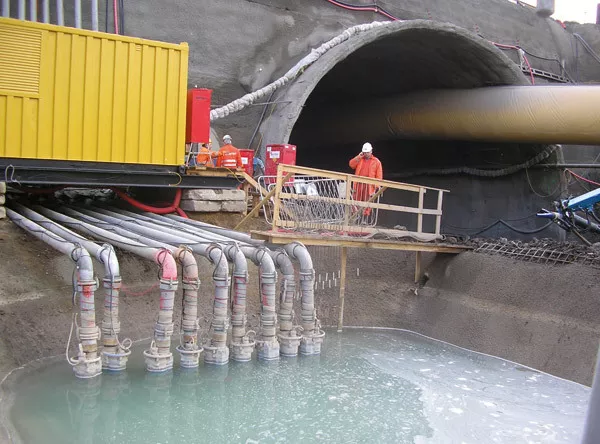

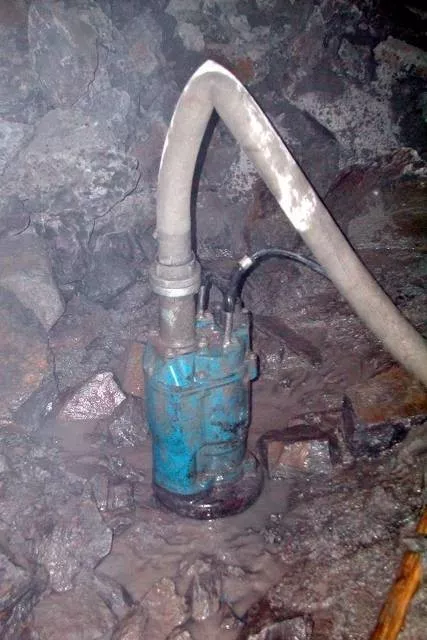

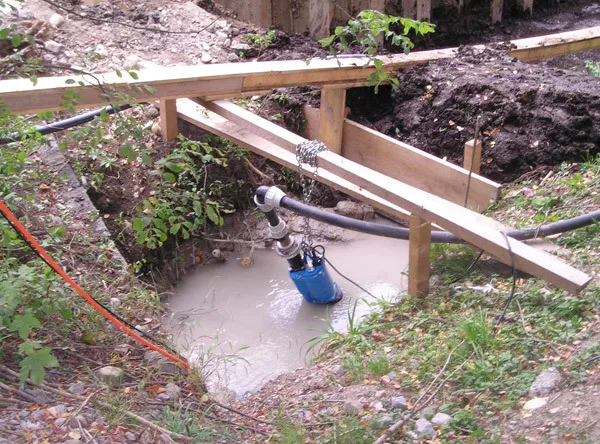

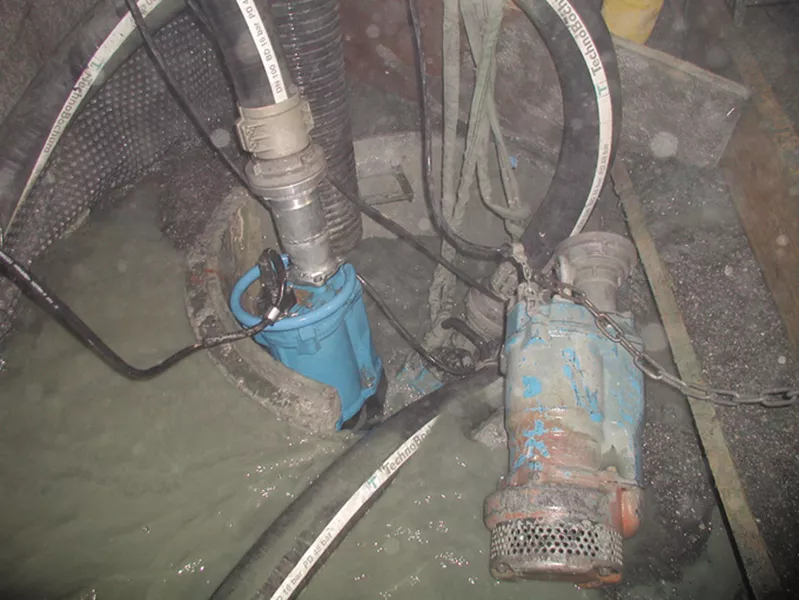

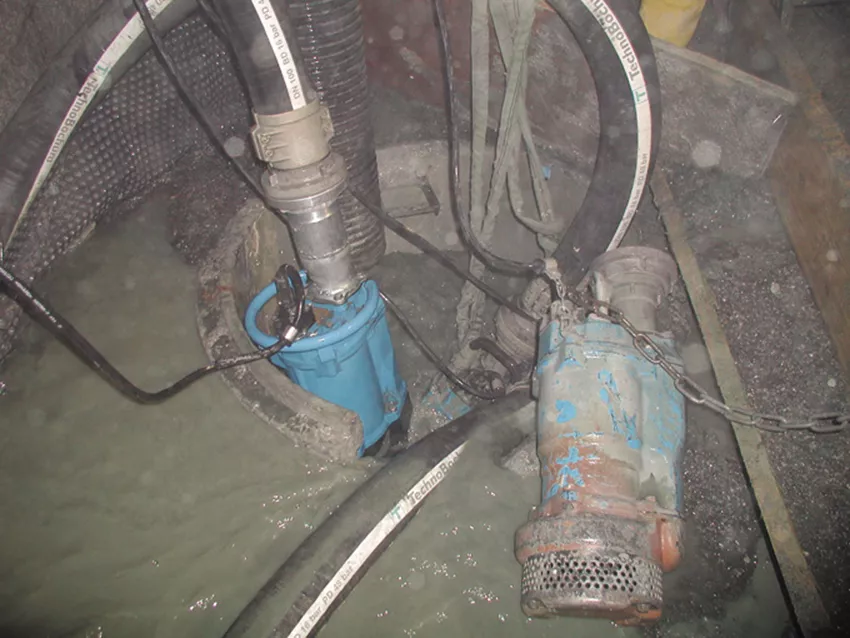

The Tsurumi KTZ 35.5 is a high-quality pump used for drainage in construction. The pump is cooled by pumped water and it is effective even at very low flow. The discharge nozzle is located from above, which allows the pump to be installed in places with limited space. Continuous pump operation is also possible even when it is not submerged in water. A pump made of cast iron is more resistant to abrasion than a standard aluminium pump.

Variant description: Engine power 5.5 kW, lifting height 32 m, capacity 1100 l/min, connection diameter 3''

Pressure resistance

25 m

Maximum solid handling

8,5 mm

Maximum performance

1100 l/min

Maximum height lift

32 m

Engine power

5,5 kW / 7,5 KM

Application

Clear water

Connector diameter

80 mm

Current

11,4 A (rated)

Electric wire length

20 m

Weight

82 kg

Voltage

400 V (triphase)

advantages

The vertical outlet upwards ensures effective cooling even at low expenses. Installation is also possible where space is limited,
The pump can work at low water levels, as well as with air intake,
All parts exposed to abrasion are made of cast iron, making them harder. For each engine, there are at least 2 rotors to choose from with different characteristics,
The new mechanical seals allow the pump to be submerged up to 25 m, which increases the possibilities of use in construction.

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-open type impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Chromium iron casting
	Casing	Grey iron casting EN-GJL-200
	Suction plate	Ductile iron casting EN-GJS-500-7
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Grey iron casting EN-GJL-200
	Shaft	Stainless steel EN-X30CR13
	Cable	Rubber − NSSHÖU
Frequency		50 Hz
Voltage		400 V (three-phase)
Built-in motor protection		Circle thermal cut-out
Type		Induction motor, 2 poles
Insulation		Insulation class F
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		75 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
