Submersible pump Tsurumi HS 3.75S
Catalogue number: IHS3ECRD
EAN: 4944792107911
Sale
Gross price
927,50 €
Net price: 987,00 € 754,06 €
Lowest price 30 days before the discount: 927,50 € gross
Availability: Available for order
Shipping time: ~3 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Firehose Tagred TA532 20 m (diameter 75 mm)
Firehose Tagred TA532 20 m (diameter 75 mm)Gross price
Hose Bogdan Gil WV 75-20ŁA 20 m (diameter 75...
Hose Bogdan Gil WV 75-20ŁA 20 m (diameter 75 mm)Gross price

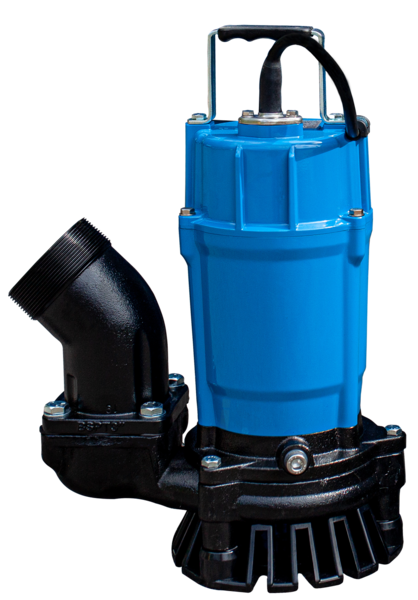

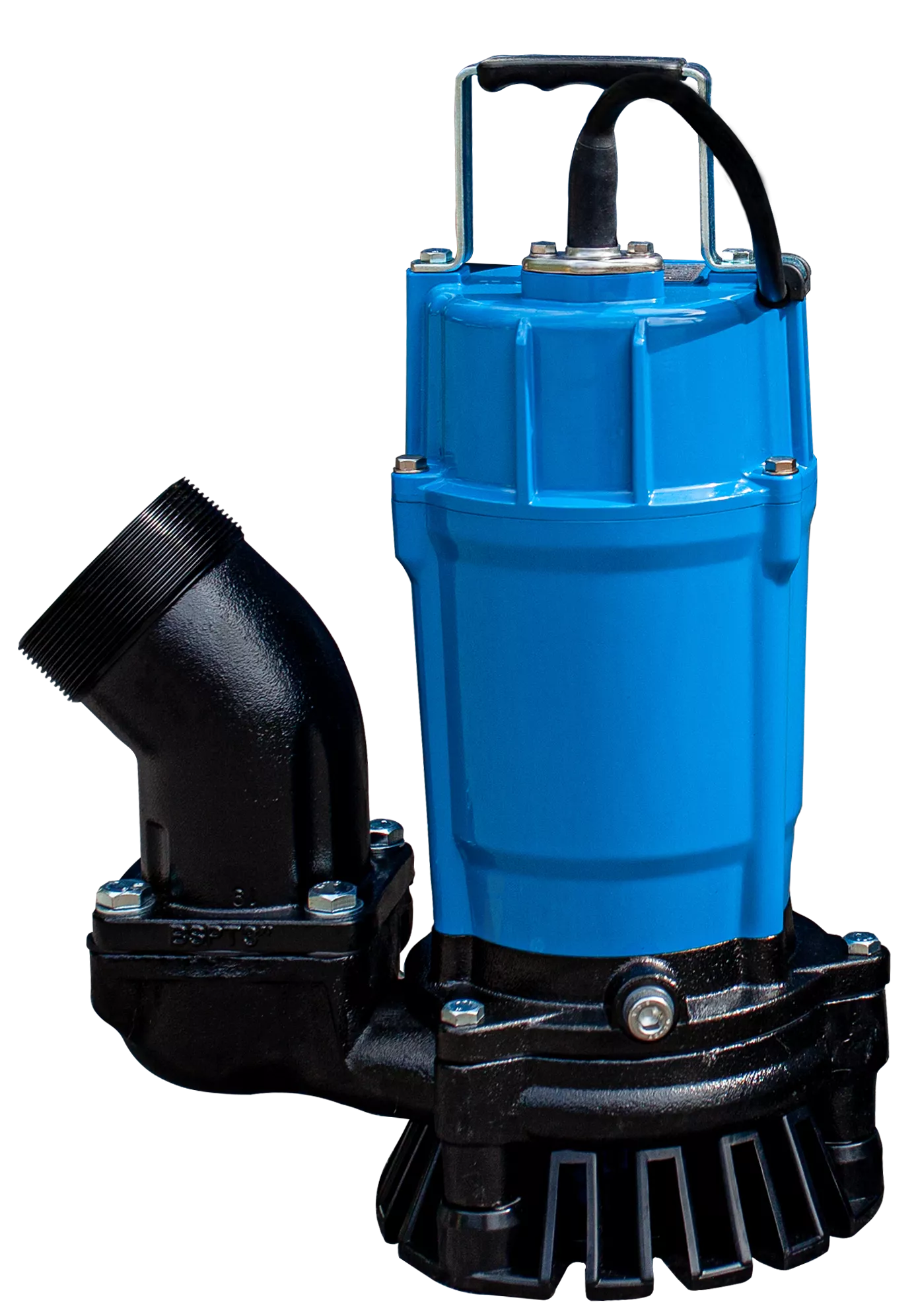

Tsurumi HS 3.75 S is a submersible electric pump for pumping water contaminated with sand, gravel or dust. These pumps can be used to drain trenches, ditches, wells or drainage. Its biggest advantage is small dimensions, high efficiency and durability. There is no suction plate in the pump.
Variant description: Lifting height 18 m, capacity 300 l / min, connection diameter 3"
Technical characteristics
Pressure resistance
10 m
Maximum solid handling
7 mm
Maximum performance
300 l/min
Maximum height lift
18 m
Connector diameter
80 mm
Application
Clean water, ground water, sand water
Engine power
0,75 kW / 1 KM
Tension
230 V (single-phase)
Frequency
50 Hz
Cable length
10 m
Current
4.8 A (rated)
Weight
19.6 kg
Advantages
- The spiral pump body with a large cross-section allows easy transport of sand and other deposits. The engine is well cooled so that the pump can run dry for a long time,
- Side outflow – the spiral flow makes pumping water with sand or sludge without any problems. The pump runs dry safely even when it is partially submerged or when it draws in air,
- Long service life and simple operation,
- The pump body is resistant to abrasion. Access to the rotor is possible after unscrewing only three screws,
- Newly developed engine – the aluminium motor body is lightweight and provides good cooling.
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Urethane rubber |
| Casing | Ductile iron casting EN-GJS-700-2 | |
| Suction plate | – | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single phase) | |
| Built-in motor protection | Miniature protector | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 75 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
