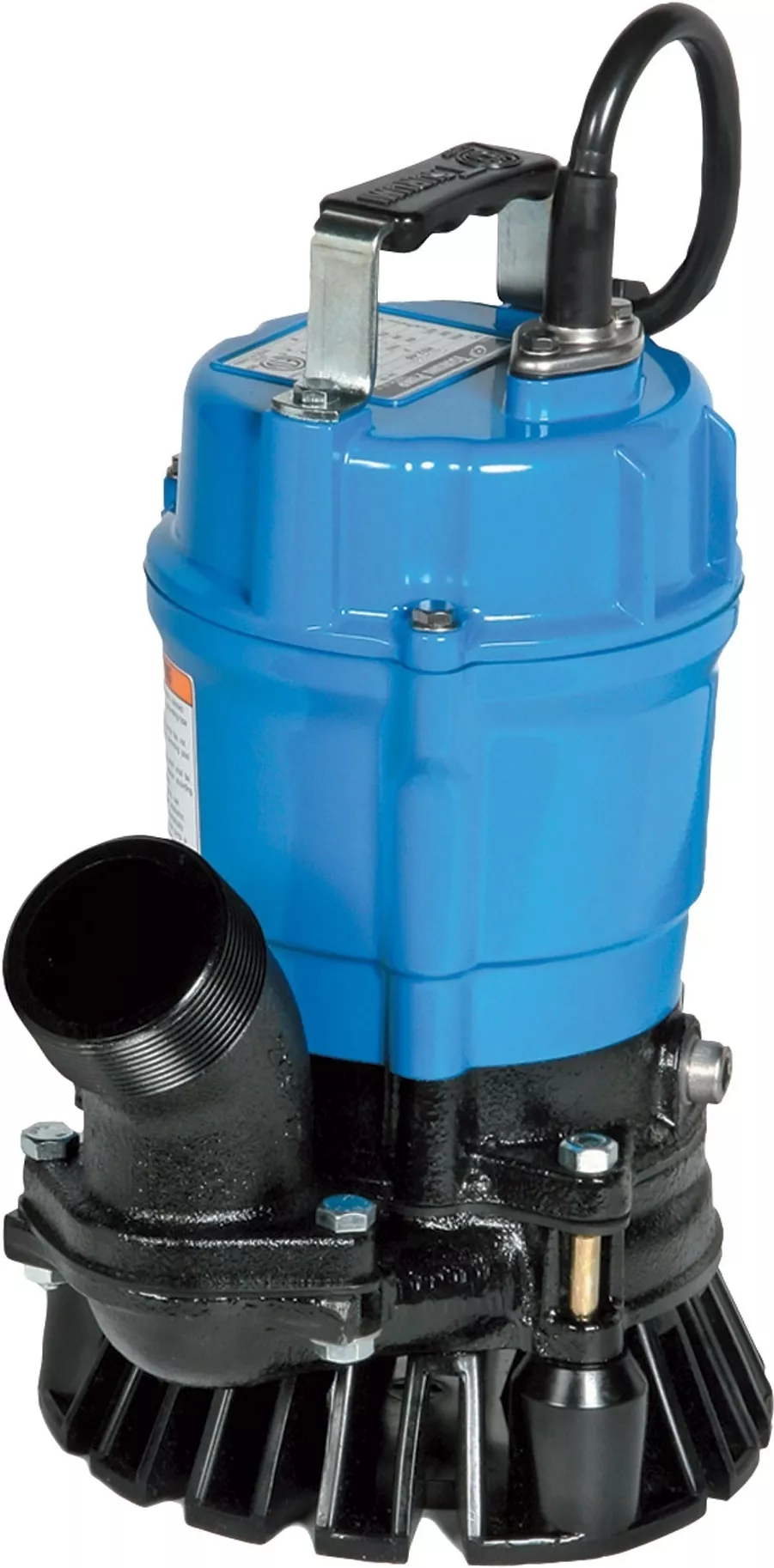

Submersible pump Tsurumi HS 2.4S
The HS 2.4 S Tsurumi is a submersible electric pump for pumping water contaminated with sand, gravel or dust. These pumps can be used for dewatering excavation, trenching, wells or drainage. Its most significant advantage is its compact size, high efficiency and durability. There is no suction plate installed in the pump.
Variant description: Lifting height 12.2 m, capacity 207 l/min, connection diameter 2''
Technical characteristics
Pressure resistance
10 m
Maximum solid handling
7 mm
Maximum performance
207 l/min
Maximum height lift
12.2 m
Engine power
0.4 kW
Connector diameter
50 mm
Application
Clean water, ground water, sand water
Tension
230 V (single-phase)
Frequency
50 Hz
Current
2.6 A (rated)
Cable length
10 m
Weight
11.3 kg
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Urethane rubber |
| Casing | Ductile iron casting EN-GJS-700-2 | |
| Suction plate | – | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single phase) | |
| Built-in motor protection | Miniature protector | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 50 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
advantages
-
The spiral pump body with broad cross-section allows easy transportation of sand and other deposits. The motor is well cooled so that the pump can work dry for a long time,
-
Lateral flow – the spiral movement makes pumping of water with sand or sedation carried out without hassle. The pump safely runs dry even when it is partially immersed or when the air sucks,
-
High service life and simple operation,
-
The pump body is abrasion-resistant. Access to the rotor is possible after unscrewing only three bolts,
-
The newly developed engine – the aluminium engine body is lightweight and provides proper cooling.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
