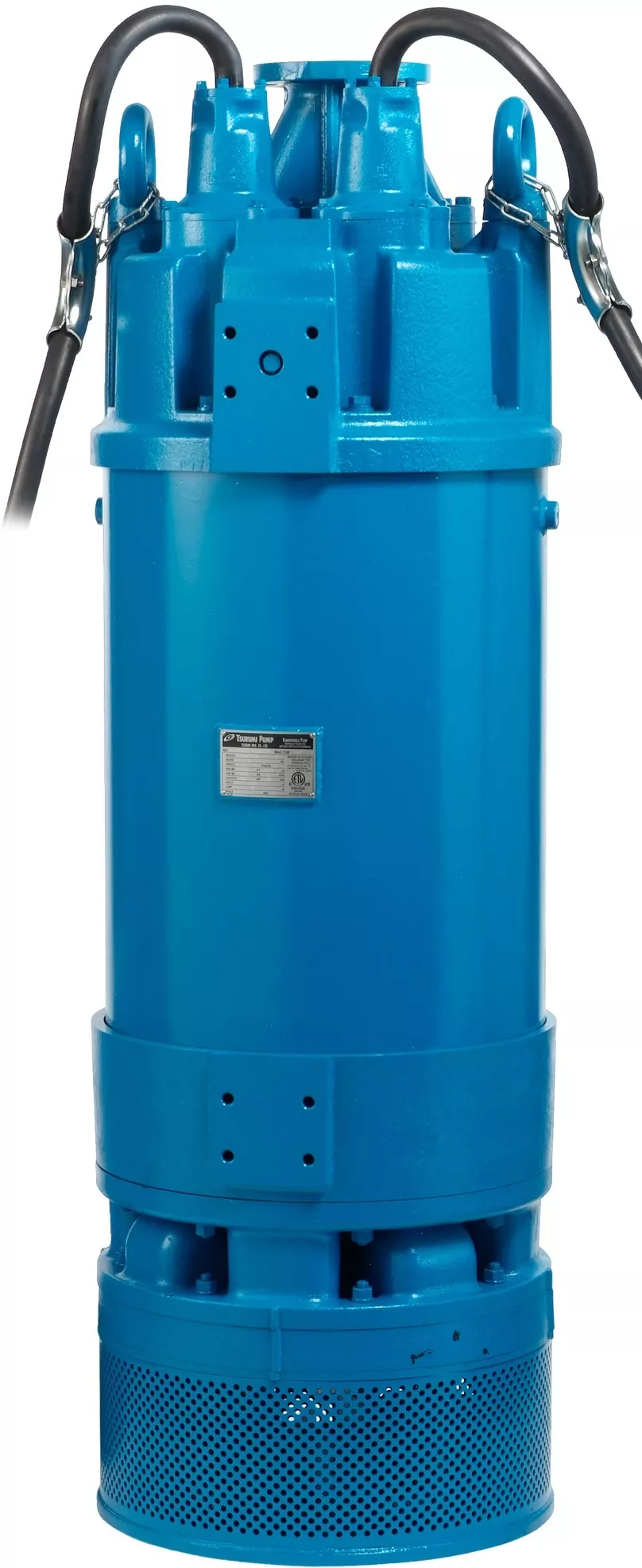

Submersible pump Tsurumi LH 4110W

Tsurumi Pump
Catalogue number: ILW4WHR1
EAN: 4944792111925
Price on request
Availability:  Temporarily unavailable
Shipping time:  on requesti The shipping time for this product is determined individually.

Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Technical characteristics

1270 kg
Cable lenght
20 m
Pressure resistance
30 m
Maximum solid handling
8 mm
Maximum performance
2000 l/min
Maximum height lift
216 m
Engine power
110 kW
Rated current
209 A
Connector diameter
woda czysta


  Submersible pump Tsurumi
Specification Pump
Components Impeller Closed type impeller
Bearings Shielded ball bearings
Shaft seal Double mechanical seal
Material Impeller Chromium iron casting
Casing Grey iron casting EN-GJL-200, ductile iron casting EN-GJS-450-10
Suction plate
Shaft seal Silicon carbide in oil bath
Specification Motor
Casing Grey iron casting EN-GJL-200
Shaft Stainless steel EN-X30CR13
Cable Rubber − NSSHÖU
Frequency 50 Hz
Voltage 400 V (three-phase)
Built-in motor protection Circle thermal cut-out, miniature protector
Type Induction motor, 2 poles
Insulation Insulation class F, insulation class B
Lubrication Turbine oil − ISOVG32
Protection IP 68
Specification Pumping Fluid
Medium type Spring water, rain water, ground water, sand carrying water
Temperature 040° C
Specification Other
ø Discharge bore mm 100 mm
Discharge Connection Threaded flange, JIS 20K flange
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
