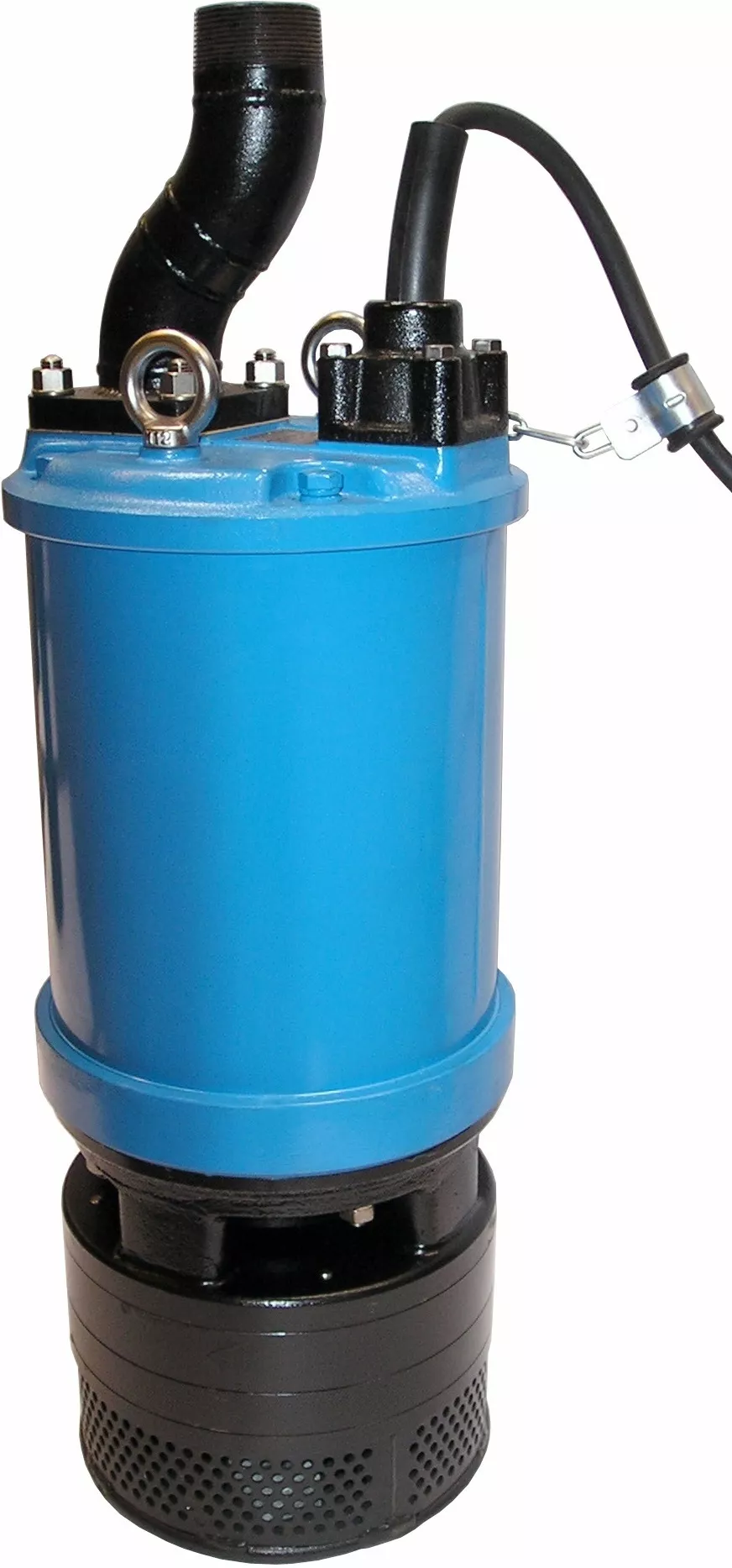

Submersible pump Tsurumi LH 23.0W
Catalogue number: ILW2HHR0
Installments 10x0%
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Weight
46 kg
Cable lenght
20 m
Pressure resistance
25 m
Maximum solid handling
6 mm
Maximum performance
600 l/min
Maximum height lift
39 m
Engine power
3 kW
Rated current
6,5 A
Connector diameter
2''
Application
woda czysta
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Closed type impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Chromium iron casting |
| Casing | Grey iron casting EN-GJL-200, Ductile iron casting EN-GJS-450-10 | |
| Suction plate | − | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Grey iron casting EN-GJL-200 |
| Shaft | Stainless steel EN-X30CR13 | |
| Cable | Rubber − NSSHÖU | |
| Frequency | 50 Hz | |
| Voltage | 400 V (three-phase) | |
| Built-in motor protection | Circle thermal cut-out, miniature protector | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class F, insulation class B | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 50 mm | |
| Discharge Connection | Threaded flange, JIS 20K flange | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
