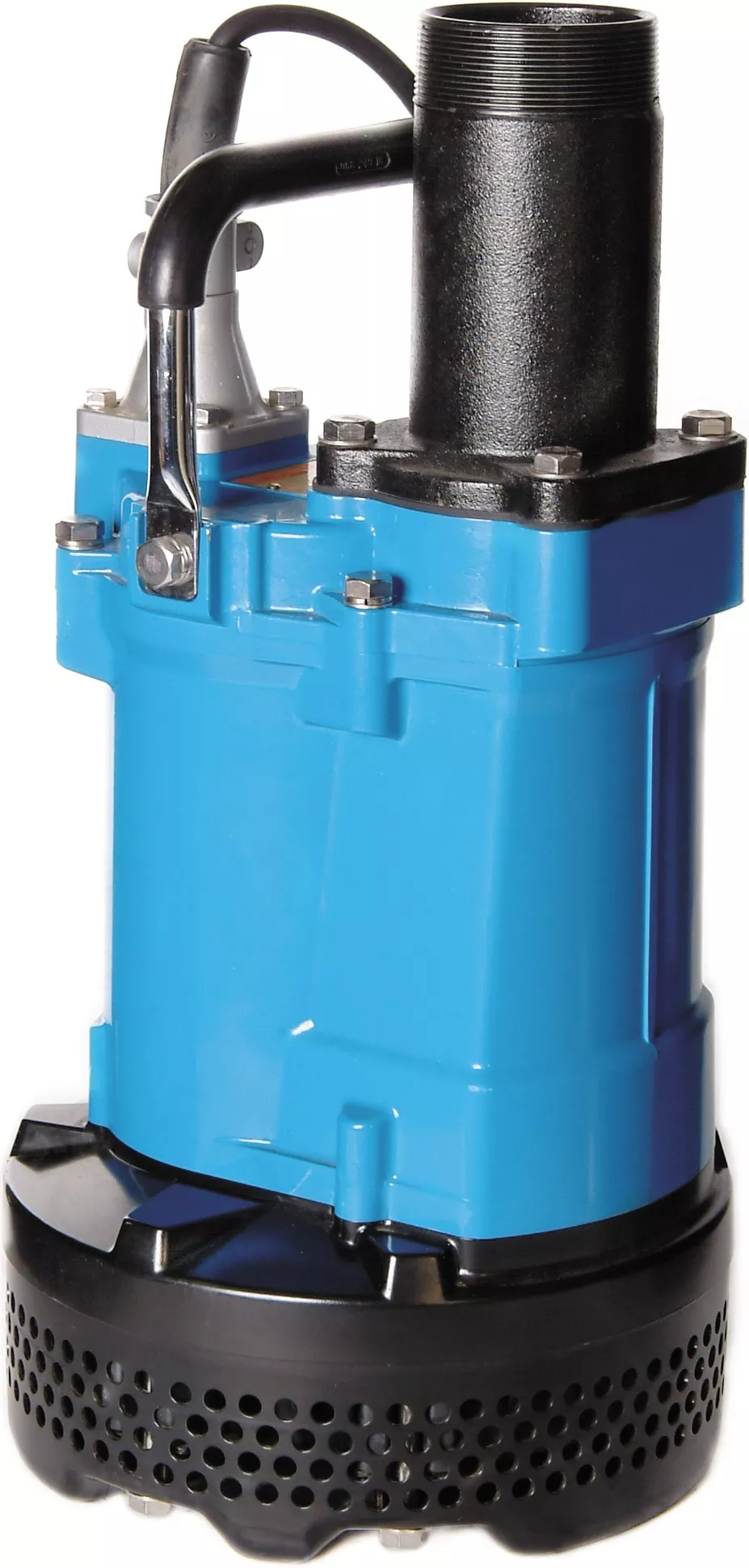

Submersible pump Tsurumi KTV 2-37
Catalogue number: IKVHIR2
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Technical characteristics
Cable lenght
20 m
Pressure resistance
25 m
Maximum solid handling
8,5 mm
Maximum performance
830 l/min
Maximum height lift
26,5 m
Engine power
3,7 kW / 5 KM
Connector diameter
75 mm
Application
Woda czysta
Current
7,4 A (znamionowy)
Length x width x height
285 × 285 × 585 mm
Weight
36 kg
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Urethane rubber, ductile iron casting EN-GJS-700-2 |
| Casing | Synthetic rubber | |
| Suction plate | − | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13, stainless steel EN-X30CR13 | |
| Cable | Rubber − NSSHÖU | |
| Frequency | 50 Hz | |
| Voltage | 400 V (three-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 75 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
