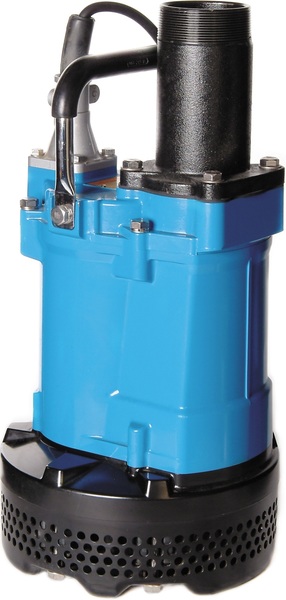

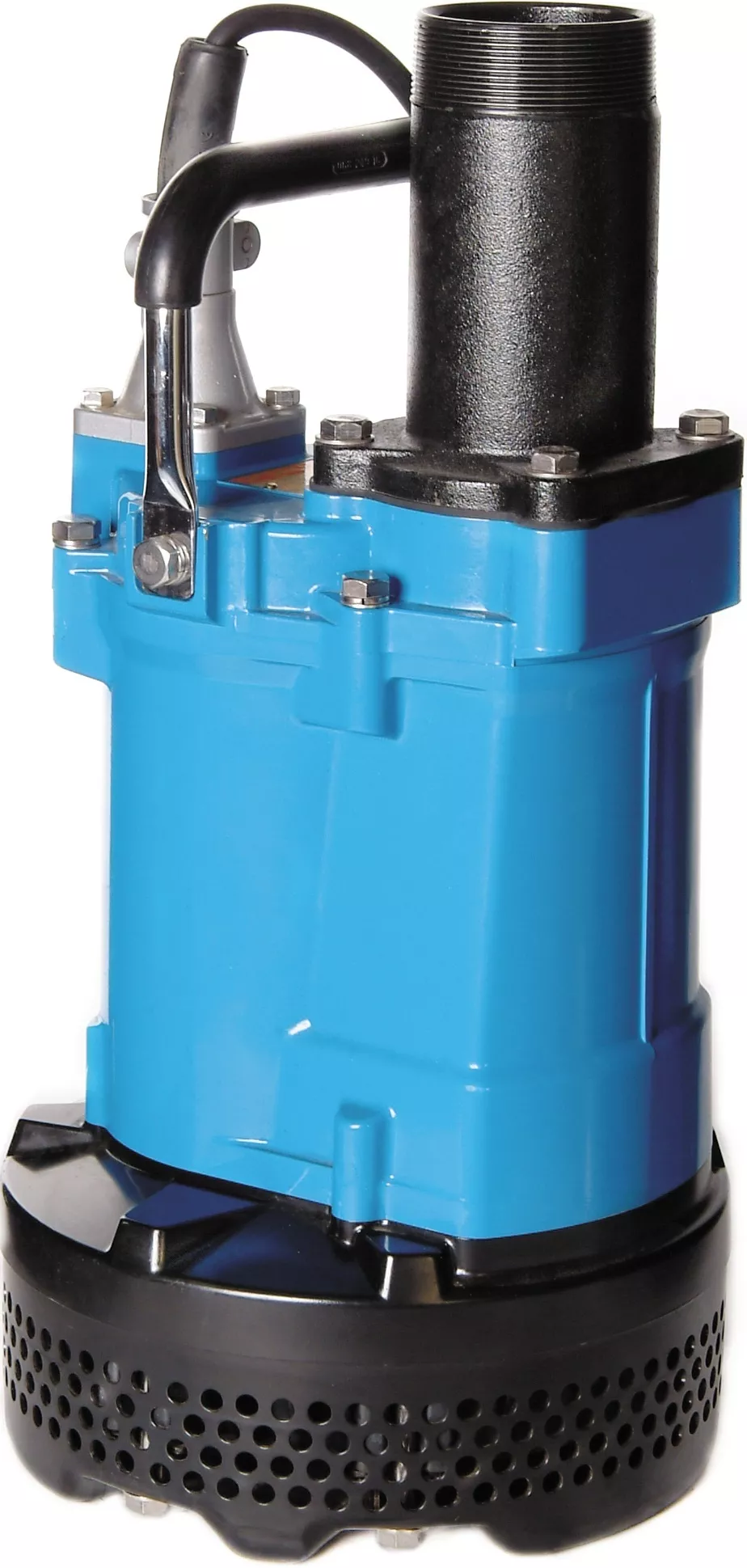

Submersible pump Tsurumi KTV 2-15

Catalogue number: IKVFHR3

Price on request

Availability: Temporarily unavailable

Shipping time: on request

Warranty: 1 year

Comments: 0

Description

Cable lenght

20 m

Pressure resistance

25 m

Maximum solid handling

8,5 mm

Maximum performance

420 l/min

Maximum height lift

20 m

Engine power

1,5 kW / 2 KM

Connector diameter

50 mm

Application

Woda czysta

Weight

20.5 kg

Current

3,3 A (znamionowy)

Length x width x height

240 × 240 × 396 mm

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-vortex impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Urethane rubber, ductile iron casting EN-GJS-700-2
	Casing	Synthetic rubber
	Suction plate	−
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Aluminium die casting
	Shaft	Stainless steel EN-X6CR13, stainless steel EN-X30CR13
	Cable	Rubber − NSSHÖU
Frequency		50 Hz
Voltage		400 V (three-phase)
Built-in motor protection		Circle thermal cut-out
Type		Induction motor, 2 poles
Insulation		Insulation class E
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		50 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
