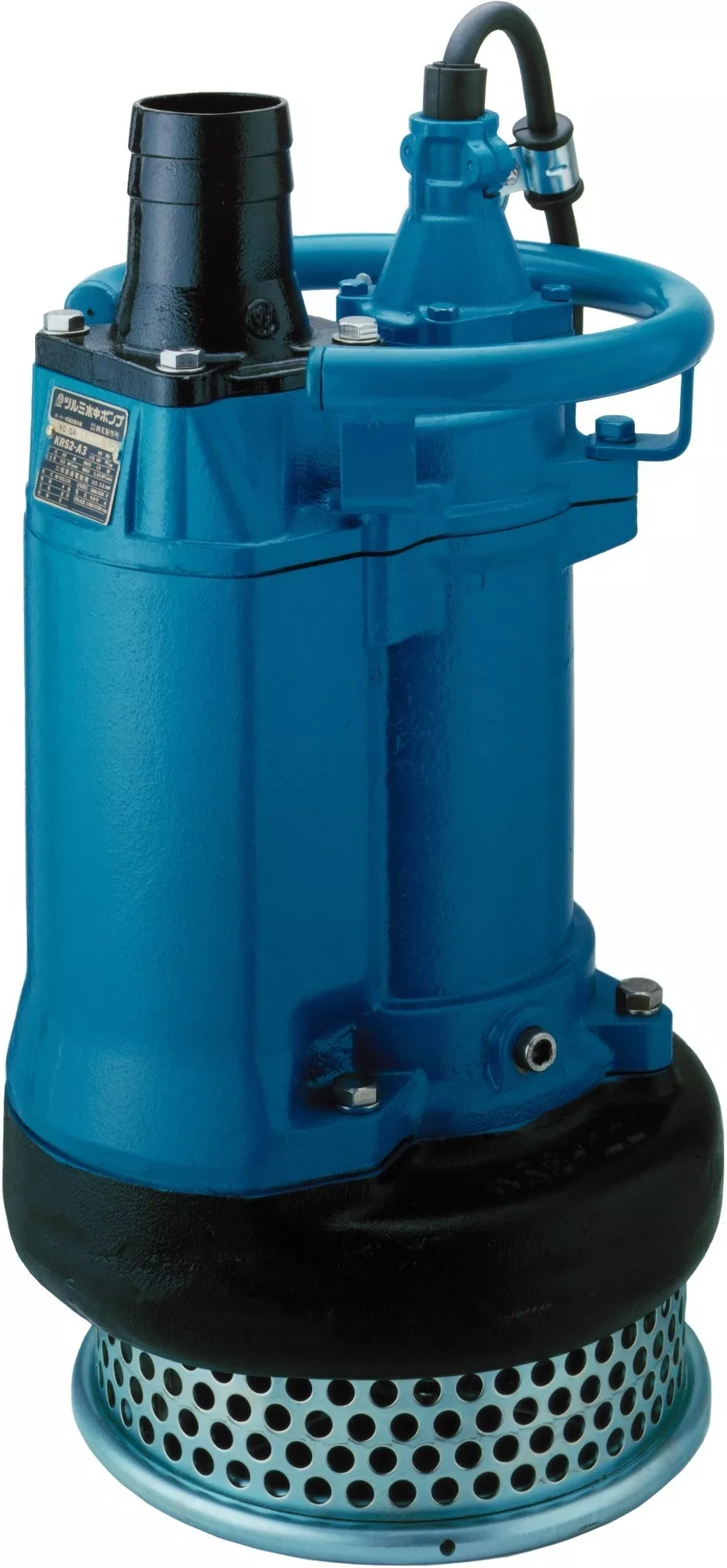

Submersible pump Tsurumi KRS 822
Catalogue number: IKS22HR2
Installments 10x0%
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Weight
385 kg
Cable lenght
20 m
Pressure resistance
20 m
Maximum solid handling
25 mm
Maximum performance
5300 l/min
Maximum height lift
34,8 m
Engine power
22 kW
Rated current
44,6 A
Connector diameter
8''
Application
woda czysta
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-open type impeller, closed type impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Ductile iron casting EN-GJS-700-2 |
| Casing | Grey iron casting EN-GJL-200 | |
| Suction plate | Grey iron casting EN-GJL-200 | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Grey iron casting EN-GJL-150, grey iron casting EN-GJL-200 |
| Shaft | Stainless steel EN-X30CR13 | |
| Cable | Rubber − NSSHÖU | |
| Frequency | 50 Hz | |
| Voltage | 400 V (three-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 4 poles | |
| Insulation | Insulation class E, insulation class F, insulation class B | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 200 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
