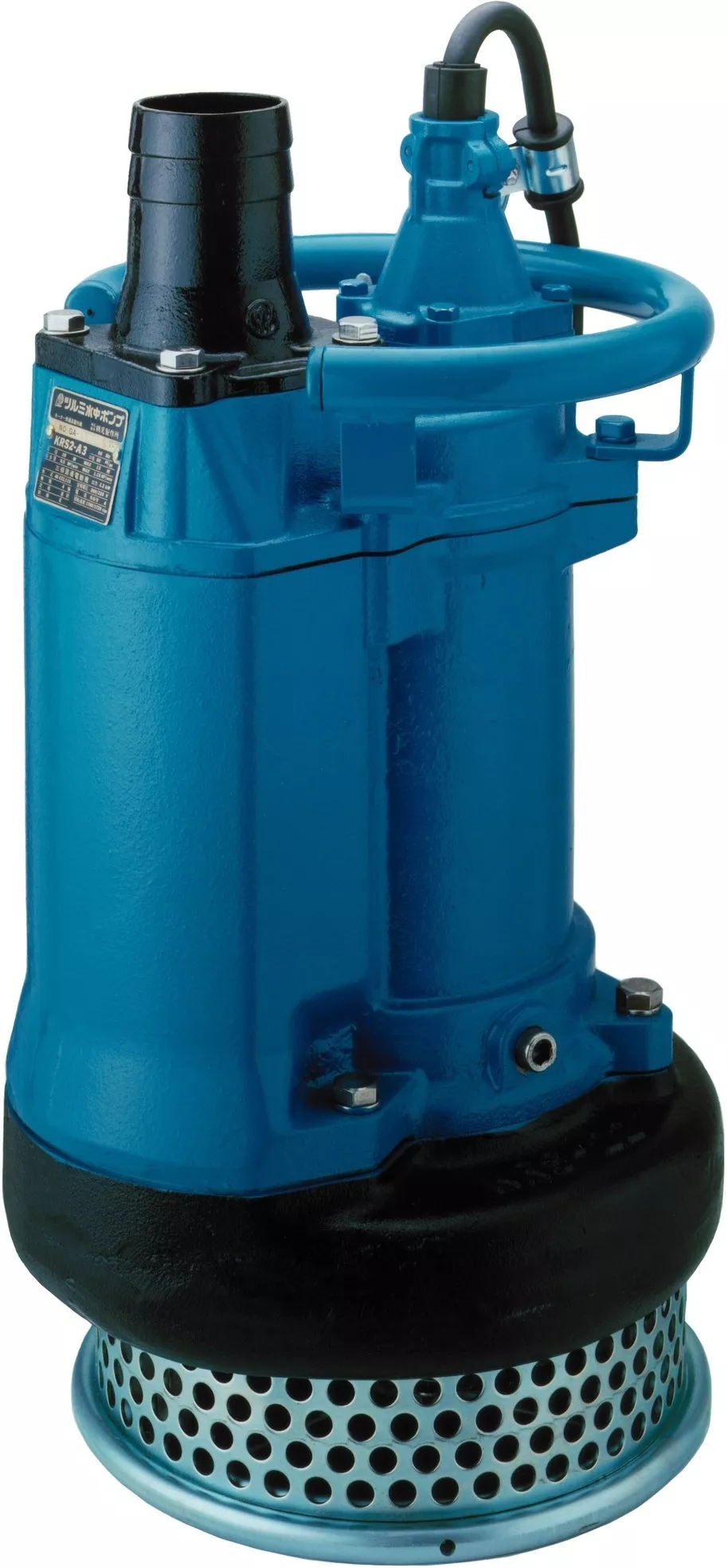

Submersible pump Tsurumi KRS 2-89

Catalogue number: IKR8JIR0

Price on request

Availability: Temporarily unavailable

Shipping time: on request

Warranty: 1 year

Comments: 0

Description

Weight

175 kg

Cable lenght

20 m

Pressure resistance

15 m

Maximum solid handling

30 mm

Maximum performance

5300 l/min

Maximum height lift

15 m

Engine power

9 kW

Rated current

19 A

Connector diameter

8''

Application

woda czysta

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Semi-open type impeller, closed type impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Ductile iron casting EN-GJS-700-2
	Casing	Grey iron casting EN-GJL-200
	Suction plate	Grey iron casting EN-GJL-200
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Grey iron casting EN-GJL-150, grey iron casting EN-GJL-200
	Shaft	Stainless steel EN-X30CR13
	Cable	Rubber − NSSHÖU
Frequency		50 Hz
Voltage		400 V (three-phase)
Built-in motor protection		Circle thermal cut-out
Type		Induction motor, 4 poles
Insulation		Insulation class E, insulation class F, insulation class B
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		200 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
