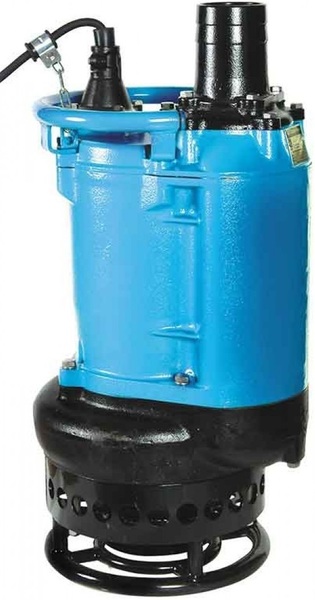

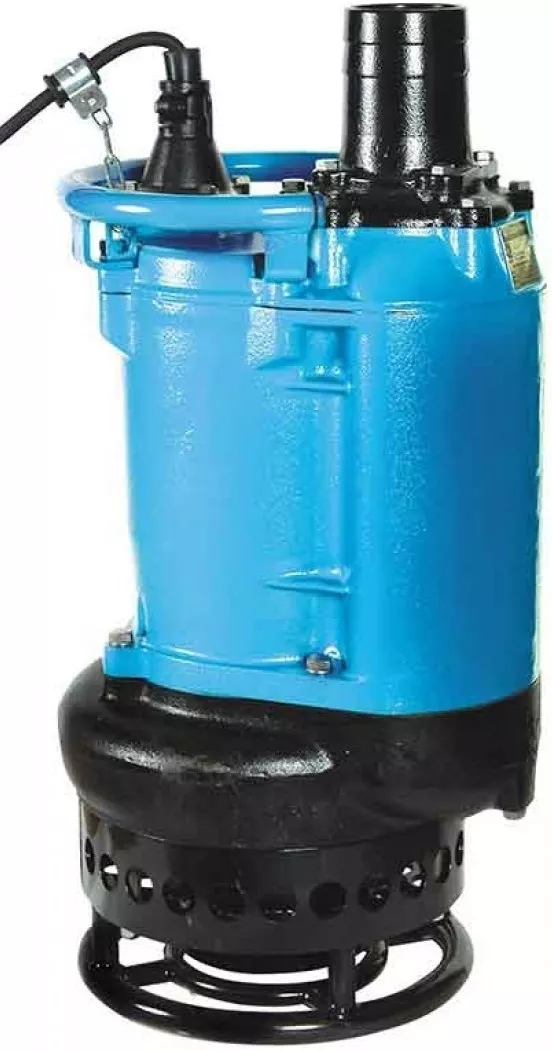

Submersible pump Tsurumi KRS 2-80
Catalogue number: IKR3HIR0
Additional number: KRD35.5 / KRS2-80
Installments 10x0%
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Professional pump Tsurumi KRS 2-80 with agitator. Ideal for sediments, sand and bentonite. A special cast iron pump with the 4-pole motor was created for heavy work.
Variant description: Engine power 4 kW, lifting height 15.8 m, capacity 1670 l/min, discharge nozzle 3 ''
Technical characteristics
Pressure resistance
15 m
Maximum solid handling
30 mm
Maximum performance
1670 l/min
Maximum height lift
15,8 m
Engine power
4 kW / 5,4 KM
Connector diameter
3''
Application
Dirty water
Weight
105 kg
Electric wire length
20 m
Current
9,5 A (rated)
advantages
- The agitator at the end of the shaft mixes the medium, so that silt, sediment and sand are pumped without any problem.
- All parts exposed to abrasion are made of cast iron, which is much more durable than aluminium.
- The vertical upright outlet and side flow ensure effective engine cooling
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Open type impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Chromium iron casting |
| Casing | Grey iron casting EN-GJL-200 | |
| Suction plate | Chromium iron casting | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Grey iron casting EN-GJL-150 |
| Shaft | Stainless steel EN-X30CR13 | |
| Cable | Rubber − NSSHÖU | |
| Frequency | 50 Hz | |
| Voltage | 400 V (three-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 4 poles | |
| Insulation | Insulation class E, insulation class B | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Sludge, slurry, liquids containing sandy mud and/or bentonite | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 80 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
