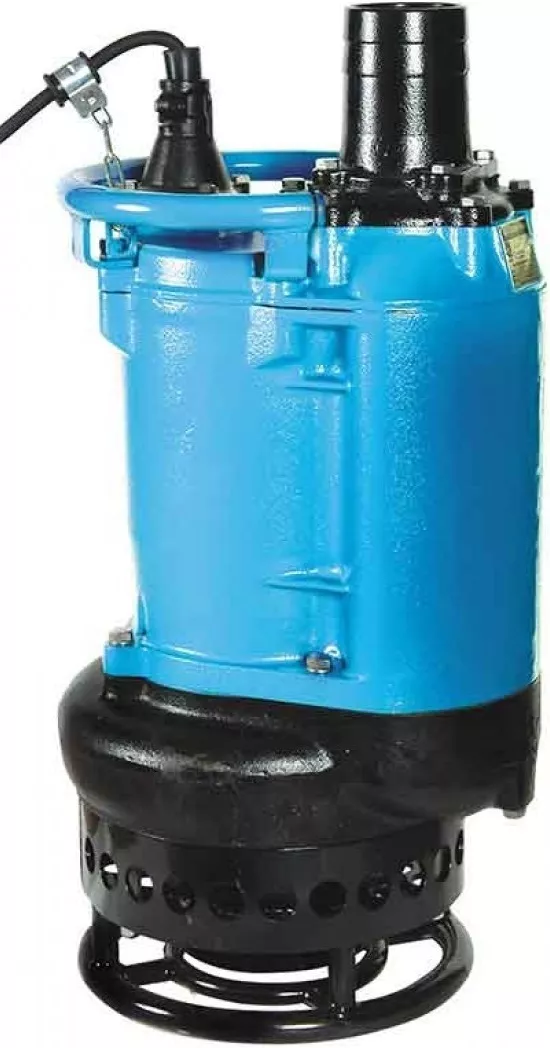

Submersible pump Tsurumi KRS 2-150
Catalogue number: IKR6JIR0
Installments 10x0%
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Weight
170 kg
Cable lenght
20 m
Pressure resistance
15 m
Maximum solid handling
30 mm
Maximum performance
3250 l/min
Maximum height lift
22 m
Engine power
9 kW
Rated current
18,5 A
Connector diameter
6''
Application
woda brudna
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Open type impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Chromium iron casting |
| Casing | Grey iron casting EN-GJL-200 | |
| Suction plate | Chromium iron casting | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Grey iron casting EN-GJL-150 |
| Shaft | Stainless steel EN-X30CR13 | |
| Cable | Rubber − NSSHÖU | |
| Frequency | 50 Hz | |
| Voltage | 400 V (three-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 4 poles | |
| Insulation | Insulation class E, insulation class B | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Sludge, slurry, liquids containing sandy mud and/or bentonite | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 150 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
