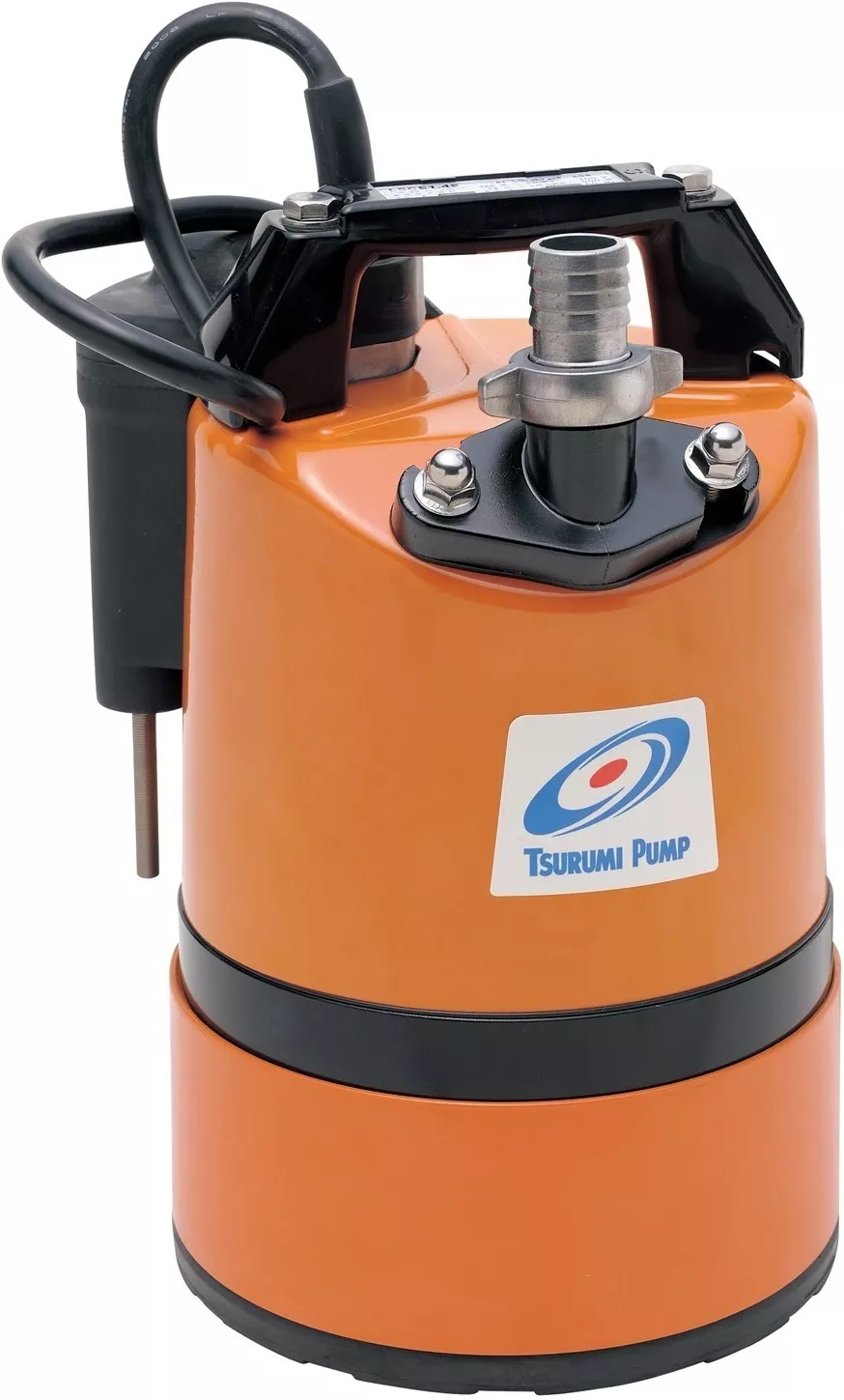

Submersible pump Tsurumi LSCE 1.4S
Catalogue number: ILCETDCRASS
Gross price
1 444,95 €
Net price: 1 366,00 € 1 174,76 €
Lowest price 30 days before the discount: 1 680,18 € brutto
Availability: In stock
Shipping time: 24hi
Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Cable lenght
10 m
Pressure resistance
10 m
Connector diameter
25 mm
Maximum solid handling
6 mm
Maximum performance
170 l/min
Maximum height lift
11 m
Engine power
0,48 kW / 0,65 KM
Application
Woda brudna
Weight
11 kg
Current
2,9 A (znamionowy)
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Urethane rubber |
| Casing | Ethylene propylene rubber | |
| Suction plate | Steel plate – urethane rubber | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single phase) | |
| Built-in motor protection | Miniature protector | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Typ medium | Cleaning water, water on floor, puddles | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 25 mm | |
| Discharge Connection | Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
