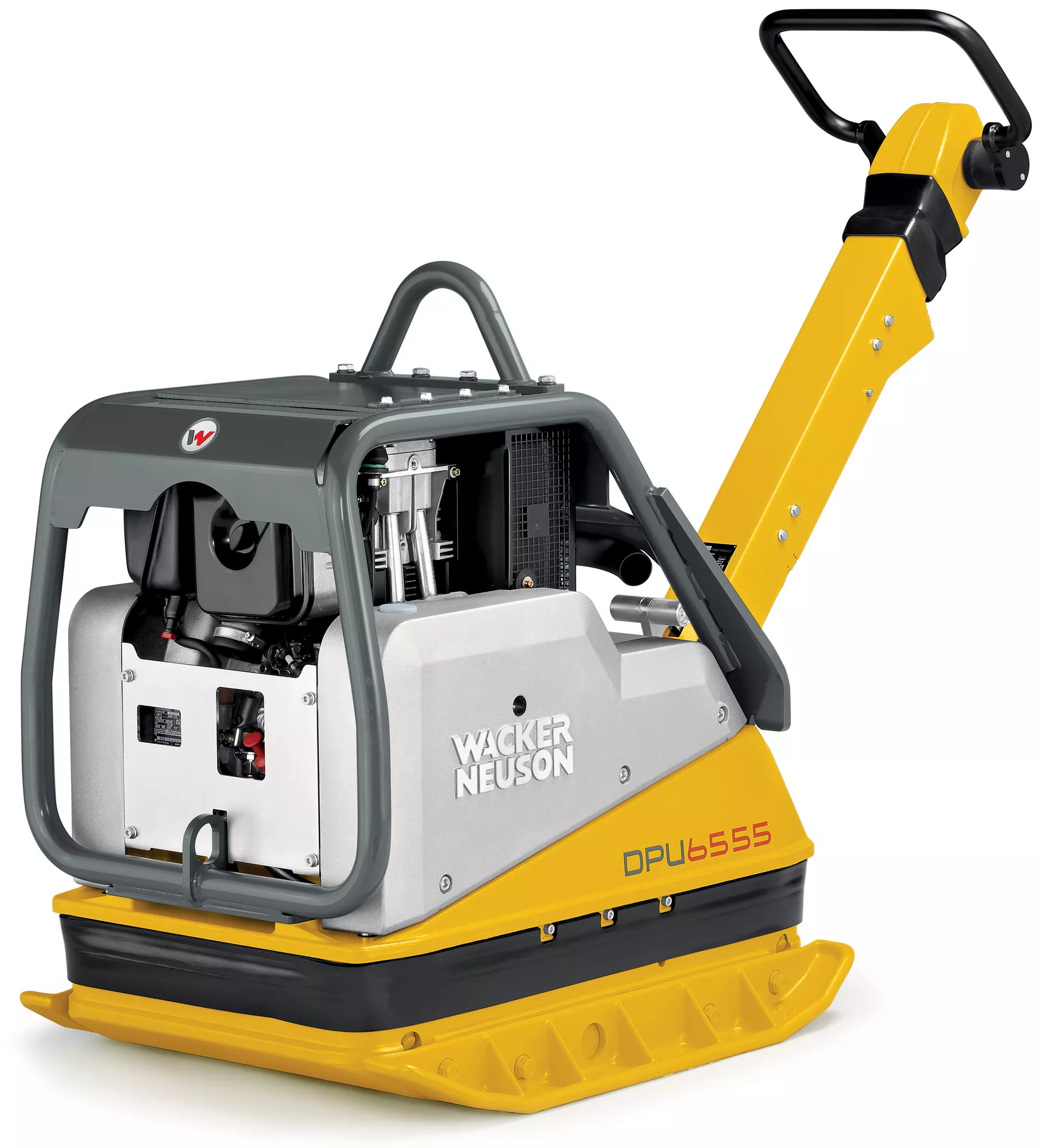

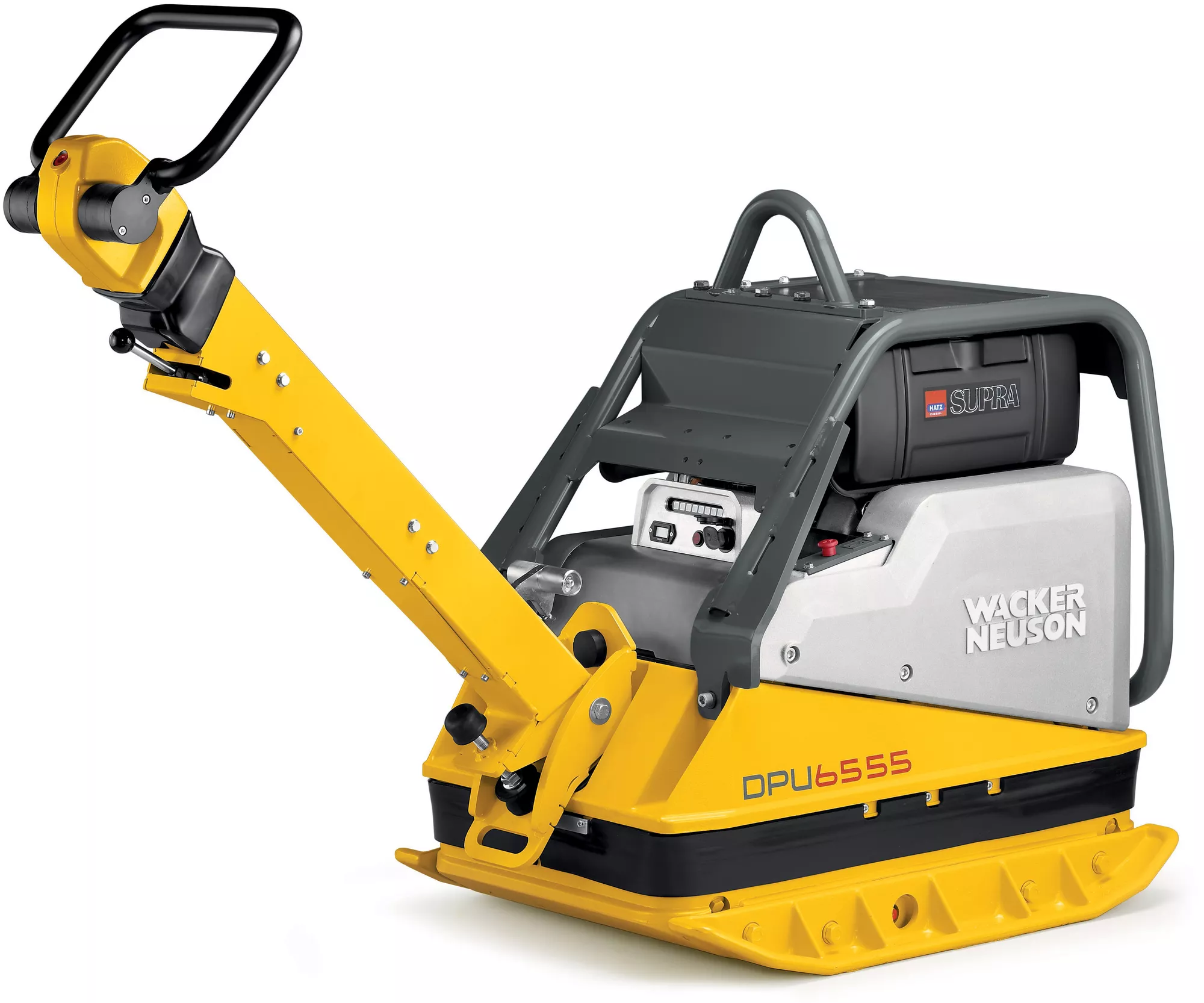

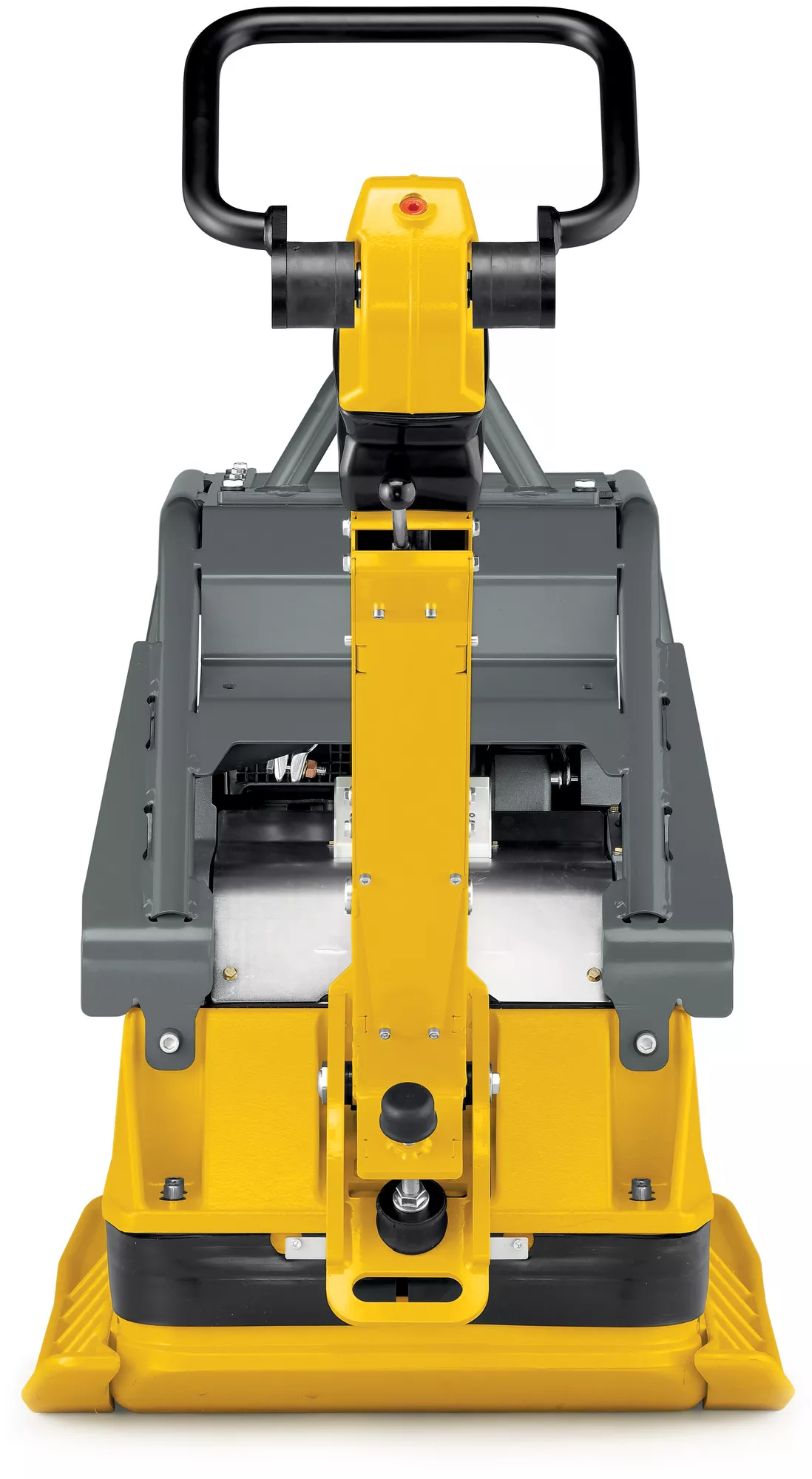

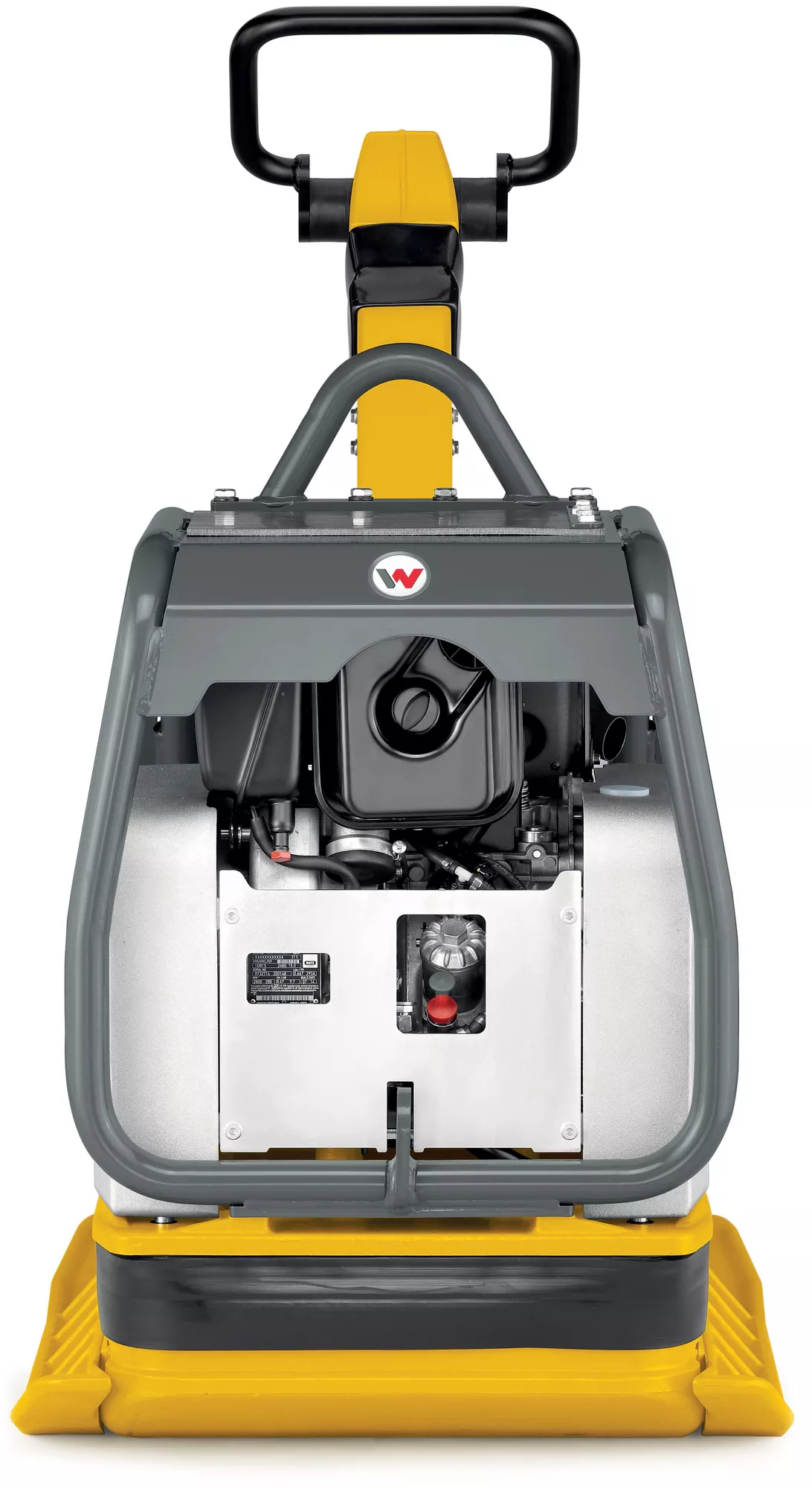

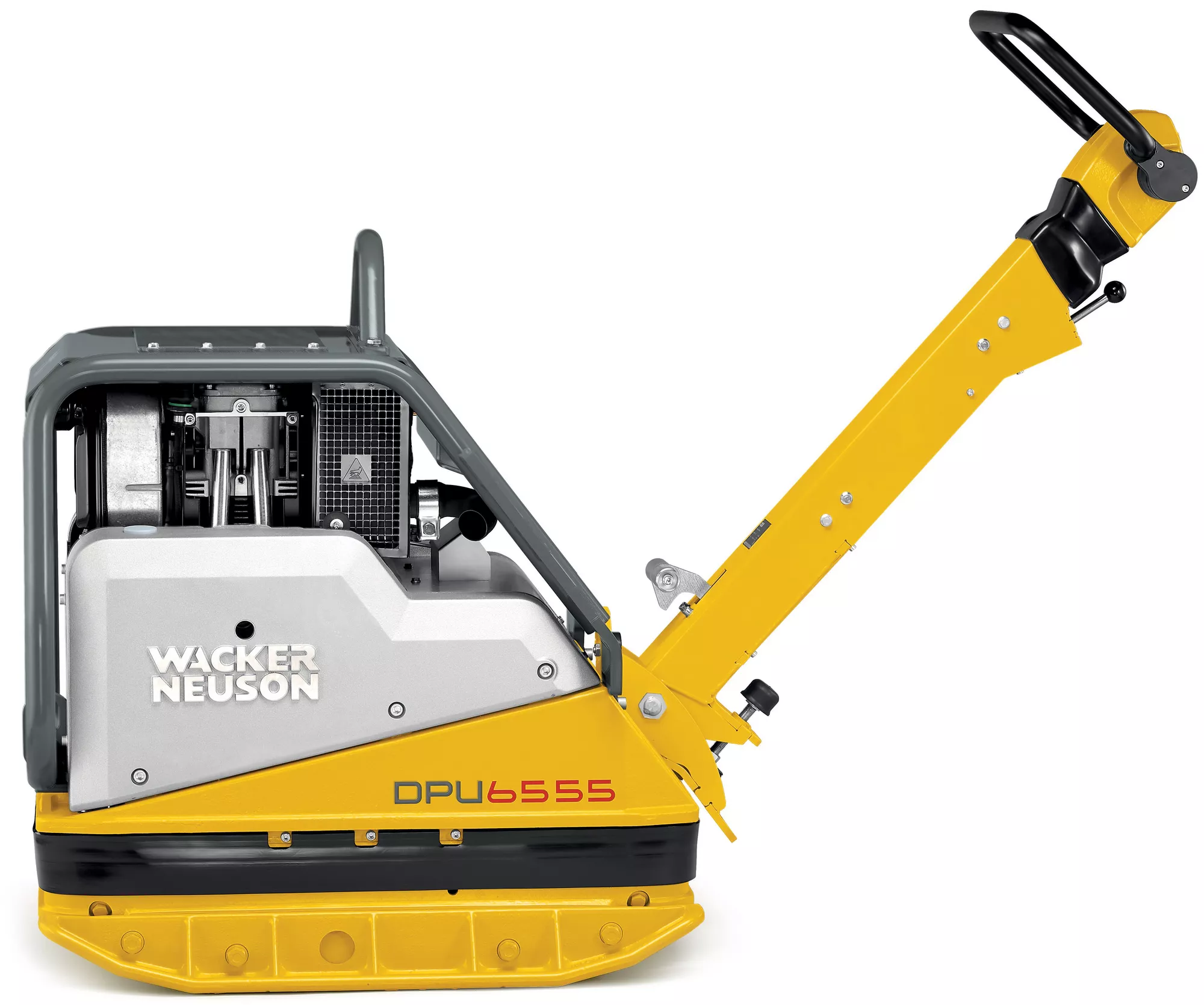

Reversible Vibratory Plate Wacker Neuson DPU 6555 Hech

Wacker Neuson
Catalogue number: 5100009639
Gross price
22 069,89 €
11 654,61 €
Net price: 17 943,00 € 9 475,29 €
Lowest price 30 days before the discount: 11 696,35 € brutto
Availability:  In stock
Shipping time:  24hi Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

Unrivaled in every area

Thanks to its enormous compaction force, the Wacker Neuson DPU 6555 compactor offers an extremely high level of performance. It is a versatile device in all workplaces, wherever very high demands are made. Also, it provides excellent properties in terms of durability and convenience of use. Optimal areas of application are the compaction of the frost protection layer and load-bearing layers in the road, path and parking constructions. Due to the high compaction frequency, the DPU 6555 can be widely used.

Variant description: Electric starter, Compatec compaction control, hour meter

Technical characteristics

Operating width
710 mm (550 mm base plate + 2x extensions)

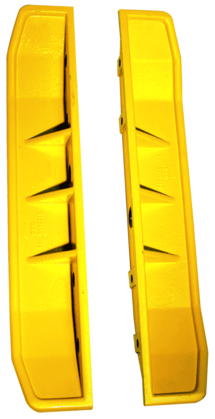

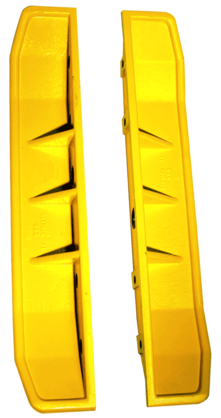

Extension width
160 mm (2x 80 mm)
Height of the protective frame
861 mm
Plate length
900 mm
Base plate thickness
12 mm
Engine type
Spalinowy (diesel)
Engine model & manufacturer
Hatz 1D81S
Fuel tank capacity
6 l
Fuel consumption
1.9 l/h
69 Hz
Engine displacement
667 cm³
Plate size (width x length)
550 x 900 mm
Centrifugal force
65 kN
Advance travel (maximal)
28 m/min
497 kg
Surface capacity
1200 m²/h
Engine power
10.1 kW / 13.5 HP

Very low hand/arm vibration (HAV)

The specially designed centre drawbar from Wacker Neuson generates shallow hand/arm (HAV) vibrations below 2.5 m/s².

This allows for all-day work without hindrances or threats to the end-user.

All requirements regarding the obligation to keep records do not apply if the operator works with equipment with an acceleration value below 2.5 m/s².

Intuitive steering handle

The speed is adjustable and the direction of travel changes by moving the handle forwards and backwards.

Control panel

  • Designed to be durable and therefore well protected against dirt and moisture.
  • All functions and indicators are visible and easily accessible: Ignition lock, work light, charging indicator light, a connector for an external start, hour meter (option) and Compatec (option).

Compatec - compaction control

  • If the number of lighting lamps does not increase, the maximum soil compaction achievable with this device has been achieved.
  • Directly available ex-works

Connector for external starting

  • Effortless access to battery charging, e.g. after a winter break.
  • There is no risk of dirt accumulation. The connector for an external start-up is secured and is only removed when necessary.


  • The new centre drawbar reduces hand/arm vibration (HAV) to a minimum, thus ensuring high operating comfort and full surface efficiency,
  • The deadman function prevents the operator from being trapped between the machine and the object when working in reverse,
  • Advanced comfort functions such as low oil shutdown, automatically adjustable V-belt, maintenance-free alternator, a removable connector for external starting, accessible from the outside,
  • Compatec – clear compaction progress display warns against overloading and over-compaction. Adjusting the intensity of the indicator lights to the ambient light. Very durable and reliable construction.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
