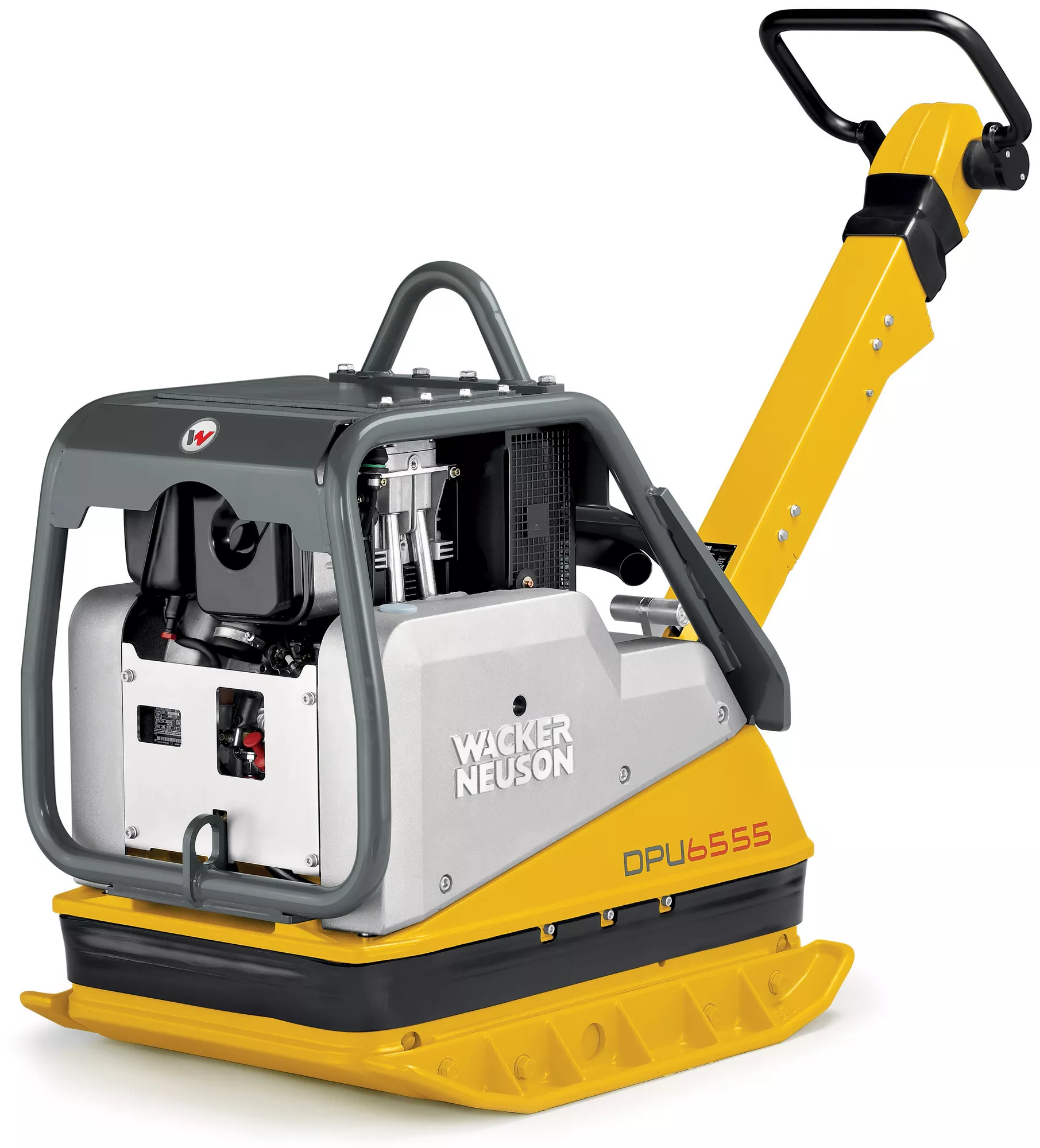

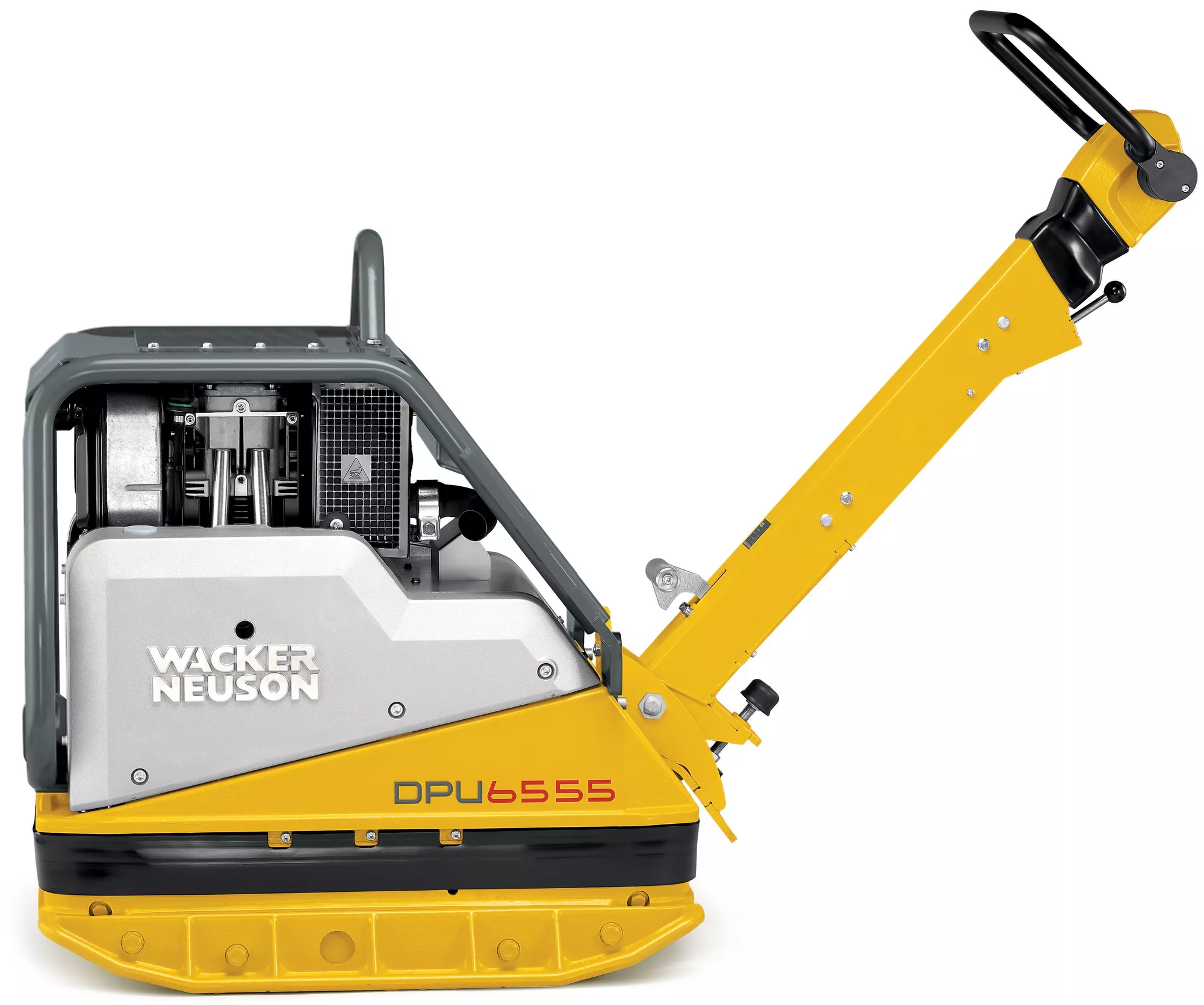

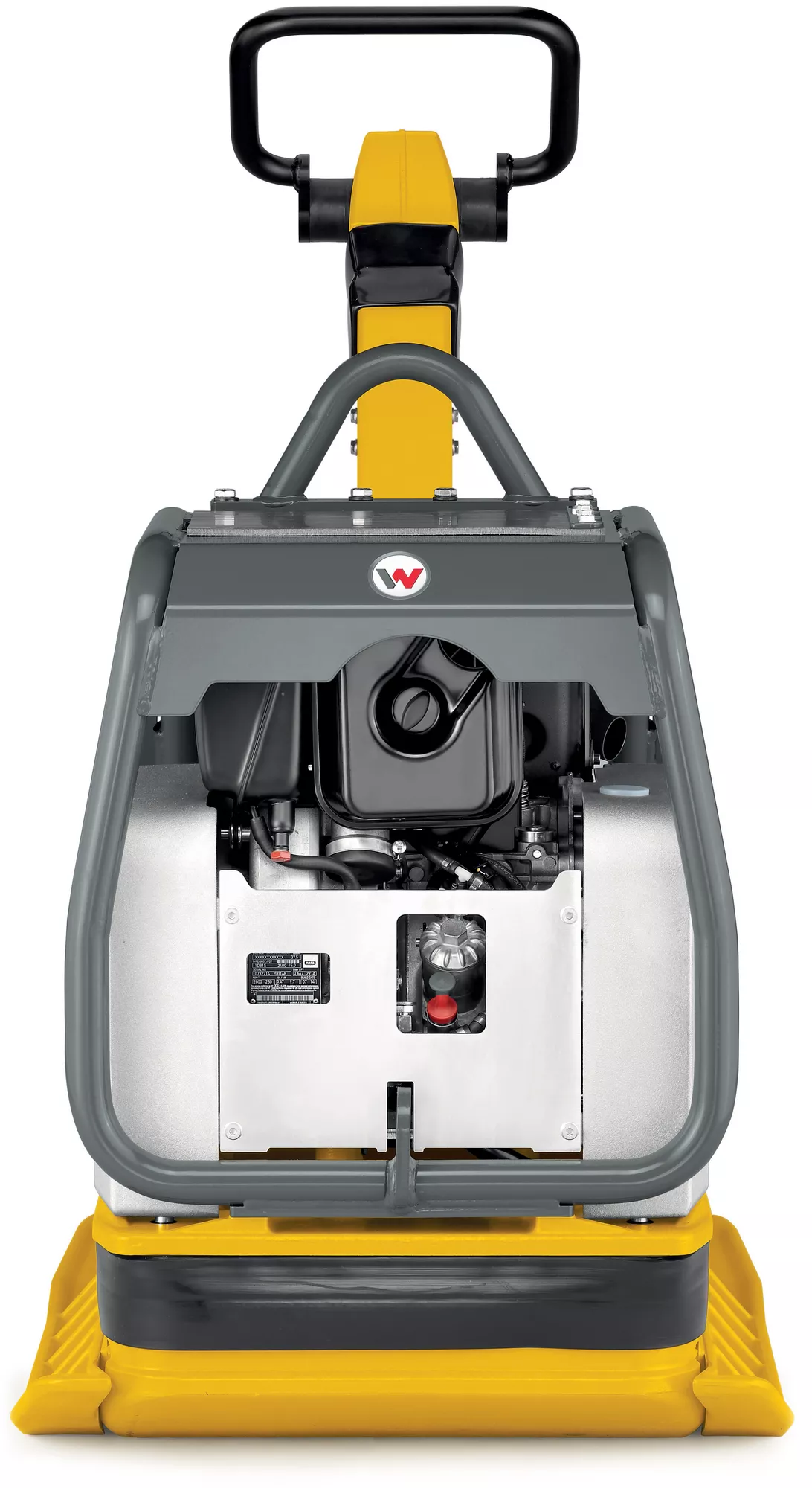

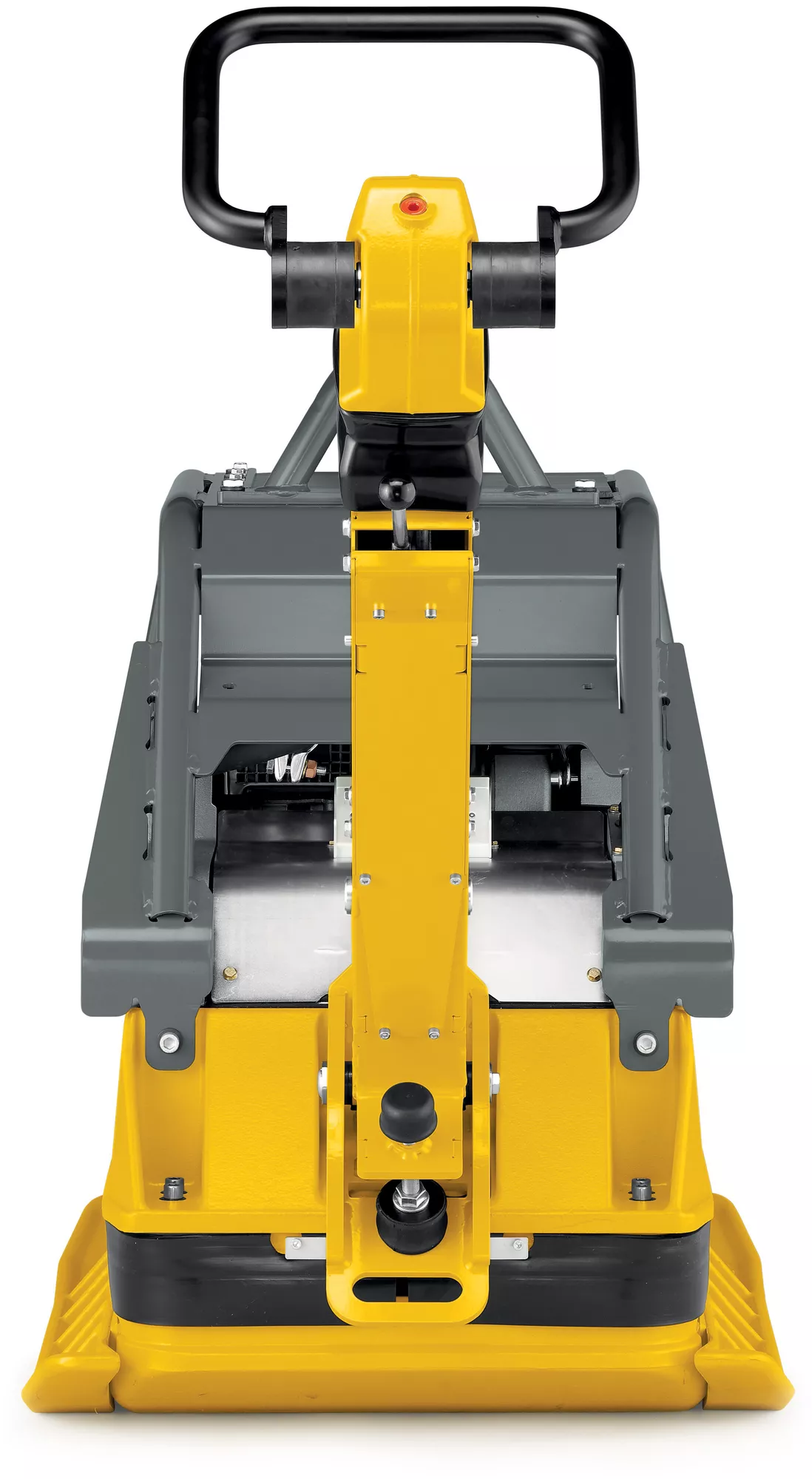

Reversible Vibratory Plate Wacker Neuson DPU 6555 H

Wacker Neuson
Catalogue number: 5100009651
You get: 605 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
20 323,29 €
13 819,84 €
Net price: 16 523,00 € 11 235,64 €
Lowest price 30 days before the discount: 20 323,29 € brutto
Availability:  Available for order
Shipping time:  7-14 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

Thanks to its powerful compaction force combined with a quick forward and reverse travel direction, the DPU5545 offers a high level of productivity. It is an all-rounder for all job sites where high demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and subbases in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU 5545 is universally applicable and even reliably compacts medium-weight to heavy interlocking paving stones. The DPU 5545 Hec is equipped with Compatec, the compaction control from Wacker Neuson.

Variant description: Weight 480 kg

Technical characteristics

Operating width
710 mm (550 mm base plate + 2x extensions)
Extension width
160 mm (2x 80 mm)
Plate length
900 mm
Height of the protective frame
861 mm
Base plate thickness
12 mm
Engine type
Diesel engine
Engine model & manufacturer
Hatz 1D81S
69 Hz
Fuel tank capacity
6 l
Fuel consumption
1,9 l/h
Engine displacement
Centrifugal force
65 kN
Advance travel (maximal)
28 m/min (depending on the soil and the external factors)
Surface capacity
1200 m²/h
480 kg
Engine power
10,1 kW / 13,7 KM

Very low hand-arm vibration (HAV)

The specially designed center pole from Wacker Neuson generates very low hand-arm vibration (HAV) below 2.5 m/s².

This allows for continuous operation all day long without impairment and without hazard to the end user.

All documentation requirements are omitted if an operator only works with equipment that has acceleration values below 2.5 m/s².

Intuitive control handle design

The speed is regulated and the travel direction is changed through the forward and backward movement of the handle.

The control panel

  • Built to be sturdy and therefore well-protected against dirt and moisture.
  • All functions and displays in view and easily accessible: Ignition lock, operating light, charge control lamp, jump start pin, operating hour meter (optional).

Jump start pin

  • Very easy to access for easy charging of the battery, for example after a winter break.
  • No risk of dirt accumulation. The jump start pin is protected and is only pulled out if necessary.


  • The new center pole reduces hand-arm vibration (HAV) to a minimum and therefore offers a high level of operating comfort at full compaction performance. No restriction for the time of operation and no documentation effort,
  • A dead man function prevents the operator from being trapped between the equipment and an object when working in reverse,
  • All maintenance points are quickly and easily accessible. Extensive comfort functions: such as low oil shutdown, self-tightening V-belt, maintenance-free alternator, pull-out external jump-start connection that is accessible from outside,
  • A large dimensioned diesel engine offers high power reserves and ensures for a high level of efficiency and long service life,
  • Compatec: Easy-to-read display of the relative compaction progress. Warning for overload and over-compaction. Brightness adjustment of the lights to the ambient light. Extremely sturdy and reliable.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Reversible Vibratory Plate Wacker Neuson DPU 6555 Hech
Electric starter, Compatec compaction control, hour meter
Gross price
22 069,89 €11 696,35 €
Reversible vibratory plate Wacker Neuson DPU 40Yeh EU
Weight 383 kg, centrifugal force 40 kN, area capacity 870 m²/h
Gross price
12 899,01 €7 987,75 €
Reversible Vibratory Plate Wacker Neuson DPU 6555 Heh
Hour meter, electric starter
Gross price
21 050,22 €11 125,80 €
