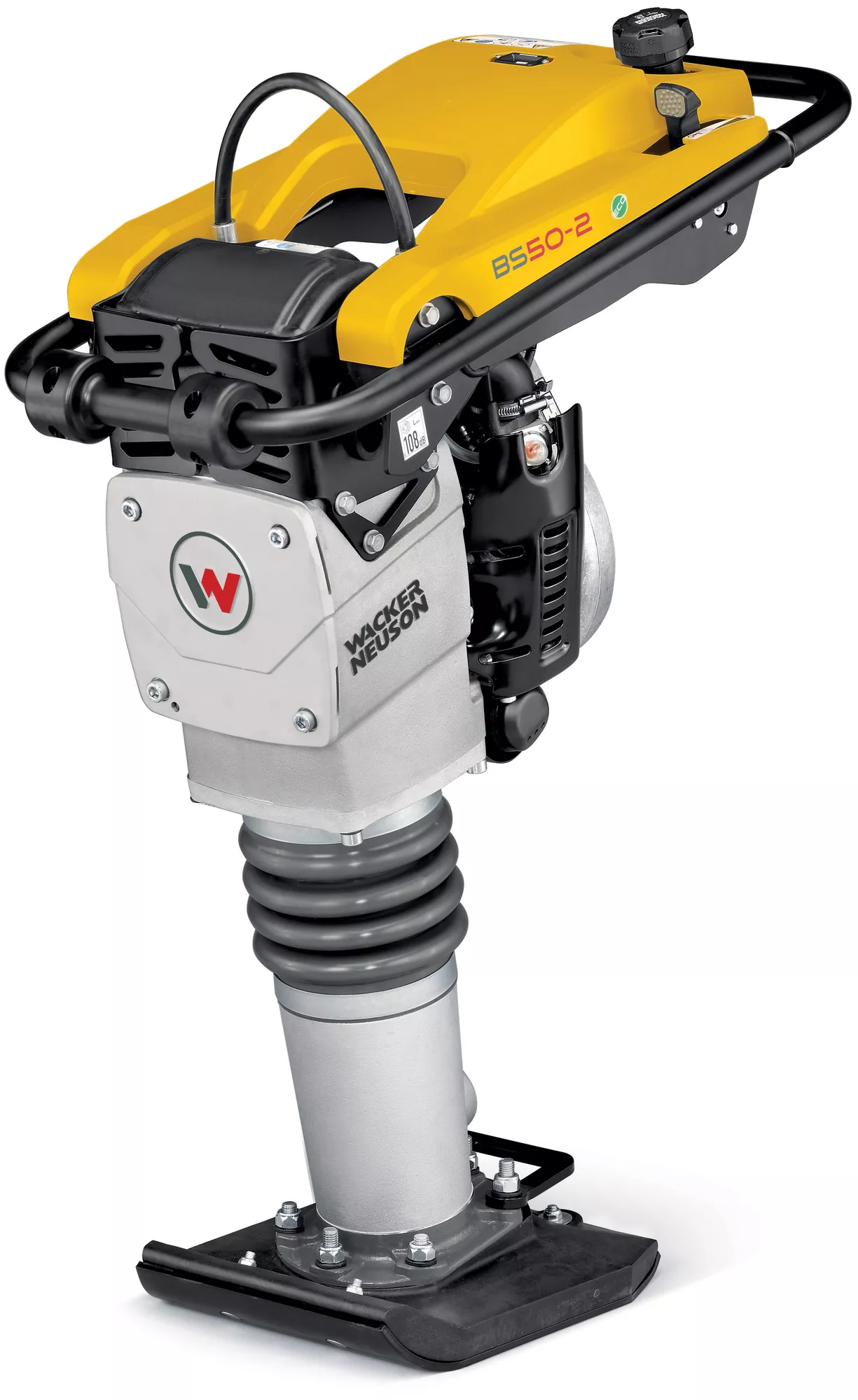

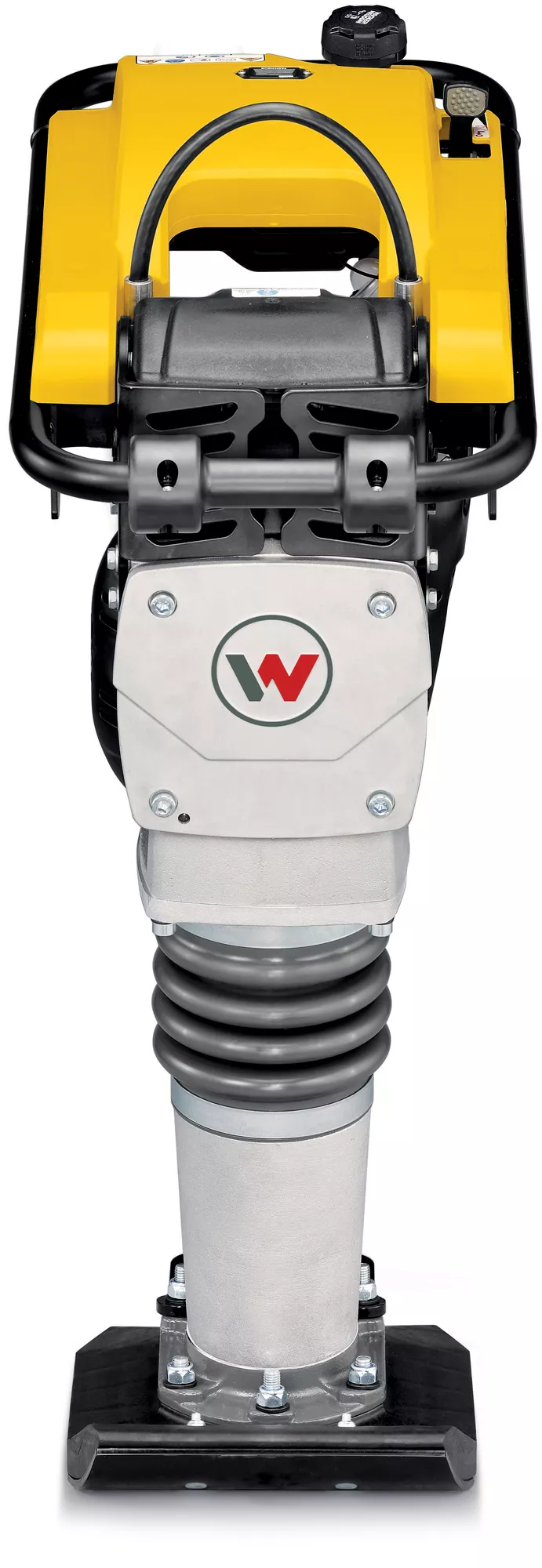

Tamping rammer Wacker Neuson BS 50-2 (280 mm)

Description

Two-stroke BS 50-2 rammers from Wacker Neuson have long been a standard in the construction industry. They are designed for maximum productivity, efficiency and durability. The new generation is now even stronger. The two-stroke rammers are powered by the WM 80 engine, which was specially developed by Wacker Neuson, and thanks to the catalyst, the level of exhaust emissions are much lower than all the limits provided for in the standards. Also, the tamper automatically shuts off after 10 minutes of idling, thus saving extra fuel and reducing emissions.

Variant description: Weight 59 kg, plate width 280 mm

Engine model & manufacturer

Wacker Neuson WM 80

Engine type

Combustion (petrol)

Engine power

1,7 kW / 2,3 KM (at 4400 rpm)

Engine displacement

80 cm³

Fuel tank capacity

3 l

Fuel consumption

1 l/h

Petrol / oil mixture

100:1

Centrifugal force

16 kN

Length

673 x 343 x 940 mm

Stroke at the ramming shoe

64 mm

Surface capacity

159 m²/h (depending on the soil and external factors)

Vibration

687/min

Weight

59 kg

Plate width

280 mm

Plate length

340 mm

High and immediate power through pump on the carburetor
Specifically designed for use in soil compaction

For compliance with maintenance intervals
Installed in all models as standard

Large and flexible transport lug
Easy loading and stowing by transport rollers on the handle

Only one lever for idling, starting and stopping

Advantages

High performance – high churning frequency, strong impact, high impact energy, fast movement.
Low hand-arm vibration thanks to a special spring-loaded handle
Typical for two-stroke models – also fully functional in an inclined position
The narrow design enables compaction in narrow trenches
Low center of gravity gives a strong drive. High stability prevents tilting and facilitates the work of the compactor.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
