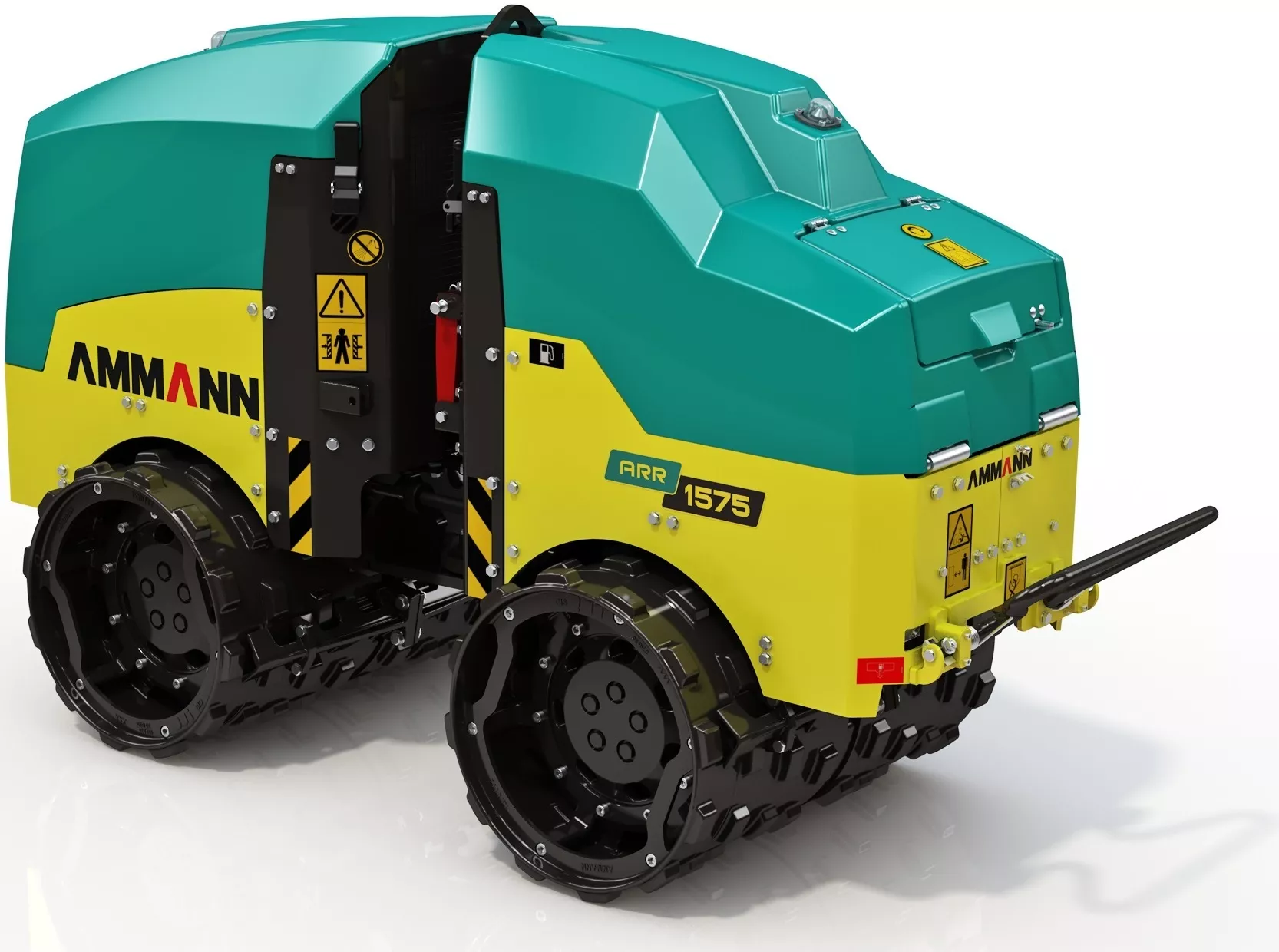

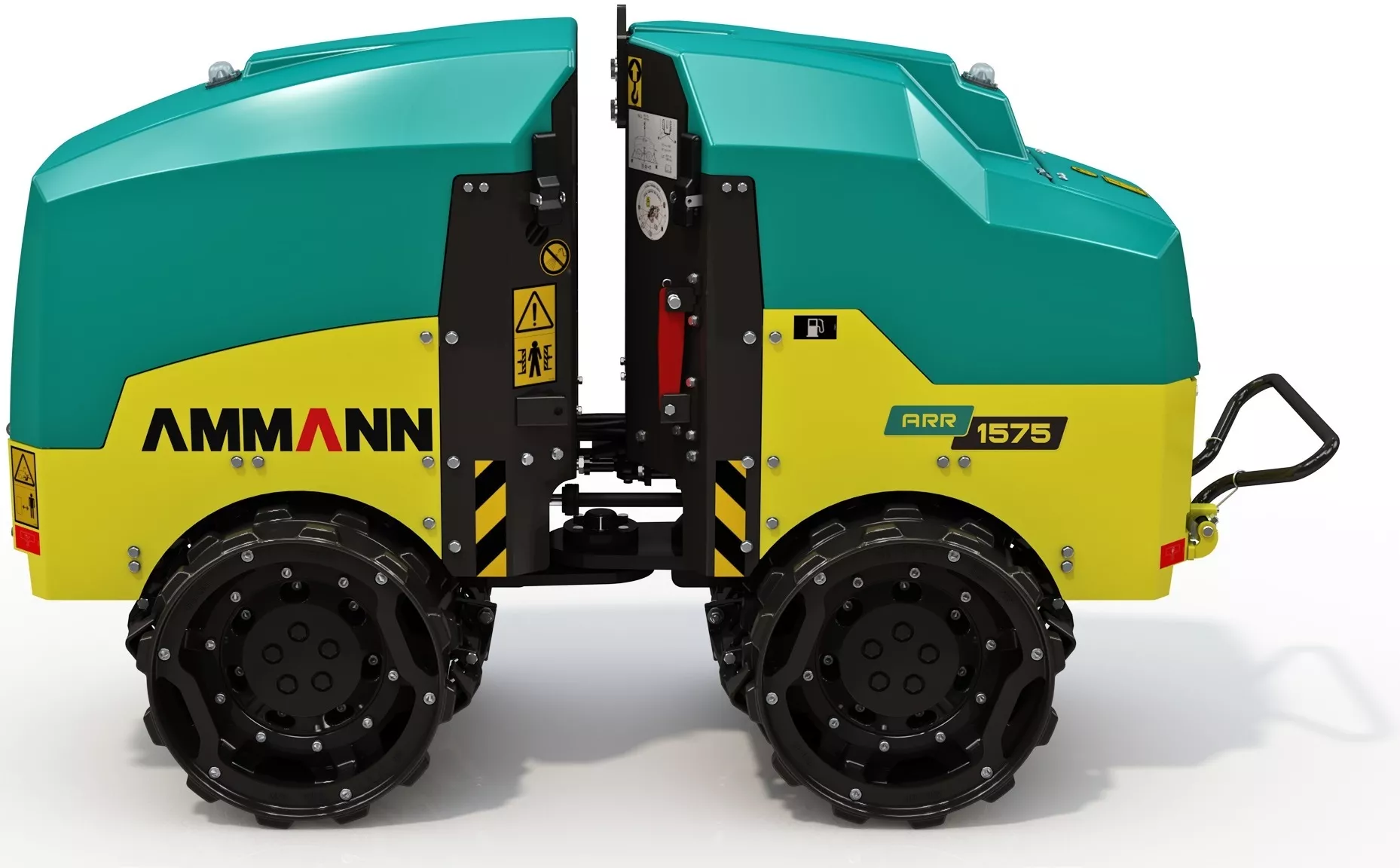

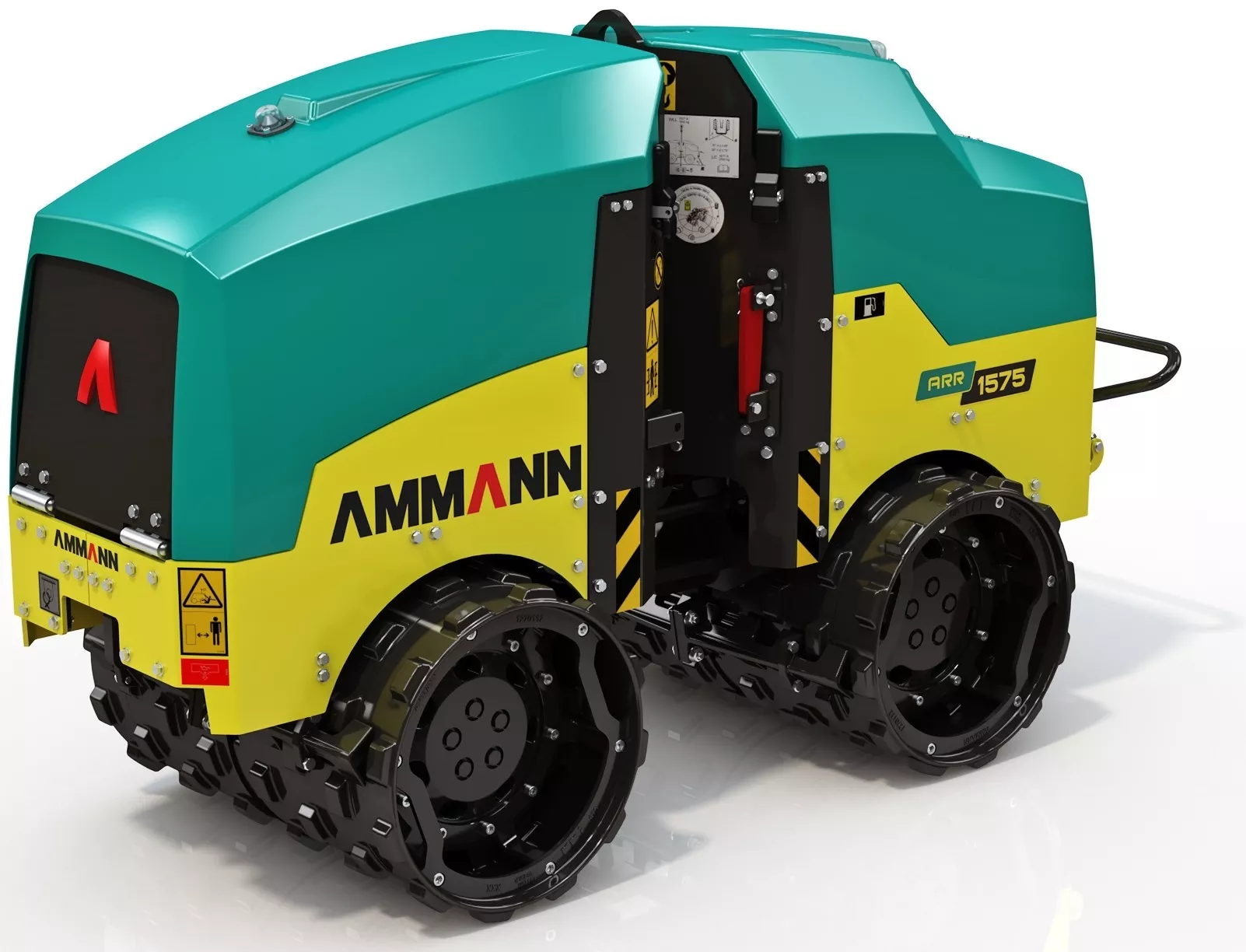

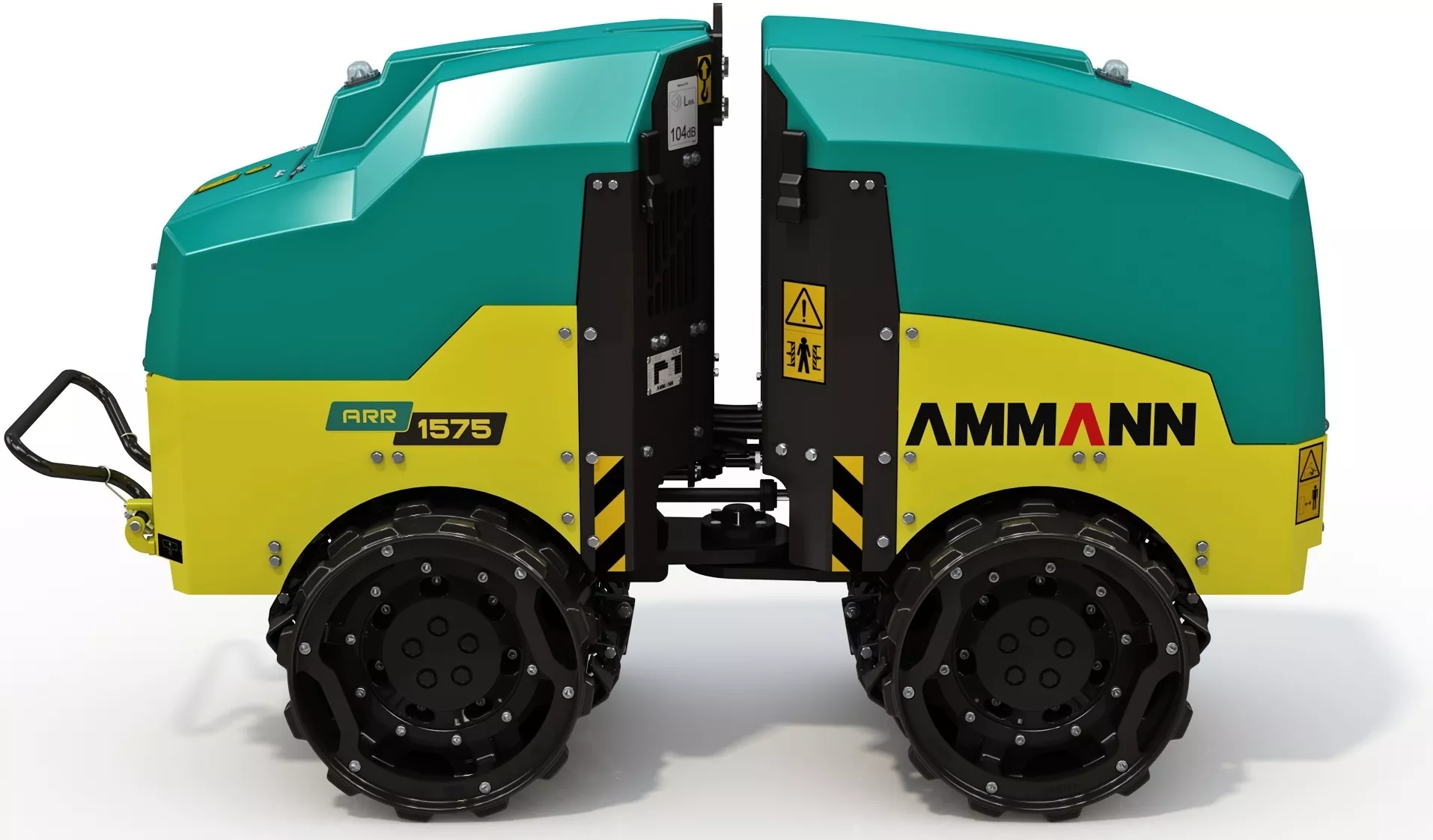

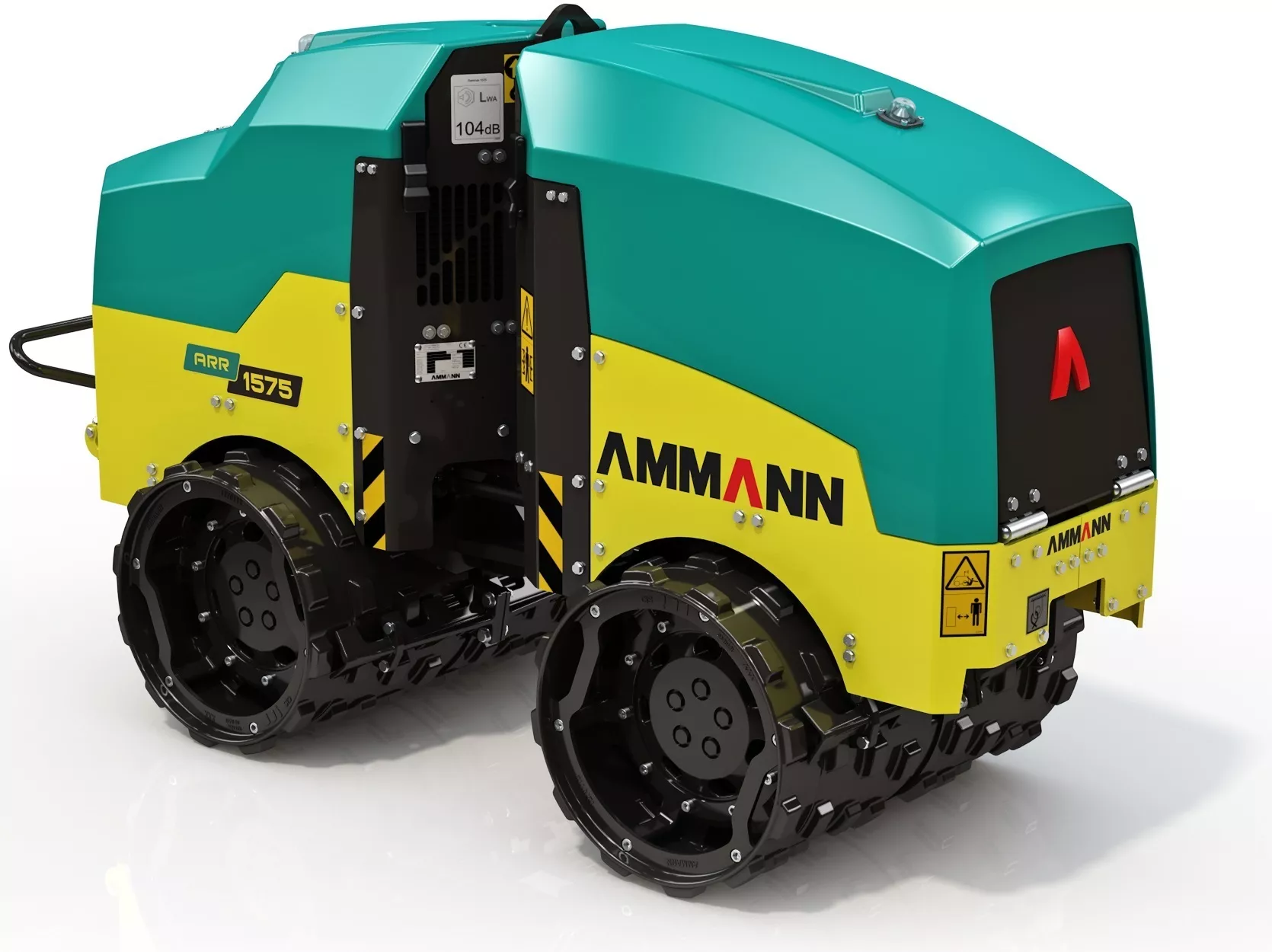

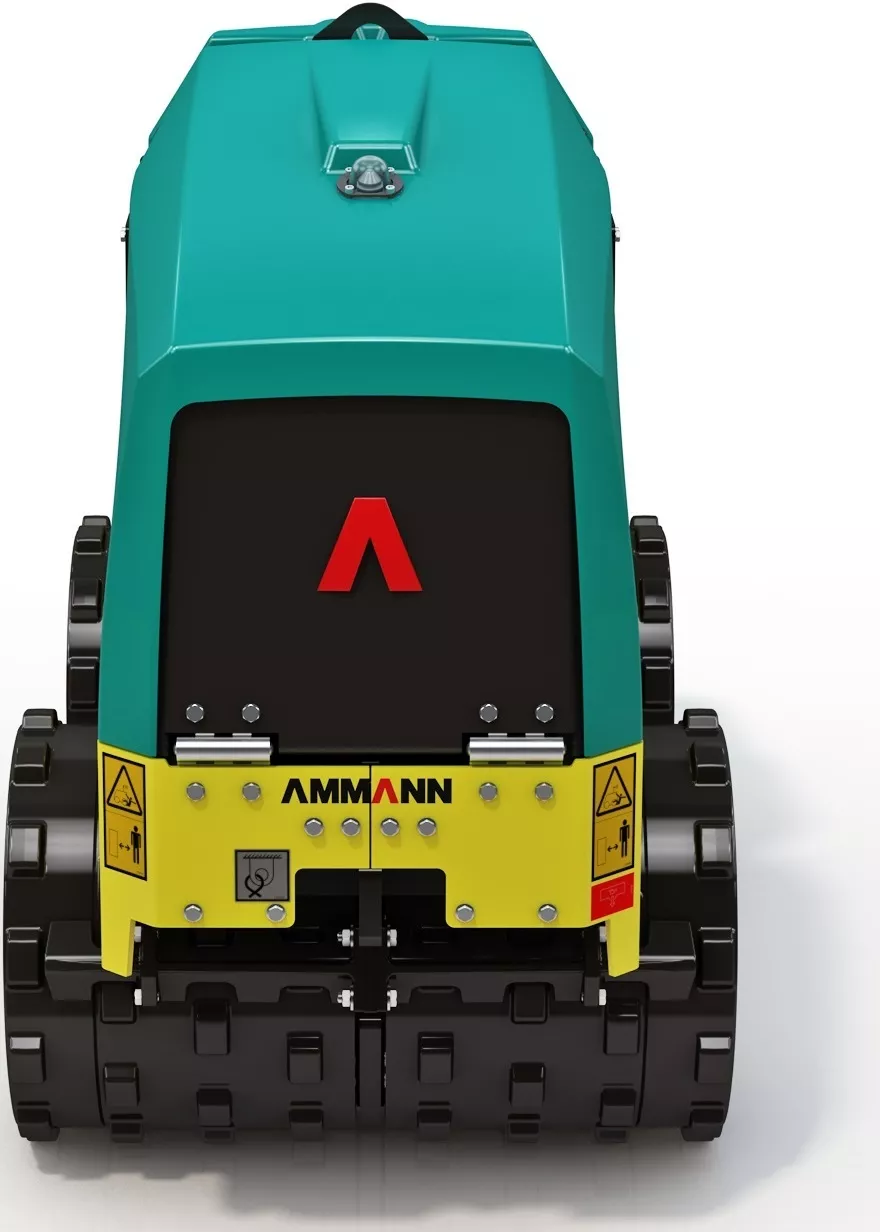

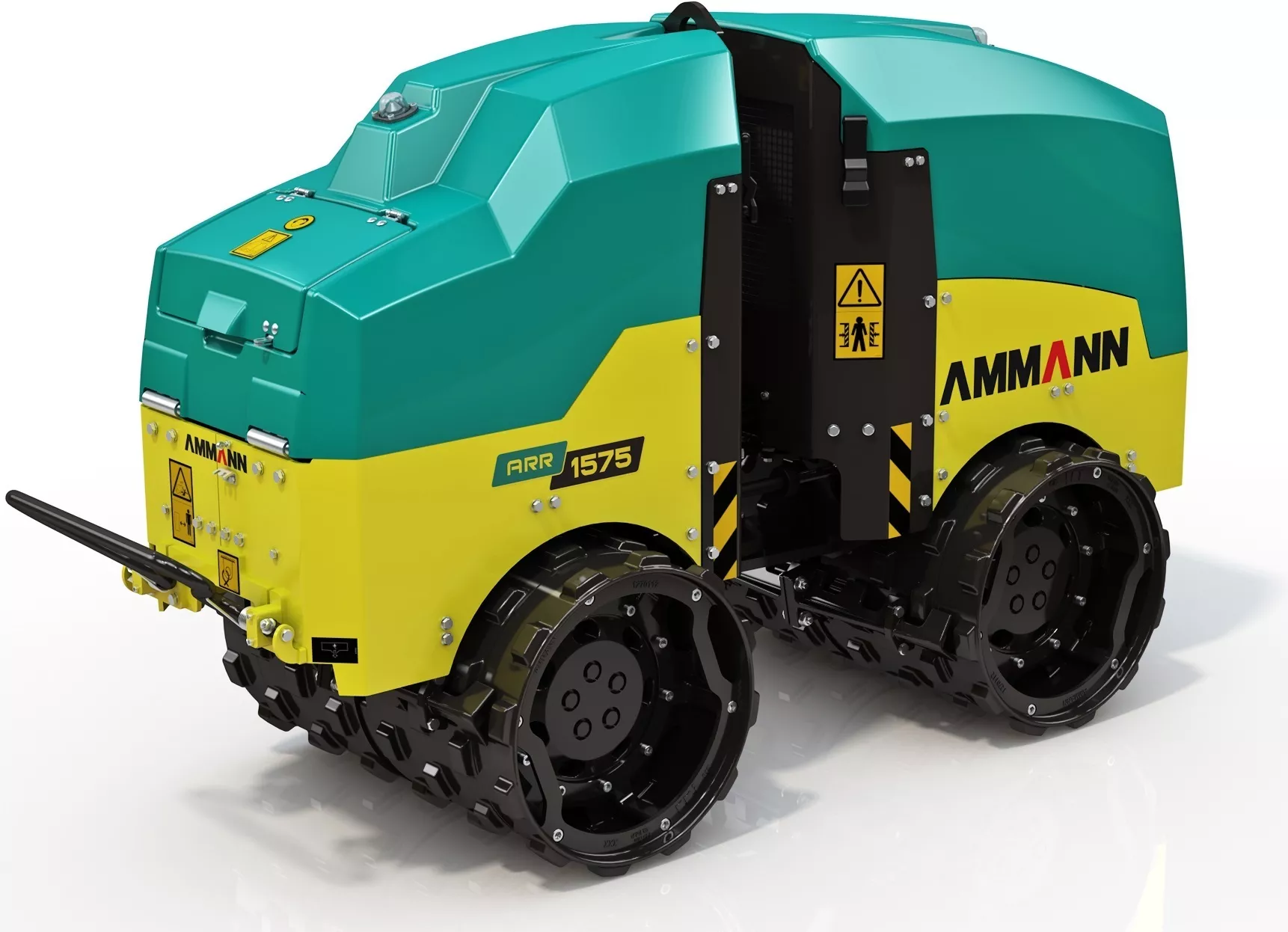

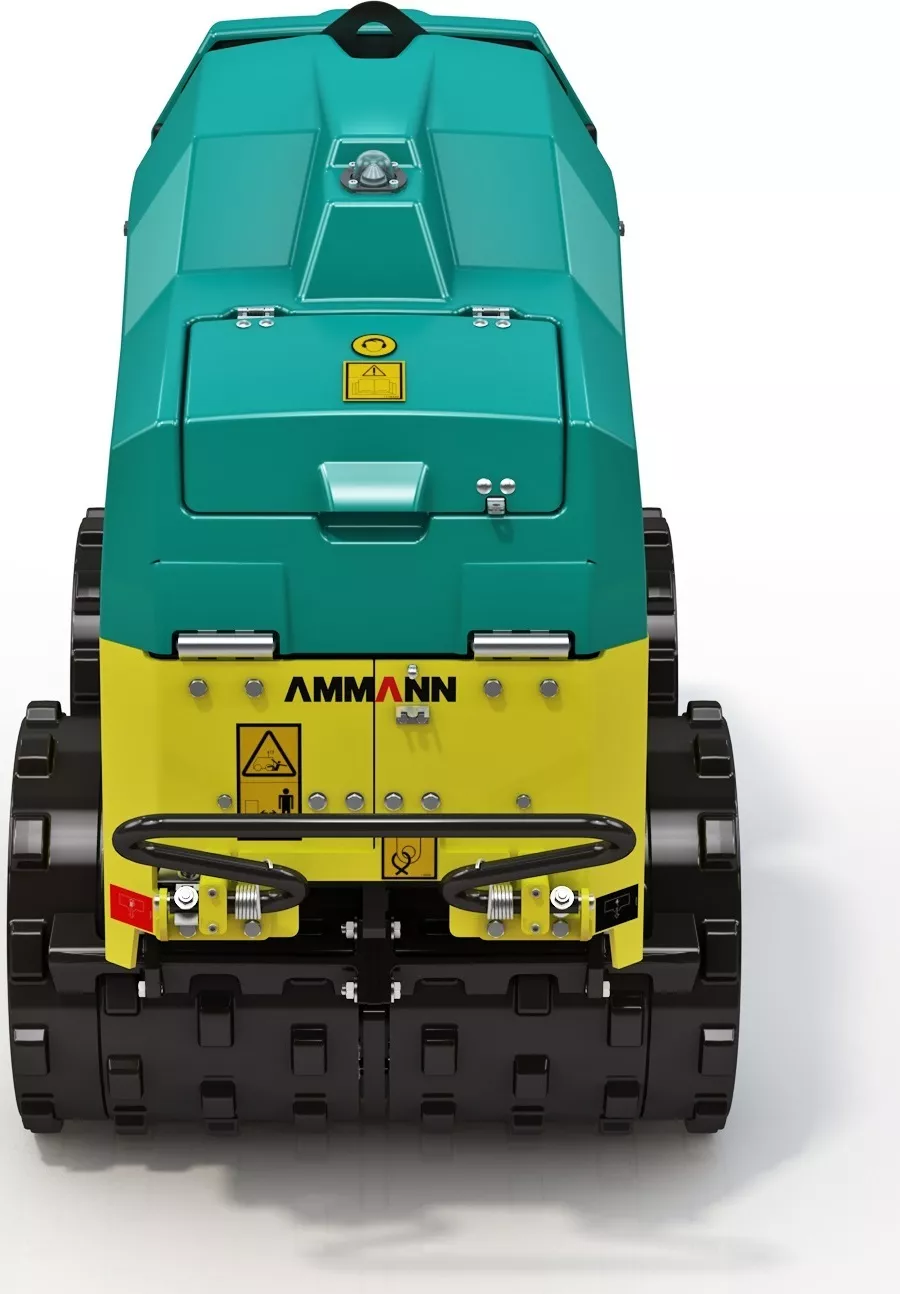

Trench roller Ammann ARR 1575 CI

Ammann
Compare
Product unavailable
Trench roller Ammann ARR 1575 CI
Trench roller Ammann ARR 1575 CI
Catalogue number: ARR 1575 CI
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Technical characteristics

Oscillation angle (left / right)
7 °
Advance travel (maximal)
1.4 km/h
Gradeability
30%
Frequency
40 Hz
Amplitude
0.6 mm
Centrifugal force
36 kN
Engine model & manufacturer
Yanmar 3TNV80F
Engine power
14.6 kW / 19.9 HP
Engine type
Combustion (diesel)
Fuel tank capacity
28 l
Hydraulic oil capacity
16 l
Torque
68.4 Nm (at 1800 rpm)
Number of cylinders
3
Powertrain
Hydrostatic
Cooling
Water
Turning radius Inner
1440 mm
Turning radius outer
2290 mm
Drum width
640 mm
Length x Width x Height
1980 x 601 x 1317 mm
Weight
1450 kg
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
