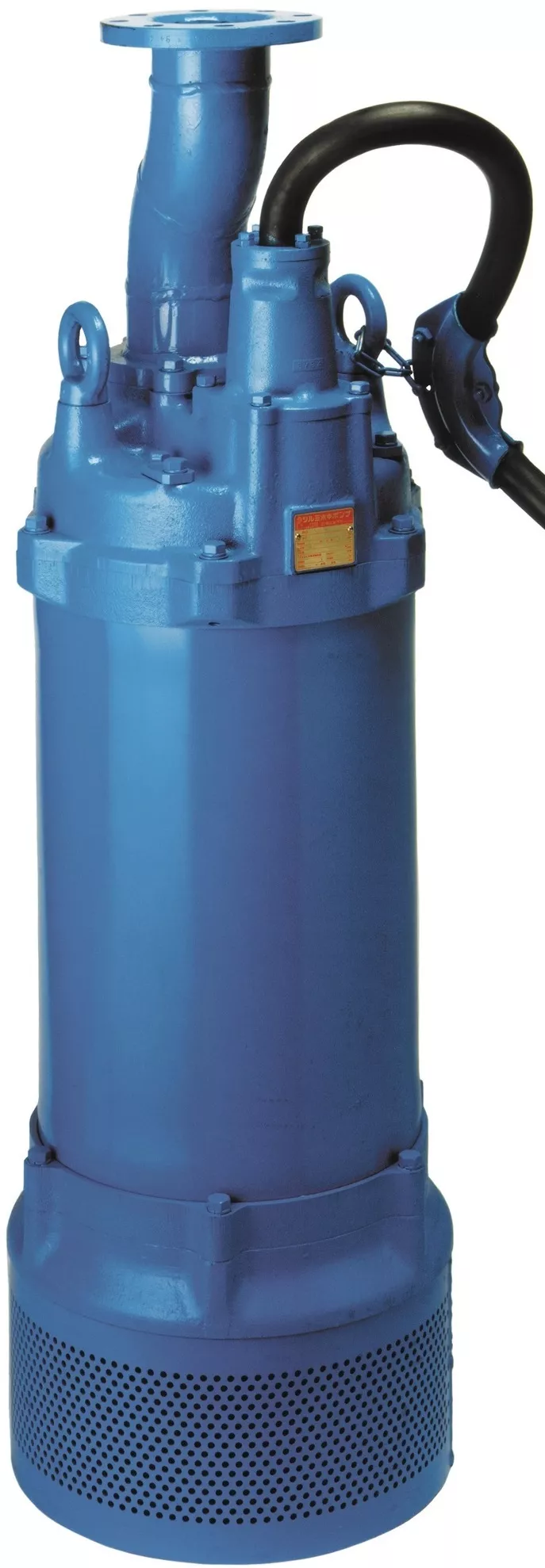

Submersible pump Tsurumi LH 890

Description

Weight

1100 kg

Cable lenght

20 m

Pressure resistance

30 m

Maximum solid handling

20 mm

Maximum performance

6000 l/min

Maximum height lift

90 m

Engine power

90 kW

Rated current

166 A

Connector diameter

8''

Application

woda czysta

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Closed type impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Chromium iron casting
	Casing	Grey iron casting EN-GJL-200, ductile iron casting EN-GJS-450-10
	Suction plate	−
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Grey iron casting EN-GJL-200
	Shaft	Stainless steel EN-X30CR13
	Cable	Rubber − NSSHÖU
Frequency		50 Hz
Voltage		400 V (three-phase)
Built-in motor protection		Circle thermal cut-out, miniature protector
Type		Induction motor, 2 poles
Insulation		Insulation class F, insulation class B
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Spring water, rain water, ground water, sand carrying water
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		200 mm
Discharge Connection		JIS 10K flange, JIS 20K flange

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
