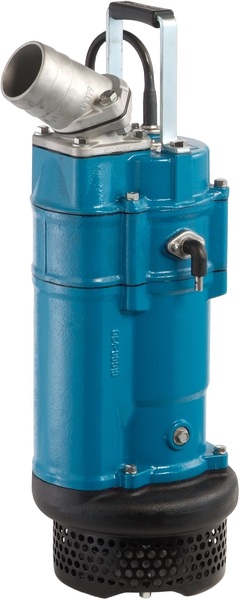

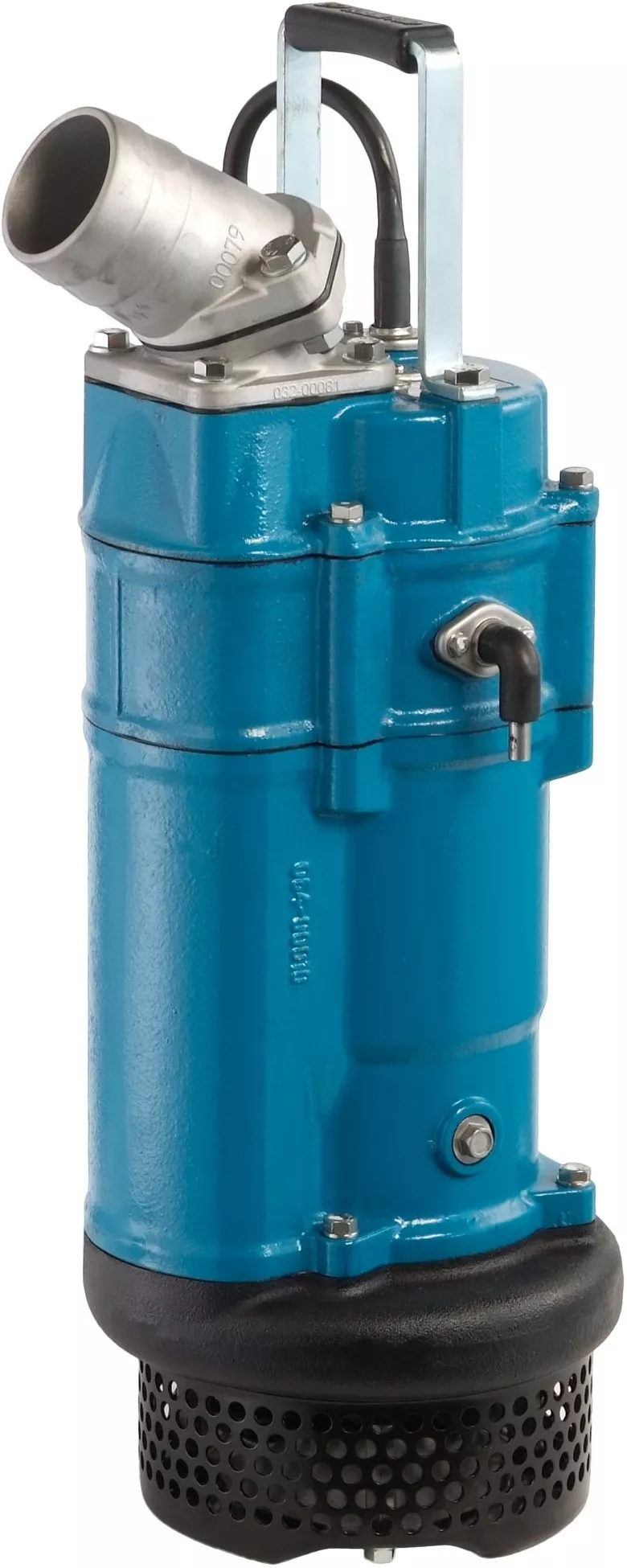

Submersible pump Tsurumi KTZE 33.7
Catalogue number: IKE3HHRC
Installments 10x0%
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Technical characteristics
Weight
69 kg
Cable lenght
20 m
Pressure resistance
25 m
Maximum solid handling
8,5 mm
Maximum performance
900 l/min
Maximum height lift
29 m
Engine power
3,7 kW
Rated current
7,7 A
Connector diameter
3''
Application
woda czysta
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-open type impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Chromium iron casting |
| Casing | Grey iron casting EN-GJL-200 | |
| Suction plate | Ductile iron casting EN-GJS-500-7 | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Grey iron casting EN-GJL-200 |
| Shaft | Stainless steel EN-X30CR13 | |
| Cable | Rubber − NSSHÖU | |
| Frequency | 50 Hz | |
| Voltage | 400 V (three-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class F | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 75 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
