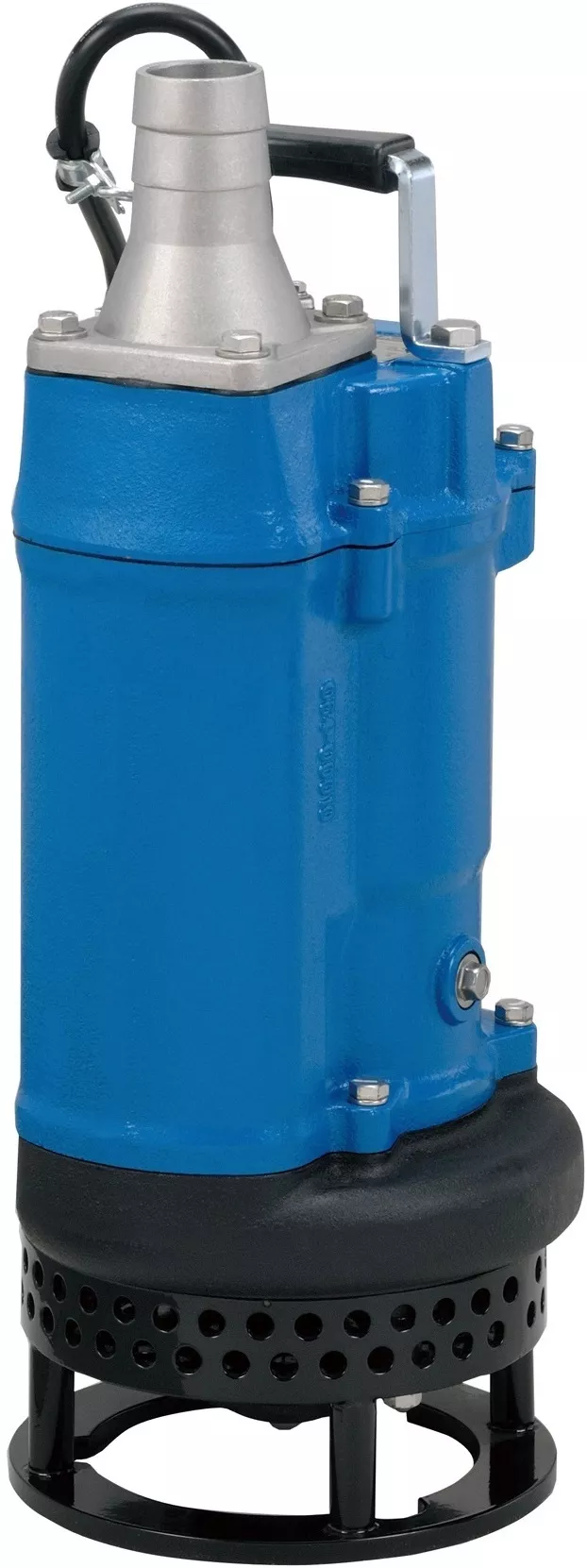

Submersible pump Tsurumi KTD 22.0

Tsurumi Pump
Catalogue number: IKD2GHRA
EAN: 4944792111314
Price on request
Availability:  Temporarily unavailable
Shipping time:  on requesti The shipping time for this product is determined individually.

Please contact Customer Service
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

Technical characteristics

Weight
38 kg
Cable lenght
20 m
Pressure resistance
25 m
Maximum solid handling
8,5 mm
Maximum performance
496 l/min
Maximum height lift
19,9 m
Engine power
2 kW
Rated current
4,5 A
Connector diameter
2''
Application
woda brudna

DETAILED SPECIFICATION


  Submersible pump Tsurumi
Specification Pump
Components Impeller Semi-open type impeller
Bearings Shielded ball bearings
Shaft seal Double mechanical seal
Material Impeller Chromium iron casting
Casing Grey iron casting EN-GJL-200
Suction plate Ductile iron casting EN-GJS-500-7
Shaft seal Silicon carbide in oil bath
Specification Motor
Material
Casing Grey iron casting EN-GJL-200
Shaft Stainless steel EN-X30CR13
Cable Rubber − NSSHÖU
Frequency 50 Hz
Voltage 400 V (three-phase)
Built-in motor protection Circle thermal cut-out
Type Induction motor, 2 poles
Insulation Insulation class F
Lubrication Turbine oil − ISOVG32
Protection IP 68
Specification Pumping Fluid
Medium type Sludge, slurry, liquids containing sandy mud and/or bentonite
Temperature 040° C
Specification Other
ø Discharge bore mm 50 mm
Discharge Connection Threaded flange / Hose coupling
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
