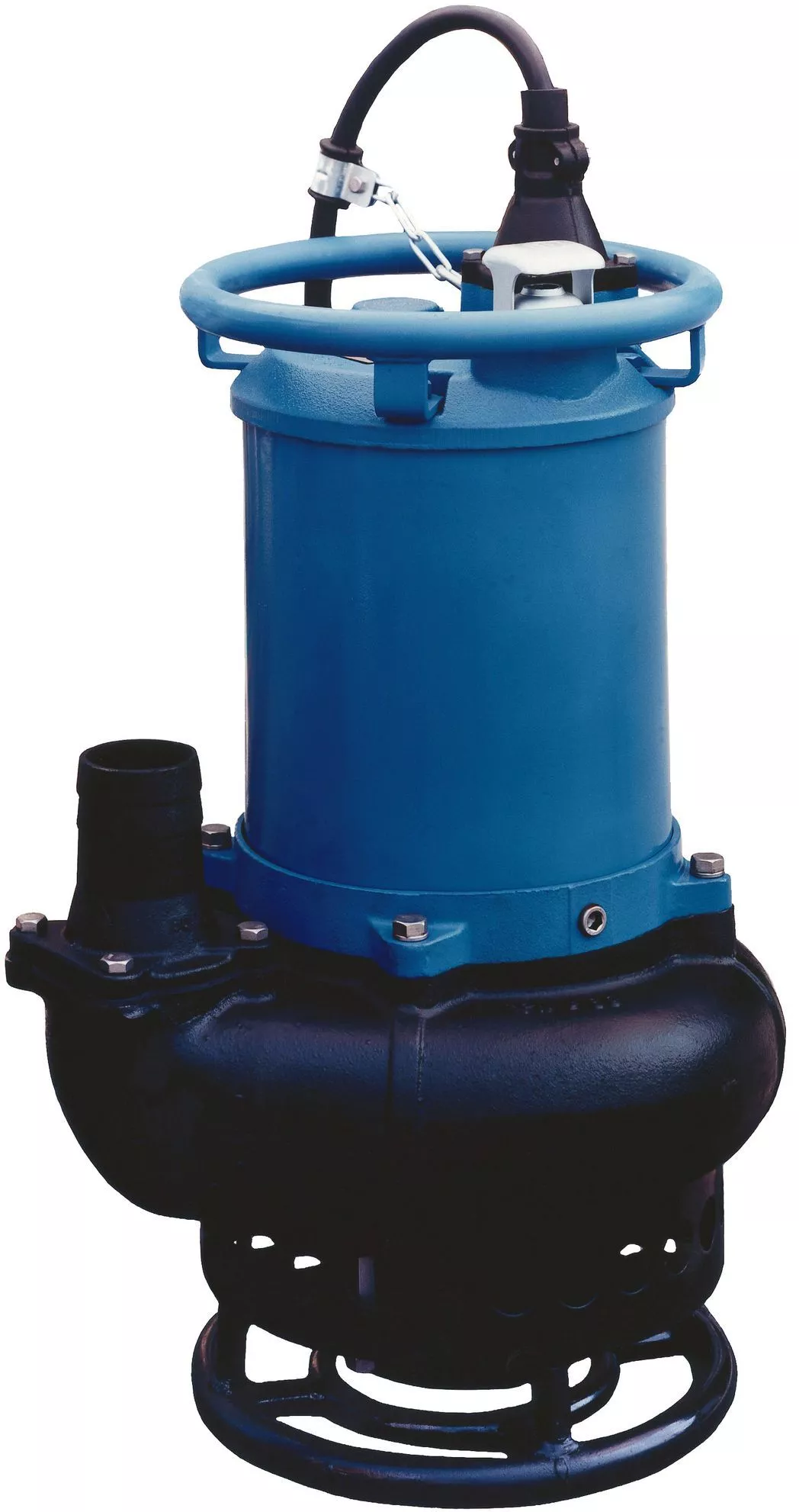

Submersible pump Tsurumi GPN 622

Catalogue number: IGP6NHR1

Price on request

Availability: Temporarily unavailable

Shipping time: on request

Warranty: 1 year

Comments: 0

Description

Weight

415 kg

Cable lenght

20 m

Pressure resistance

30 m

Maximum solid handling

30 mm

Maximum performance

5000 l/min

Maximum height lift

30 m

Engine power

22 kW

Rated current

42,5 A

Connector diameter

6''

Application

woda brudna

DETAILED SPECIFICATION

		Submersible pump Tsurumi
Specification		Pump
Components	Impeller	Open type impeller
	Bearings	Shielded ball bearings
	Shaft seal	Double mechanical seal
Material	Impeller	Chromium iron casting
	Casing	Grey iron casting EN-GJL-200
	Suction plate	Chromium iron casting
	Shaft seal	Silicon carbide in oil bath
Specification		Motor
Material	Casing	Grey iron casting EN-GJL-150
	Shaft	Chromium-molybdenum steel − DIN 1.7220
	Cable	Rubber − NSSHÖU
Frequency		50 Hz
Voltage		400 V (three-phase)
Built-in motor protection		Circle thermal cut-out
Type		Induction motor, 4 poles
Insulation		Insulation class E, insulation class B
Lubrication		Turbine oil − ISOVG32
Protection		IP 68
Specification		Pumping Fluid
Medium type		Sludge, slurry, liquids containing sandy mud and/or bentonite
Temperature		0 − 40° C
Specification		Other
ø Discharge bore mm		150 mm
Discharge Connection		Threaded flange / Hose coupling

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
