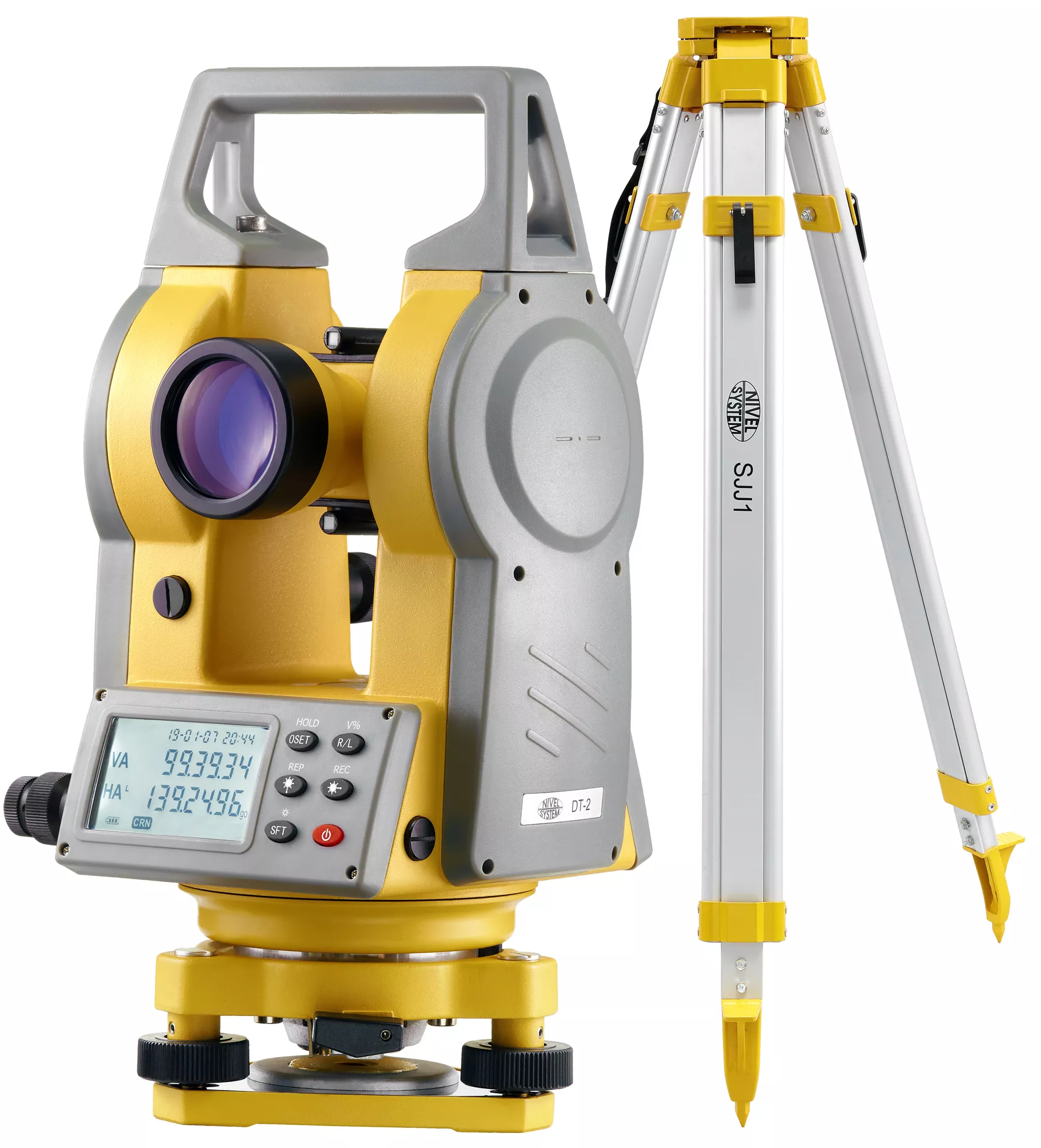

Theodolite Nivel System DT-2 (+ tripod)

Nivel System
Catalogue number: DT-2 [zestaw1]
EAN: 5908263350892
You get: 46 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Installments 10x0%
Gross price
1 155,26 €
1 057,06 €
Net price: 939,23 € 859,40 €
Lowest price 30 days before the discount: 1 049,80 € brutto
Availability:  Available for order
Shipping time:  7-14 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 2 years
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

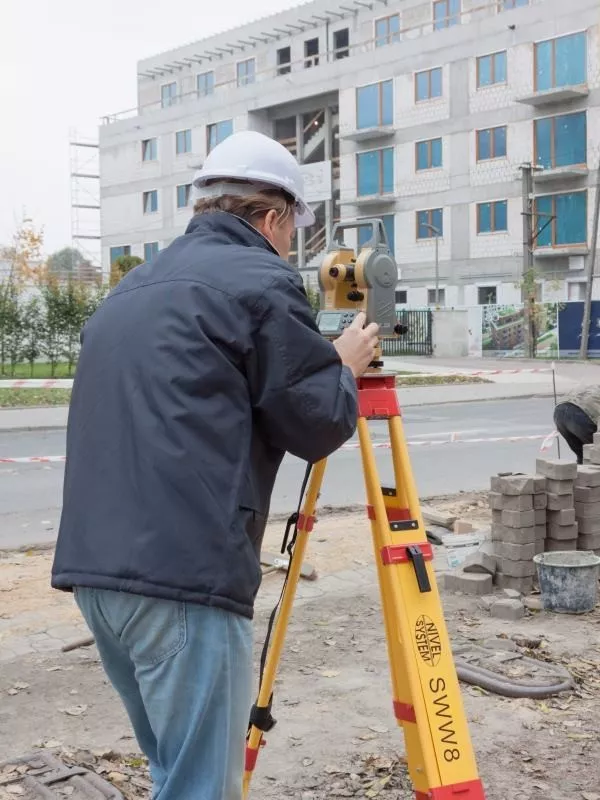

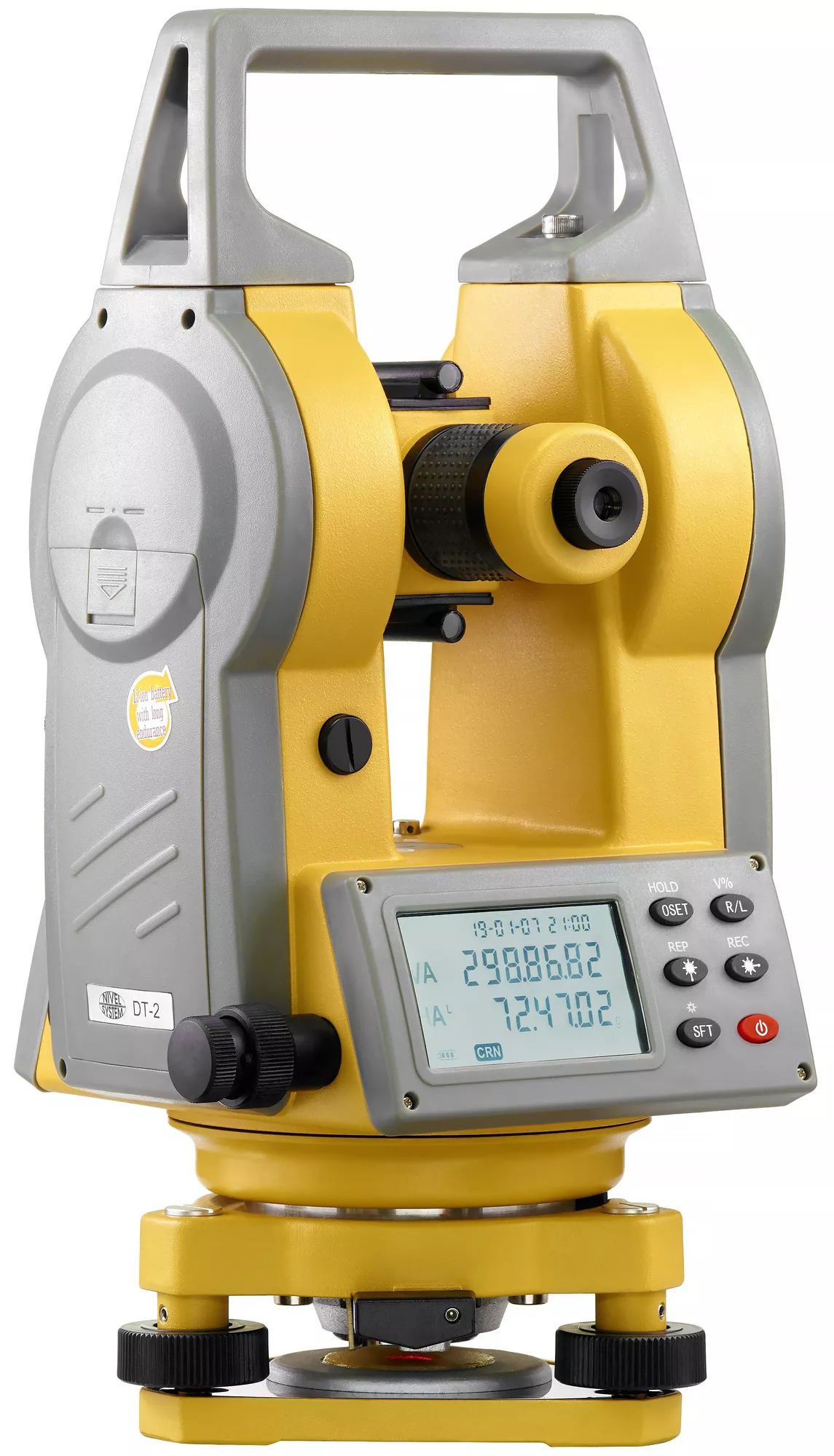

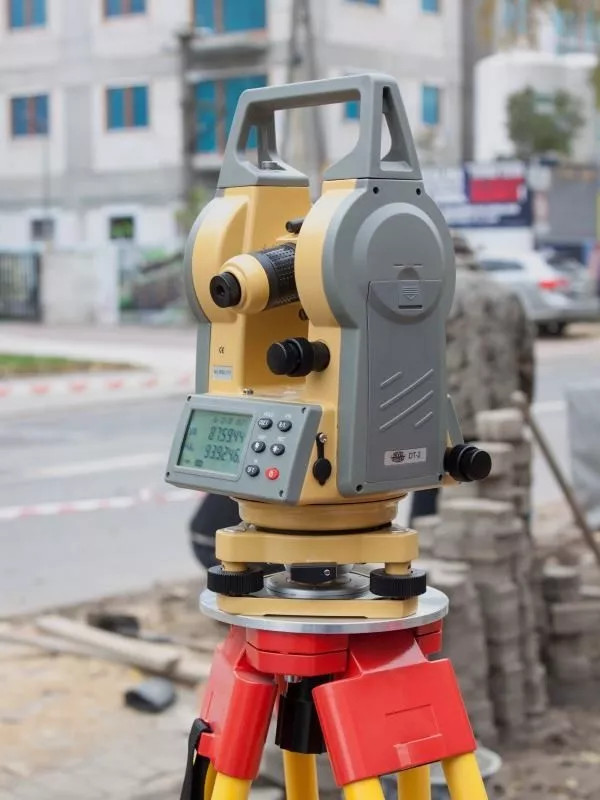

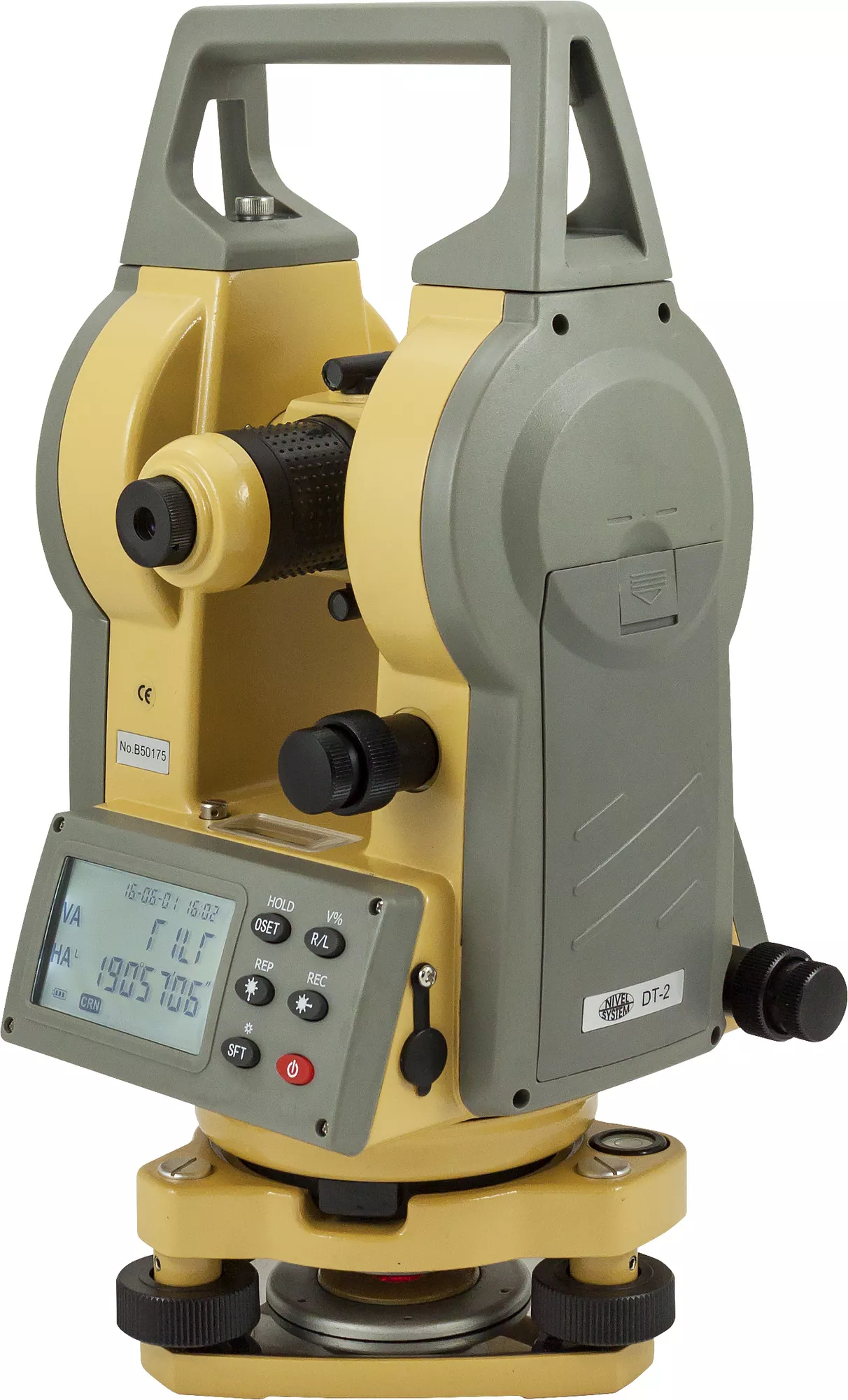

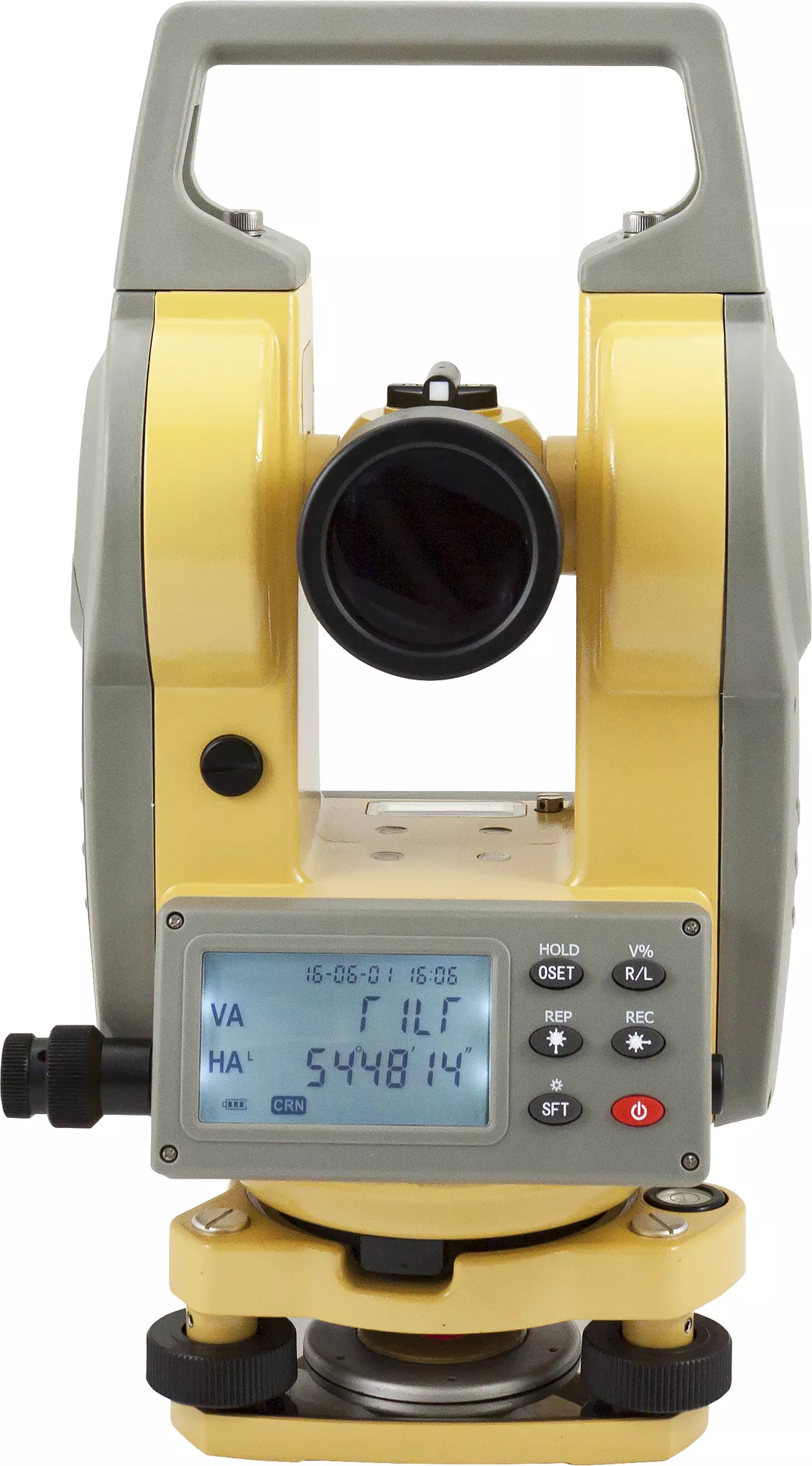

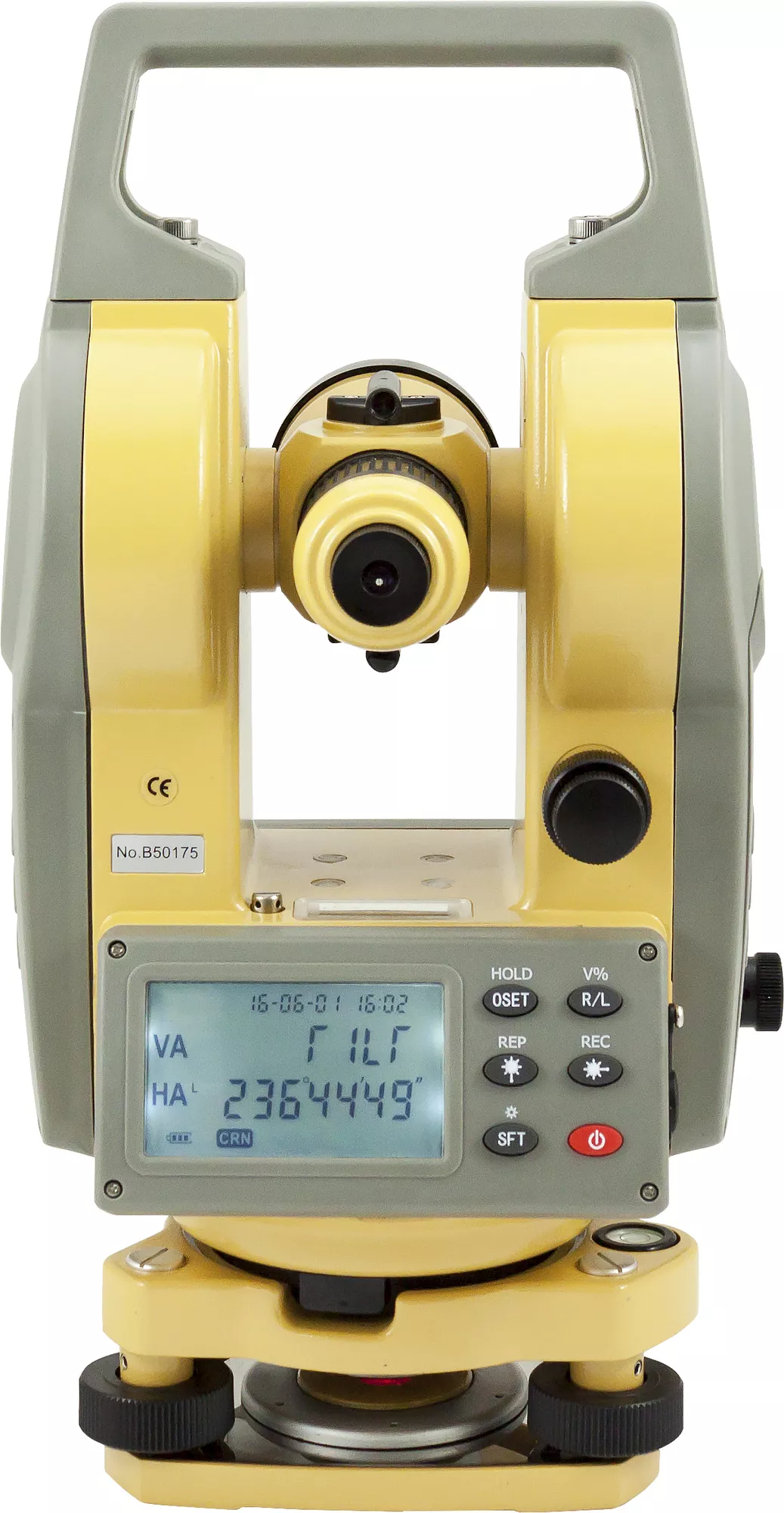

The DT-2 electronic theodolite by Nivel System is a precise, 2-second measuring instrument that allows you to easily and quickly determine the direction, angle or slope. This one of the most important measuring tools on the construction site has a reasonably large structure for this type of instruments. This model has, among others double-sided displays that increase the comfort of work, a single-axis compensator enabling work in the unstable ground without the need to continually check the correctness of levelling or a laser plummets to set theodolite at a given point. Theodolite DT-2 is resistant to harsh weather conditions (IPX6), which makes it ready to work even in heavy rain. The capacious battery allows for extended time measurements in the field.

The electronic theodolite Nivel System DT-2 is an instrument that is characterized primarily by exceptional ease of use. To use this tool, you do not need to have specialized knowledge, and short training is sufficient. The instrument has readable, double-sided displays, which show current readings of measured horizontal and vertical angles. The box vial allows you to precisely level the tool, position it above the point. Thanks to the convenient laser plummet, the device can be quickly positioned above the end, and the precise compensator keeps the equipment in the correct position even when working on unstable surfaces. The use of the highest quality optics guarantees measurements with high accuracy. An undoubted advantage of theodolite is the power supply system (battery) and high resistance to dust and water (IPX6).

Typical applications of the Nivel System DT-2 are construction and geodetic works, angle measurements, determination, determination of slopes and inclinations, as well as all jobs related to the decision of directions and straight lines.

Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free.

Variant description: Accuracy 2", without laser pointer, kit includes an SJJ1 tripod.

Technical characteristics

Batteries
Battery (3,7V)
Accuracy
2''
Telescope length
155 mm
Resistance class
IPX6
Keyboard
6 buttons
Method of measurement
Absolute reading
Minimum reading
1
Simple
Reading
H: double-sided, V: double-sided
Minimal focusing range
1,35 m
Plummet
Laser
Field of view
1°30'
Magnification
30x
Laser point
No
Tribrach
Detachable
Lens diameter
45 mm
Compensator type
Uniaxial
Length x width x height
160 x 190 x 324 mm
Display
Two-sided backlit
Range
+/- 3'
Working temperature range
-20°C ~ +50°C
Resolution capability
2,5
Weight
4.8 kg (theodolite), 7.8 kg (set)

advantages

  • The precision of measurements - a modern horizontal wheel reading system allows immediate use of the total station after removing it from the case, and the side tubular vial facilitates accurate levelling of theodolite,
  • Not terrible vibrations and shocks - the horizontal wheel compensator allows theodolite to work near heavy machinery that causes ground vibrations,
  • Ease of use - using theodolite is effortless, and the measurement results are displayed on an illuminated LCD screen,
  • The versatility of applications - for measuring angles, directions, heights, slopes, stakeout, transfer of azimuths to shafts,
  • Solid construction, measurements in all conditions - the instrument is fully waterproof and dustproof (IPX6), so it can be used even in the harshest conditions on the construction site.

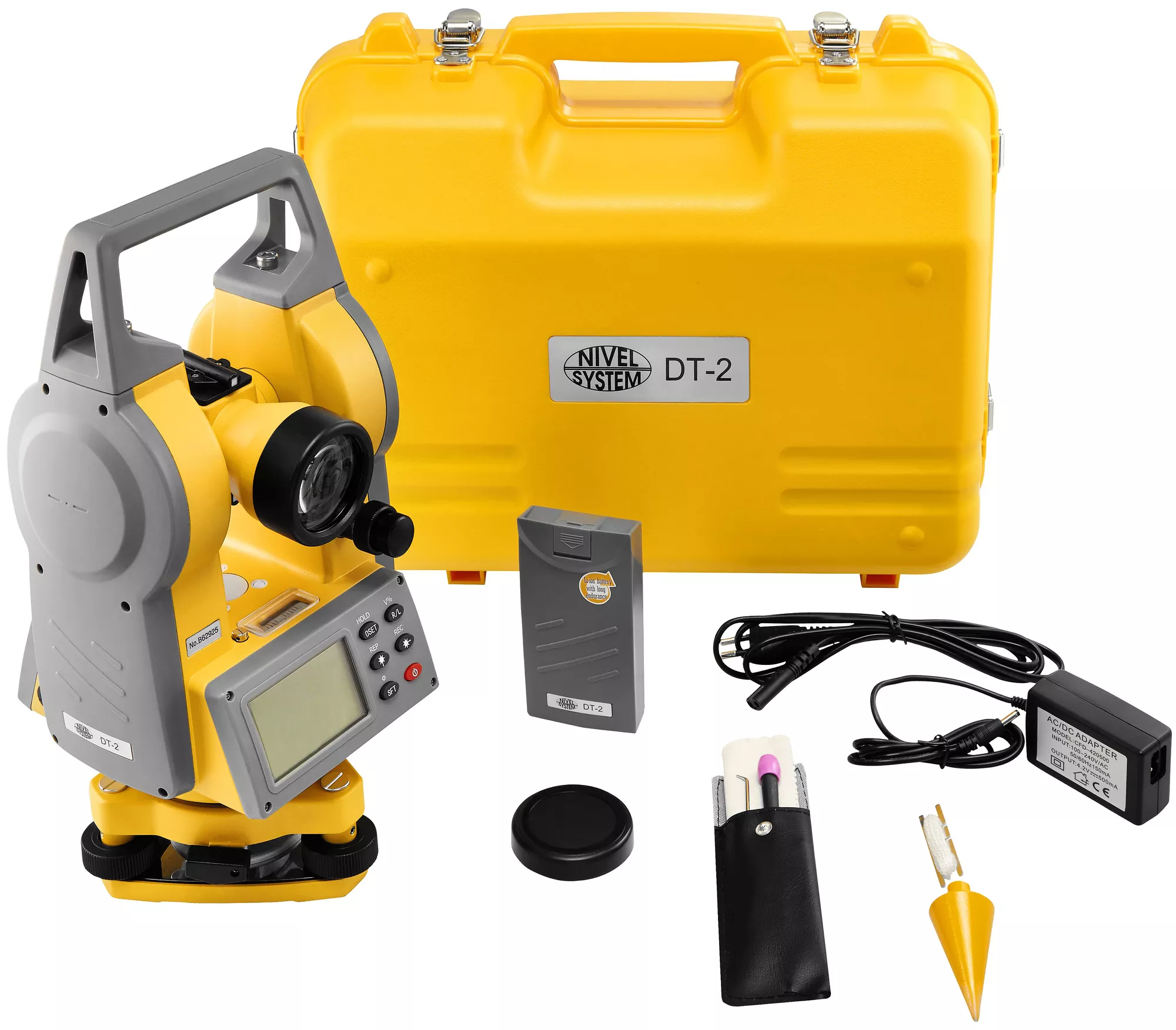

Set contains

  • Electronic theodolite DT-2,
  • Transport case,
  • Battery,
  • Charger,
  • Additional tray for alkaline batteries,
  • User manual in Polish,
  • Instrument certificate,
  • Authorized service guarantee,

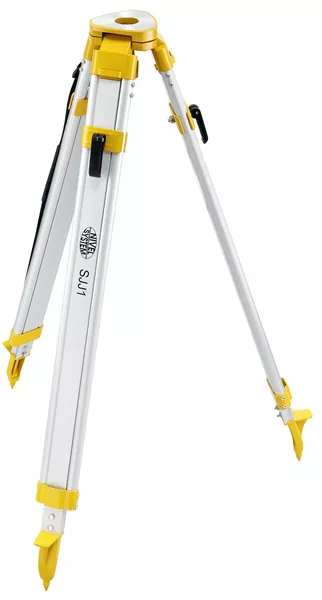

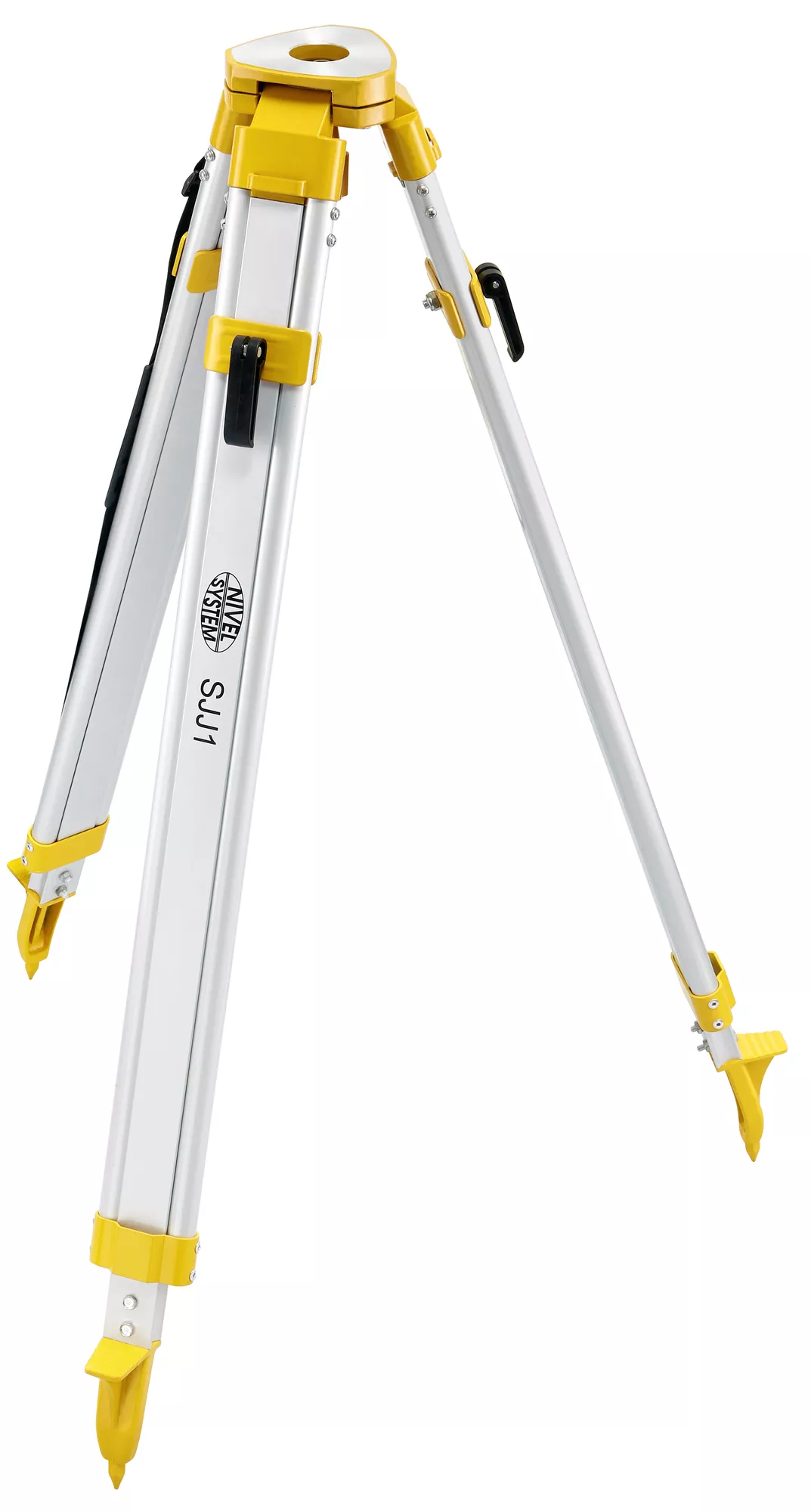

  • Aluminum Nivel System SJJ1 tripod - a light tripod for clamps with a flat head. It has durable clamps blocking the tripod legs, a comfortable carrying strap on the shoulder. Feet tips made of metal provide the required stability on any surface.
