Tandem roller Wacker Neuson RD7 Ye
Catalogue number: 5100027117
Comments: 0

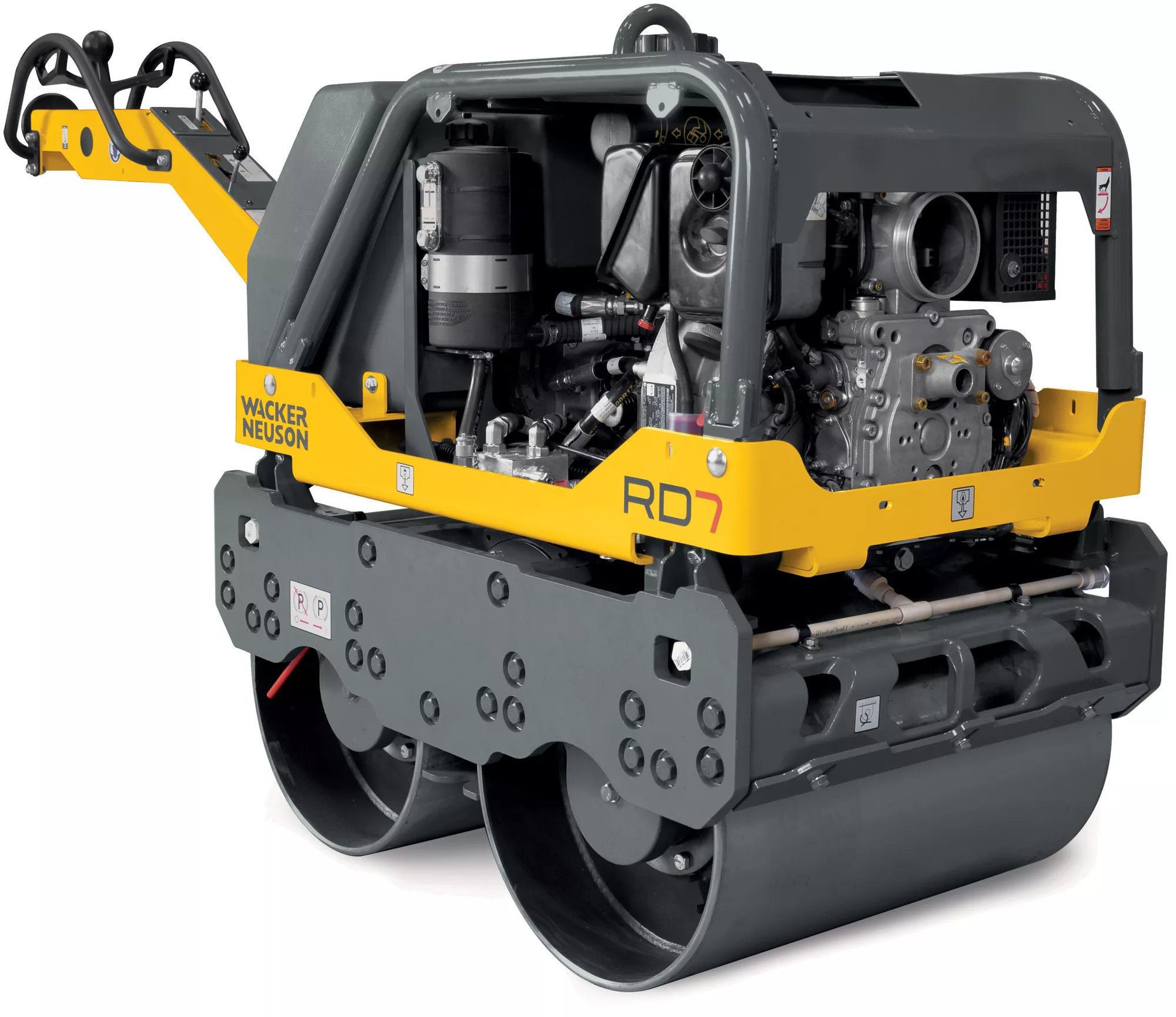

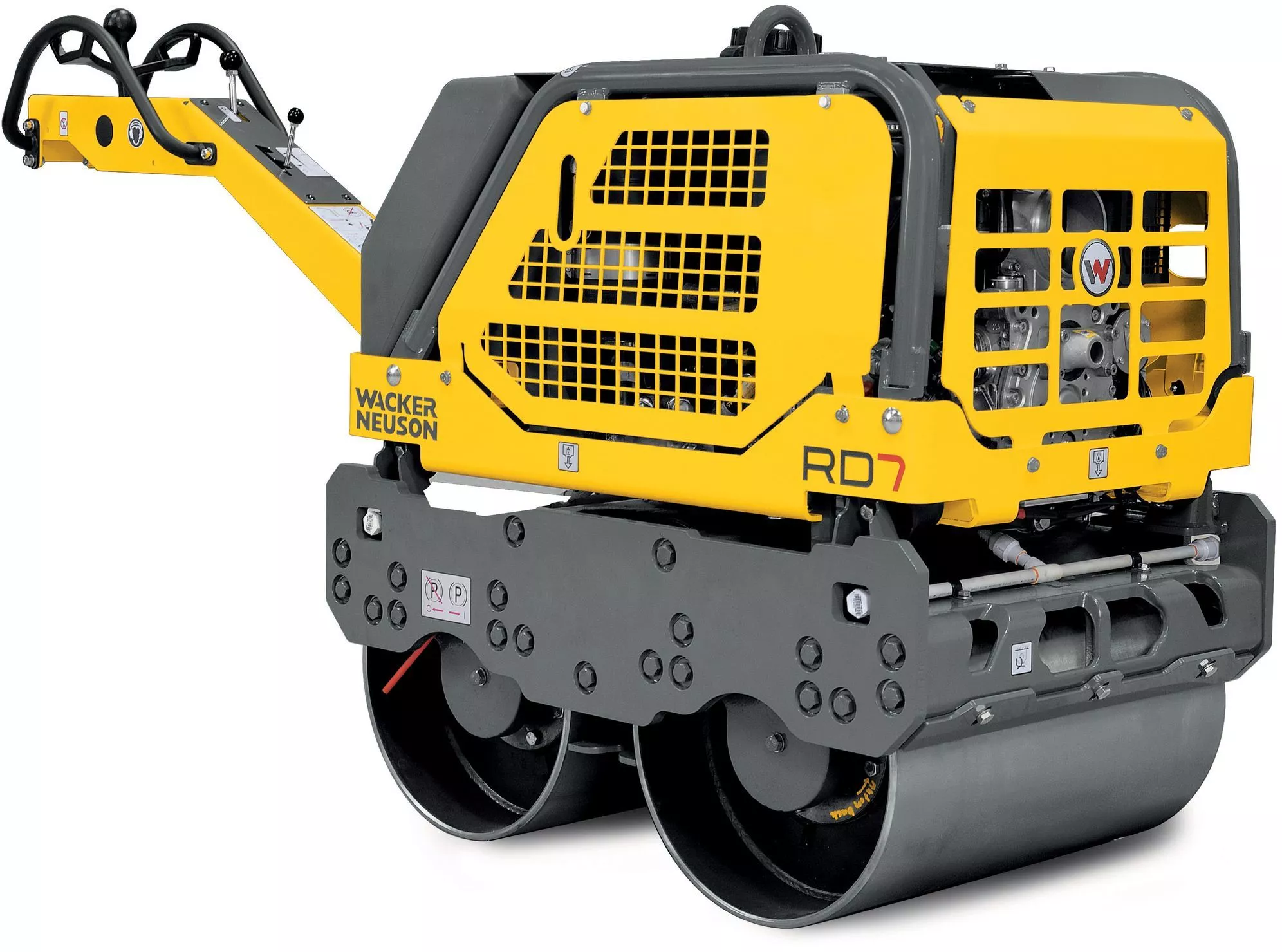

Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Model RD7 Ye by Wacker Neuson is a tandem roller that will cope well with asphalt and all other works of this type. The construction is solidly constructed, ensuring great compaction results. The roller will even handle directly against walls or fences. Thanks to the short distance between the drums and the well-set centre of gravity, turning the roller is much easier than in comparable models. Thanks to this, the work performed is even smoother and without long downtimes.
Variant description: Displacement 435 cm³, fuel tank 5.4 l, weight 740.5 kg
Technical characteristics
Engine type
Combustion (diesel)
Fuel tank capacity
5.4 l
Engine displacement
435 cm³
Drum width
650 mm
Centrifugal force
13.1 kN (low) / 22.2 kN (high)
Surface capacity
2890 m²/h (depending on the ground and external factors)
Engine power
6.1 kW / 8.2 HP (at 2700 rpm)
Frequency
47.5 Hz (low) / 62.1 Hz (high)
Water tank capacity
60 l
Length x width x height
2366 x 698 x 1102 mm
Engine manufacturer
Yanmar
Weight
726 kg
Drum diameter (left/right)
420 mm
Open frame design
- Easy access to many components such as a scraper, watercourses, water hoses etc.
- Easy access to places requiring maintenance - after removing the pins the entire side part can be removed
- Easy access to places requiring cleaning
- Holes in the frame allow easy access with maintenance tools
- All control lines are secured with a lip seal and bellows cover to avoid dust and water damage
Water system
- The easily accessible water tank cover is mounted on the side to avoid damage caused by transport and lifting devices
- Plastic water tank with a capacity of 60 litres
- The fill level is always in view - thanks to the fill level scale
- Unscrewing and turning off the water supply with one handle - directly on the side of the drawbar
- Openings in the frames allow easy cleaning of watercourses
advantages
- High level of safety during work due to presence recognition system,
- In the event of danger, the vibrating roller stops automatically,
- Hand-arm vibration protection thanks to shock absorbers in the guide shaft,
- More comfortable transport and economical storage thanks to the folding drawbar,
- Easy start (also in winter) thanks to a unique drive system with pump and clutch.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
