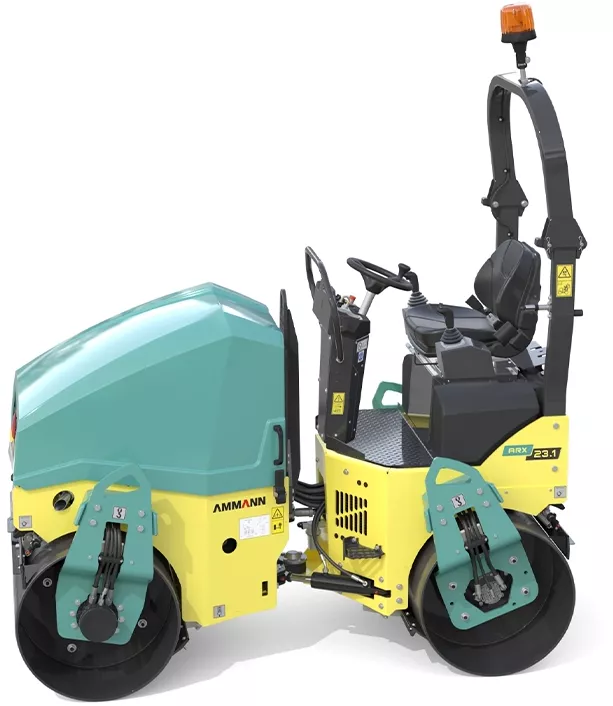

Tandem roller Ammann ARX 23.1-2
Catalogue number: ARX 23.1-2
Installments 10x0%
Price on request
Availability: Temporarily unavailable
Shipping time: on requesti
The shipping time for this product is determined individually.
Please contact Customer Service
Warranty: 2 years
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Variant description: Kubota D1703-M-DI engine, working width 100 cm, weight 2260 kg
Technical characteristics
Power
18.5 kW / 24.8 KM
Engine type
Combustion (Diesel)
Engine model & manufacturer
Kubota D1703-M-DI
Tension
12 V
Battery capacity
77 Ah
Frequency
58 Hz / 66 Hz
Number of cylinders
3
Amplitude
0.5 mm
Centrifugal force
30 kN / 35 kN
Travel speed
10 km/h
Fuel tank capacity
35 l
Hydraulic oil capacity
28.5 l
Water tank capacity
190 l
Gradeability
35% (without vibration), 30% (with vibration)
Oscillation angle (left / right)
±6,5°
Turning radius Inner
2500 mm
Drum width
1000 mm
Drum diameter (left/right)
700 mm

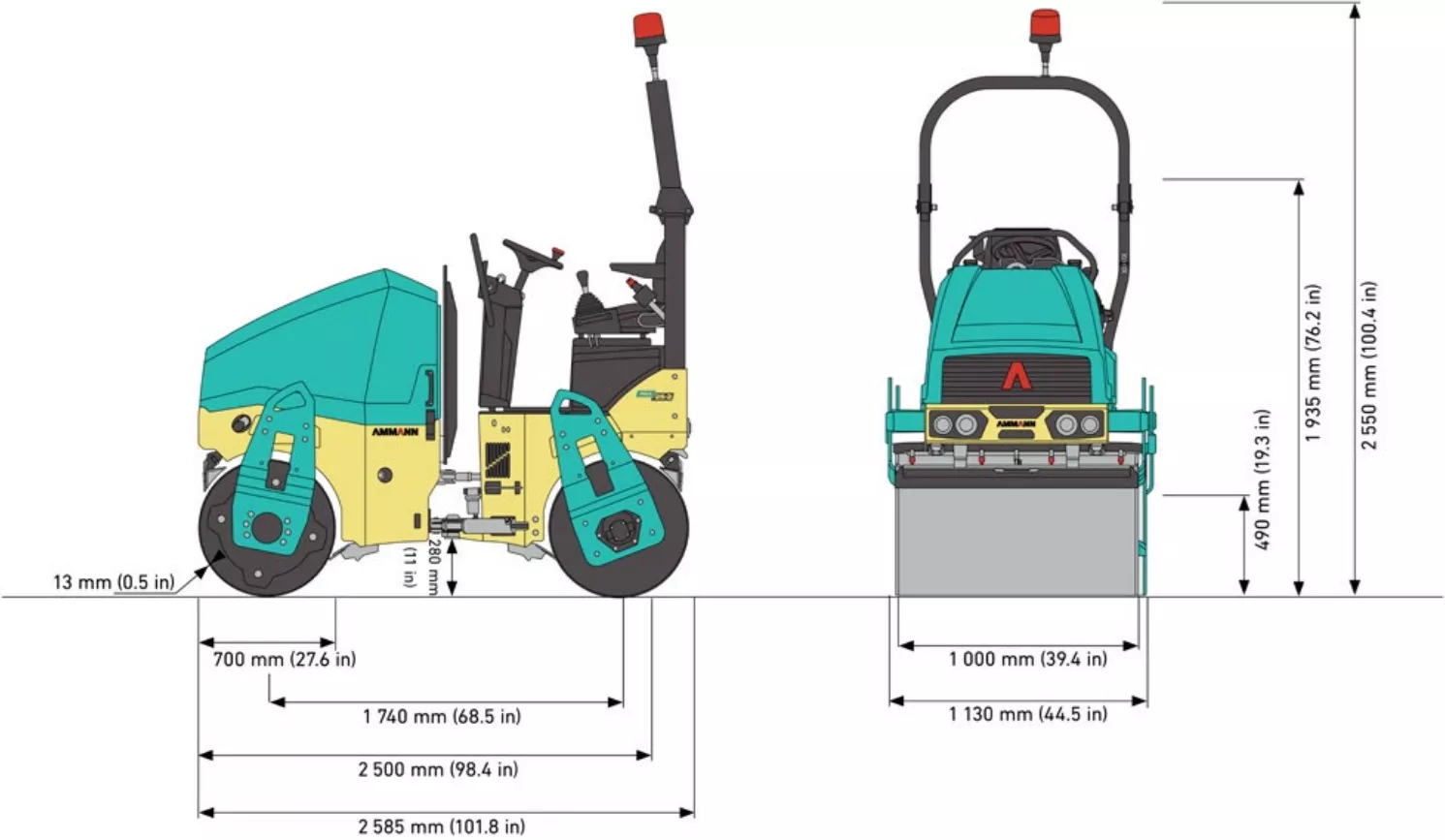

Length x Width x Height
2585 x 1130 x 2550 mm
Working weight
2495 kg (maximum)
Weight
2260 kg
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
