Slipform for Concrete Backfill Mimal SZL

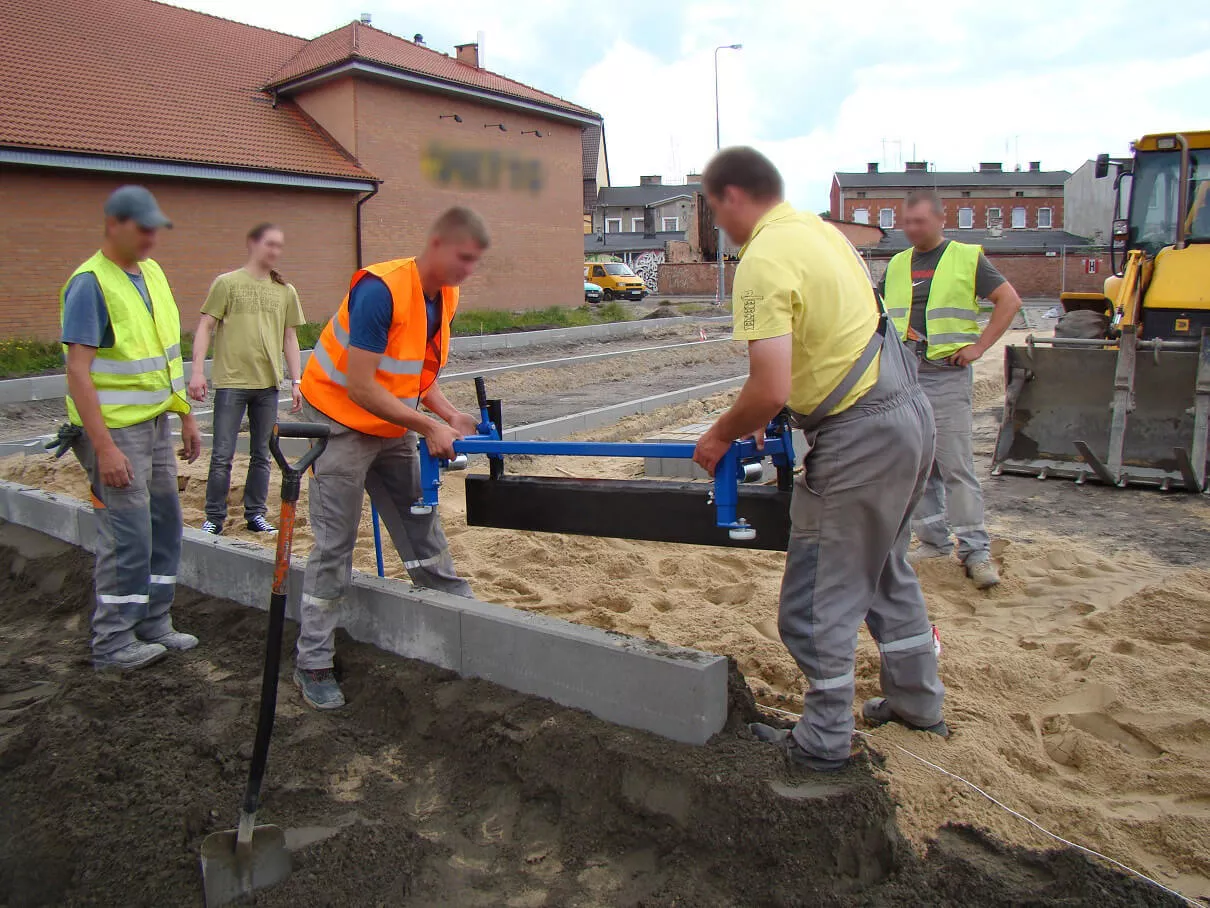

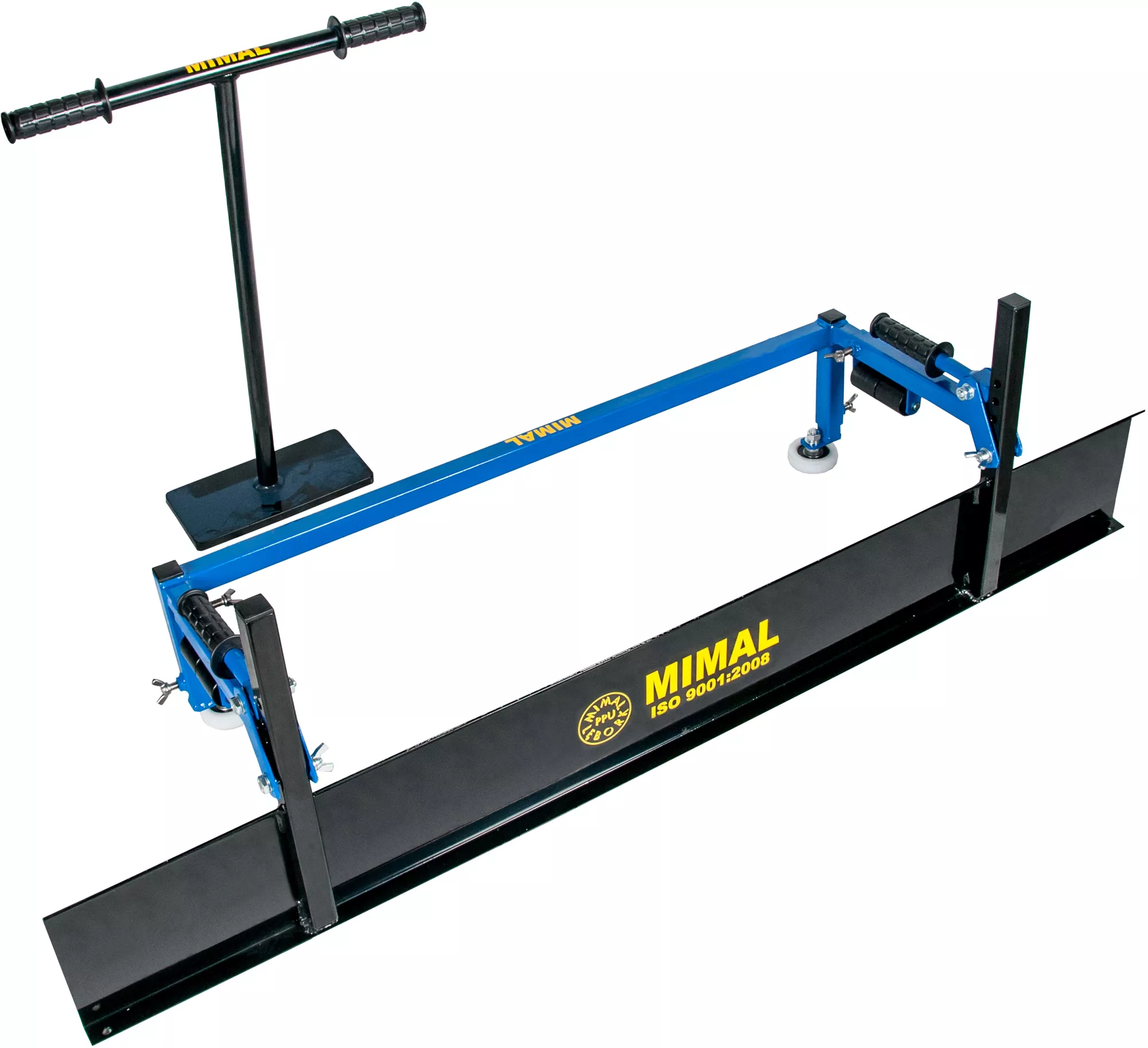

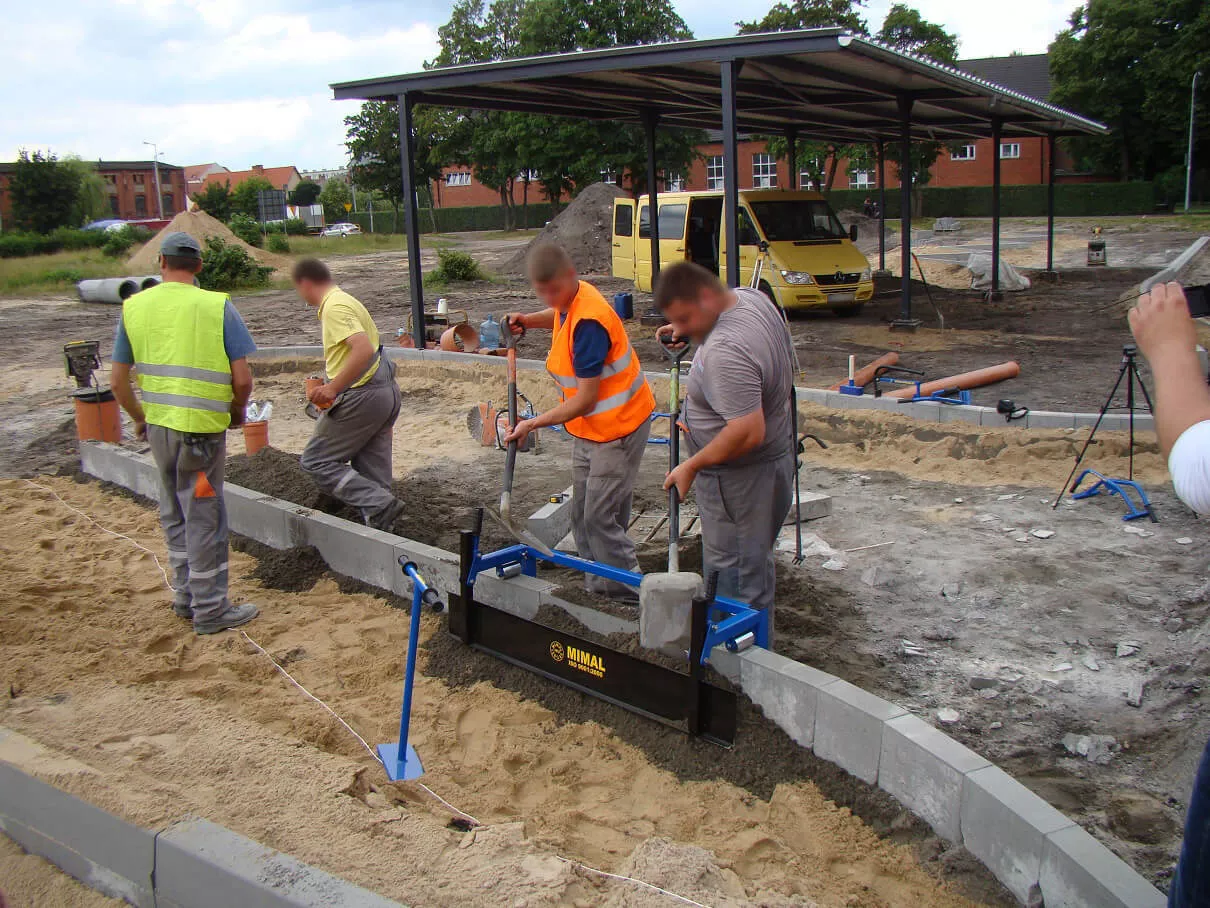

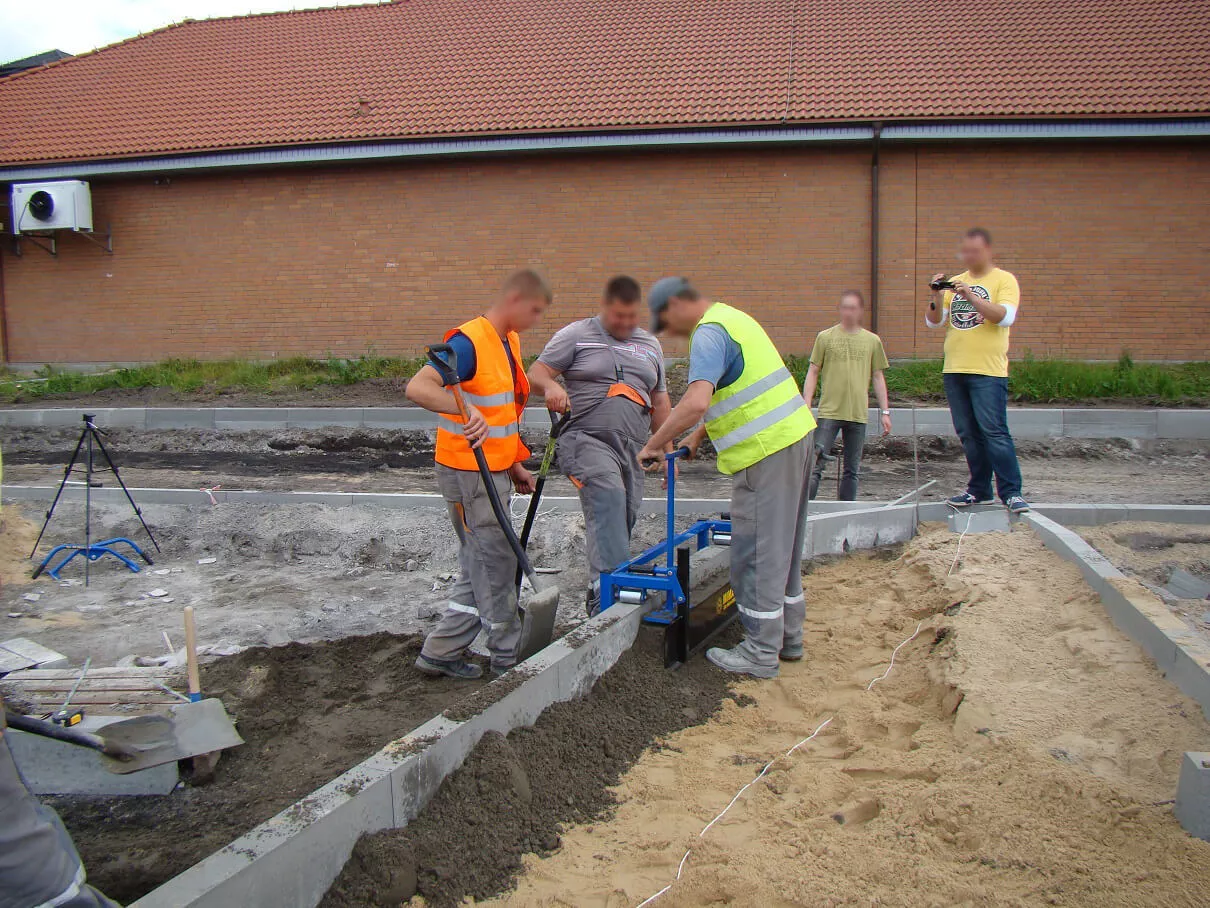

The Mimal SZL slipform is used for shuttering a retaining wall made when laying curbs. Formwork is a beneficial device that reduces working time several times. The sliding formwork is adjustable horizontally and vertically. Using two levers, moving them to a horizontal position, we block the formwork sheet in a vertical position. Unlock the two bars by placing them in an upright position. The sliding formwork consists of one piece of formwork structure and one piece of the beater. The length of the working part is 1.5 m, the maximum permissible height of the retaining wall is 175 - 275 mm, and the supported width of the curb is 120 - 200 mm.

Painting surfaces made using the powder method ensure high durability and aesthetics.

Variant description: Slipform length 1.5 m, weight 22.5 kg
