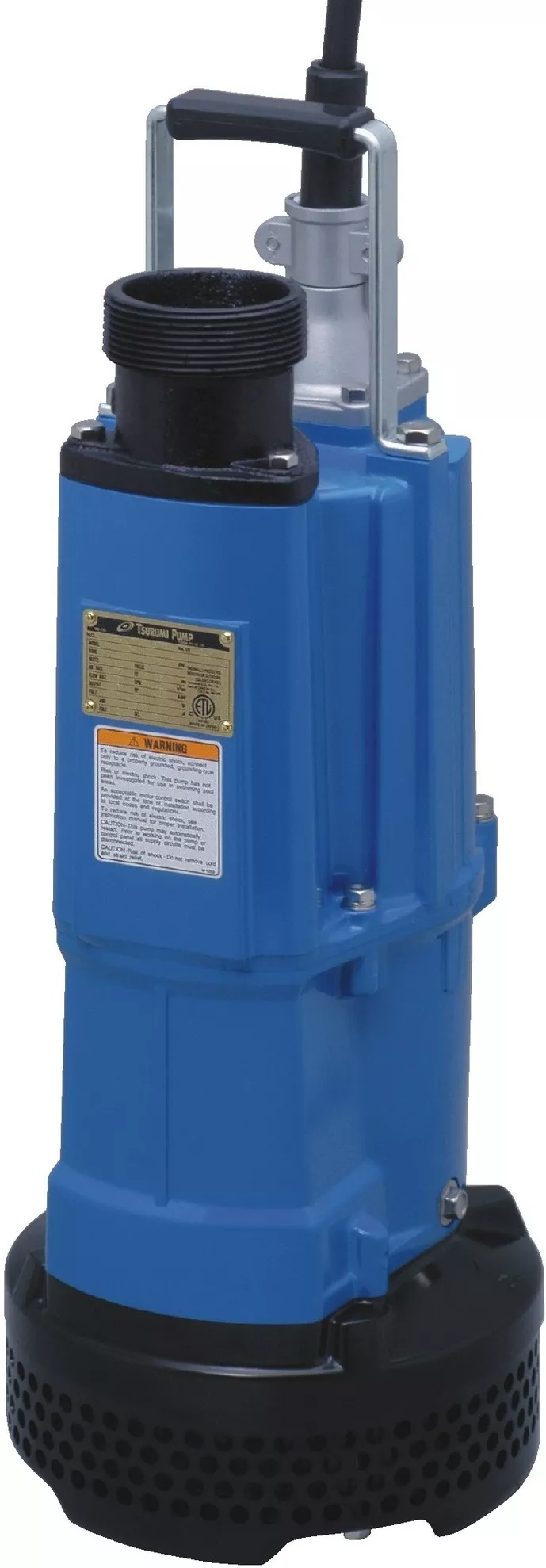

Submersible pump Tsurumi NK 3-22L

Tsurumi Pump
Catalogue number: NKLGCR4
You get: 147 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
4 258,26 €
3 662,10 €
Net price: 3 462,00 € 2 977,32 €
Lowest price 30 days before the discount: 4 258,26 € brutto
Availability:  Available for order
Shipping time:  ~7 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

Technical characteristics

Cable lenght
20 m
Pressure resistance
25 m
Maximum solid handling
6 mm
Maximum performance
800 l/min
Maximum height lift
18 m
Engine power
2,2 kW / 3 KM
Connector diameter
75 mm
Application
Woda czysta
Weight
40 kg
Current
14,5 A (znamionowy)
Length x width x height
216 x 235 x 669 mm

DETAILED SPECIFICATION


  Submersible pump Tsurumi
Specification Pump
Components Impeller Semi-vortex impeller
Bearings Shielded ball bearings
Shaft seal Double mechanical seal
Material Impeller Ductile iron casting EN-GJS-700-2, chromium iron casting
Casing BR with natural rubber, grey iron casting EN-GJL-200
Suction plate
Shaft seal Silicon carbide in oil bath
Specification Motor
Material
Casing Aluminium die casting
Shaft Stainless steel EN-X6CR13, stainless steel EN-X30CR13
Cable Rubber − H07RN-F
Frequency 50 Hz
Voltage 230 V (single phase)
Built-in motor protection Circle thermal cut-out
Type Induction motor, 2 poles
Insulation Insulation class F, insulation class B
Lubrication Turbine oil − ISOVG32
Protection IP 68
Specification Pumping Fluid
Medium type Spring water, rain water, ground water, sand carrying water
Temperature 040° C
Specification Other
ø Discharge bore mm 75 mm
Discharge Connection Threaded flange / Hose coupling
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Submersible pump Tsurumi NK 4-22
Lifting height 24 m, flow 525 l/min, discharge port 2″
