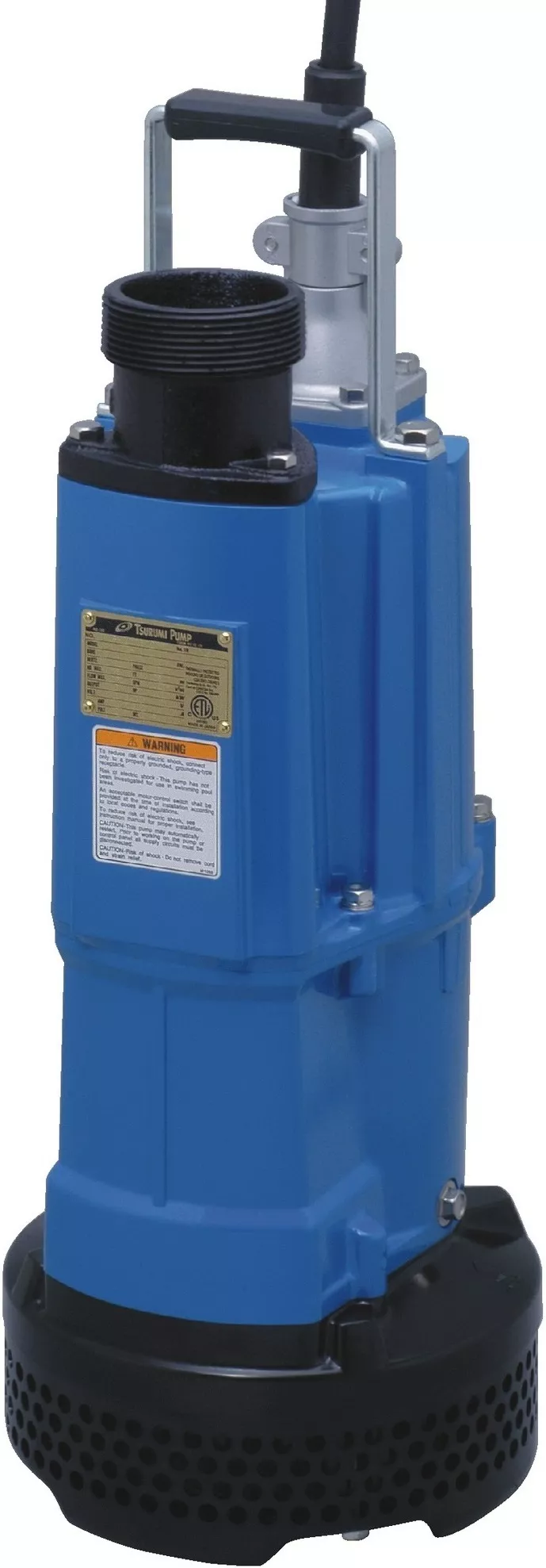

Submersible pump Tsurumi NK 3-22
Catalogue number: NK3-22
Availability: Discontinued product
Shipping time: ~3 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Weight
29 kg
Cable lenght
20 m
Pressure resistance
25 m
Maximum solid handling
6 mm
Maximum performance
525 l/min
Maximum height lift
24 m
Engine power
2,2 kW
Rated current
13,5 A
Connector diameter
2''
Application
woda czysta
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-Vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Chromium iron casting |
| Casing | BR, natural rubber, grey iron casting EN-GJL-200 | |
| Suction plate | − | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13, Stainless steel EN-X30CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class F, insulation class B | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Spring water, rain water, ground water, sand carrying water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 50 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
