Submersible pump Tsurumi HSD 2.55S
Catalogue number: IHD2DCRA
EAN: 4944792107959
Sale
Gross price
904,30 €
Net price: 1 311,00 € 735,21 €
Lowest price 30 days before the discount: 1 344,98 € brutto
Availability: In stock
Shipping time: 24hi
Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Hose Bogdan Gil WV 52-20ŁA 20 m (diameter 52...
Hose Bogdan Gil WV 52-20ŁA 20 m (diameter 52 mm)Gross price

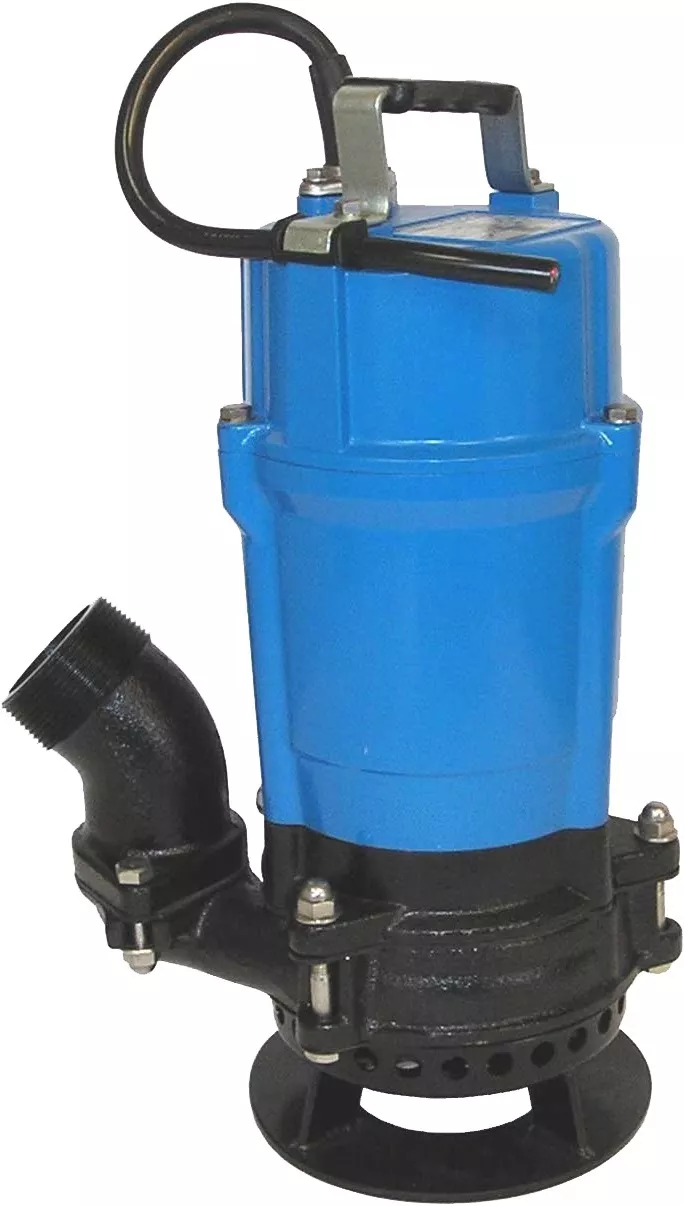

Tsurumi HSD 2.55S are submersible drainage pumps for universal use. Its most significant advantage are small dimensions, high efficiency and durability. There is no suction plate in the pump.
Variant description: Basic set
Technical characteristics
Pressure resistance
10 m
Maximum solid handling
10 mm
Maximum performance
220 l/min
Maximum height lift
13,2 m
Engine power
0,55 kW
Connector diameter
50 mm
Application
Dirty water
Current
3,6 A (rated)
Weight
14 kg
Frequency
50 Hz
Cable length
10 m
Tension
230 V (single-phase)
advantages
- Intensive mixing – the agitator at the end of the shaft mixes the medium, thanks to which silt, sediment and sand are pumped without any problem,
- Long service life and simple operation of the device,
- The impeller and agitator are made of strong chromium cast steel, and the pump body is made of ductile iron,
- The pump body is resistant to abrasion. Access to the rotor is possible after unscrewing only three screws.
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Semi-vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Double mechanical seal | |
| Material | Impeller | Chromium iron casting |
| Casing | Ductile iron casting EN-GJS-700-2 | |
| Suction plate | – | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | Aluminium die casting |
| Shaft | Stainless steel EN-X6CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single phase) | |
| Built-in motor protection | Miniature protector | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E | |
| Lubrication | Turbine oil − ISOVG32 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Sand carrying water, sludge, bentonite | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 50 mm | |
| Discharge Connection | Threaded flange / Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
