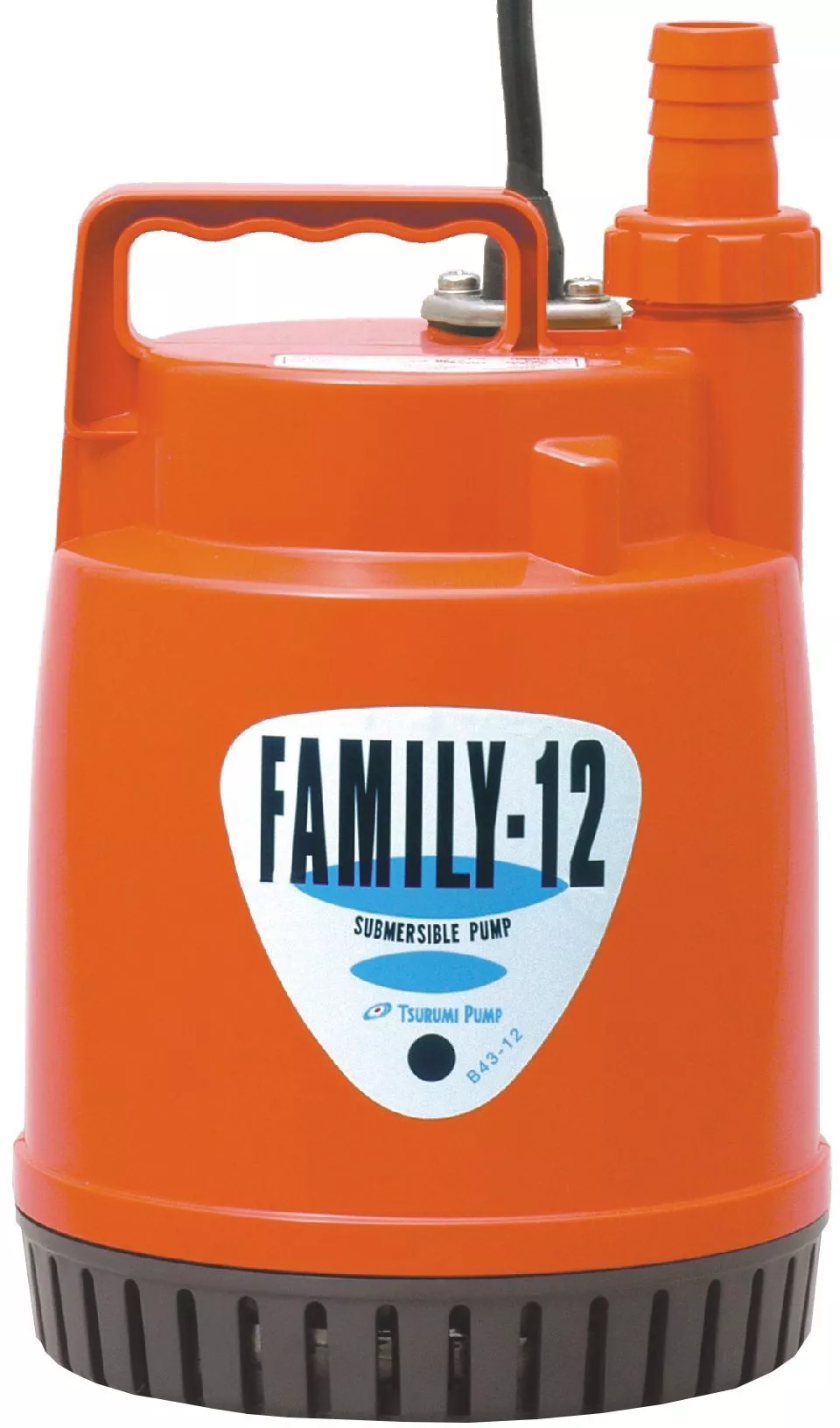

Submersible pump Family-12
Catalogue number: Family-12
Additional number: IFAMHAR5
Installments 10x0%
Gross price
298,37 €
Net price: 311,00 € 242,58 €
Lowest price 30 days before the discount: 315,22 € gross
Availability: Available for order
Shipping time: ~3 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): 9,95 €
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Pressure resistance
5 m
Maximum solid handling
6 mm
Maximum performance
80 l/min
Maximum height lift
6 m
Engine power
0.1 kW
Connector diameter
1''
Weight
3.4 kg
Tension
230 V (1-phase)
Application
Clean water
Cable length
10 m
Current
1.3 A (rated)
Frequency
50 Hz
DETAILED SPECIFICATION
| Submersible pump Tsurumi | ||
| Specification | Pump | |
| Components | Impeller | Vortex impeller |
| Bearings | Shielded ball bearings | |
| Shaft seal | Mechanical seal | |
| Material | Impeller | Glass fibre reinforced plastic |
| Casing | AAS | |
| Suction plate | − | |
| Shaft seal | Silicon carbide in oil bath | |
| Specification | Motor | |
| Material | Casing | AAS |
| Shaft | Stainless steel EN-X30CR13 | |
| Cable | Rubber − H07RN-F | |
| Frequency | 50 Hz | |
| Voltage | 230 V (single-phase) | |
| Built-in motor protection | Circle thermal cut-out | |
| Type | Induction motor, 2 poles | |
| Insulation | Insulation class E | |
| Lubrication | Turbine oil − ISOVG15 | |
| Protection | IP 68 | |
| Specification | Pumping Fluid | |
| Medium type | Clear water | |
| Temperature | 0 − 40° C | |
| Specification | Other | |
| ø Discharge bore mm | 25 mm | |
| Discharge Connection | Hose coupling | |
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
