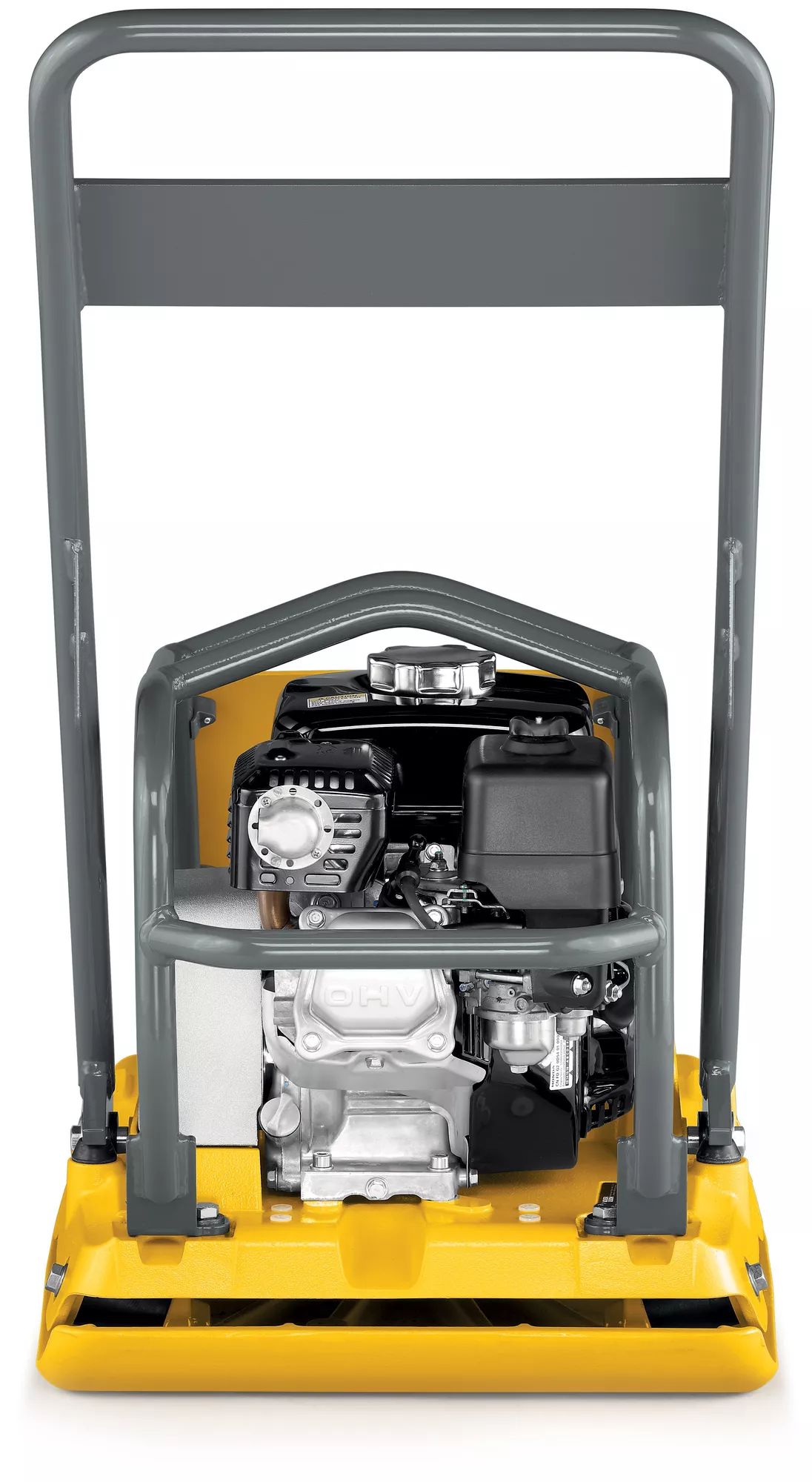

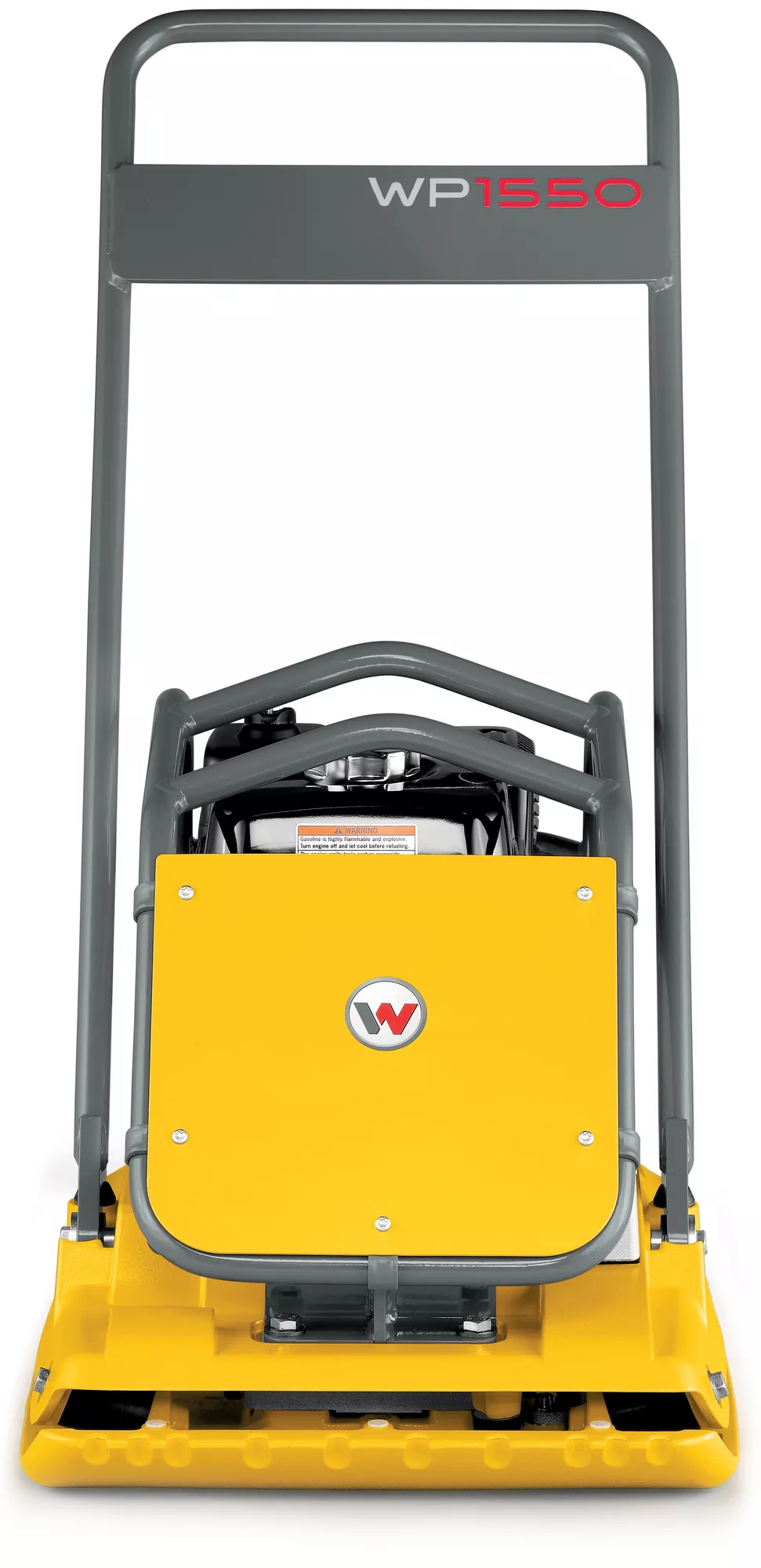

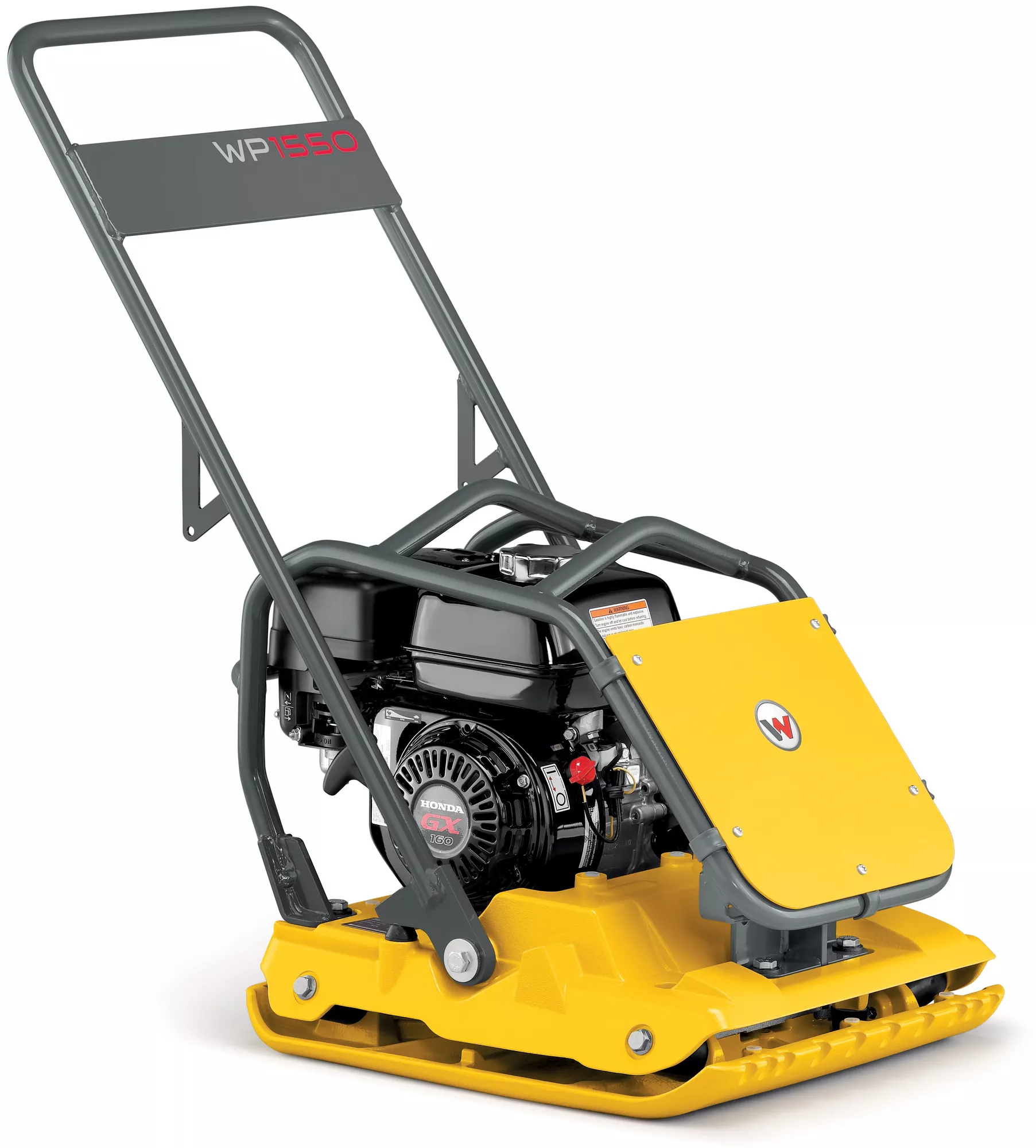

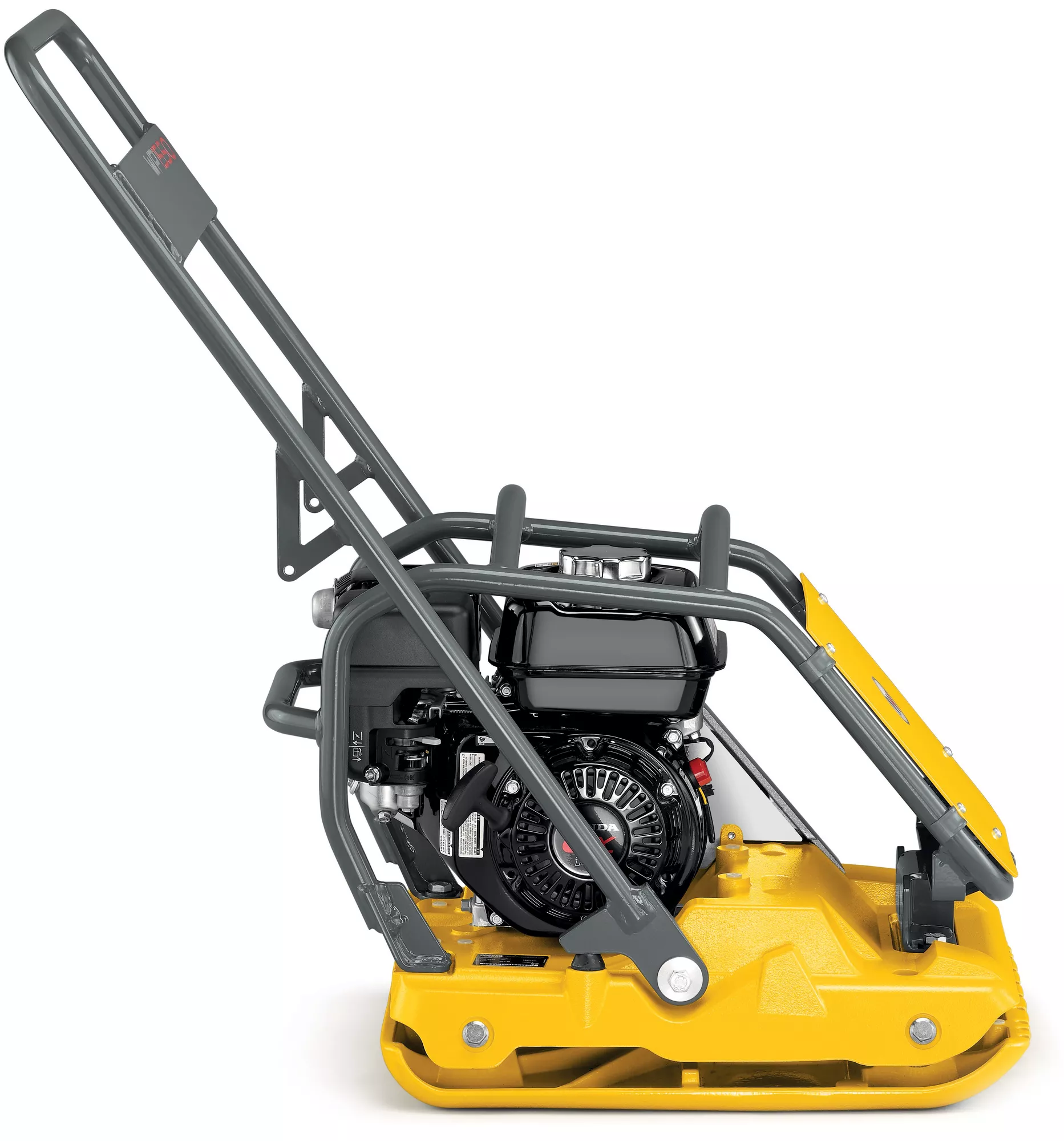

Single Direction Vibratory Plate Wacker Neuson WP 1550 A
Catalogue number: 5100018323
You get: 104 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
2 400,42 €
Lowest price 30 days before the discount: 3 504,27 €
Net price: 1 951,57 €
Availability: Available for order
Shipping time: 7-14 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
The high-performance vibratory plates of the WP series are the professionals’ frequent choice for compacting asphalt and interlocking paving stones as well as for the compaction of mixed soils in confined spaces. The robust and durable design makes them the ideal tools for continuous professional use in road construction. They are perfectly suited for the compaction of sandy and granular subbases for sidewalks, roads and parking lots. Low pollutant emissions protect the operator and improve working conditions.The vibratory plates of the WP series can be moved easily to the desired location on the construction site by using the optional wheel set.
Variant description: Weight 89 kg, plate size 498 mm
Technical characteristics
Engine type
Internal combustion engine (petrol)
Engine model & manufacturer
Honda GX160
Fuel tank capacity
3,6 l
Fuel consumption
0,8 l/h
Frequency
98 Hz
Plate size (width x length)
498 x 578 mm
Engine displacement
163 cm³
Centrifugal force
15 kN
Advance travel (maximal)
29 m/min (depending on the soil and the external factors)
Weight
89 kg
Engine power
3,1 kW / 4,2 KM
Operating width
498 mm
Height of the protective frame
527 mm
Plate length
578 mm
Base plate thickness
7 mm
Base plate
- Tapered and rounded edges minimize the formation of undesired edges when turning the base plate and provide a smooth surface.
- Made of wear resistant ductile cast iron for a long service life.
- First class results in asphalt compaction due to the very high quality base plate.
Guide handle and Solid protection frame with lifting eye
- The forward pivoting handle allows for operations such as upward pulling of the plate when working on a slope.
- Due to the central mounting of the guide handle the plate can be turned quickly and easily.
- Optimum protection of engine and water tank reduces repair costs.
- The robust lifting eye is integrated in the protection frame for safe lifting.
- Ideal for lateral operation along edges.
Water tank
- The 11 liters tank capacity reduces time for refills and thus increases productivity.
- Easy filling due to the large tank lid.
- Optional for all models of the WP series.
Paving Pad
- Perfect protection of paving stones during compaction.
- Quick and stable mounting.
- Essential accessory for all pavement applications.
Advantages
- Excellent maneuverability and stability during lateral operation due to additional handles at the protection frame,
- Robust and low-maintenance design ensures a long service life: a solid frame protects the engine, wear-resistant belts,
- Sprinkler system: optimum water coverage over the entire width of the base plate, automatic flow control during vibration only,
- Robust and reliable in design and construction.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
Associated products

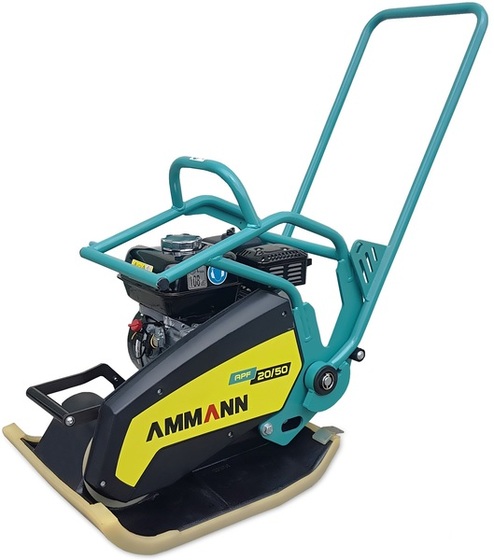

Single Direction Vibratory Plate Ammann APF 20/50
Single Direction Vibratory Plate Ammann APF 20/50Gross price
Single Direction Vibratory Plate Bomag BP 20/50
Single Direction Vibratory Plate Bomag BP 20/50Gross price

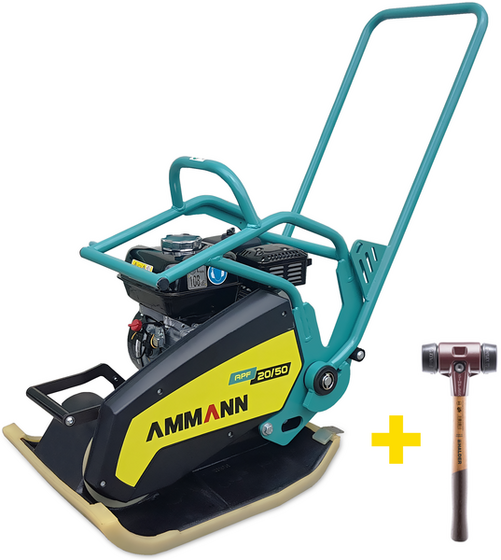

Single Direction Vibratory Plate Ammann APF 20/50...
