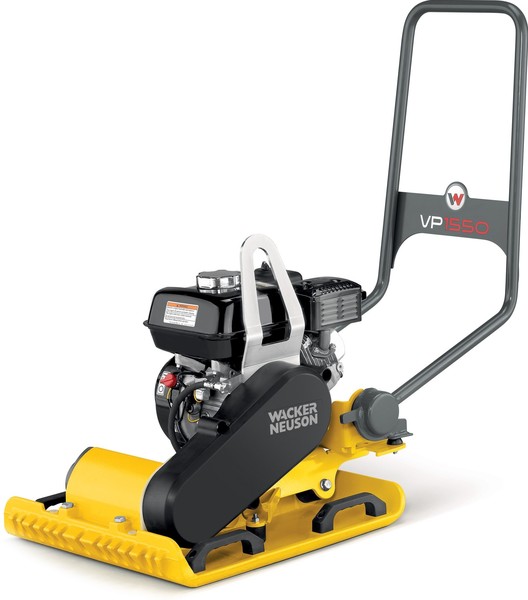

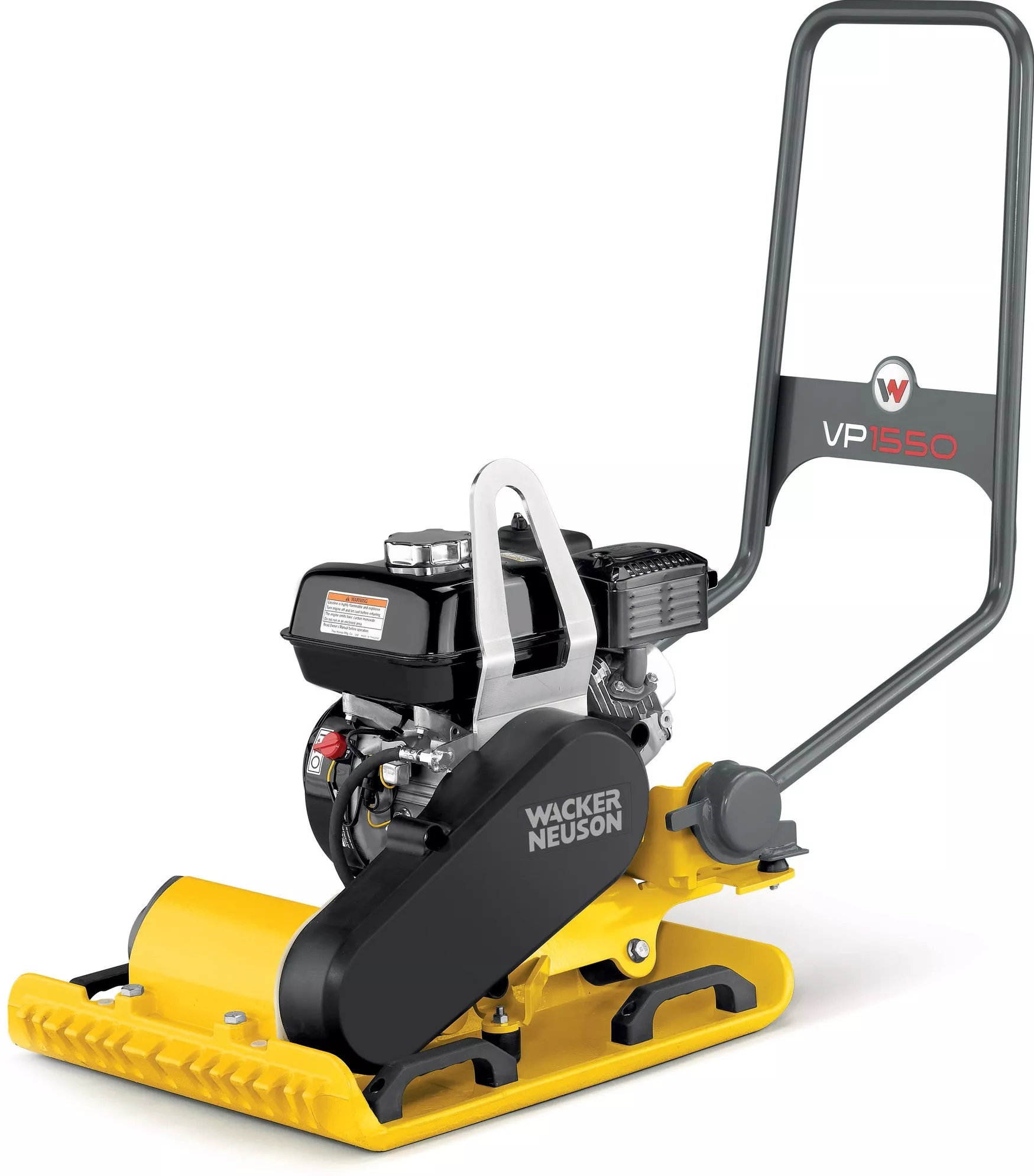

The vibratory plates of the VP series are very compact devices. They are ideal for asphalt compaction, interlocking paving stones and for the compaction of mixed soils even in confined spaces. Typical applications are path construction, gardening and landscaping. The optimized combination of the specially designed base plate and guide handle provide easy maneuvering. The plates of the VP series can easily operate around stones and duct covers as well as along curbstones or buildings. The wheel set (accessory) enables the vibratory plates of the VP-series to be moved easily and with little effort to the next job location on the construction site (except VP1030 and VP1135). Hand-arm vibrations below 5 m/s² and low pollutant emissions help to protect the operator.
Description of the variant: Weight 93 kg, engine Honda 3,1 kW, centrifugal force 15 kN, plate width 503 mm
- Steady wetting up to the edges of the base plate
- Large filter in the water tank with very good filter action prevents clogging of the water nozzles
- Large, stable and easy to operate regulator for optimum dosing of the feed volume
- Tapered and rounded edges minimize the formation of undesired edges when turning the base plate and provide a smooth surface.
- Made of wear resistant ductile cast iron for a long service life.
- First class results in asphalt compaction due to the very high quality base plate.
- Large solid lifting eye for safe handling.
- Lifting eye turned by 90 degrees for better balance when lifting and easier access to tank.
- Handles on the base of the equipment allow easy transportation.
- Time saving: quick and stable mounting without screwing to base plate.
- Material-friendly, essential accessory for all pavement applications.
- The rounded edges of the base plate minimize the formation of undesired edges when turning the equipment,
- Comfortable soil compaction: the tapered base plate edges facilitate the compaction on the spot,
- Solid construction design minimizes maintenance: the protected belt drive prevents wear of the belt,
- Robust lifting eye and handles on the base plate for easy transportation.
