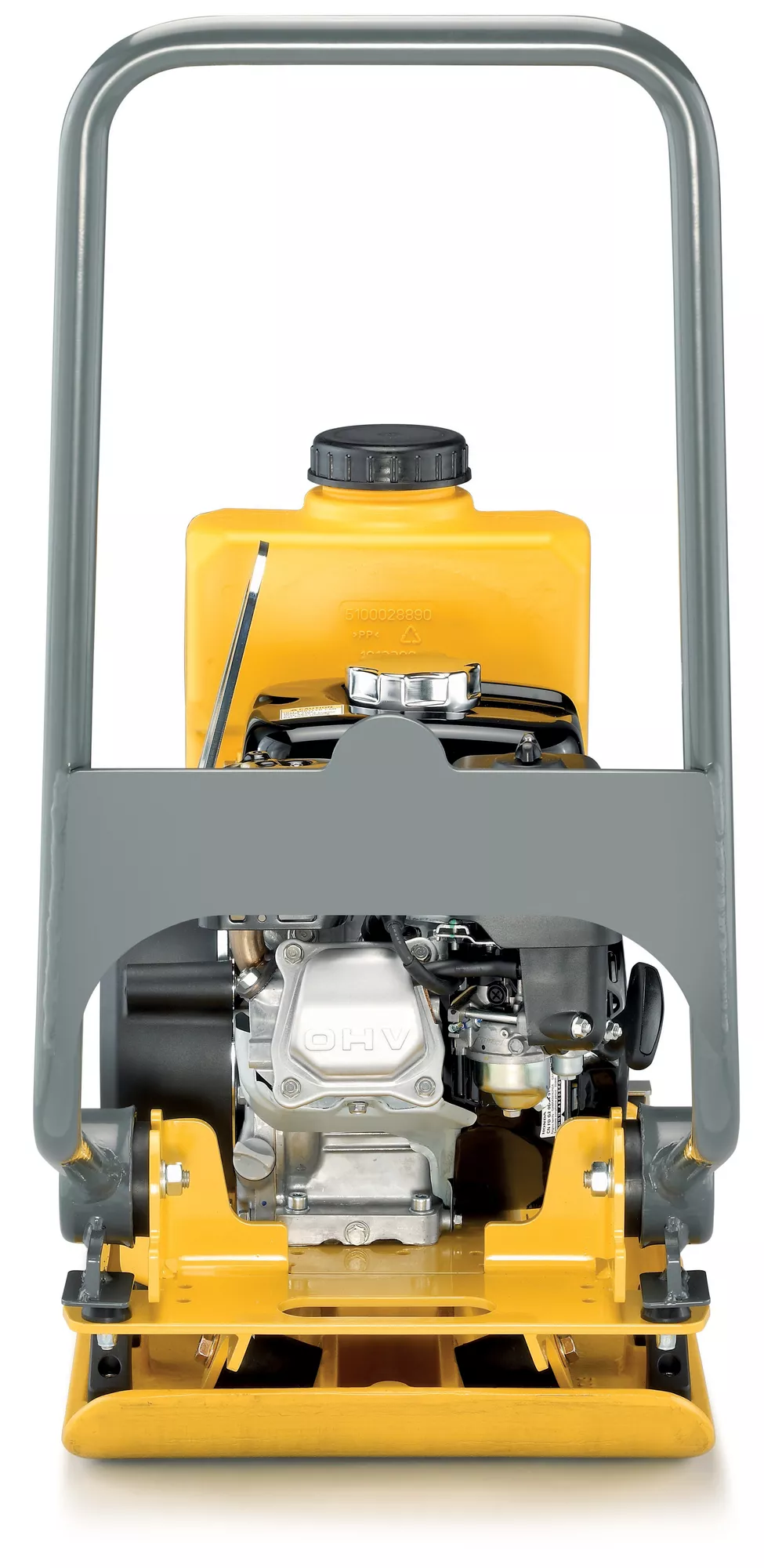

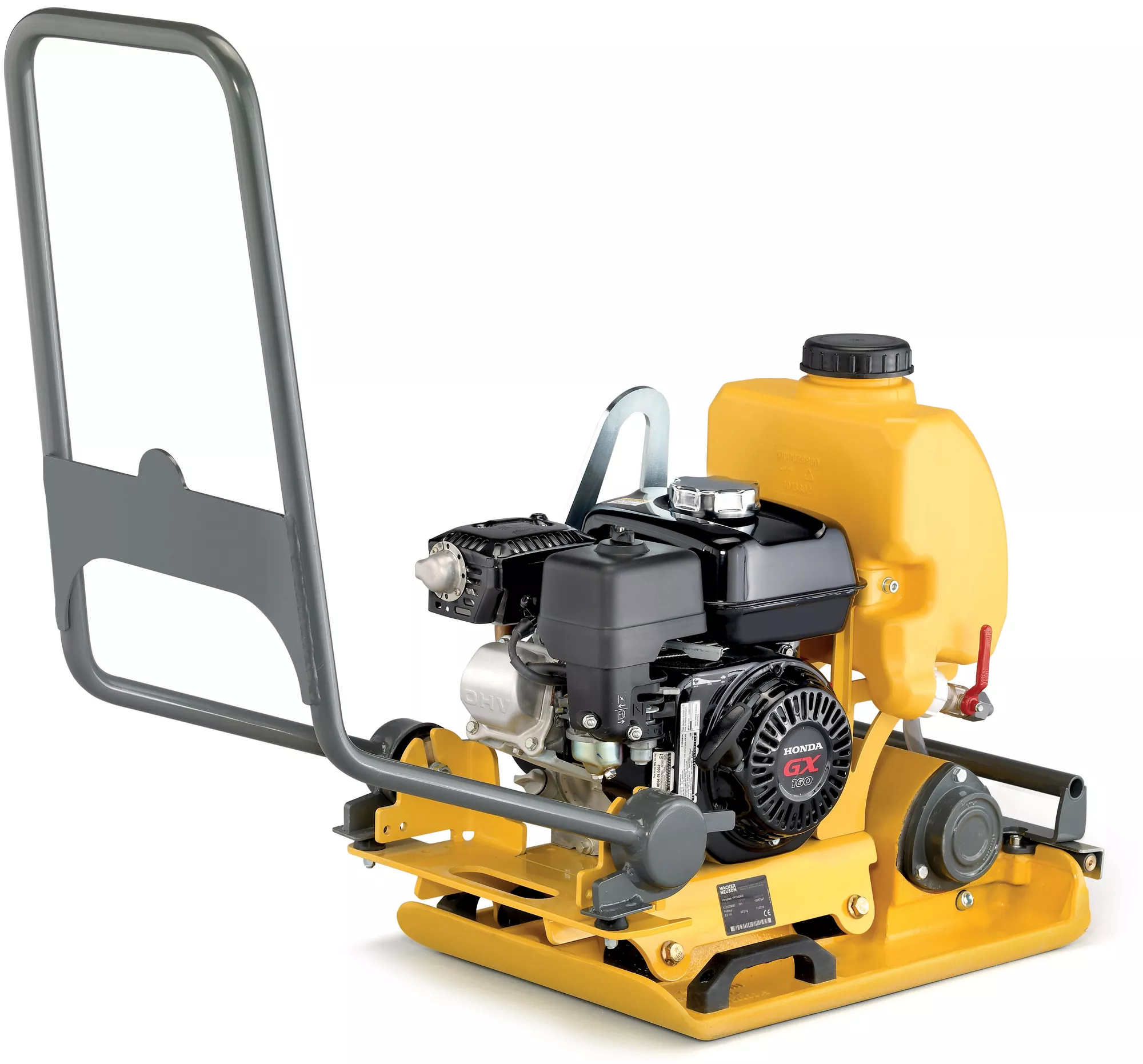

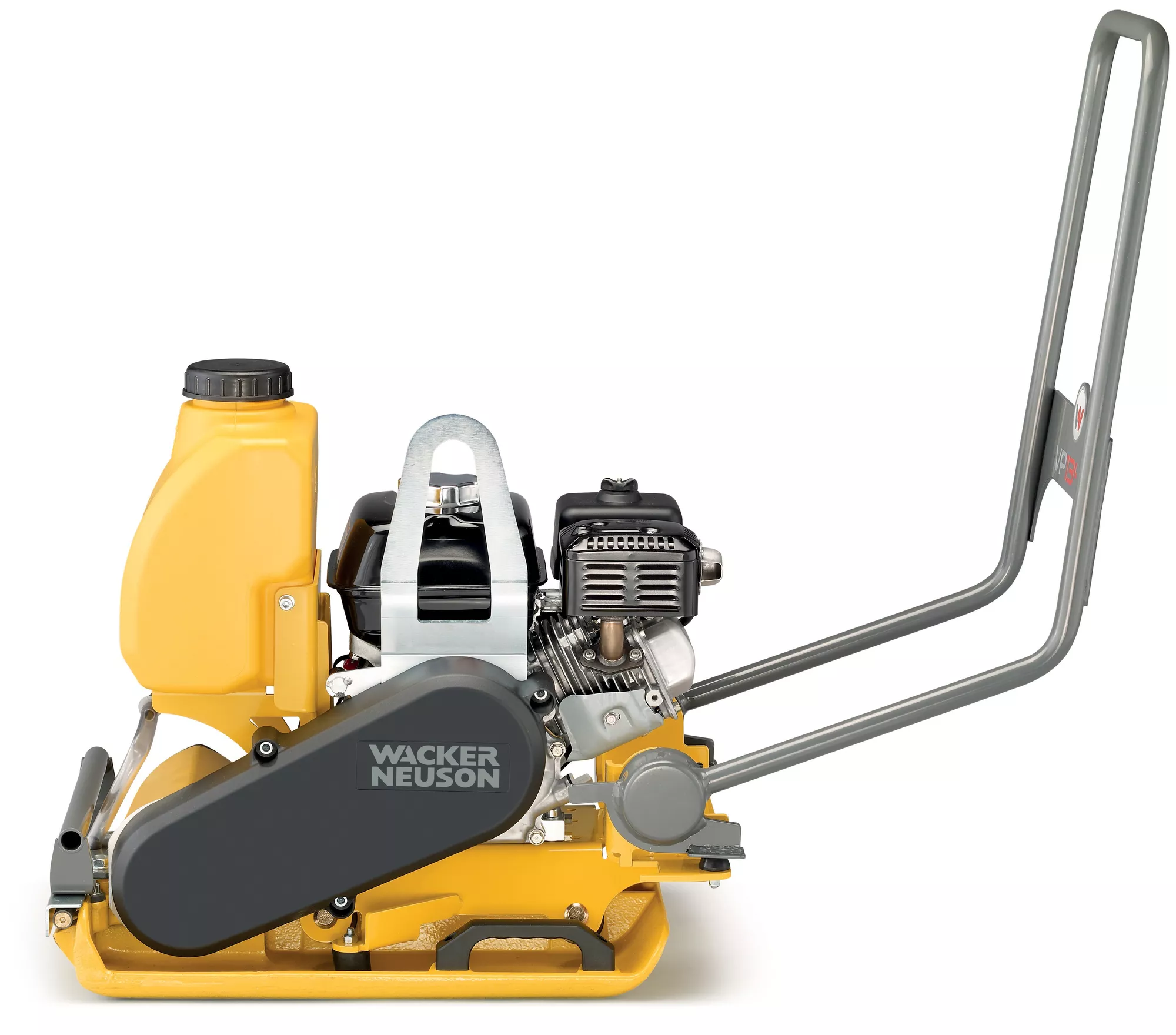

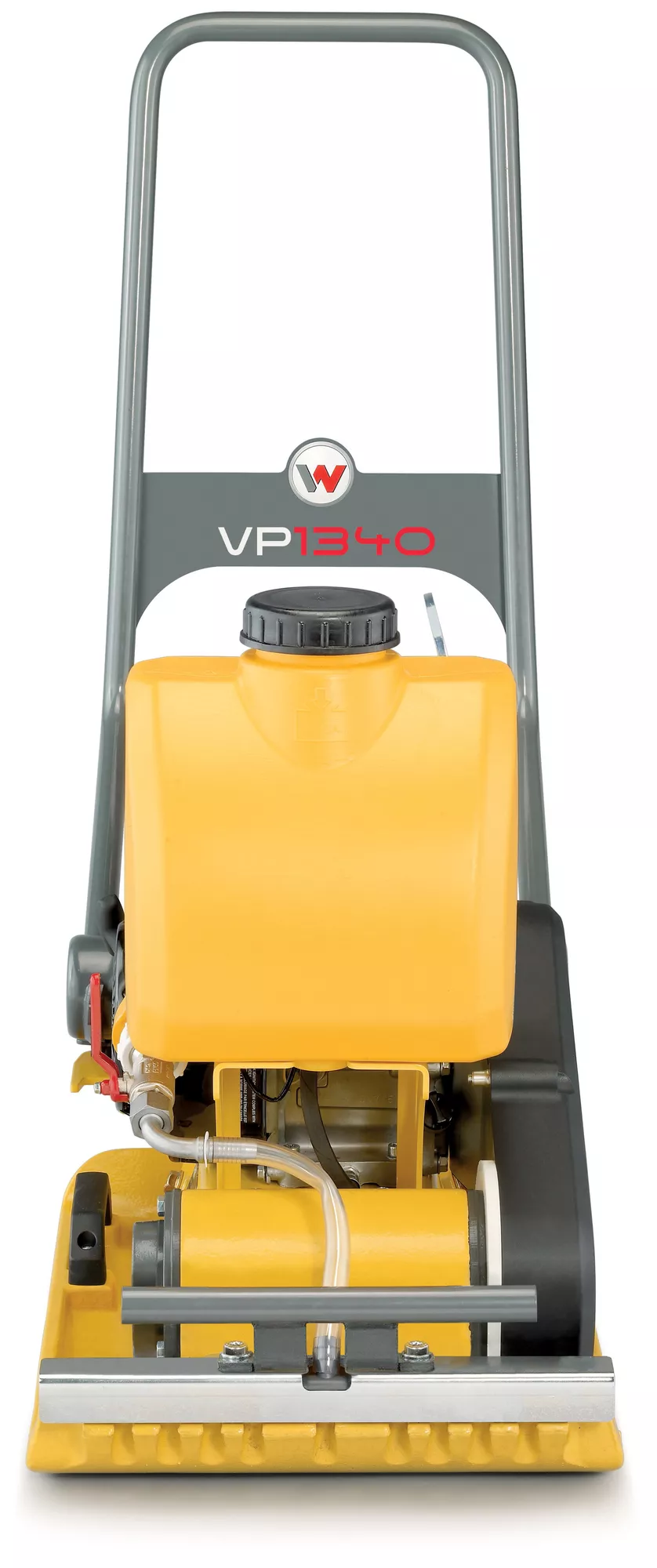

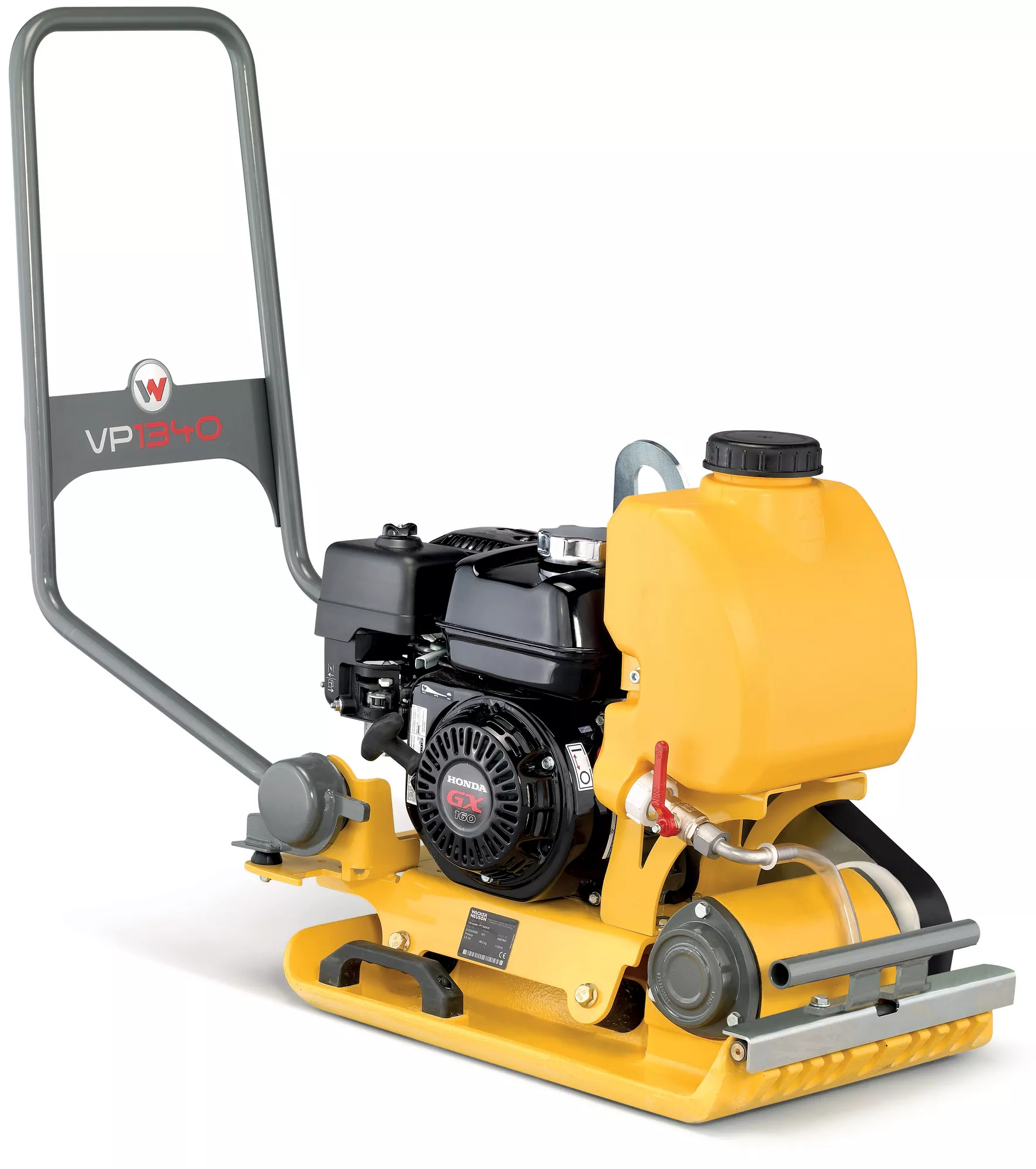

Single Direction Vibratory Plate Wacker Neuson VP 1340 Aw

Wacker Neuson
Catalogue number: 5100029060
Availability:  Discontinued product
Shipping time:  n/ai No shipping information for the product.
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

The vibratory plates of the VP series are very compact devices. They are ideal for asphalt compaction, interlocking paving stones and for the compaction of mixed soils even in confined spaces. Typical applications are path construction, gardening and landscaping. The optimized combination of the specially designed base plate and guide handle provide easy maneuvering. The plates of the VP series can easily operate around stones and duct covers as well as along curbstones or buildings. The wheel set (accessory) enables the vibratory plates of the VP-series to be moved easily and with little effort to the next job location on the construction site (except VP1030 and VP1135). Hand-arm vibrations below 5 m/s² and low pollutant emissions help to protect the operator.

Variant description: Equipped with a water tank 9 l, engine Honda 3,1 kW

Technical characteristics

Width x height
405 x 639 mm
Frequency
98 Hz
Engine displacement
163 cm³
Engine type
Petrol engine
Engine model & manufacturer
Honda GX 160
Fuel tank capacity
3,6 l
Fuel consumption
0,8 l/h
Centrifugal force
13 kN
Advance travel (maximal)
25 m/min (depending on the soil and the external factors)
Surface capacity
600 m²/h
Weight
84 kg
Water tank capacity
9 l
Engine power
3,1 kW / 4,2 KM
Plate width
405 mm
Plate length
596 mm

Sprinkler system

  • Steady wetting up to the edges of the base plate
  • Large filter in the water tank with very good filter action prevents clogging of the water nozzles
  • Large, stable and easy to operate regulator for optimum dosing of the feed volume

Base plate

  • Tapered and rounded edges minimize the formation of undesired edges when turning the base plate and provide a smooth surface.
  • Made of wear resistant ductile cast iron for a long service life.
  • First class results in asphalt compaction due to the very high quality base plate.

Transportation

  • Large solid lifting eye for safe handling.
  • Lifting eye turned by 90 degrees for better balance when lifting and easier access to tank.
  • Handles on the base of the equipment allow easy transportation.

Paving Pad

  • Time saving: quick and stable mounting without screwing to base plate.
  • Material-friendly, essential accessory for all pavement applications.

Advantages

  • The rounded edges of the base plate minimize the formation of undesired edges when turning the equipment,
  • Comfortable soil compaction: the tapered base plate edges facilitate the compaction on the spot,
  • Solid construction design minimizes maintenance: the protected belt drive prevents wear of the belt,
  • Robust lifting eye and handles on the base plate for easy transportation,
  • Equipped with a water tank.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
