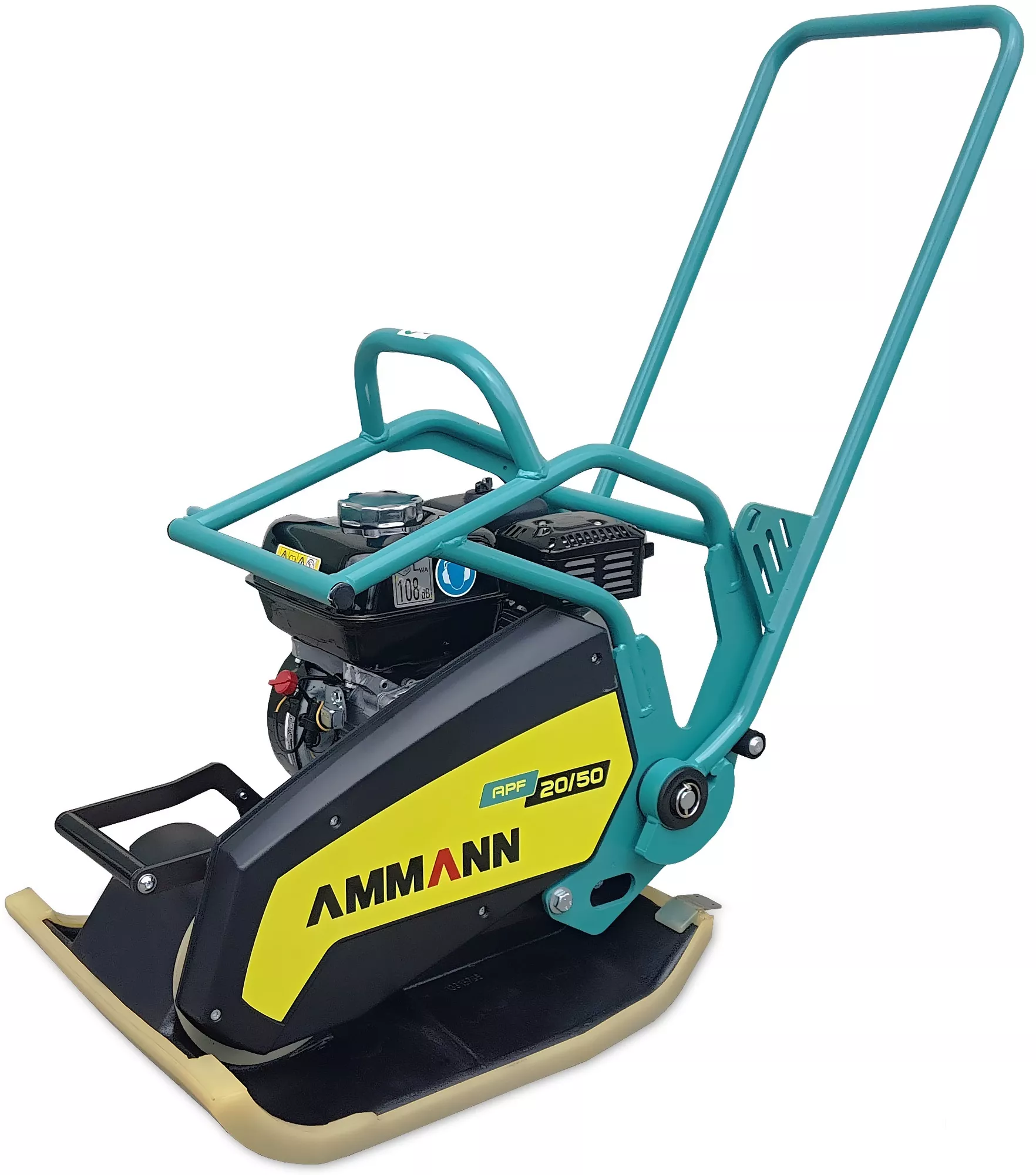

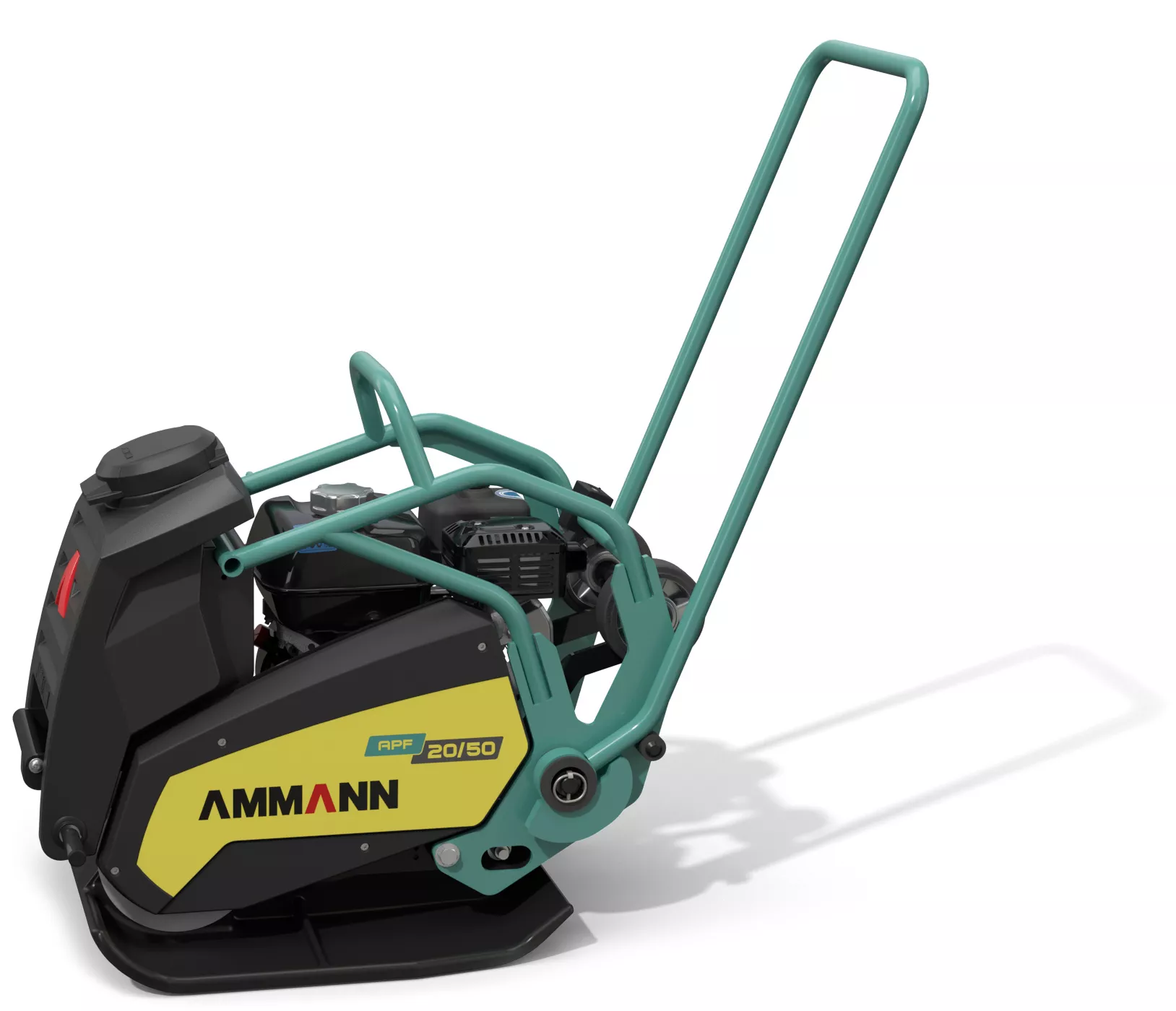

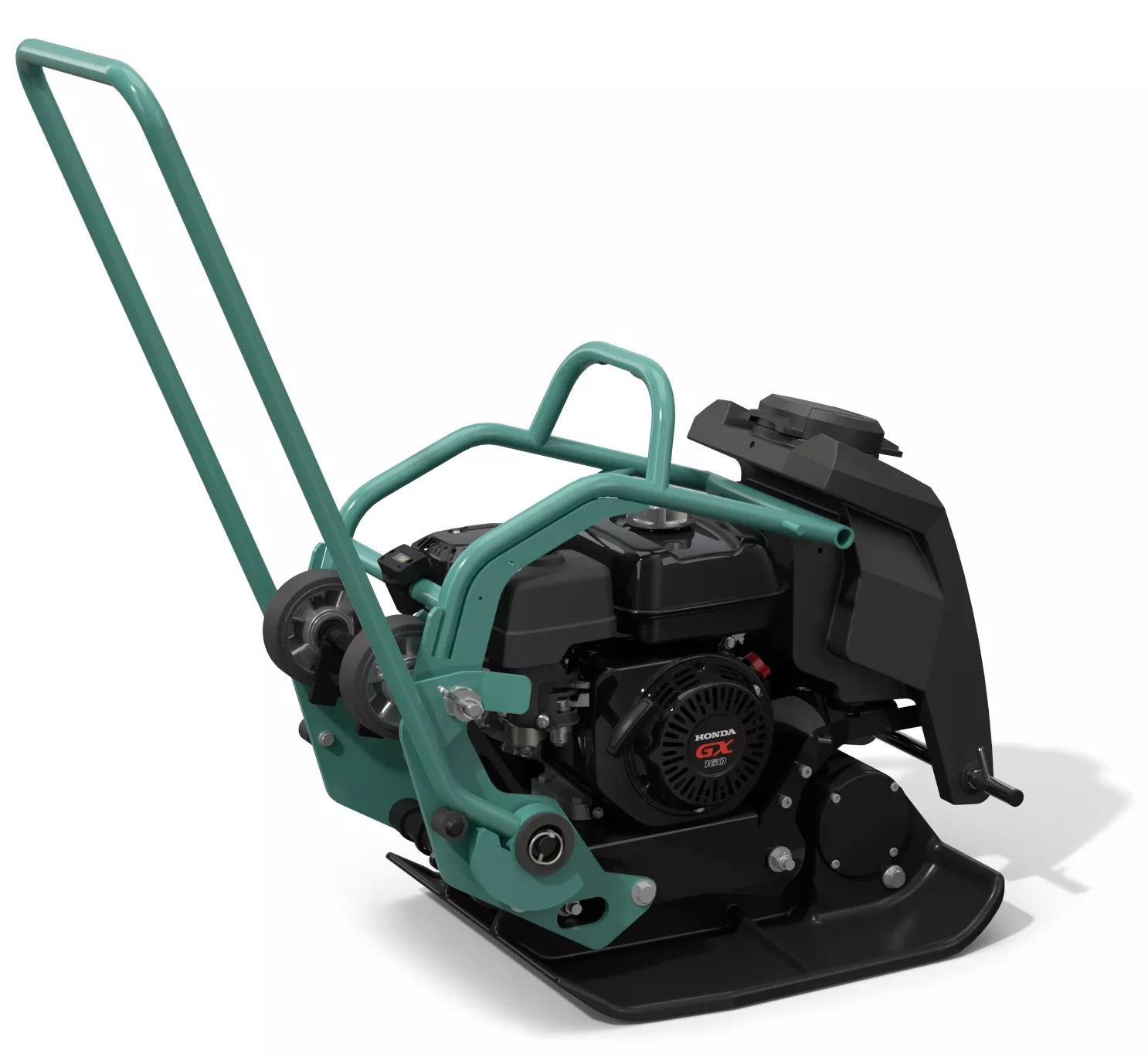

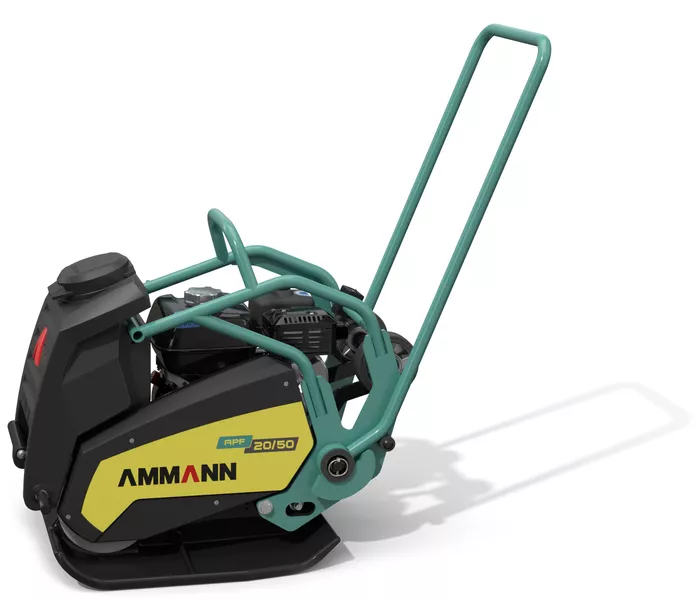

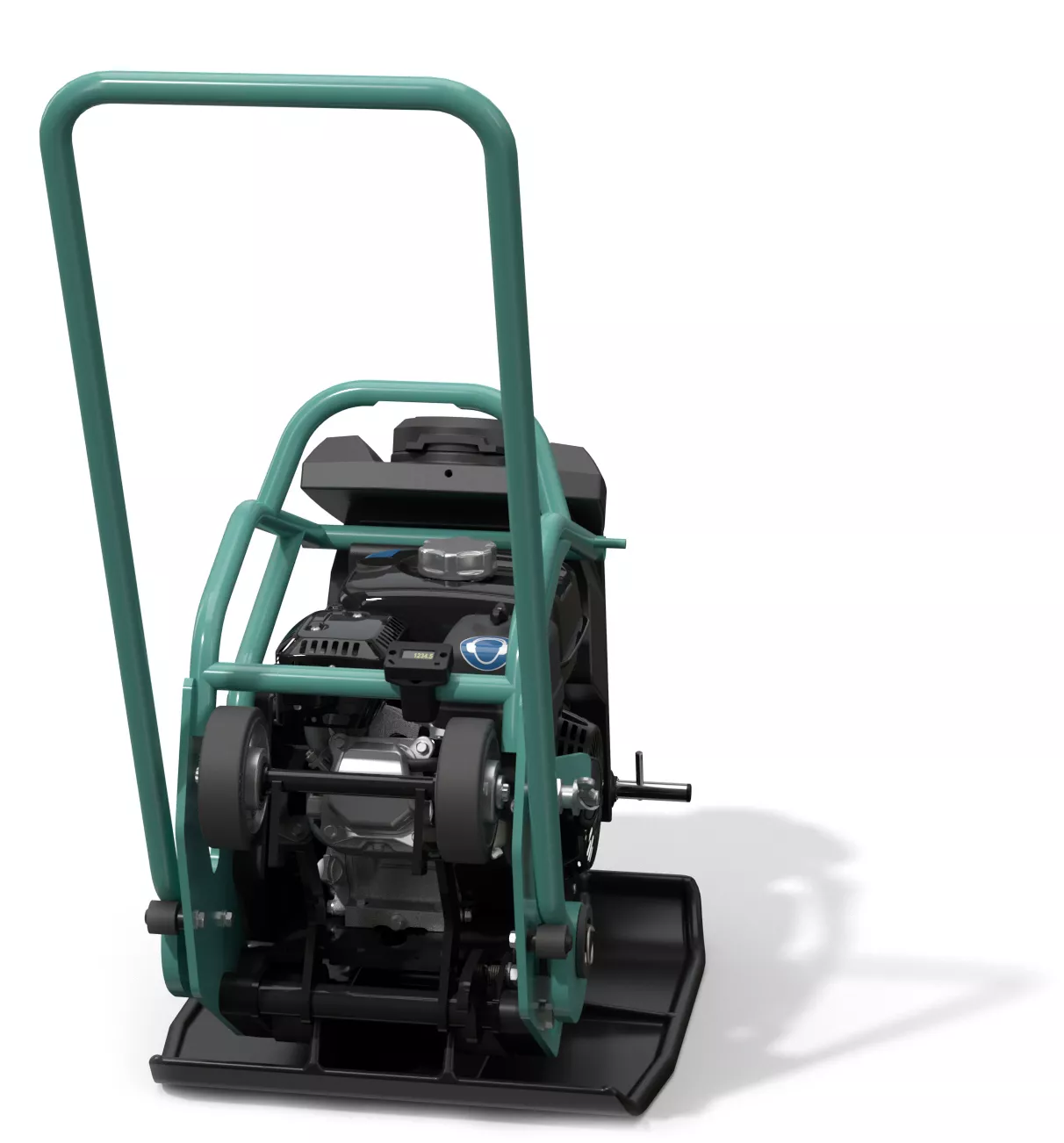

Single Direction Vibratory Plate Ammann APF 20/50 (+ elastomer)
Catalogue number: APF 20/50+EL
Additional number: APF 2050+EL
Installments 10x0%
Gross price
1 963,95 €
Net price: 2 487,00 € 1 596,71 €
Lowest price 30 days before the discount: 1 955,37 € gross
Availability: Available for order
Shipping time: ~3 daysi
The shipping time for products is indicative and subject to change.
Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 3 years
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Related products
Operating hour meter for Ammann APF 20/50
Operating hour meter for Ammann APF 20/50Gross price
Block paving pad for Ammann APF 20/50
Block paving pad for Ammann APF 20/50Gross price
Technical characteristics
Surface pressure
8.1 N/cm2
Length
879 x 500 x 645 mm
Vibration frequency max.
90 Hz
Maximum slant in each direction
20o
Engine power
3.7 kW (przy prędkości obrotowej 3250/min)
Fuel
Benzyna
Surface capacity
1020 m2/h
Engine model & manufacturer
Honda GX 160
Centrifugal force
20 kN
Sprinkler system
10 l (opcja)
Speed
0–27 m/min
Hand-arm vibrations
3.1 m/s2
Gradeability
30 %
Plate width
500 mm
Weight
88 kg
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
