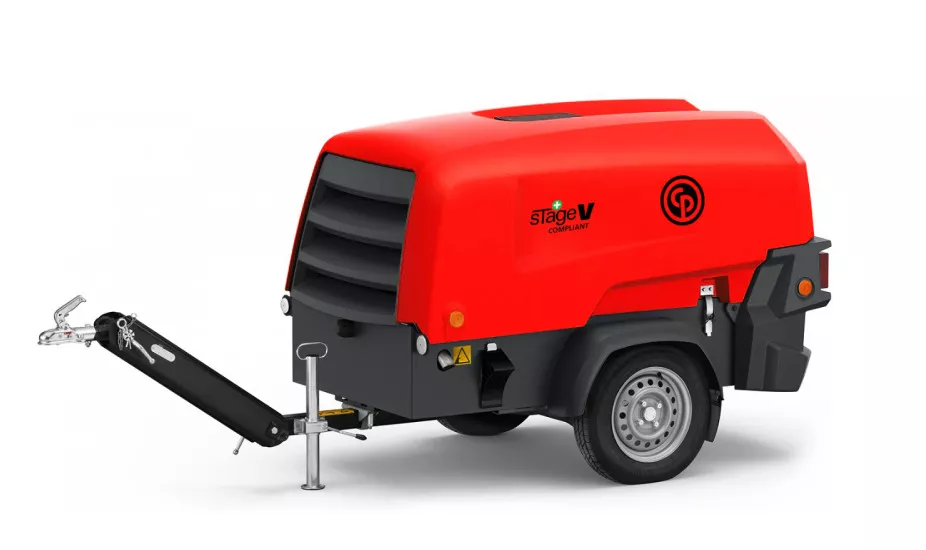

Screw compressor on the chassis Chicago Pneumatic CPS 2.0-7 Red Rock
Catalogue number: 8162061006
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Technical characteristics
Pressure maximum
7 bar
Length
1570 x 1060 x 990 mm (without chassis), 1960 x 1230 x 1250 mm (with chassis)
Number of cylinders
3
Weight (with chassis)
600 kg
Maximum speed during operation
3400 obr/min
Maximum ambient temperature
50°C
The minimum speed during operation
2000 obr/min
The minimum starting temperature
-10°C
Output performance
14,9 kW
Engine oil capacity
3,8 l
Compressor oil capacity
6 l
Fuel tank capacity
28.5 l
Engine
KUBOTA D722
Chassis specification
Trailer with adjustable drawbar (without brake)
Performance
2 m3/min | 33 l/s
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
