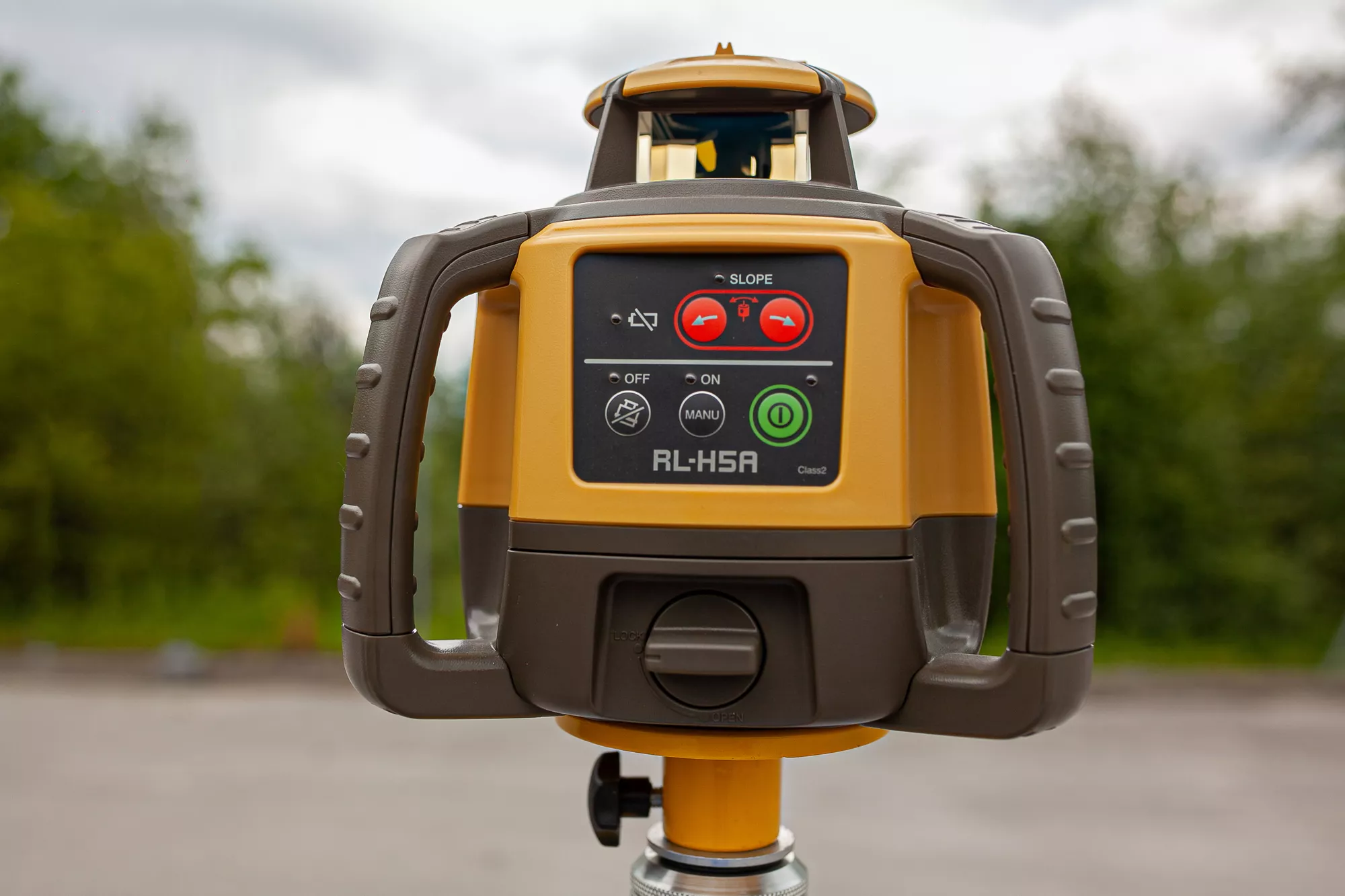

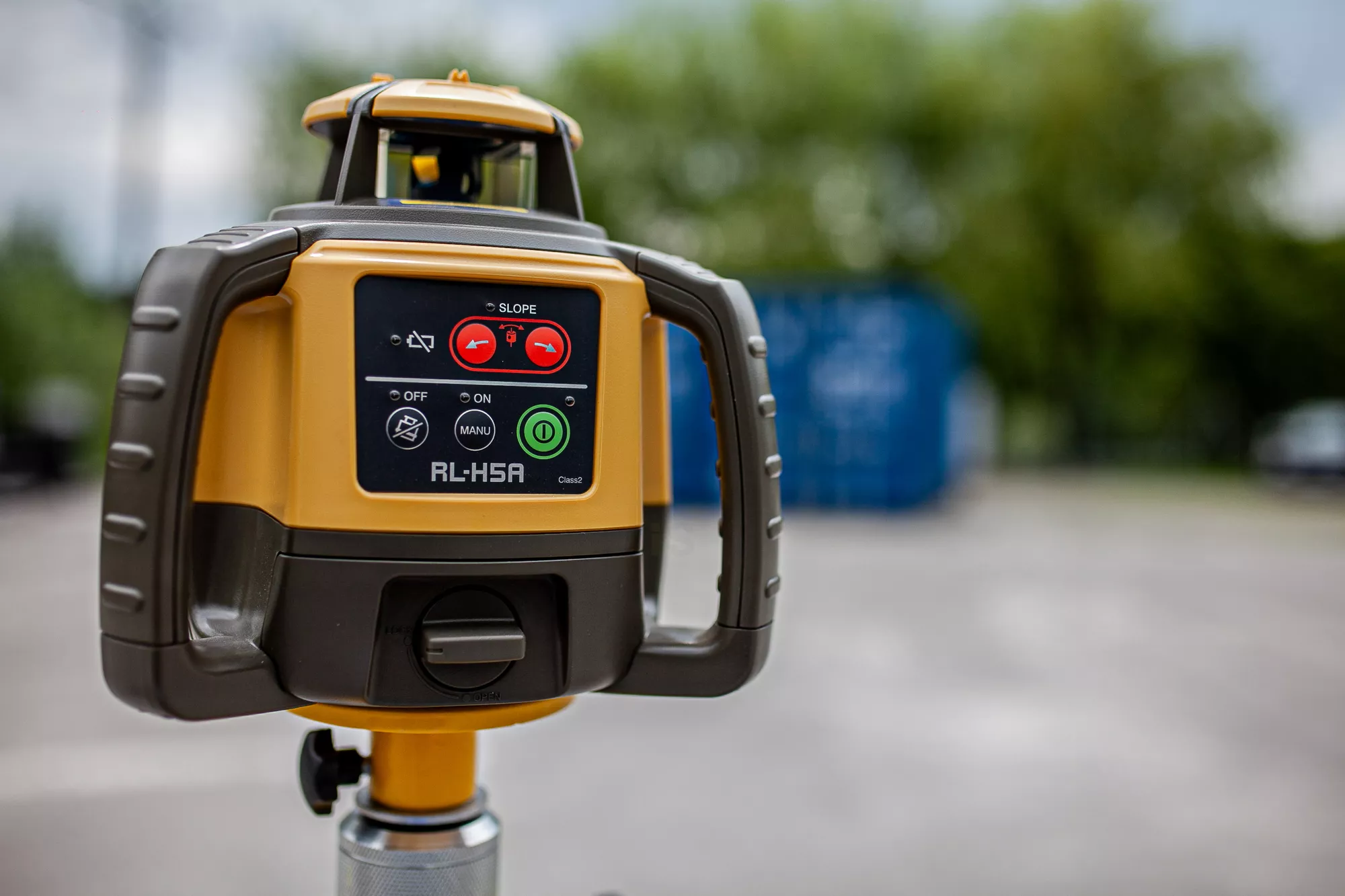

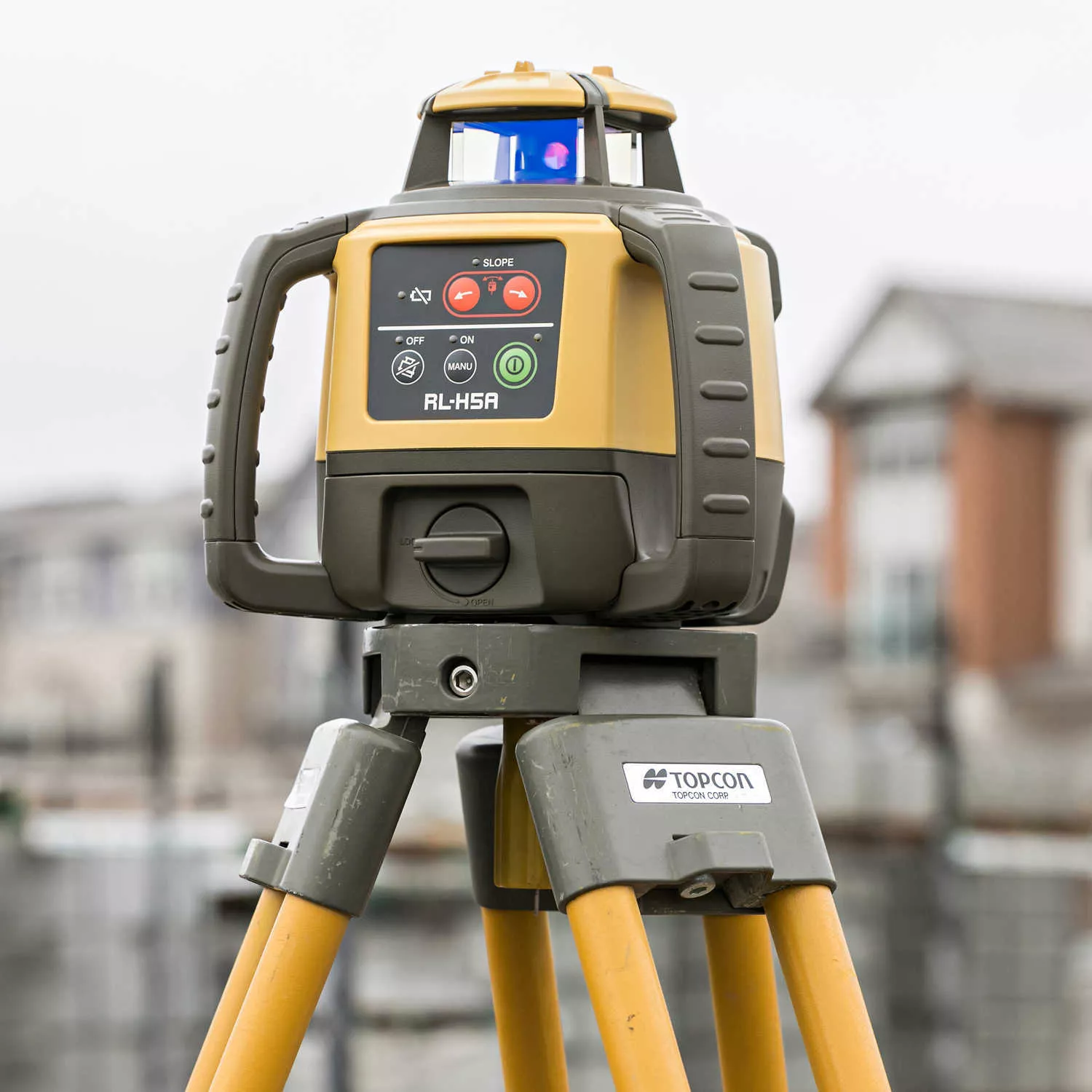

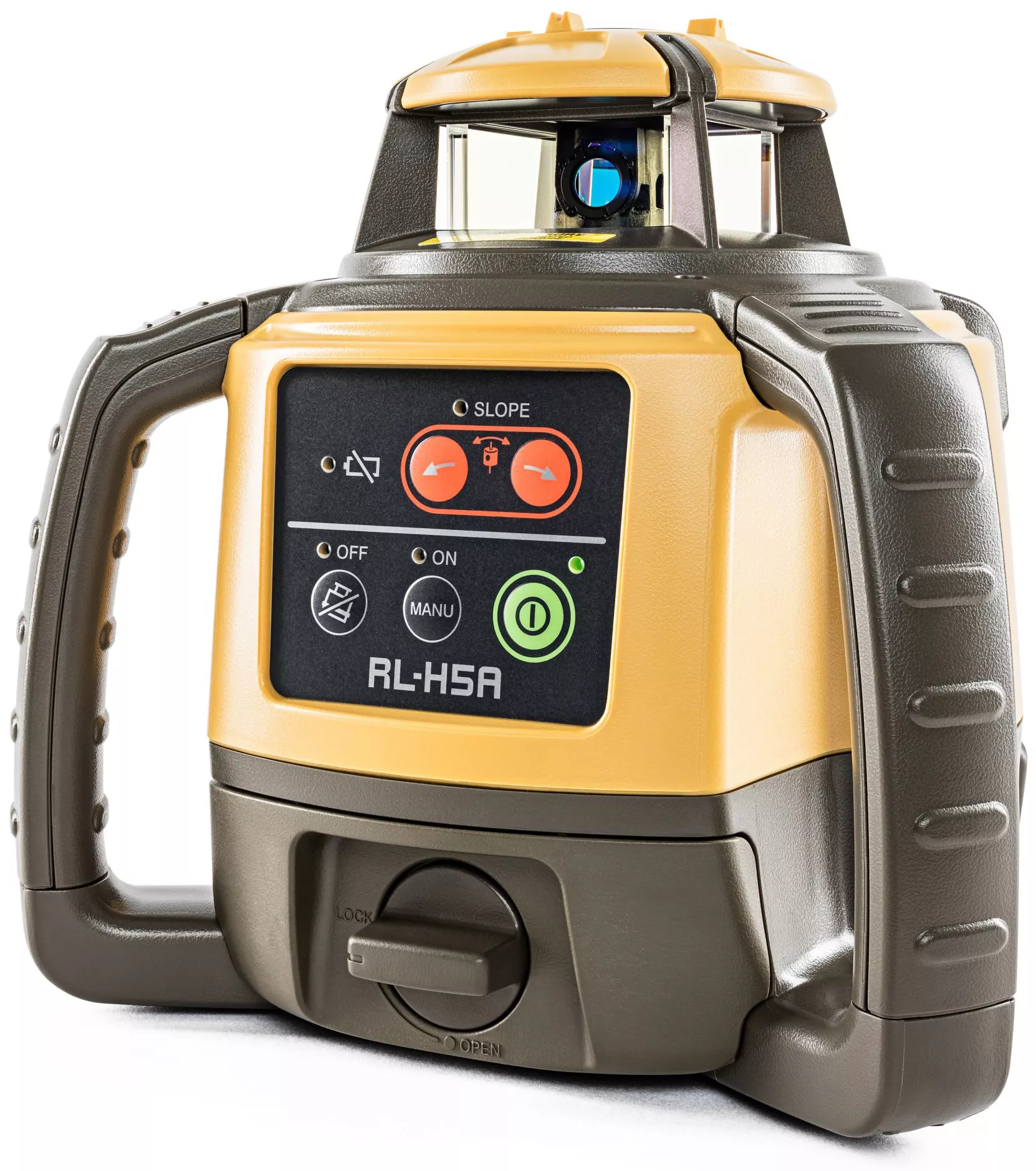

Laser level Topcon RL-H5A (+ cranked tripod, + laser stave)

Topcon
Catalogue number: RL-H5A [zestaw2]
You get: 62 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Sale
Gross price
1 936,87 €
1 500,37 €
Net price: 1 574,69 € 1 219,81 €
Lowest price 30 days before the discount: 1 740,83 € brutto
Availability:  In stock
Shipping time:  24hi Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 5 years
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

Related products

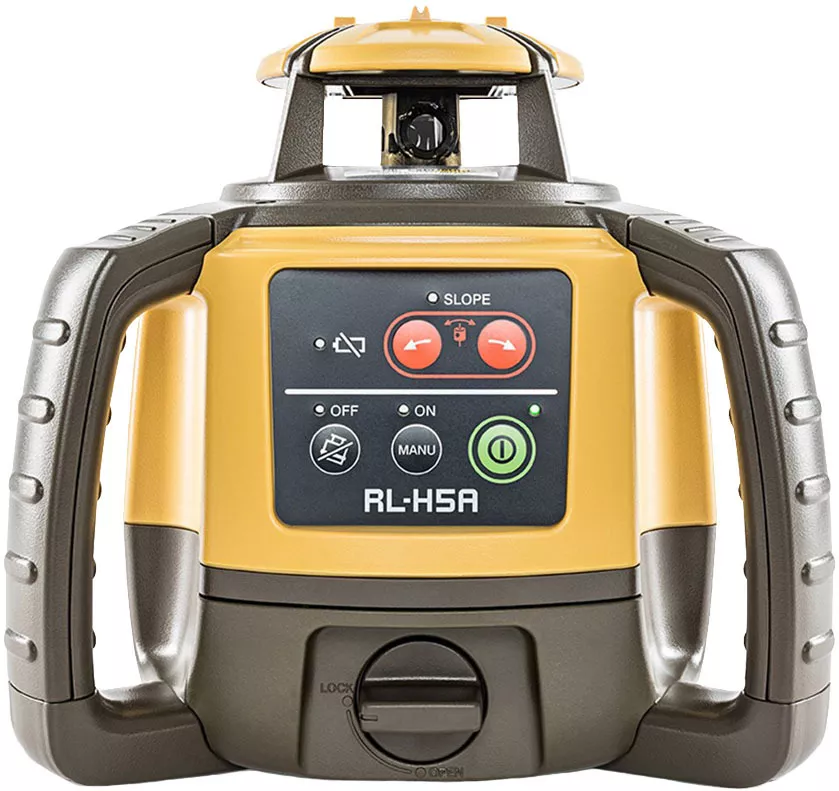

RL-H5A

Topcon RL-H5A laser level is one of the best laser levels available on the market in terms of parameters. In addition to determining the horizontal plane, we also define a plane inclined in one direction. This means that professionals in the construction industry, specializing in earthworks and road works, can quickly and accurately determine declines (e.g. pitches, parking lots, squares, etc.). RL-H5A is equipment for everyone who is looking for an economical solution in purchasing but at the same time reliable, durable and ensuring very high accuracy and an extended range of work. The level reduces the costs of used materials, shortens project implementation time, increases efficiency and effectively eliminates execution errors, increasing the competitiveness of your business.

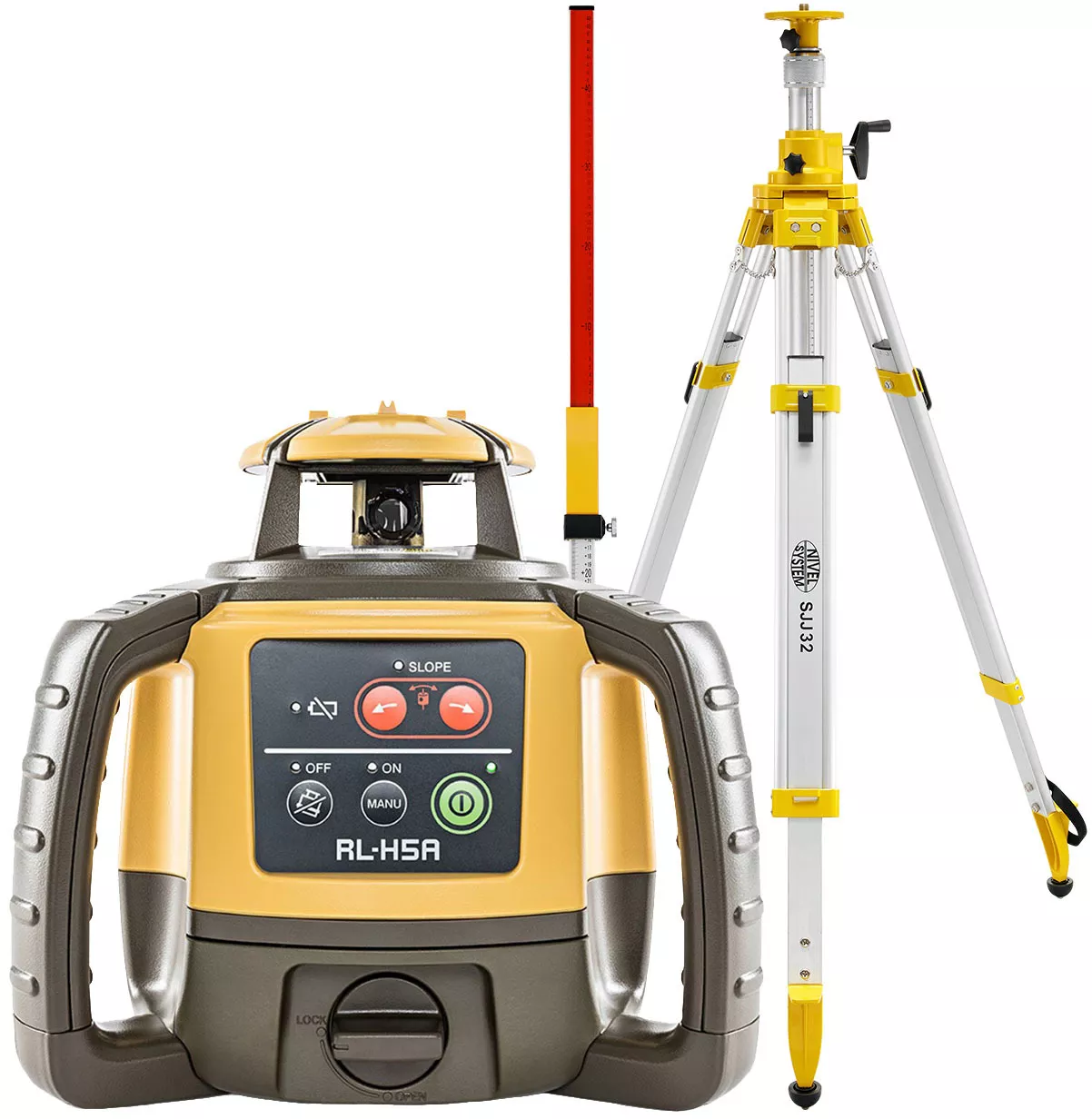

Variant description: The kit includes a SJJ32 tripod and LS-24 stave

Technical characteristics

work time
Rechargeable batteries: 60 hours, alkaline batteries: 100 hours
Accuracy
+/- 10” (0,5 mm/10 m)
Resistance class
IP66
Grade
±8,7% (in one direction)
Head rotation speed
600 rpm
Self-leveling range
±5°
Working temperature range
–20 °C to +50 °C
Work range
800 m
Power supply
Rechargeable batteries Ni-MH (included)
Source of light
Visible, red (635 nm), class 3R
Weight
2,5 kg
Length x width x height
211 x 172 x 205 mm

advantages

  • Innovative technology – visible laser beam with high accuracy and long-range,
  • The highest precision of work – the laser beam allows you to accurately determine the reference plane and perform levelling with unprecedented quality (2.4 mm / 50 m), and thus reduce the consumption of building materials,
  • Inclined plane – the laser beam can generate a horizontal or vertical plane; the plane can be tilted in one direction in the range of ± 8.7%, thanks to which the determination of slopes in the field is done manually and without the need to calculate the height of individual positions,
  • A one-person operation, long-range – the height difference is read out using a laser sensor and staff in an 800 m diameter laser field, no additional person is needed to operate the level,
  • Quick self-levelling – the compensator quickly and accurately levels the instrument, and the level shake alarm eliminates erroneous measurements when the device has been inadvertently hit and recognized,
  • Smooth operation – one-button level control - turn on and measure,
  • Work in all conditions – solid rotary head protection protects this most crucial level element against mechanical damage, and the sealed housing meets the IP66 standard, allowing you to work in rain and dust,
  • Safe use – a 5-year warranty and TPI authorized after-sales service to ensure long-term construction projects,
  • For machine control – the laser can be used in the control systems of construction machines, which further increase their accuracy and performance.

DETAILS

  • Confidence and reliability – levels from the Japanese brand Topcon are among the most efficient solutions, and their high popularity on the market is the result of high quality and reliability. They are subjected to specific loads at the construction site, working both in dusty rooms and in severe field conditions, surrounded by heavy machinery. The 5-year warranty period on all rotary laser levels, including the RL-H5A, confirms that Topcon attaches great importance not only to precision but also to the quality and durability of the equipment offered.
  • Intuitive and quick work – the laser functions are managed via an intuitive control panel. The laser does not cause any problems, the functions are activated immediately, after switching on the power the equipment is levelled automatically. The generated laser beam creates a reference plane for horizontal works, also with a slope in one direction of ± 8.7%. When working with the sensor and the laser staff, we obtain a precise levelling set. One person makes measurements. High laser parameters ensure its use also with automatic machine control systems.
  • Long-range laser beam without restrictions – Topcon RL-H5A is based on the modern "Topcon Long Range" technology, with high head rotation speed (600 rpm) - providing users with a very long range of work carried out - 800 m. Also, the level has been equipped in a particular Topcon diode that emits highly focused light, during external works on the site invisible to the human eye, recognized by laser sensors. The diode emits a laser signal over long distances while maintaining a millimetre, thin thickness of the displayed beam (the beam does not split, at long distances it is still skinny, guaranteeing the high accuracy of measurements). The laser emits visible light, so in closed rooms, we can work without using a laser sensor.
  • Accurate and reliable equipment – the RL-H5A level is built based on an electronic compensator, eliminating vibrations and ensuring precise levelling of the laser plane even in the vicinity of heavy equipment. Besides, the machine is equipped with the TILT function, which protects it from unwanted changes in the height of the laser setting, even if someone unintentionally moves the level on the construction site (the equipment will automatically turn off). RL-H5A is resistant to dust and water, confirmed by class IP66.
  • Accurate measurements – both the optical system and elements of the level compensator were made with the highest precision, ensuring a stable operation with high accuracy of 0.5 mm / 10 m.

SET CONTAINS

  • RL-H5A laser level,
  • LS-80L laser sensor,
  • Patch sensor holder,
  • BT-79Q rechargeable batteries,
  • AD-17 power supply,
  • Transport case,

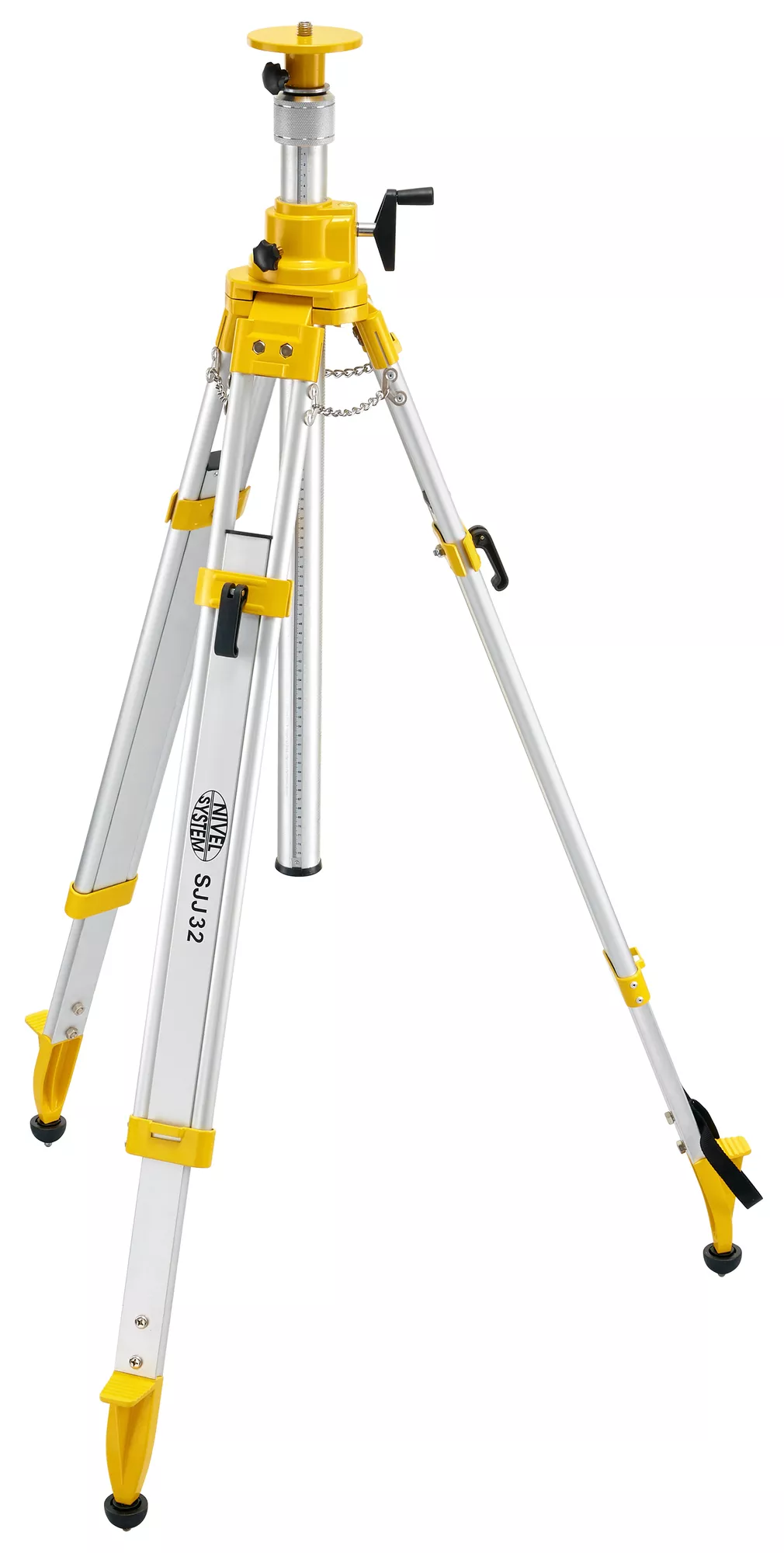

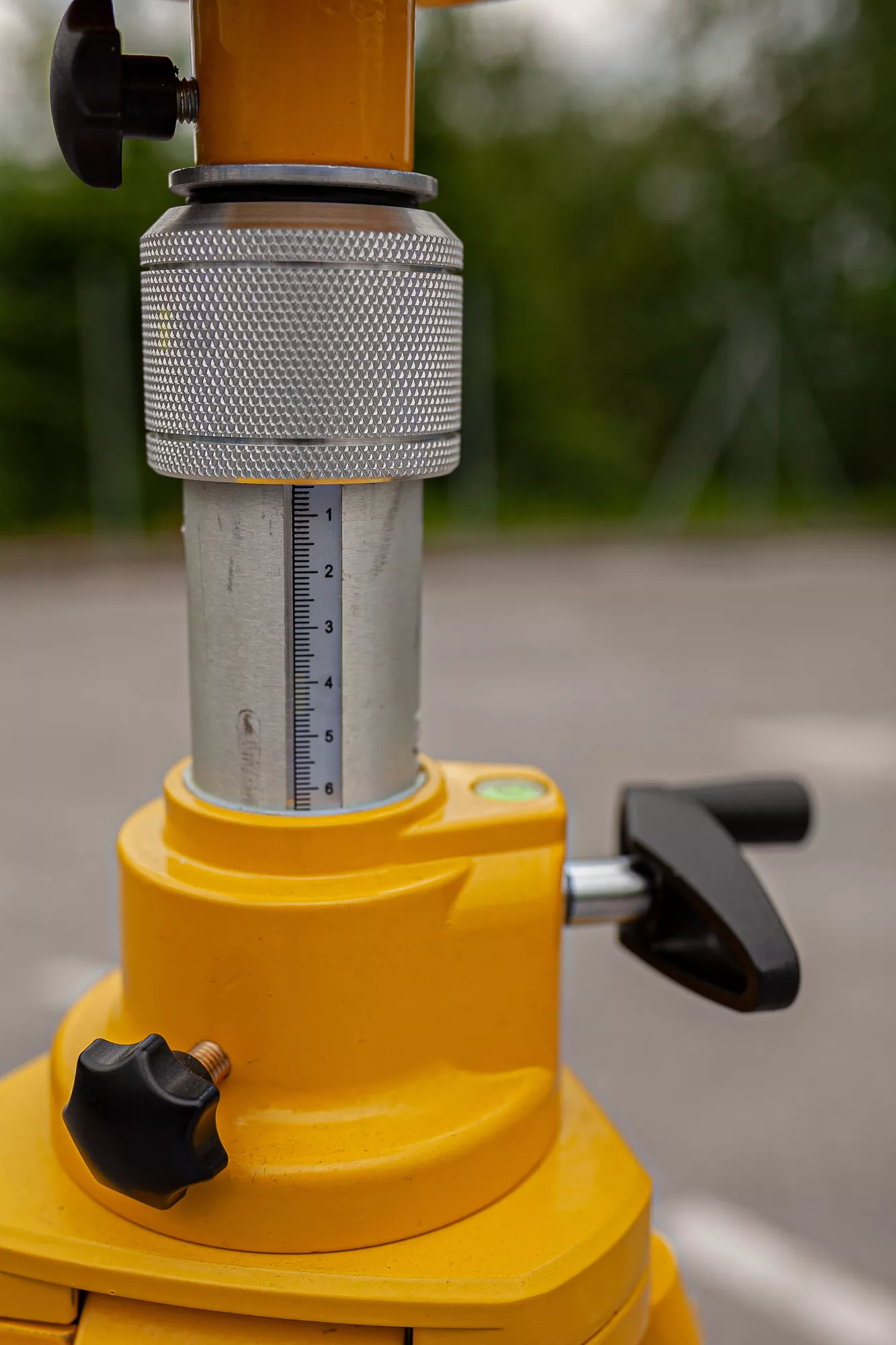

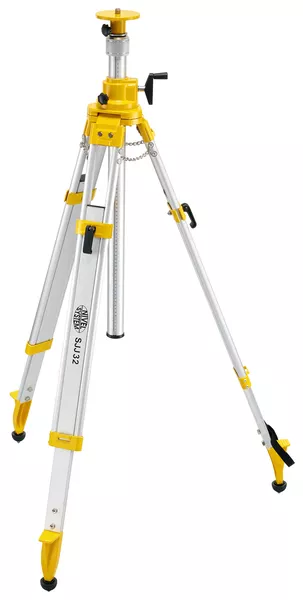

  • Nivel System SJJ32 crank tripod – a stable, aluminium device for operation in all conditions, with a maximum height of 3.2 m. It has a flat tripod head with easy assembly of the laser on the boom with measuring tape. A strong leg locking system for clamps, metal foot tips that provide the required stability on any surface are the product's most significant advantages,

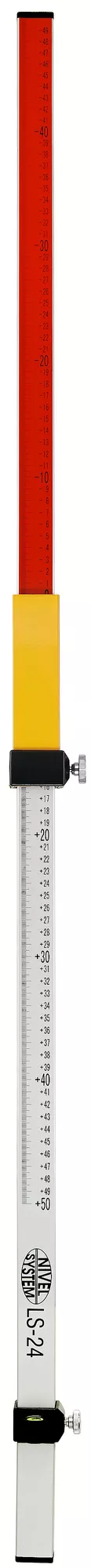

  • Nivel System LS-24 stave – aluminium staff for standard measurements with a maximum height of 2.4 m - practical slider for sensor handle, levelling vial, transport case included.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
