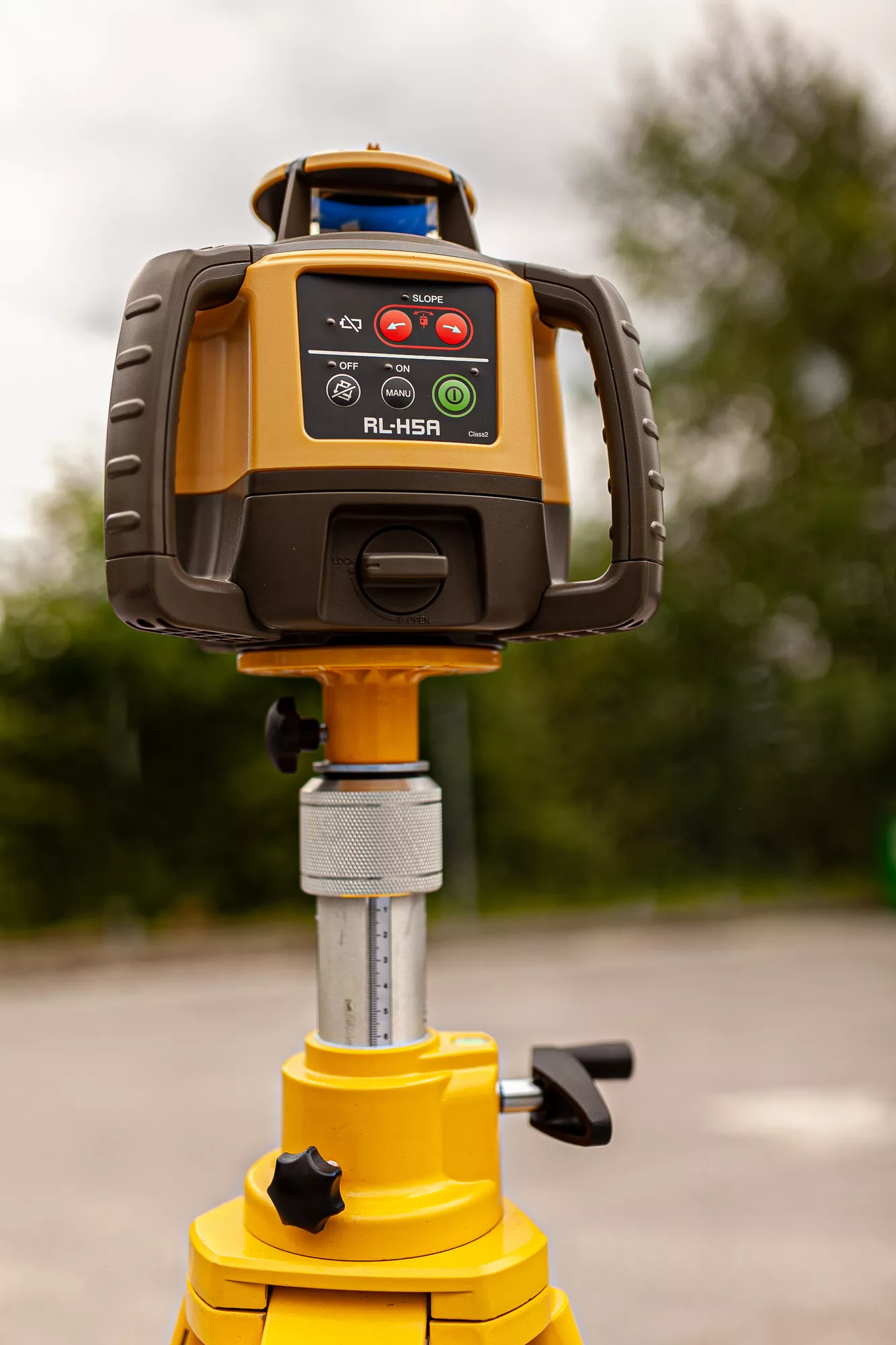

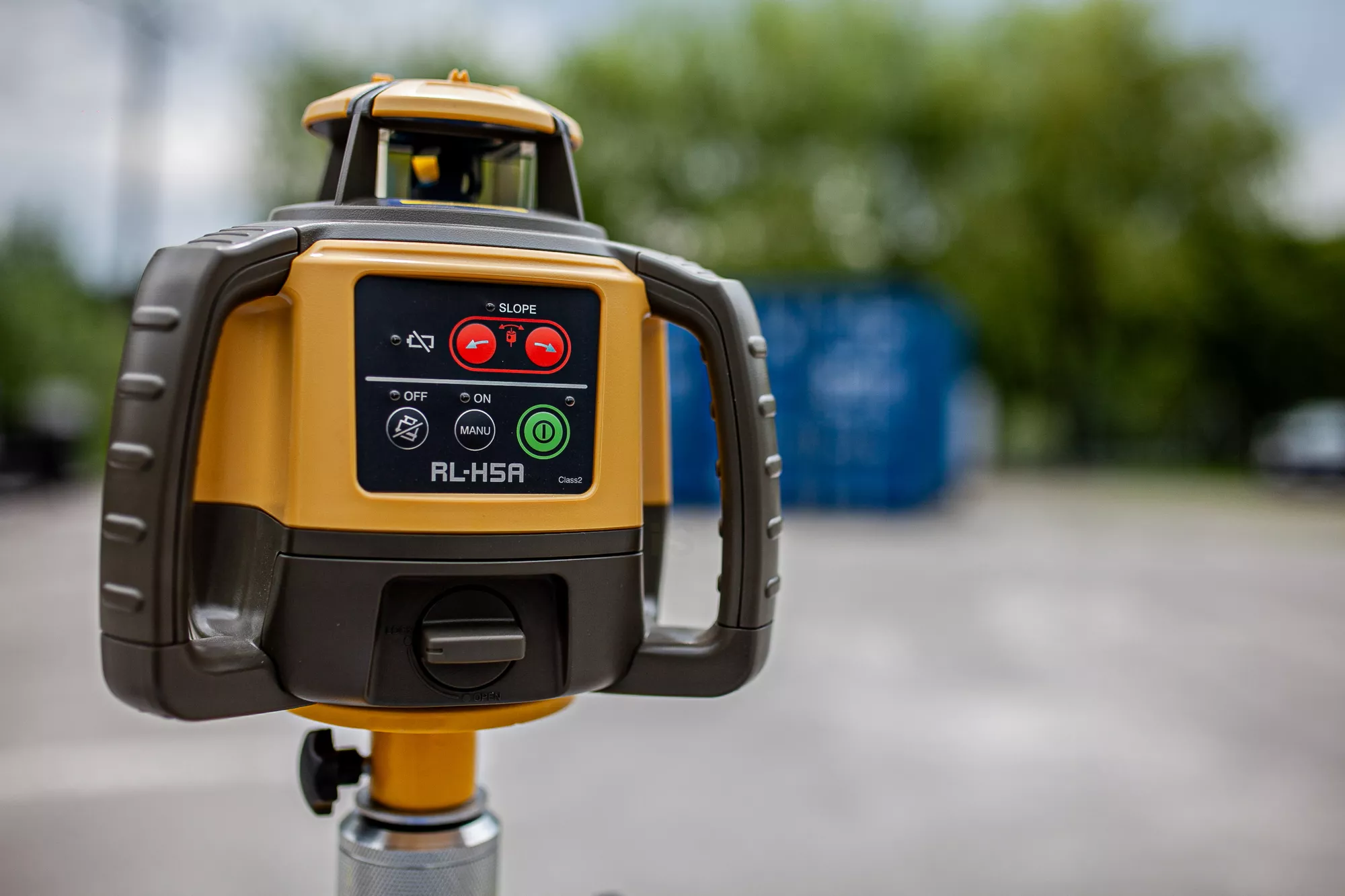

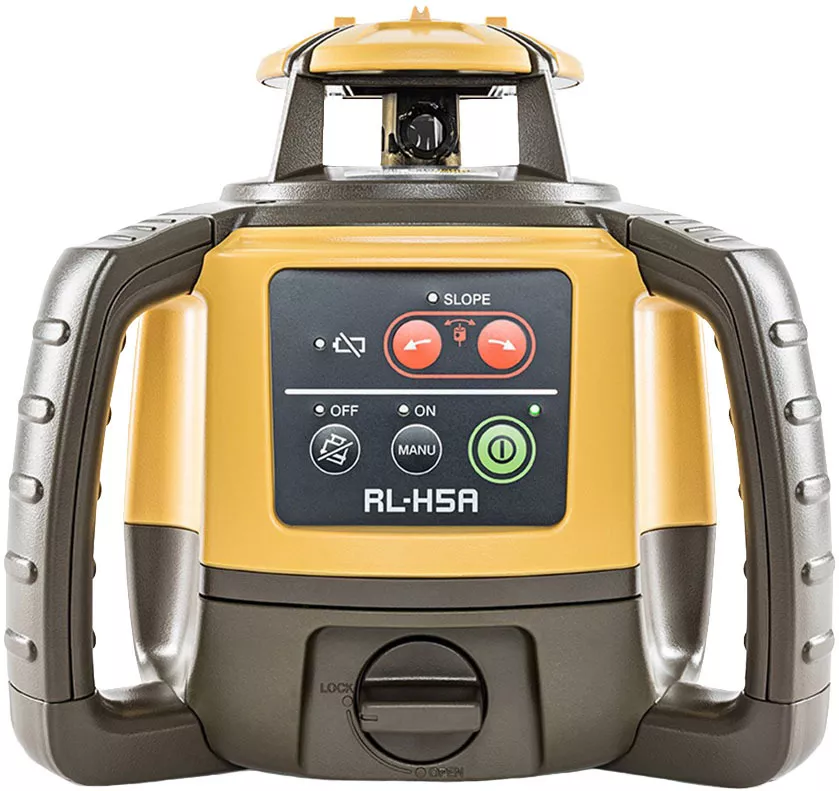

Laser level Topcon RL-H5A (+ cranked tripod, + laser stave, + LS-B10 laser sensor)
Catalogue number: RL-H5A [zestaw20]
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

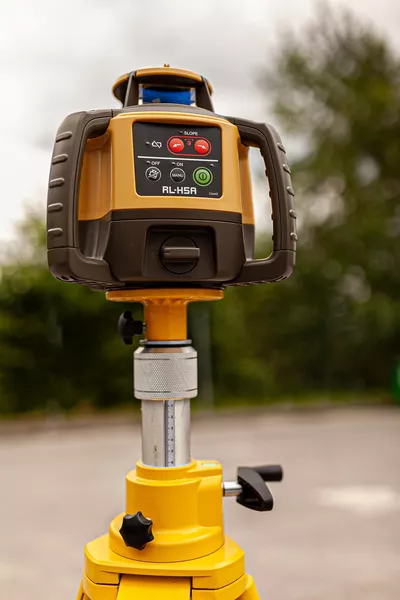

RL-H5A

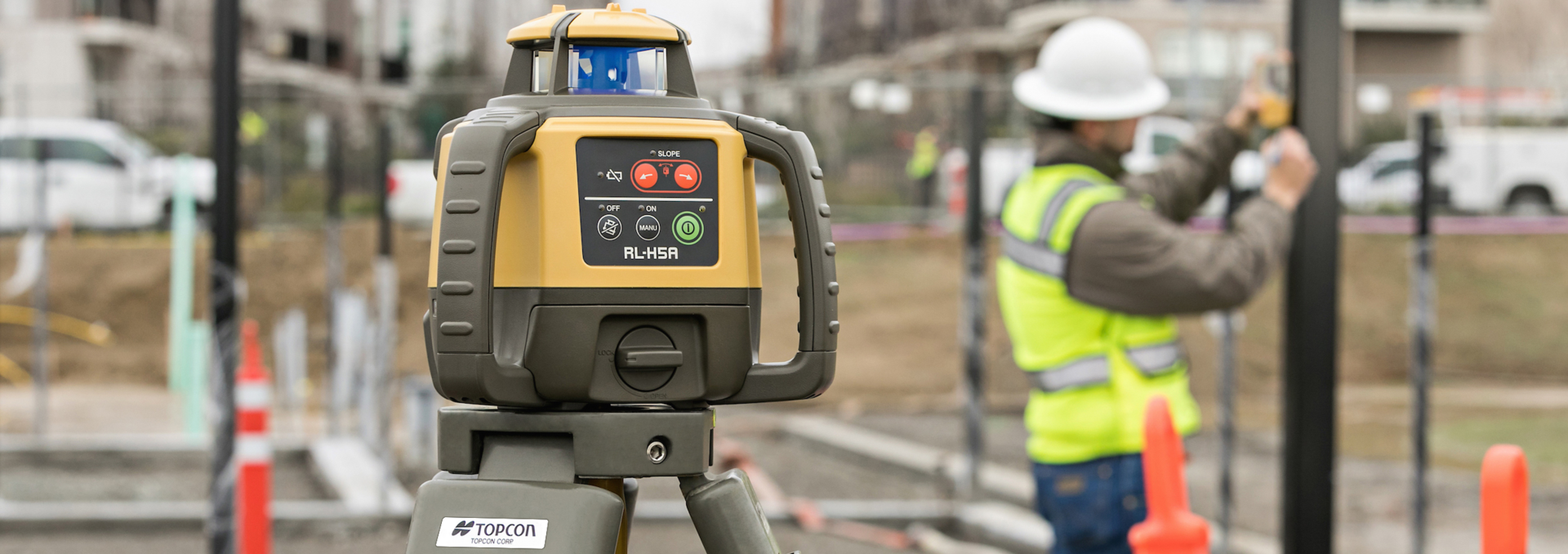

Topcon RL-H5A laser level is one of the best laser levels available on the market in terms of parameters. In addition to determining the horizontal plane, we also define a plane inclined in one direction. This means that professionals from the construction industry, specializing in earth and road works, can quickly and accurately determine declines (e.g. pitches, parking lots, squares, etc.). RL-H5A is equipment for everyone who is looking for an economical solution in purchasing, but also reliable, durable and ensuring very high accuracy and the extended range of work. The level reduces the costs of used materials, shortens project implementation time, increases efficiency and effectively eliminates execution errors, increasing the competitiveness of your business.
Variant description: The kit includes the SJJ1 tripod,LS-24 laser stave and LS-B10 laser sensor
Technical characteristics
work time
Rechargeable batteries: ~ 60 h, alkaline batteries: ~100 h
Accuracy
+/- 10” (0,5 mm/10 m)
Resistance class
IP66
Grade
±8,7% (in the one direction)
Head rotation speed
600 rpm
Self-leveling range
±5°
Working temperature range
-20°C ~ +50°C
Work range
800 m
Power supply
Akumulatorki Ni-MH (included)
Source of light
Visible, red (635 nm), class 3R
Weight
2,5 kg
Length x width x height
211 x 172 x 205 mm
ADVANTAGES
- Innovative technology - visible laser beam with high accuracy and long-range,
- The highest precision of work - the laser beam allows you to accurately determine the reference plane and perform levelling with unprecedented quality (2.4 mm / 50 m), and thus reduce the consumption of building materials,
- Working with an inclined plane - the laser beam can generate a horizontal or vertical plane; the plane can be tilted in one direction in the range of ± 8.7%, thanks to which the determination of slopes in the field is done manually and without the need to calculate the height of individual positions,
- A one-person operation, long-range - the height difference is read via a laser sensor and staff in the 800 m diameter laser field, no additional person is needed to operate the level,
- Quick self-levelling - the compensator quickly and accurately levels the instrument, and the level shake alarm eliminates erroneous measurements when the instrument has been inadvertently hit and recognized,
- Smooth operation - one-button level control - turn on and measure,
- Work in all conditions - robust rotary head protection protects this most important level element against mechanical damage, and the sealed housing meets the IP66 standard, allowing you to work in rain and dust,
- Safe use - a 5-year warranty and TPI authorized after-sales service to ensure long-term construction projects,
- For machine control - the laser can be used in the control systems of construction machines, which further increase their accuracy and performance.
DETAILS
- Certainty and reliability - levels from the Japanese brand Topcon are among the most efficient solutions, and their high popularity on the market is the result of high quality and reliability. They are subjected to special loads at the construction site, working both in dusty rooms and in difficult field conditions, surrounded by heavy machinery. The 5-year warranty period on all rotary laser levels, including the RL-H5A, confirms that Topcon attaches great importance not only to precision but also to the quality and durability of the equipment offered.

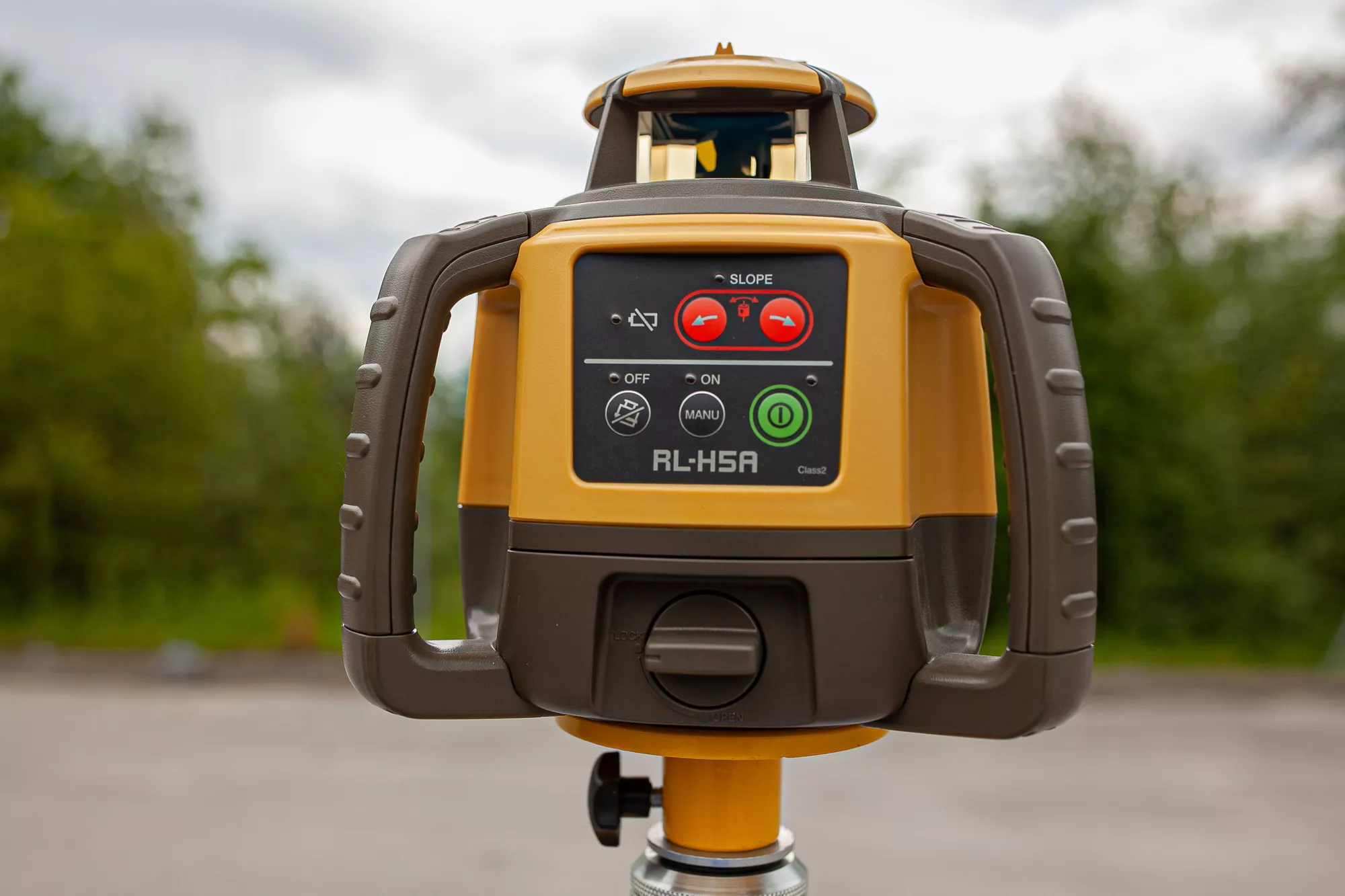

- Intuitive and quick work - the laser functions are managed via an intuitive control panel. The laser does not cause any problems; the functions are activated immediately, after switching on the power the equipment is levelled automatically. The generated laser beam creates a reference plane for horizontal works, also with a slope in one direction of ± 8.7%. When working with the sensor and the laser staff, we obtain a precise levelling set. One person makes measurements. High laser parameters ensure its use also with automatic machine control systems.
- Long-range - laser beam without restrictions - Topcon RL-H5A is based on the modern "Topcon Long Range" technology, with high head rotation speed (600 rpm) - providing users with a very long range of work carried out - 800 m. Also, the level has been equipped in a special Topcon diode that emits highly focused light, during external works on the site invisible to the human eye, recognized by laser sensors. The diode emits a laser signal over long distances while maintaining a millimetre, thin thickness of the displayed beam (the beam does not split, at long distances it is still skinny, guaranteeing the high accuracy of measurements). The laser emits visible light, so in closed rooms, we can work without using a laser sensor.
- Accurate and reliable equipment - the RL-H5A level is built based on an electronic compensator, eliminating vibrations and ensuring precise levelling of the laser plane even in the vicinity of heavy equipment. Also, the equipment is equipped with the TILT function, which protects it from unwanted changes in the height of the laser setting, even if someone unintentionally moves the level on the construction site (the equipment automatically turns off). RL-H5A is resistant to dust and water, confirmed by class IP66.
- Accurate measurements - both the optical system and elements of the level compensator were made with the highest precision, ensuring a stable operation with high accuracy of 0.5 mm / 10 m.
SET CONTAINS
- RL-H5A laser level,
- LS-80L laser sensor,
- Patch sensor holder,
- BT-79Q rechargeable batteries,
- AD-17 power supply,
- Transport case,

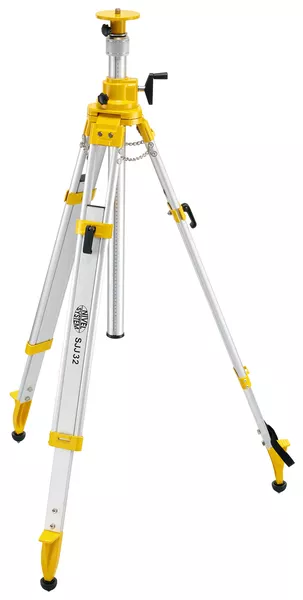

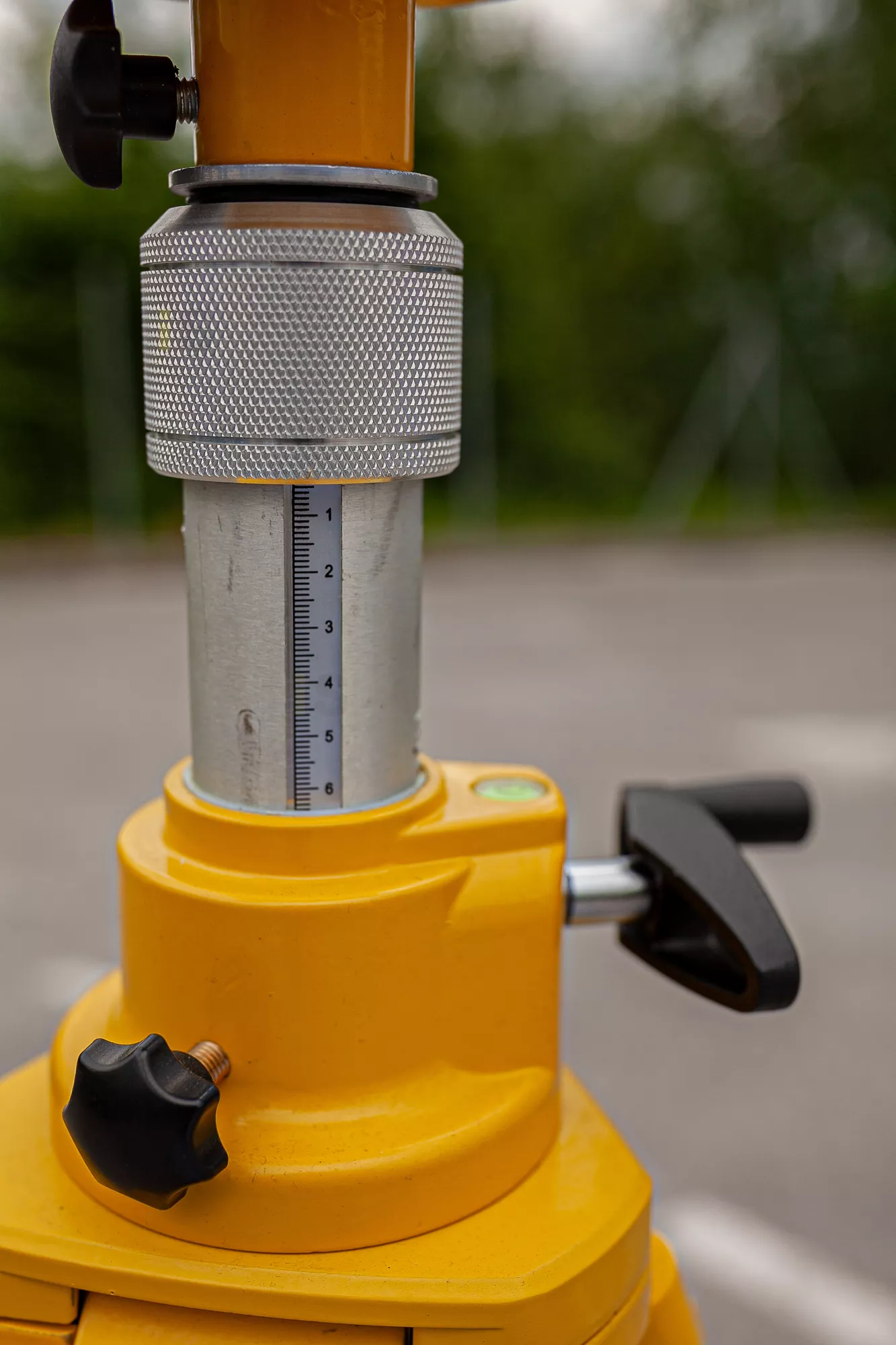

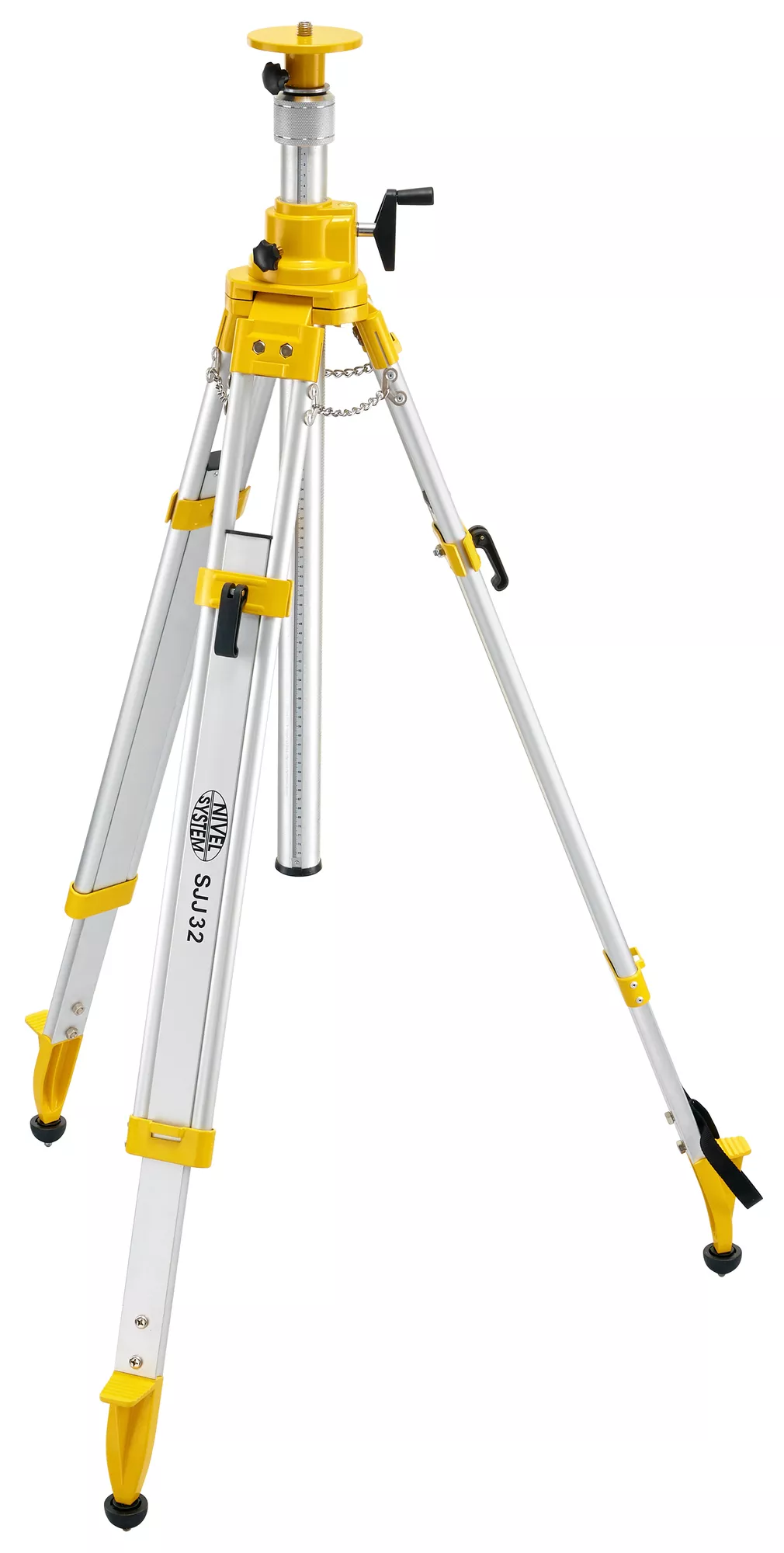

- Aluminum Nivel System SJJ1 tripod - a light tripod for clamps with a flat head. It has durable clamps blocking the tripod legs, a comfortable carrying strap on the shoulder. Foot tips made of metal, provide the required stability on any surface,

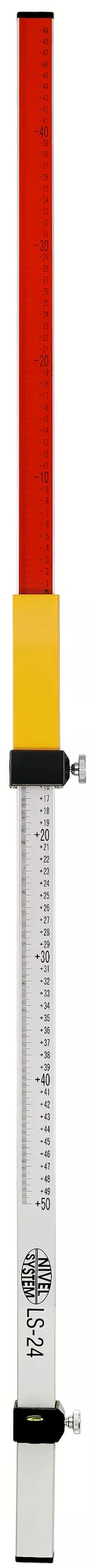

- Nivel System LS-24 laser stave - aluminium staff for classic measurements with a maximum height of 2.4 m - practical slider for the sensor handle, levelling vial, transport case included.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
