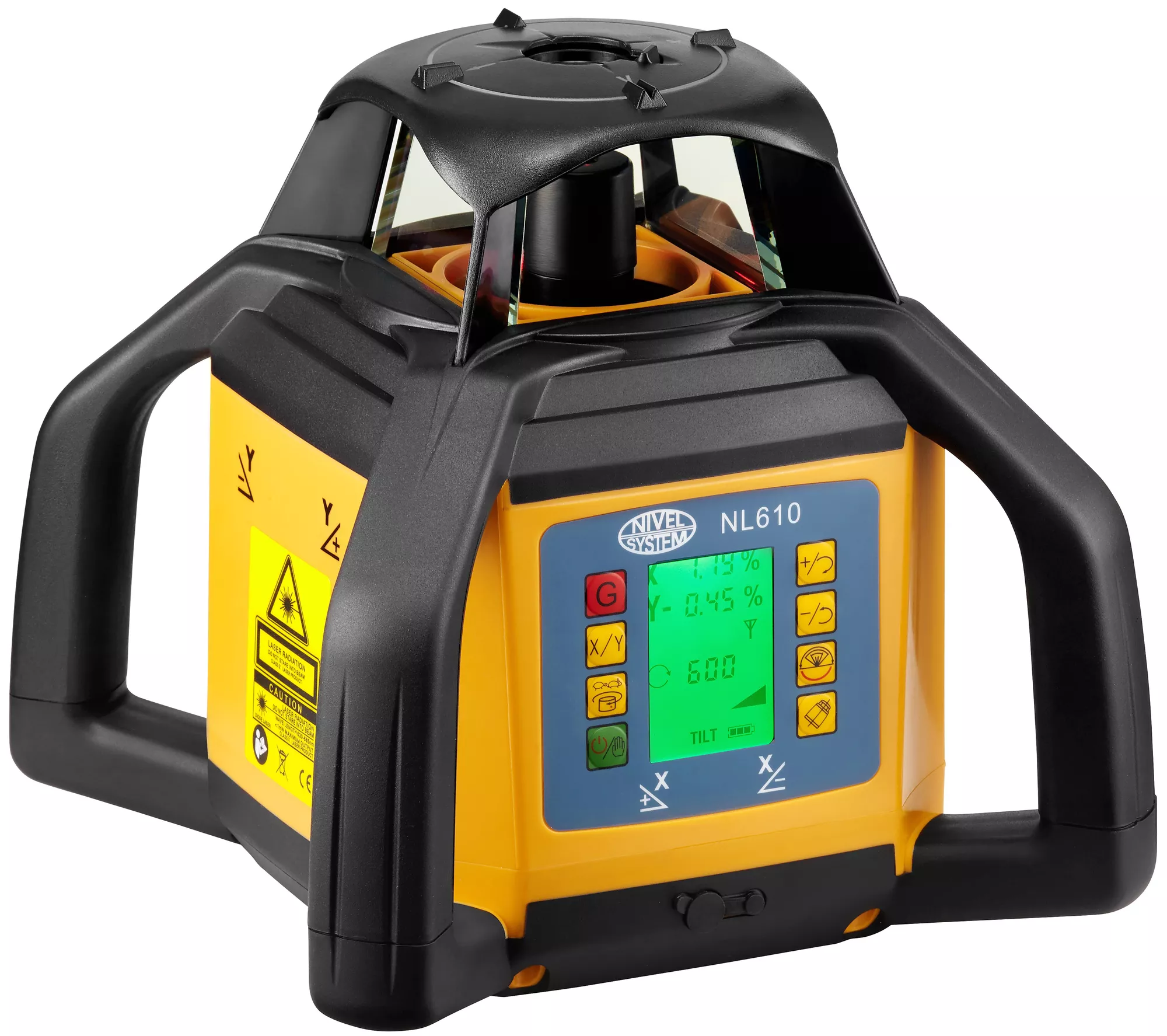

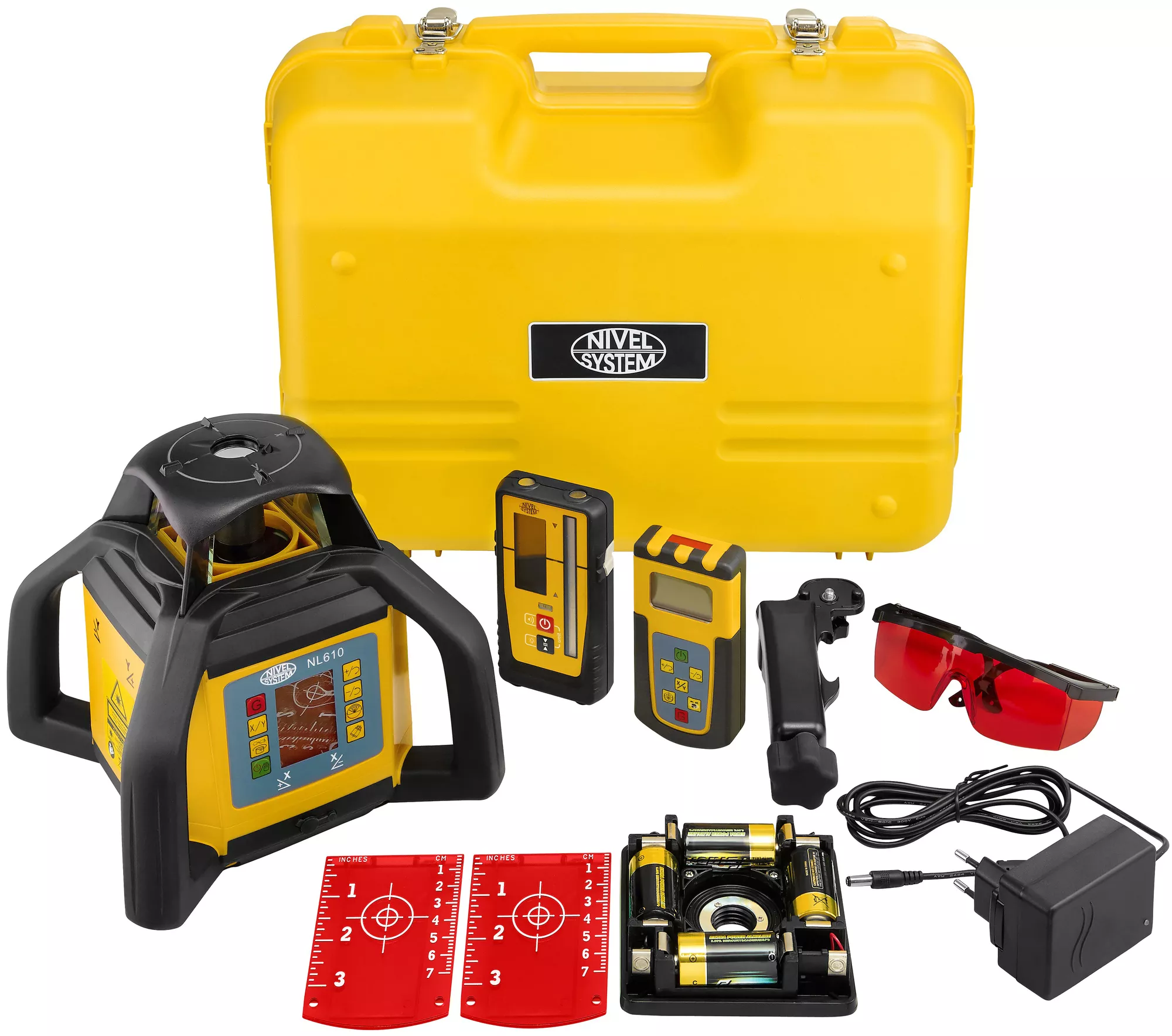

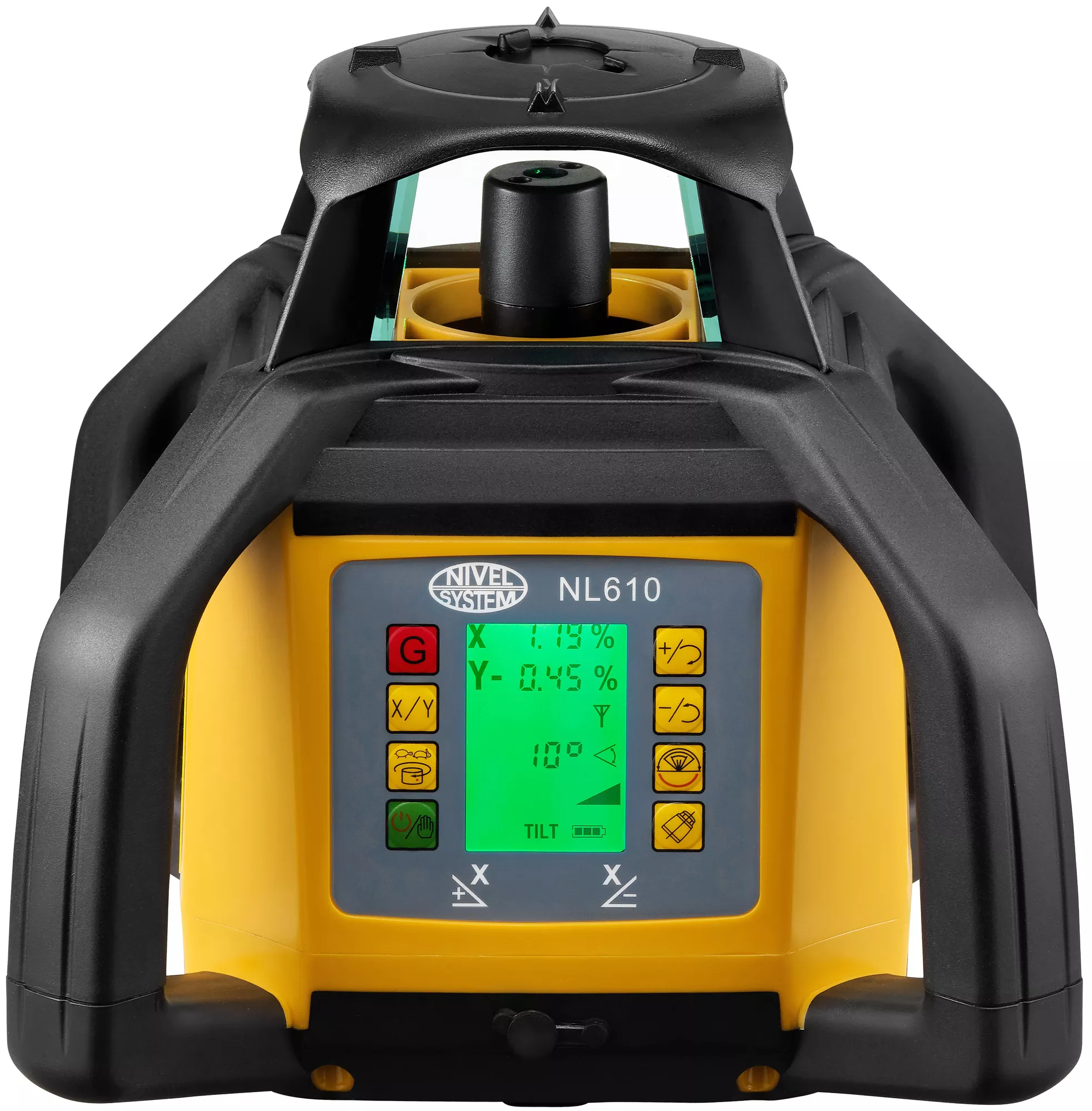

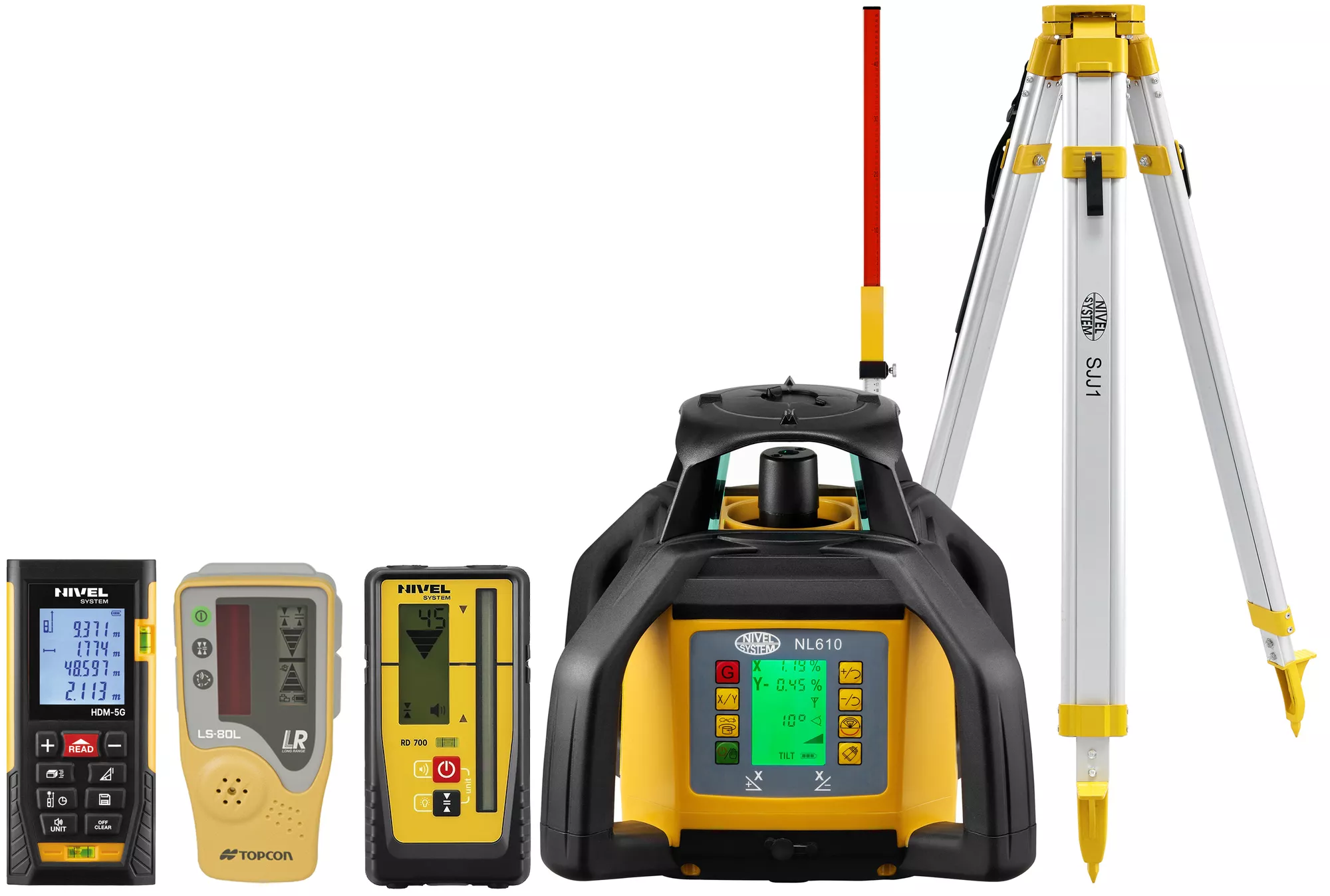

Laser level Nivel System NL610 Digital (+ tripod + laser stave + HDM-5G distance meter + laser sensors)
Catalogue number: NL610 DIGITAL [zestaw11]
Comments: 0

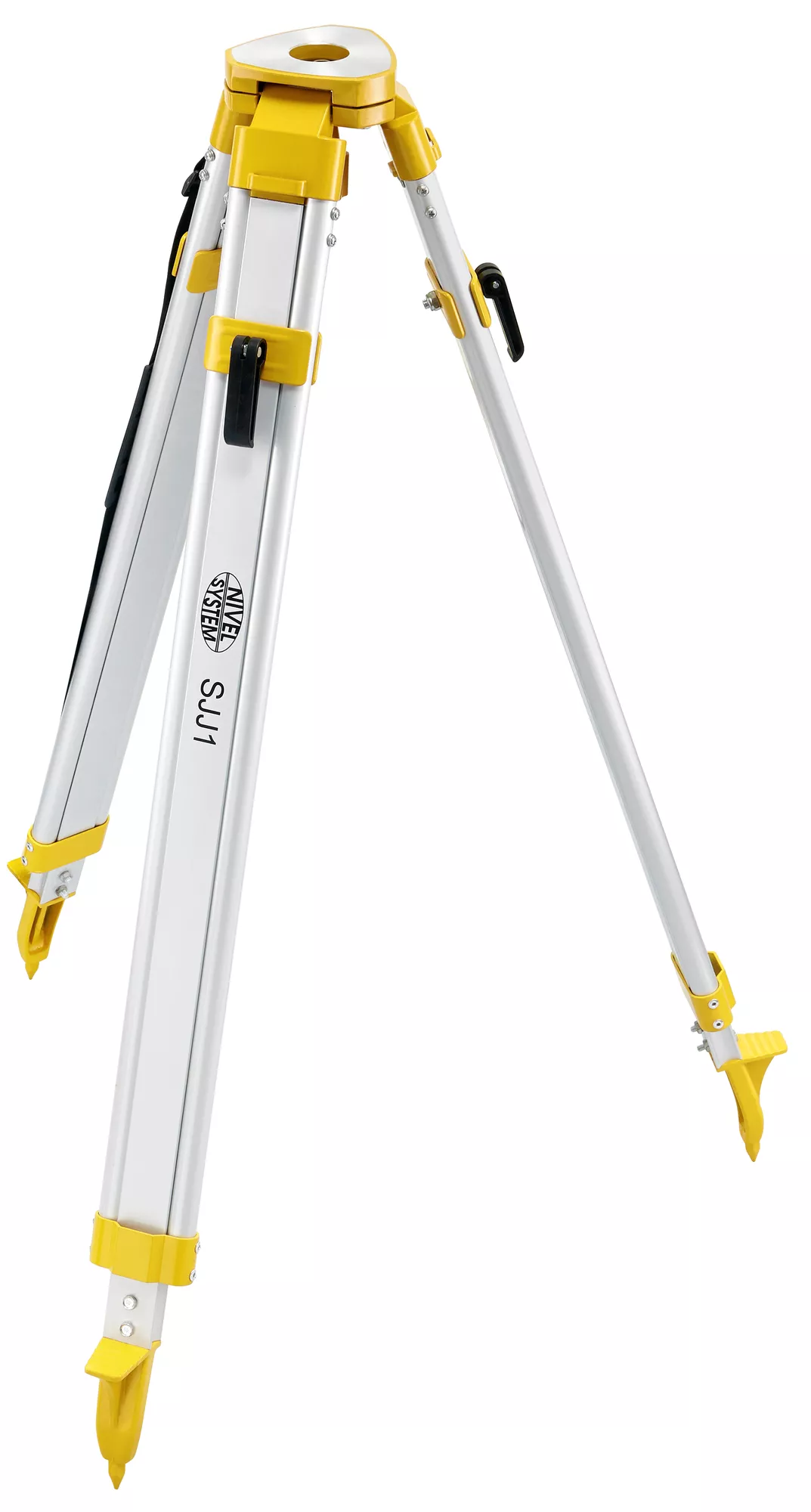

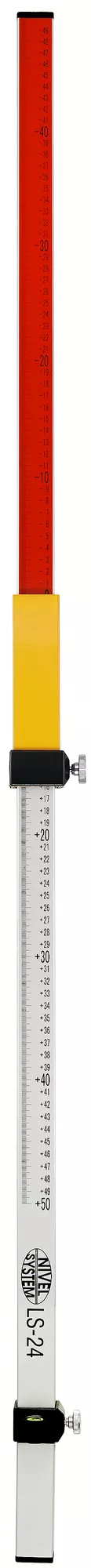

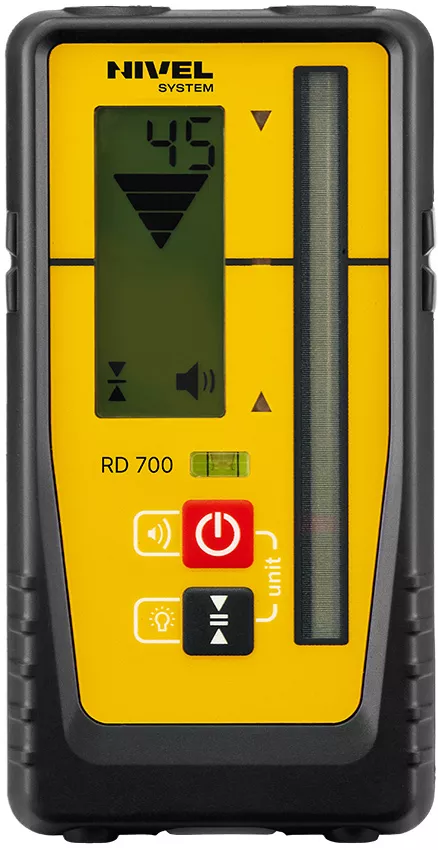

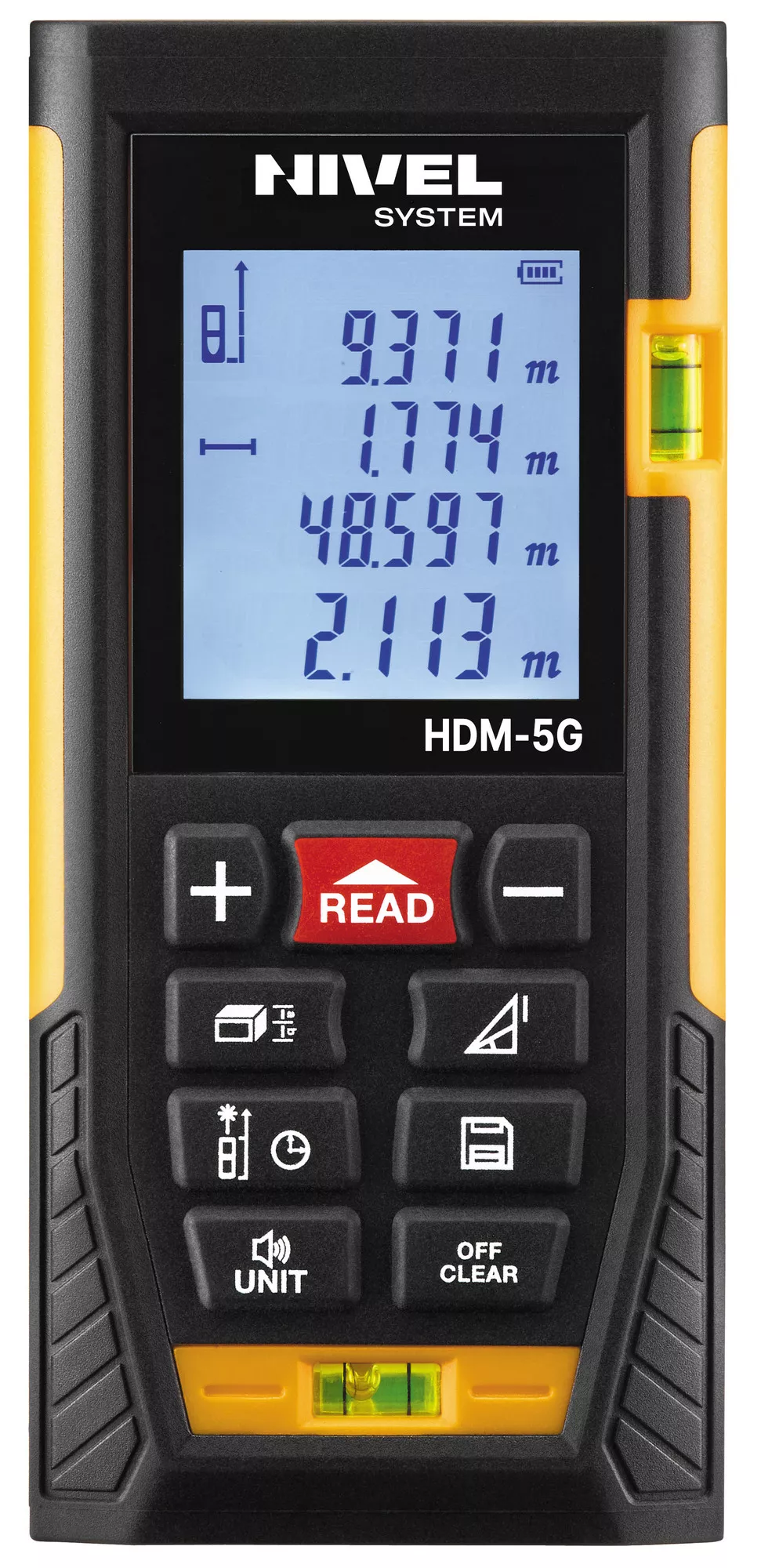

Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.Variant description: Red laser beam, a digital indication of height differences, set includes sjj1 tripod, ls-24 stave, HDM-5G distance meter, LS-80L laser sensor and RD700 Digital laser sensor
Technical characteristics
Accuracy
+/- 0.8 mm/10 m
Plummet accuracy
+/- 1 mm / 1,5 m
Resistance class
IP56
Laser type
Red beam, 635 nm, <1mW
Operating temperature range
-20°C ~ +50°C
Head spin speed
Variable: 0-60-120-300-600 rpm
Scanning
0-10°-45°-90°-180
Inheritance determination (X and Y axis)
+/- 10% (digital)
Self-leveling range
+/- 5° (quick levelling - electric sensor)
Work range
700 m (with sensor)
Power supply
4x rechargeable batteries DC 4,8-6 V (Ni-MH type)
Length x width x height
206 x 206 x 211 mm
Weight
13 kg
Precise work over long distances
A series of rotating laser levels with a digital indication of the height difference are created by two lasers - NL610 Digital (with a red beam) and NL610G Digital (with a green beam).
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
