Laser level Nivel System NL600 Digital (+ tripod, + laser stave)

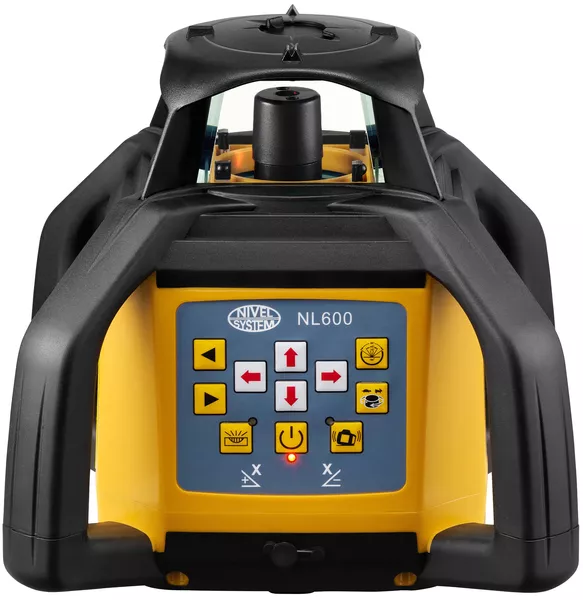

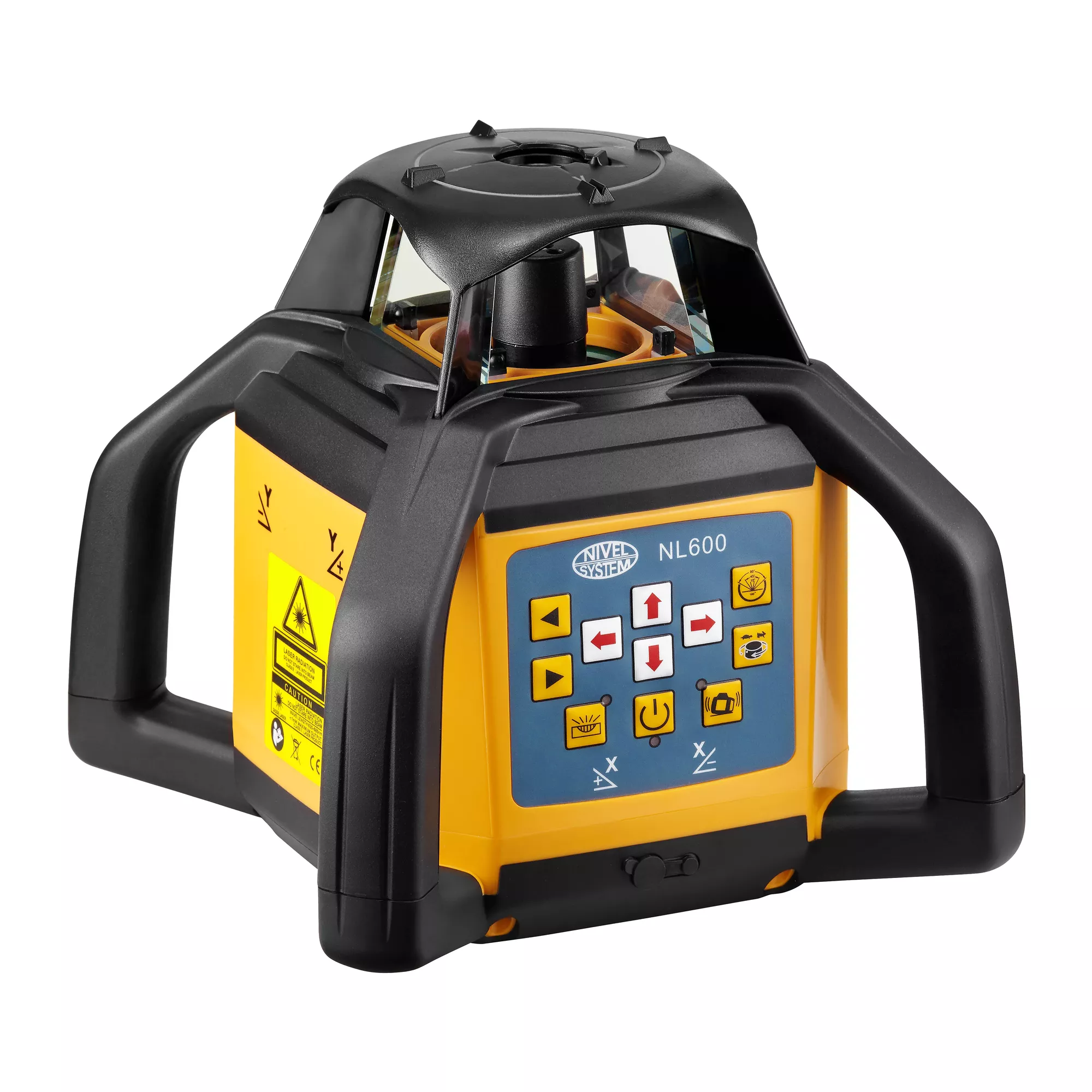

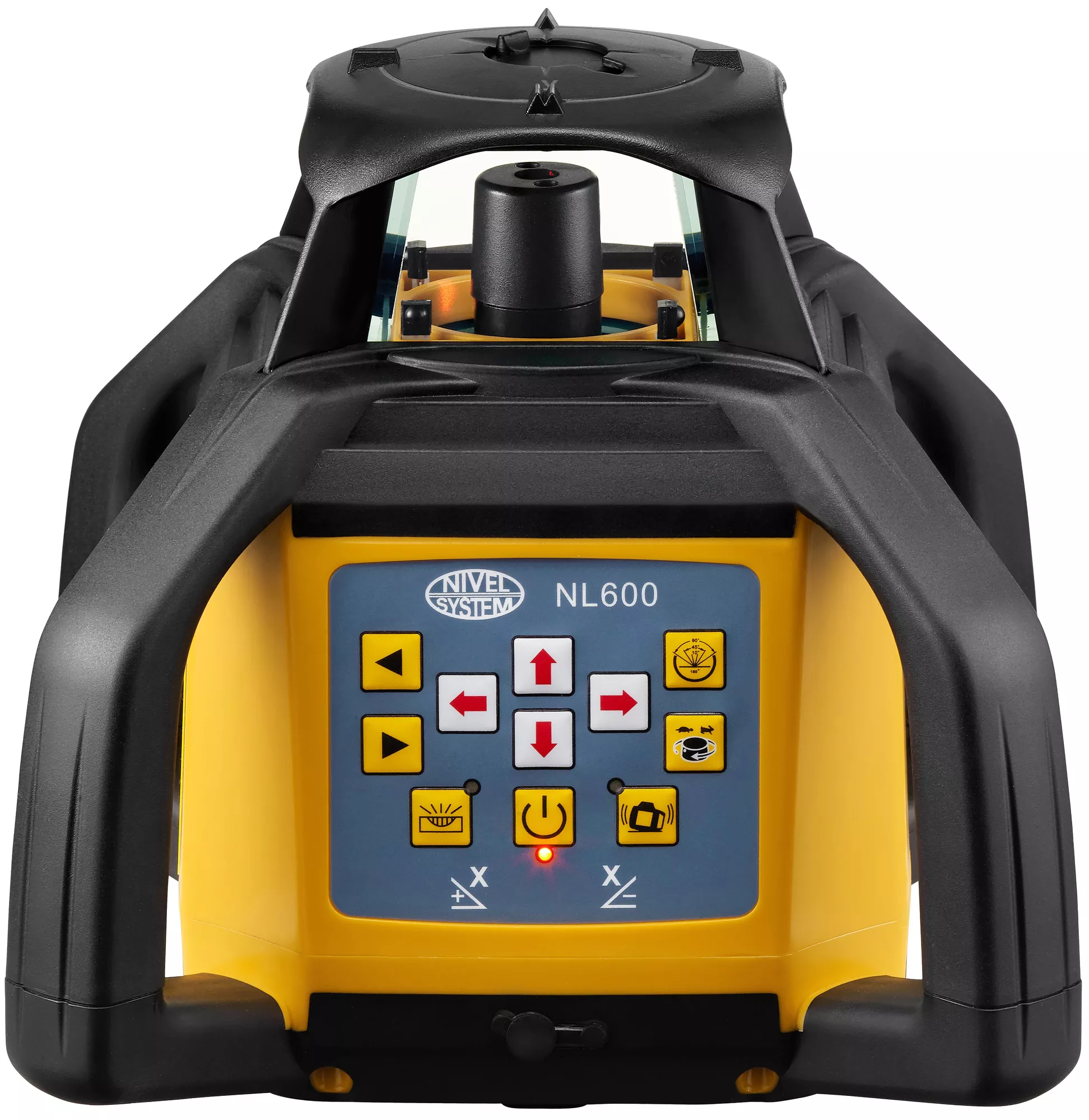

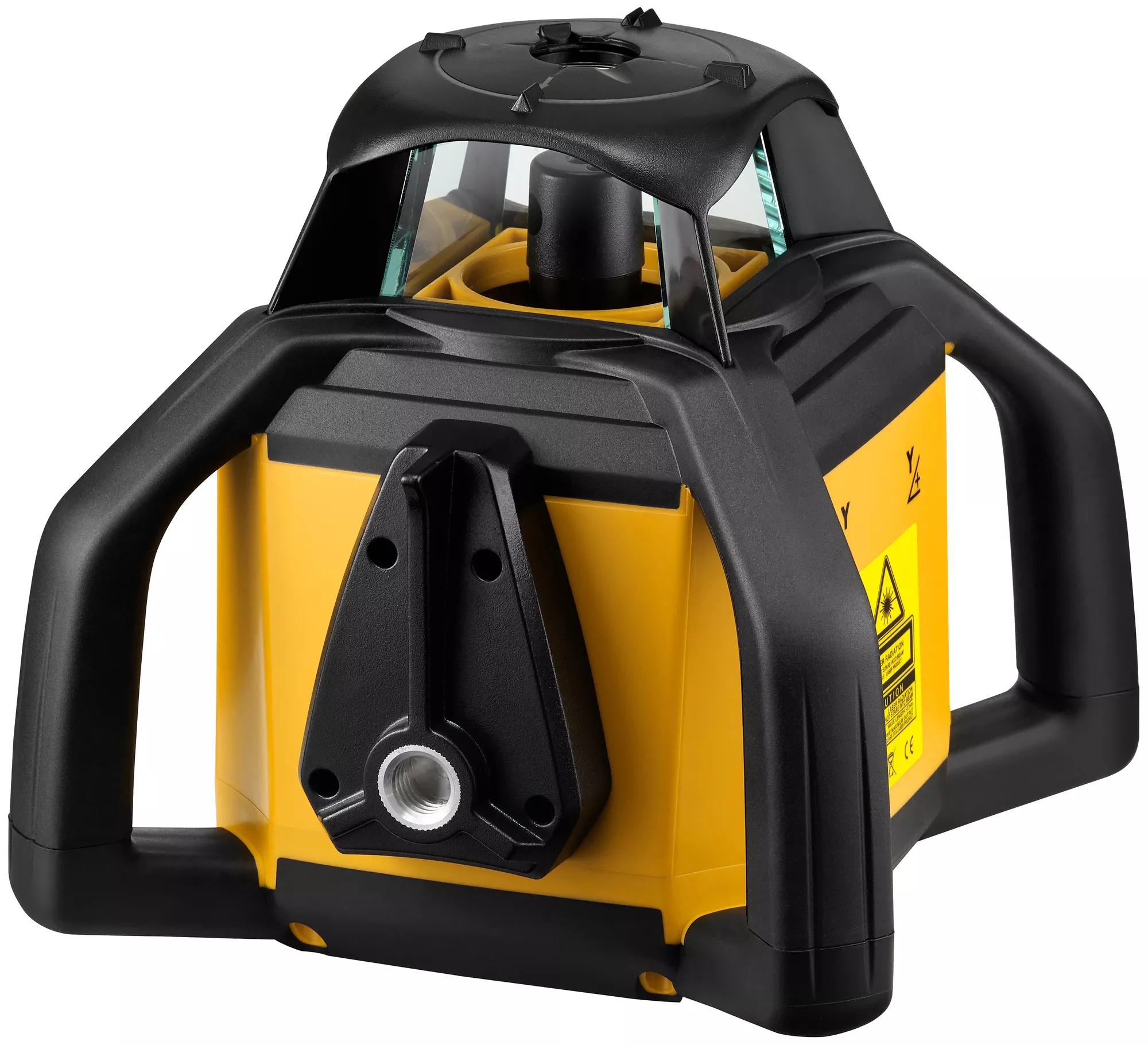

The rotary level NL600 Digital by Nivel System is a versatile and multifunctional tool for carrying out indoor works with an obvious red laser beam, as well as for work in open spaces. The instrument was built based on proven and efficient laser technology, ensures high accuracy of measurements, can be used on long sections of works (range 700 m), and the speed of work, including levelling and reacting to ground vibrations - allows it to be used for road works in machine control. The level determines the horizontal, inclined, vertical plane (after turning it 90°), and also, thanks to the plummet, determines the vertical or right angles. The NL600 Digital is offered with a sensor on which height differences are displayed digitally - which significantly facilitates and speeds up measurements. The equipment is user-friendly thanks to the intuitive interface. It is easy to set up and move (handy handles) and allows remote operation using a remote control.

Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free

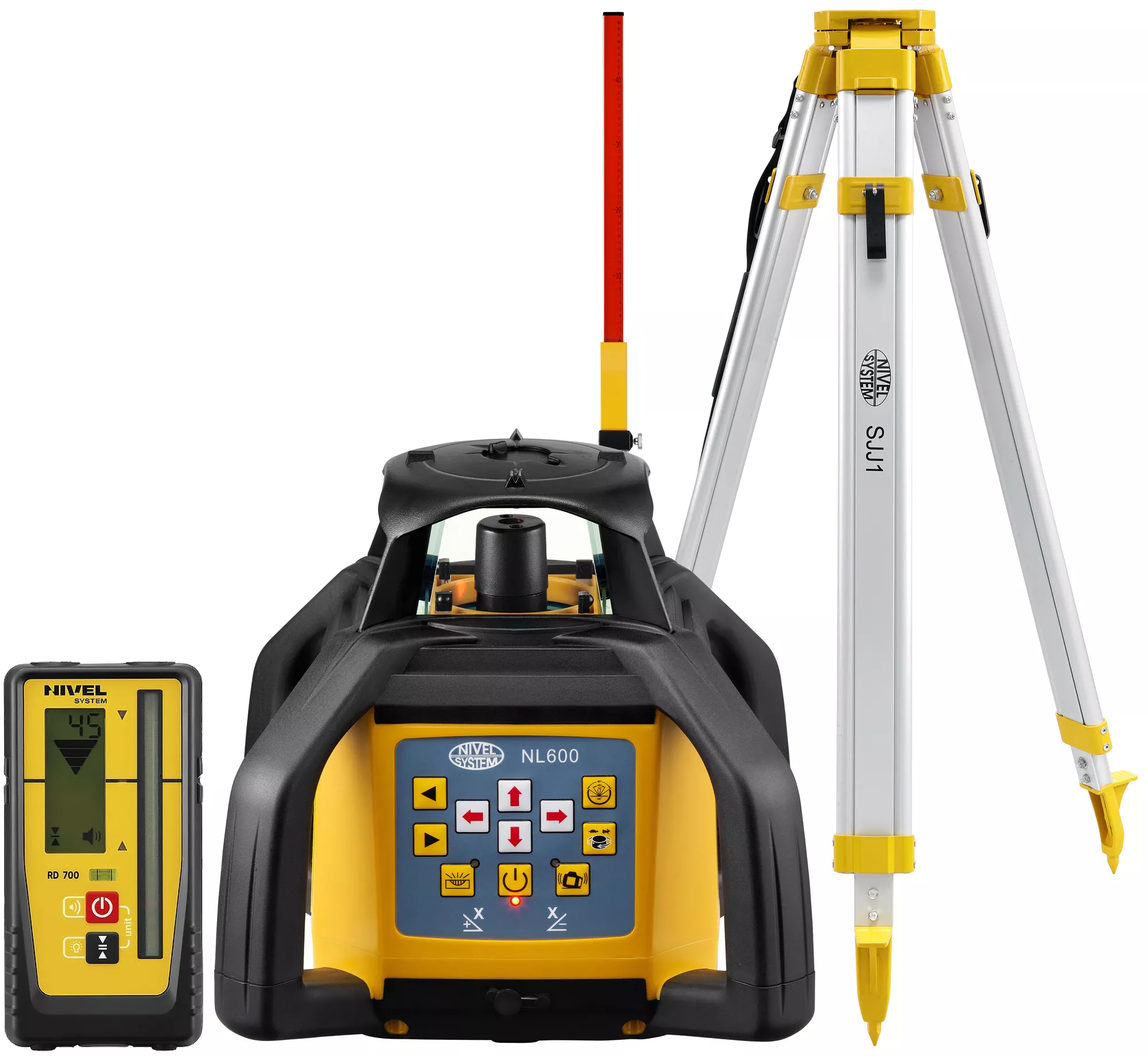

Variant description: Red laser beam, digital height difference indication, kit includes SJJ1 tripod and LS-24 stave

details

• Easy and quick measurements - the NL600 Digital level has an auto-levelling function, after switching on the equipment levels itself and is ready for work immediately. The generated laser beam is visible, displayed on the wall creates a reference line for horizontal or vertical jobs. When working with the sensor and the laser staff, we obtain an accurate levelling set. One person makes measurements. Digital height difference indications on display (RD600 Digital) significantly shorten the levelling process. The scanning function allows narrowing the displayed beam in a given range; in this way, we obtain a reference laser line only where we carry out work.
• Universal use - the equipment enables work with both horizontal and vertical bundles. The plane can be tilted in one or two directions, thanks to which the laser can be used in such tasks as pouring floors, levelling and surface preparation for paving stones, playground or road - providing water drainage per the designed slopes. During the construction works, a laser plummet becomes useful, which is the axis of a rotationally generated laser plane. This functionality ensures accurate laser fitting in perpendicular works or when transferring points (the plummet is displayed up and down simultaneously). For work outside and at higher ranges, a laser sensor is used to provide signal reception in the 700 m range (working diameter). Different rotational speeds of the head ensure the use of the laser both for installation works inside the building and for controlling machines, where higher speeds (600 rpm) are required.
• Accurate and reliable equipment - the level is built based on an electronic compensator, eliminating vibrations and ensuring precise levelling of the laser plane. The electronic compensator, compared to the magnetic one, is much more accurate, especially in the case of construction measurements where the terrain may vibrate as a result of heavy equipment. Therefore, thanks to NL600 Digital, we obtain reliable and accurate measurements. The equipment is resistant to dust and water, confirmed by class IP66. Also, the rotary head is protected by a glass body, and the laser housing has rubber shields to protect against damage due to impact.
• Ease of use - NL600 Digital has an intuitive control panel. Function management, including the introduction of slopes, is done manually. The laser functions can be controlled both from the instrument's deck and via a remote control. The laser can be powered by batteries, rechargeable batteries and directly from the network. The whole is complemented by a compact housing with handy handles - thanks to which the laser is easy to install on-site and during transport.

Application

• Ground levelling,
• Masonry works - internal and external (foundations, walls, stairs, screeds, formwork),
• Paving works - making parking lots, driveways, terraces,
• Assembly and finishing work - assembly of wooden and aluminium constructions, suspended ceilings, tiling,
• Installation works - determination of the line lines, transfer of points,
• Earthworks - excavations, equation - also when controlling construction machines,
• Carpentry works - furniture, buildings.

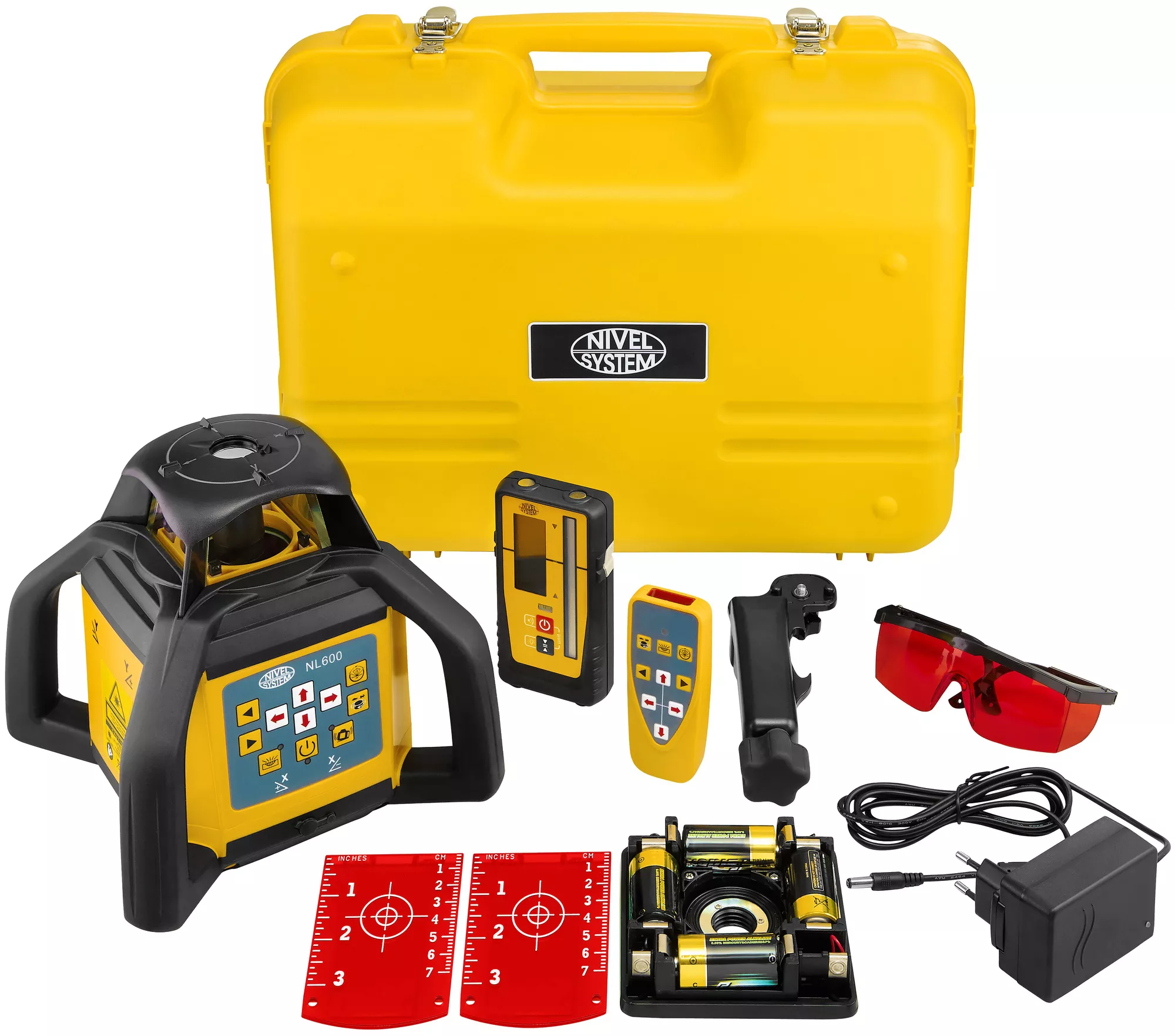

Set contains

• NL600 Digital laser level,
• RD600 Digital laser sensor,
• Patch sensor holder,
• Remote control,
• Laser shield,
• Laser glasses,
• Additional battery tray,
• Rechargeable batteries,
• Charger,
• Transport case,

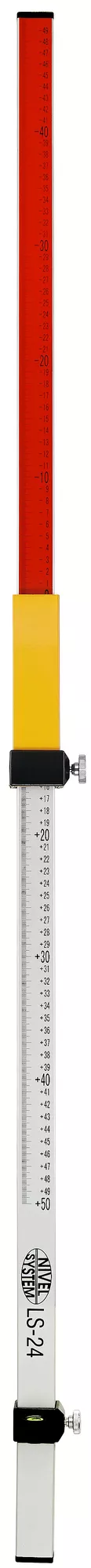

• Nivel System LS-24 laser stave - aluminium staff for classic measurements with a maximum height of 2.4 m - practical slider for sensor handle, levelling vial, transport cover included,

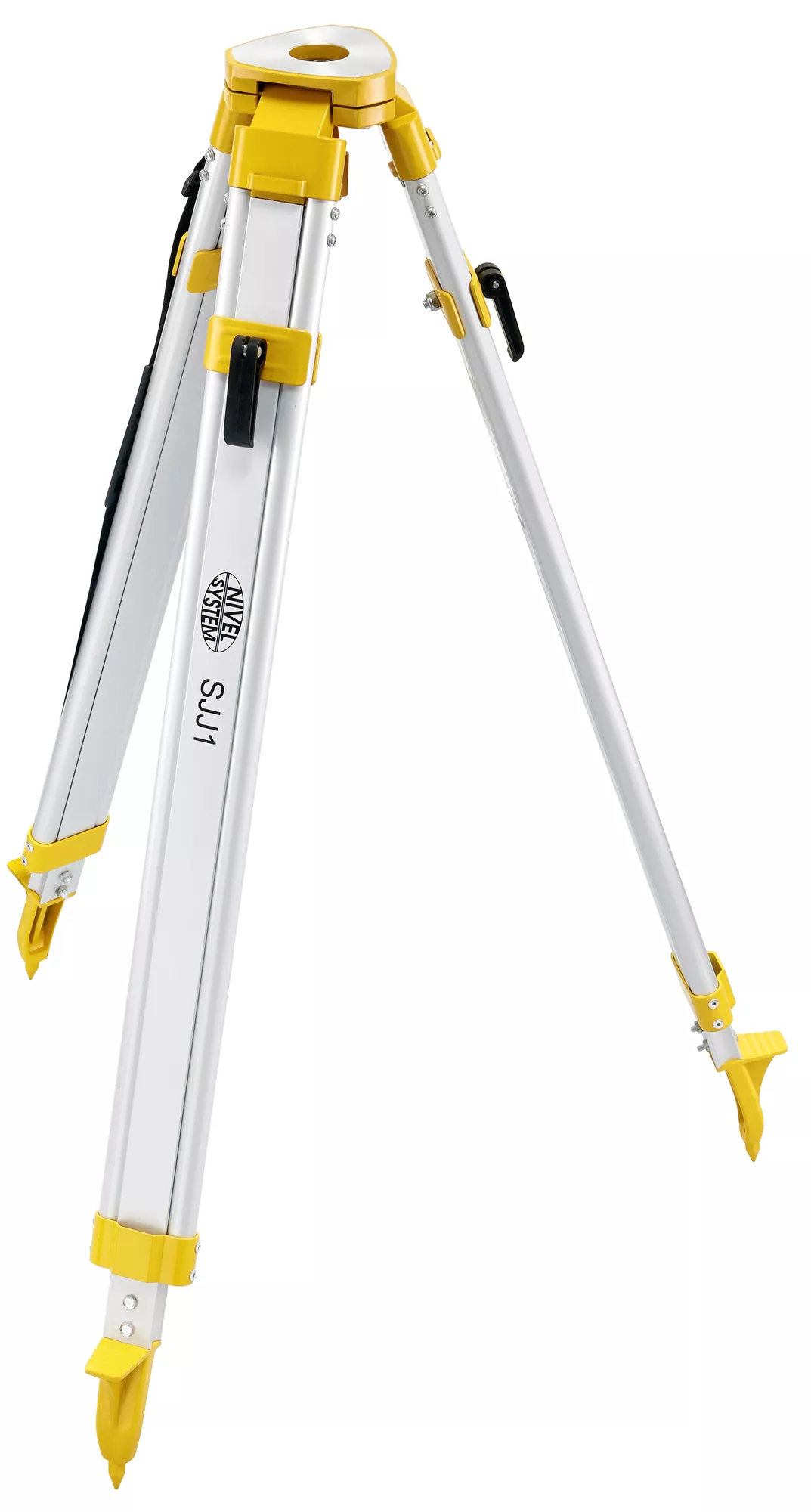

• Aluminum Nivel System SJJ1 tripod - a light tripod for clamps with a flat head. It has durable clamps blocking the tripod legs, a comfortable carrying strap on the shoulder. Feet tips made of metal provide the required stability on any surface.
