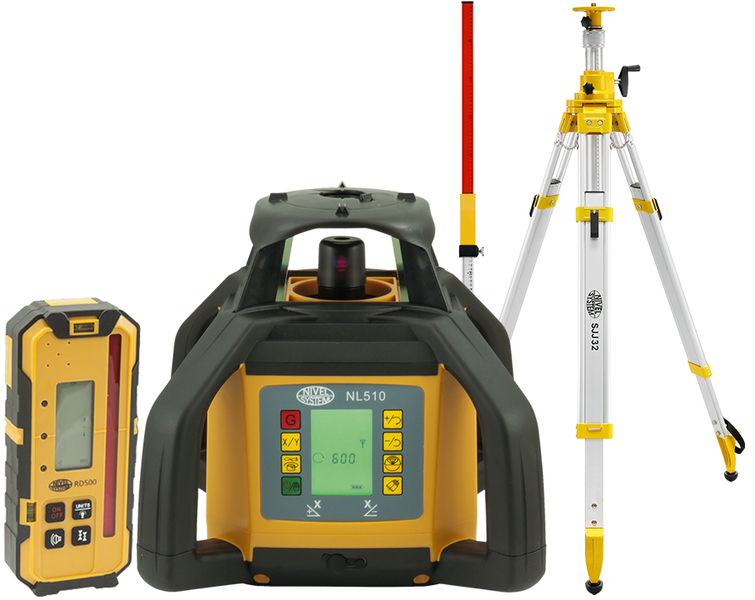

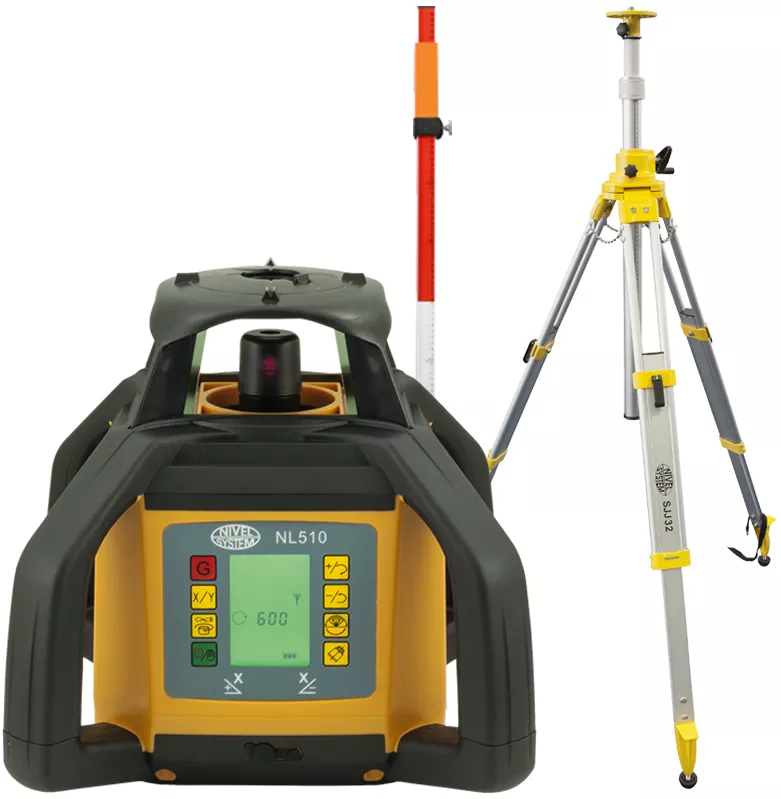

Laser level Nivel System NL510 DIGITAL (+ cranked tripod, + laser stave)

Laser level Nivel System NL500 DIGITAL (+ cranked tripod + laser stave)

Catalogue number: NL510 DIGITAL [zestaw2]
Availability:  Discontinued product
Shipping time:  n/ai No shipping information for the product.
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add comment
Catalogue number: NL500 DIGITAL [zestaw2]
EAN: 5908263350632
You get: 43 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
995,45 €
910,84 €
Get a lower price after logging iniAccess to Customer Account is available only on the Polish-language version of the store.
Net price: 740,52 €
Availability:  In stock
Shipping time:  24hi Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 2 years

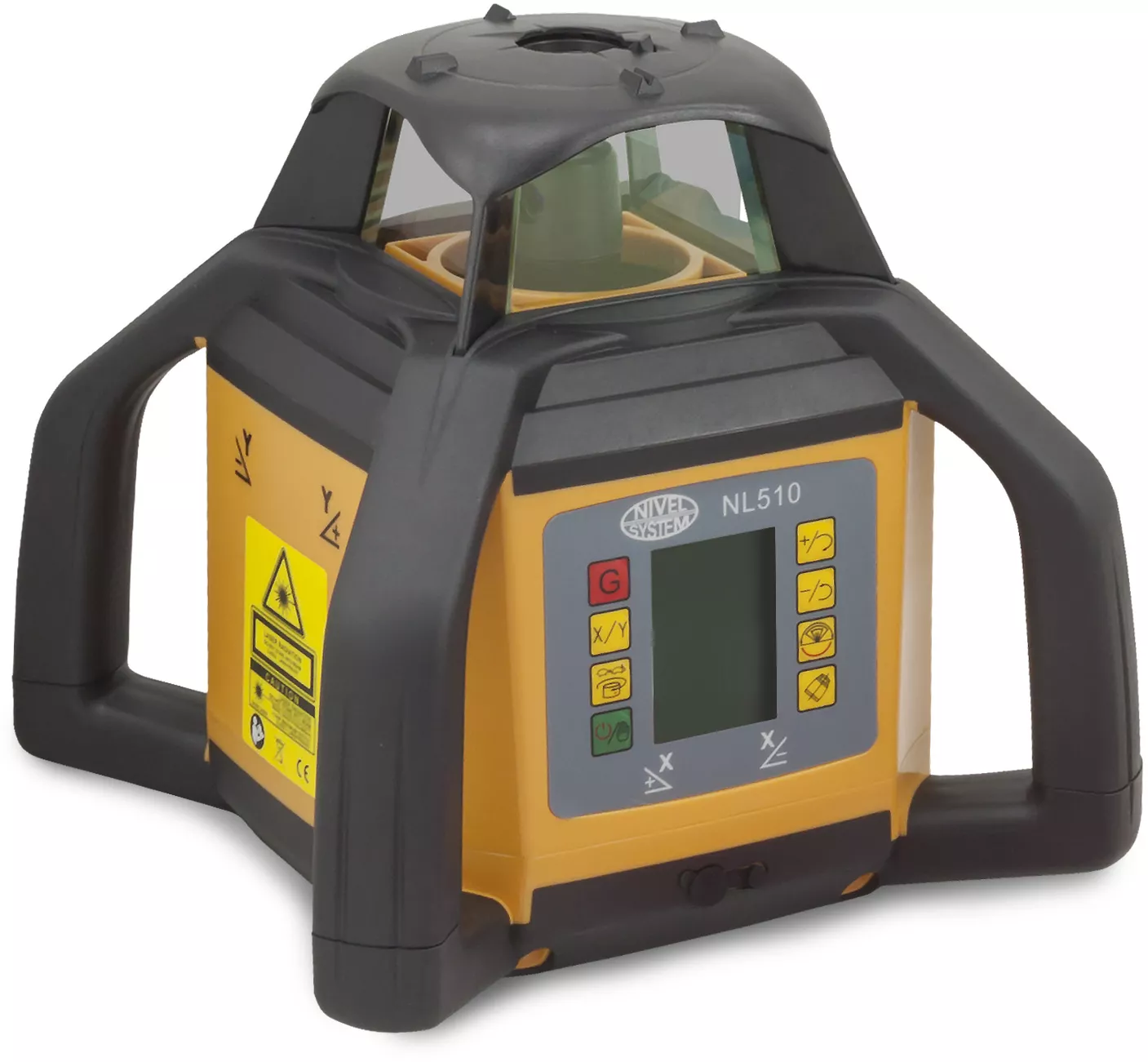

The Nivel System NL510 Digital rotary laser is a versatile and multifunctional tool for performing indoor works with a bright red laser beam, as well as for working in open spaces. The instrument ensures high accuracy of measurements, can be used on long sections of works (range 600 m), and the speed of work, including levelling and reacting to terrain vibrations - allows it to be used for road works, including machine control. The level determines a horizontal, tilted (digital tilt), vertical (after turning it 90°) plane - all managed from the deck of the control panel with an LCD, and also thanks to the plummet determine the vertical or right angles. NL510 Digital is offered with a sensor on which height differences are displayed digitally - which significantly facilitates and speeds up measurements. The equipment is user-friendly thanks to the intuitive interface. It is easy to set up and move (handy handles) and allows remote control using an LCD remote control.

Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free.

Variant description: Red laser beam, the set includes SJJ32 cranked tripod and LS-24 laser stave

Technical characteristics

Accuracy
+/- 1mm/10m
Plummet accuracy
+/- 1mm/1,5m
Resistance class
IP56
Laser type
Red laser beam, 635 nm, <1mW
Operating temperature range
-20°C ~ +50°C
Head spin speed
Variable: 0 -60 -120 -300 -600min
Scanning
0 -10° -45° -90° -180
Inheritance determination (X and Y axis)
+/- 10% (on X & Y axis - digital)
Self-leveling range
+/- 5° (quick levelling - electronic sensor)
Work range
600 m (with sensor)
Power supply
4x rechargeables batteries DC 4,8-6 V, (Ni-MH type)
Weight
2,8 kg
Length x width x height
206 x 206 x 211 mm

ADVANTAGES

  • Everything can be seen with the naked eye – the red colour of the laser is so intense that the beam projected onto the object is visible even at a distance of several dozen meters from the site,
  • Even more significant range of operation – work in the open air at a length of 600 m (diameter),
  • Efficient levelling – laser sensor with digital height difference determination (RD500 Digital) significantly improves levelling and increases its accuracy,
  • Working with an inclined plane – the laser beam can be tilted in one or two directions in the range of +/- 10% thanks to which the determination of slopes in the field is done manually and without the need to calculate the height of individual stations,
  • Laser in each direction – the head emitting a horizontal beam additionally sets a line laser, which makes it easier to define the plane at right angles to the designated line,
  • Quick self-levelling – the compensator quickly and accurately levels the instrument, and the level shake alarm eliminates erroneous measurements when the device has been inadvertently hit and recognized,
  • One-person operation – only one person is required to operate the level and determine the height,
  • Remote control – laser parameters can be changed using the remote control supplied in the standard configuration,
  • Everything in the package – the level is provided as standard with a group of practical accessories, supporting the work (Digital laser sensor, laser staff holder, remote control, batteries, charger, carrying case),
  • Work in all conditions – robust protection of the rotary head protects this most crucial element of the level against mechanical damage, and the sealed housing meets the IP66 standard, allowing you to work in rain and dust.

DETAILS

  • Easy and quick measurements – the NL510 Digital level has the function of self-levelling, after switching on the equipment will level itself and is immediately ready for work. The generated green laser beam is very well visible (even in bright, sunny rooms), displayed on the wall creates a reference line for horizontal or vertical works. When working with the sensor and the laser staff, we obtain an accurate levelling set. One person makes measurements. Digital height difference indications on display (RD500 Digital) significantly shorten the levelling process. The scanning function allows narrowing the displayed beam in a given range; in this way, we obtain a reference laser line only where we carry out work.
  • Universal use – the equipment enables work with both horizontal and vertical bundles. The plane can be tilted in one or two directions (digitally, using the control panel), so that the laser can be used in such works as pouring floors, levelling and surface preparation for paving stones, playground, or road - providing water drainage by designed slopes. During the construction works, a laser plummet becomes useful, which is the axis of a rotationally generated laser plane. This functionality ensures accurate laser fitting in perpendicular works or when transferring points (the plummet is displayed up and down simultaneously). For work outside and at higher ranges, a laser sensor is used to provide signal reception in the 600 m range (working diameter). Different rotation speeds of the head ensure the use of the laser both for installation works inside the building and machine control, where higher speeds (600 rpm) are required.
  • Accurate and reliable equipment – the level is built based on an electronic compensator, eliminating vibrations and ensuring precise levelling of the laser plane. The electronic compensator, compared to the magnetic one, is much more accurate, especially in the case of construction measurements where the terrain may vibrate due to heavy equipment. Therefore, thanks to NL510 Digital, we obtain reliable and accurate measurements. The equipment is resistant to dust and water, confirmed by class IP56. Also, the rotary head is protected by a glass body, and the laser housing has rubber shields to protect against damage due to impact.

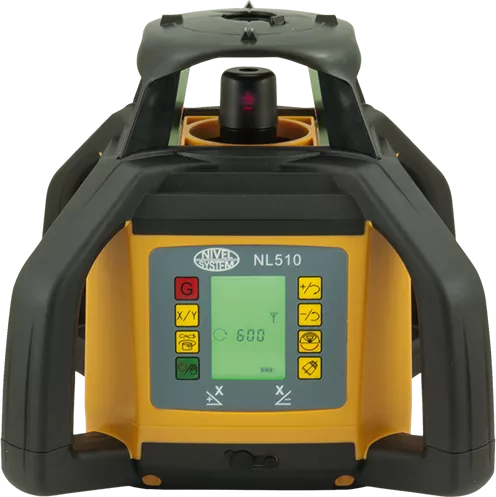

  • Ease of use – NL510 Digital has an intuitive control panel with an LCD. Function management, including the introduction of inheritances, is done digitally. The laser functions can be controlled both from the instrument's deck and via a remote control with an LCD (laser parameters are displayed on the remote control). The laser can be powered by batteries, rechargeable batteries and directly from the network. The whole is complemented by a compact housing with handy handles - thanks to which the laser is easy to install on-site and during transport.

APPLICATION

  • Ground levelling – levelling, Masonry works - internal and external (foundations, walls, stairs, screeds, formwork),
  • Paving works – making parking lots, driveways, terraces,
  • Assembly and finishing work – assembly of wooden and aluminium constructions, suspended ceilings, tiling,
  • Installation works – determination of the line lines, transfer of points,
  • Earthworks – excavations, equation - also when controlling construction machines,
  • Carpentry works – furniture, buildings.

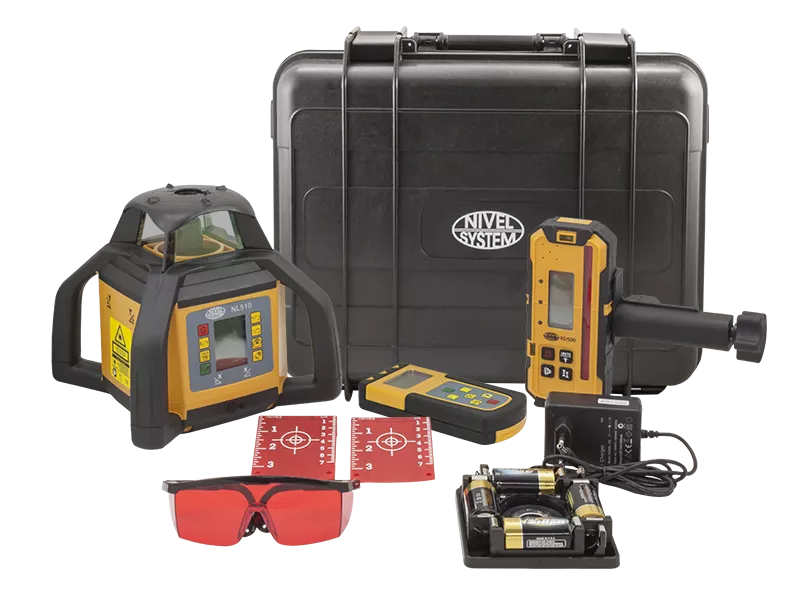

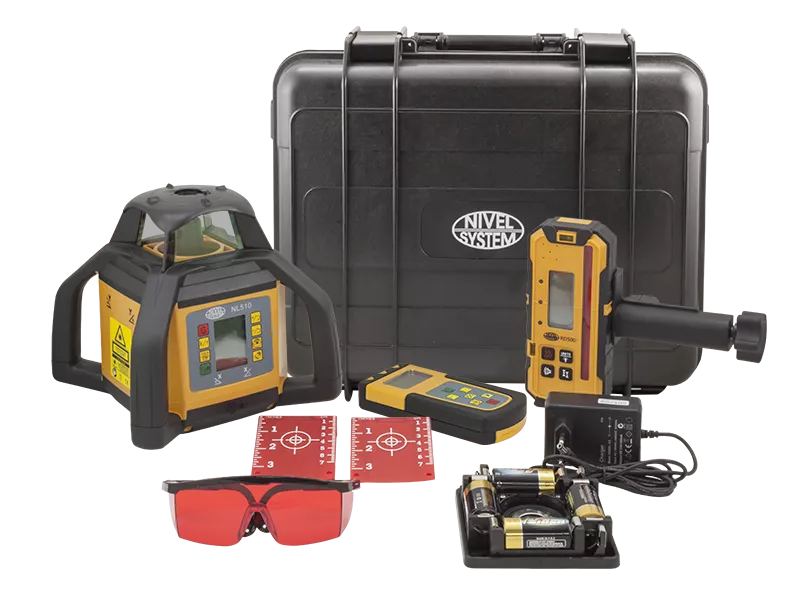

SET CONTAINS

  • NL510 Digital Laser Leveler,
  • Laser sensor RD500 Digital,
  • The sensor holder for the patch,
  • Remote Controller,
  • Laserdisc,
  • Laser glasses,
  • Additional Battery Tray,
  • Rechargeables Charger Transport trunk,

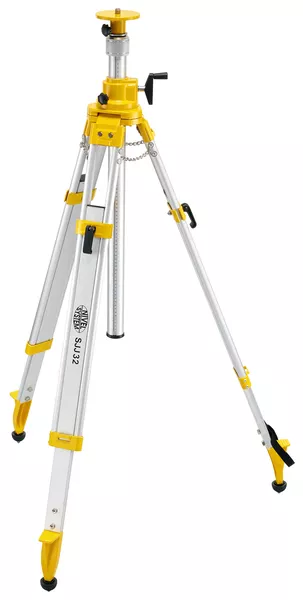

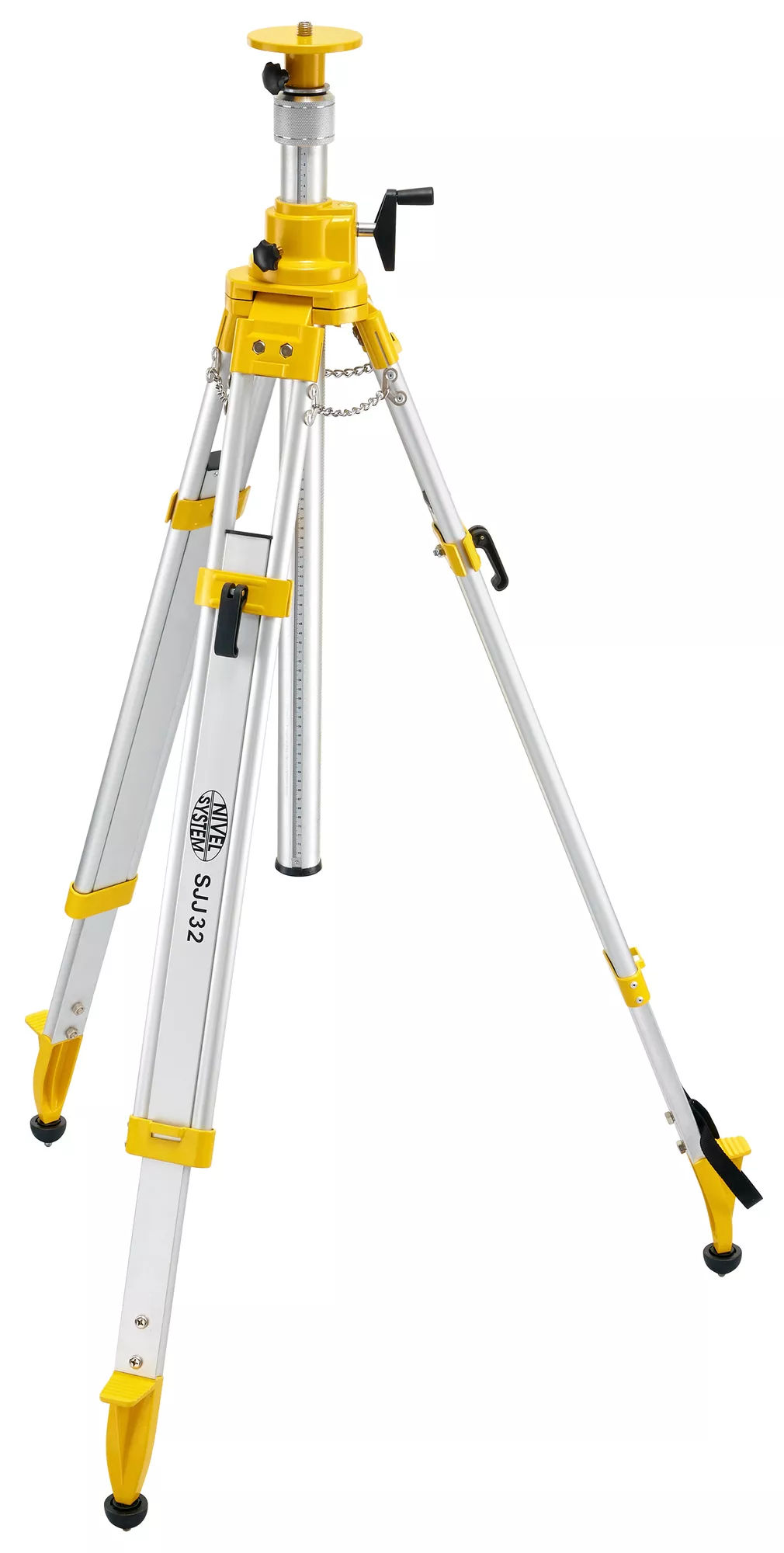

  • Nivel System SJJ32 cranked tripod – stable aluminium instrument for operation in all conditions, with a maximum height of 3.2 m. It has a flat tripod head with the secure mounting of the laser on the boom with a measuring cup. A powerful locking system for clamps, footers made of metal that provide the required stability on any substrate, are the most significant advantages of the product,

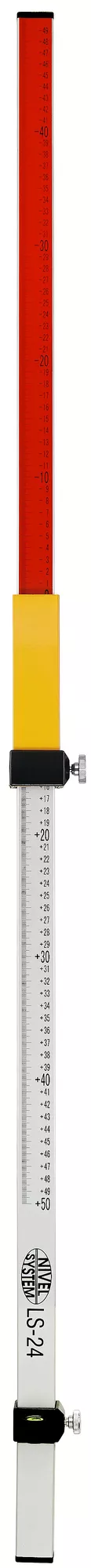

  • Nivel System LS-24 laser stave – aluminum patch for standard measurements with a maximum height of 2.4 m – includes a practical slider for the sensor holder, levelling libel.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
