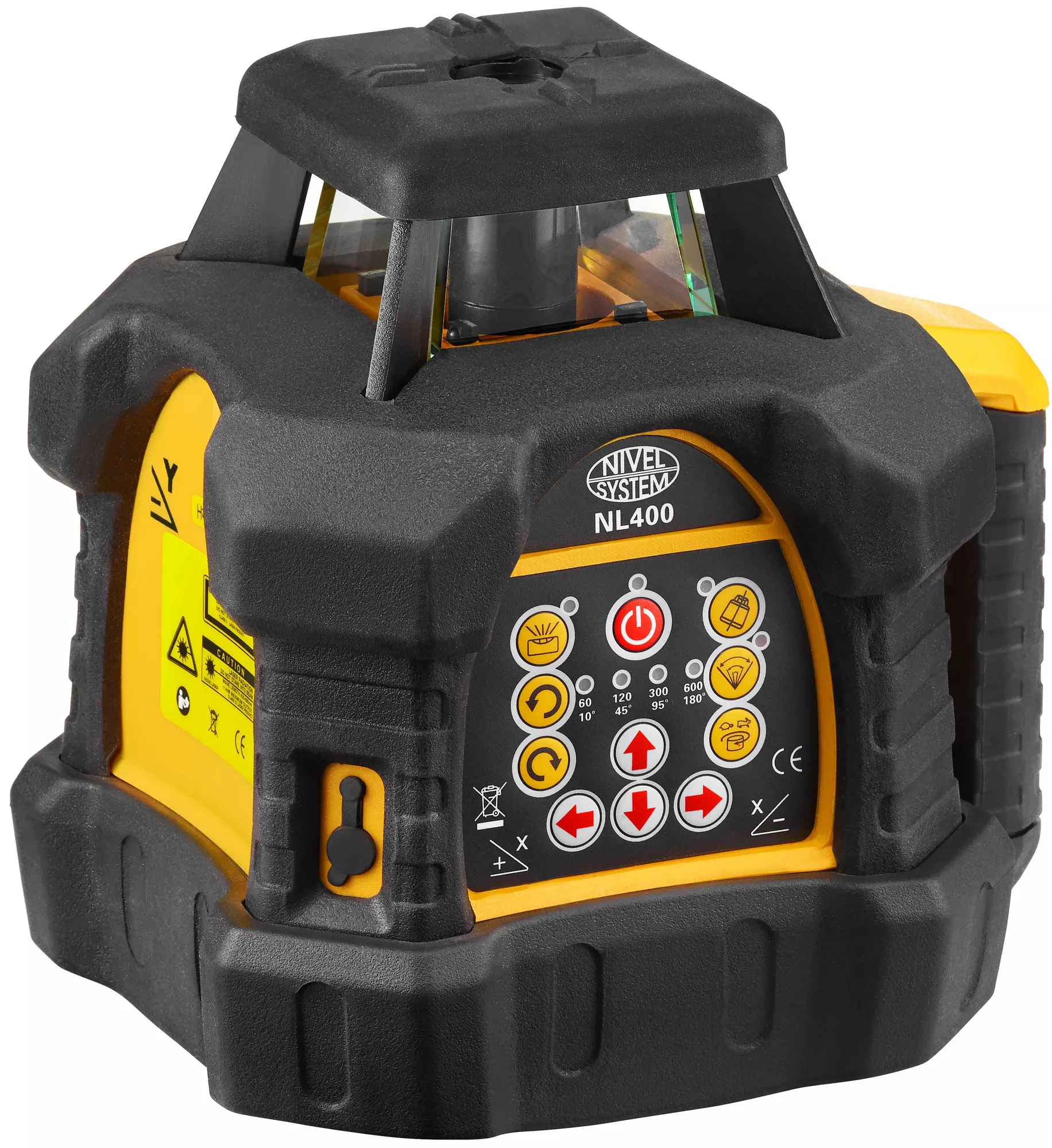

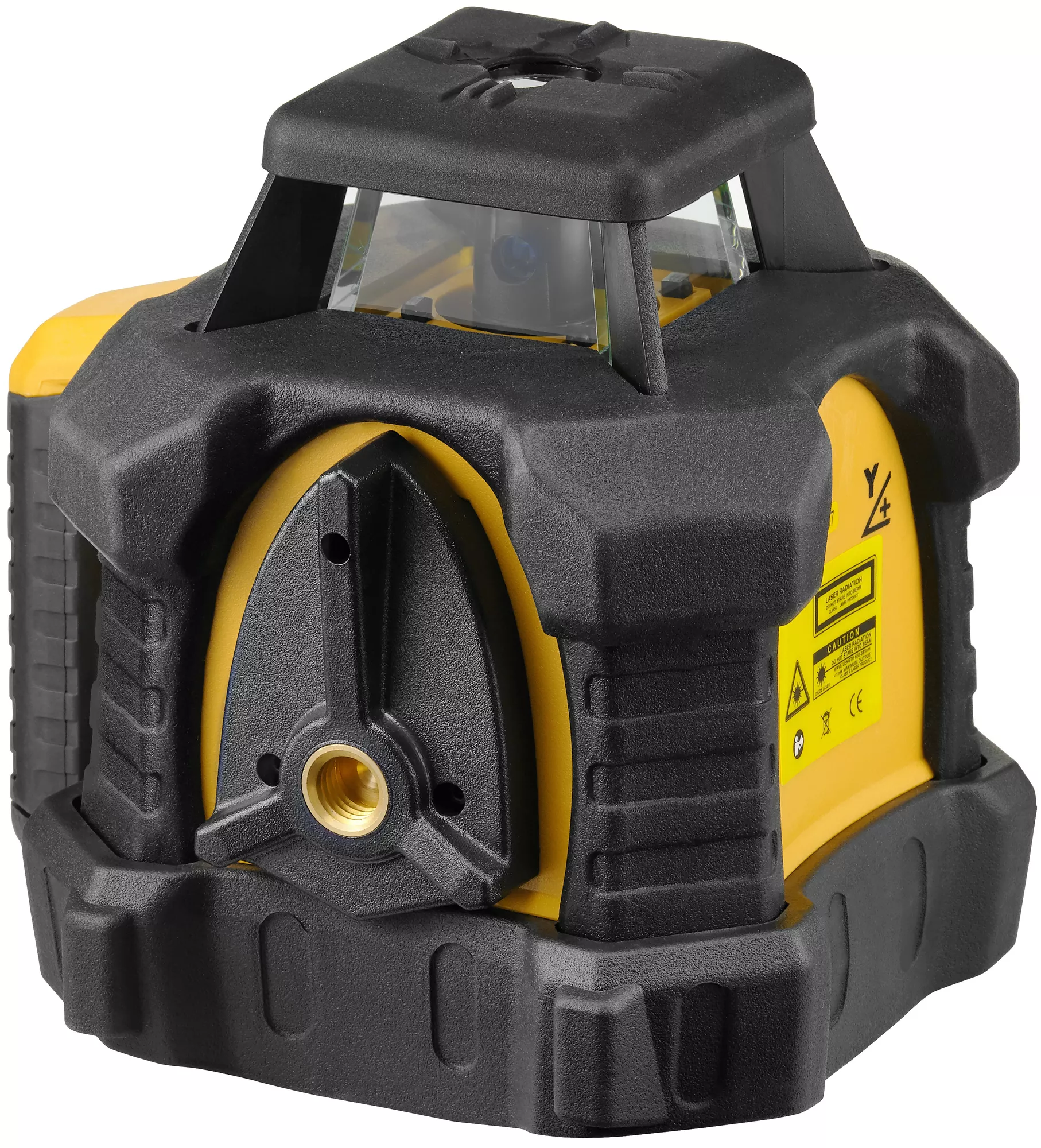

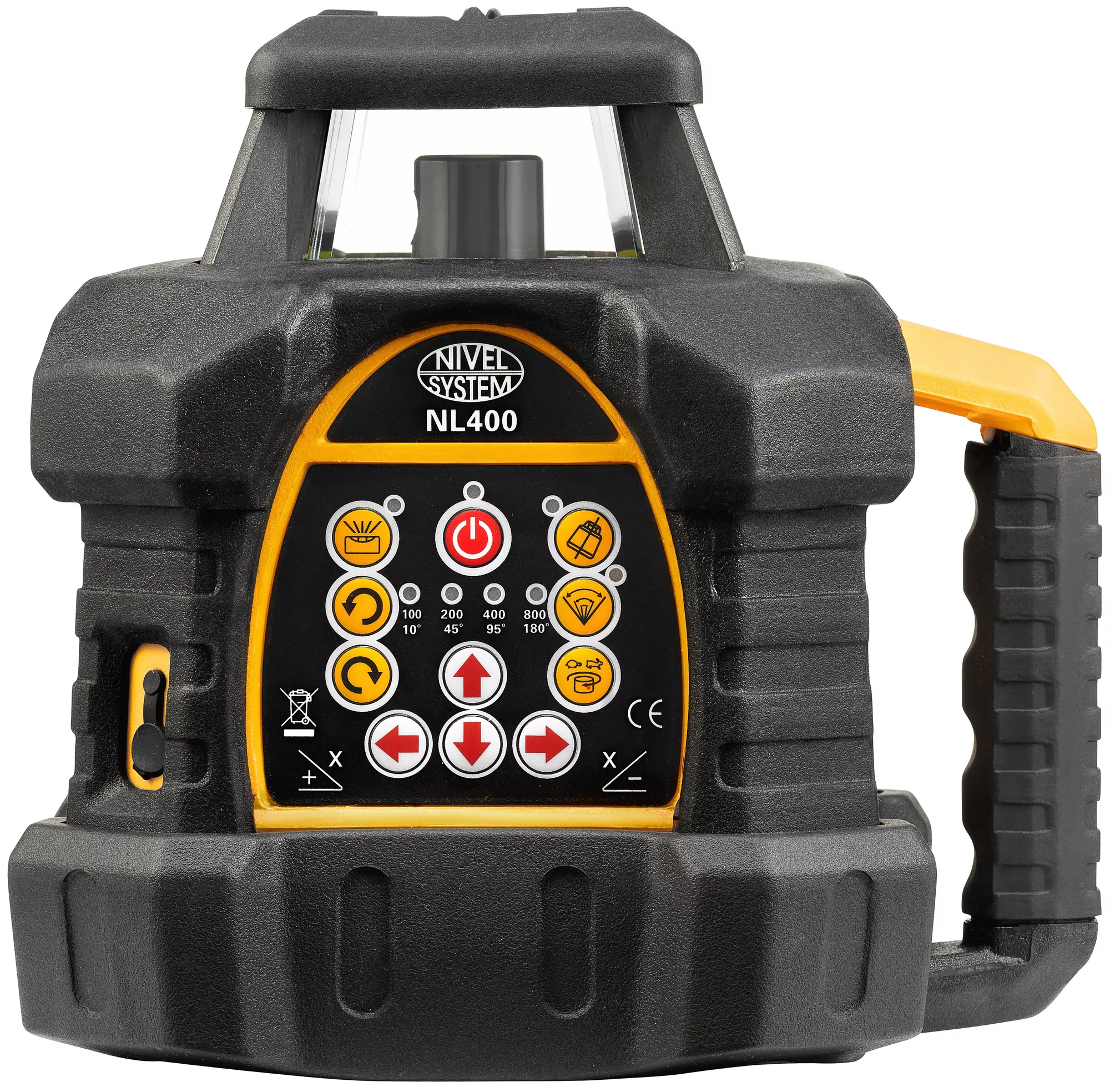

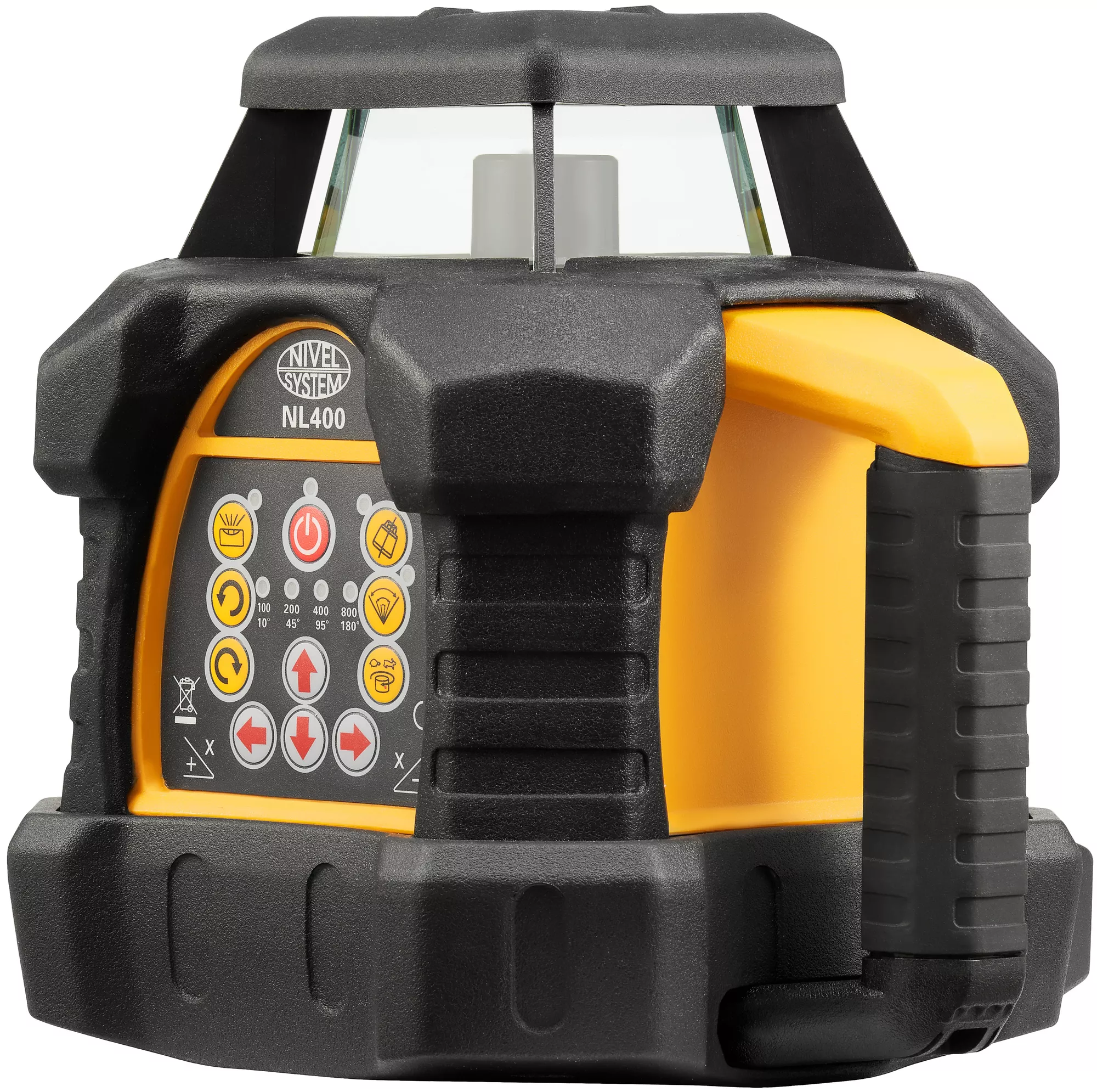

Laser level Nivel System NL400 (+ tripod, + laser stave)

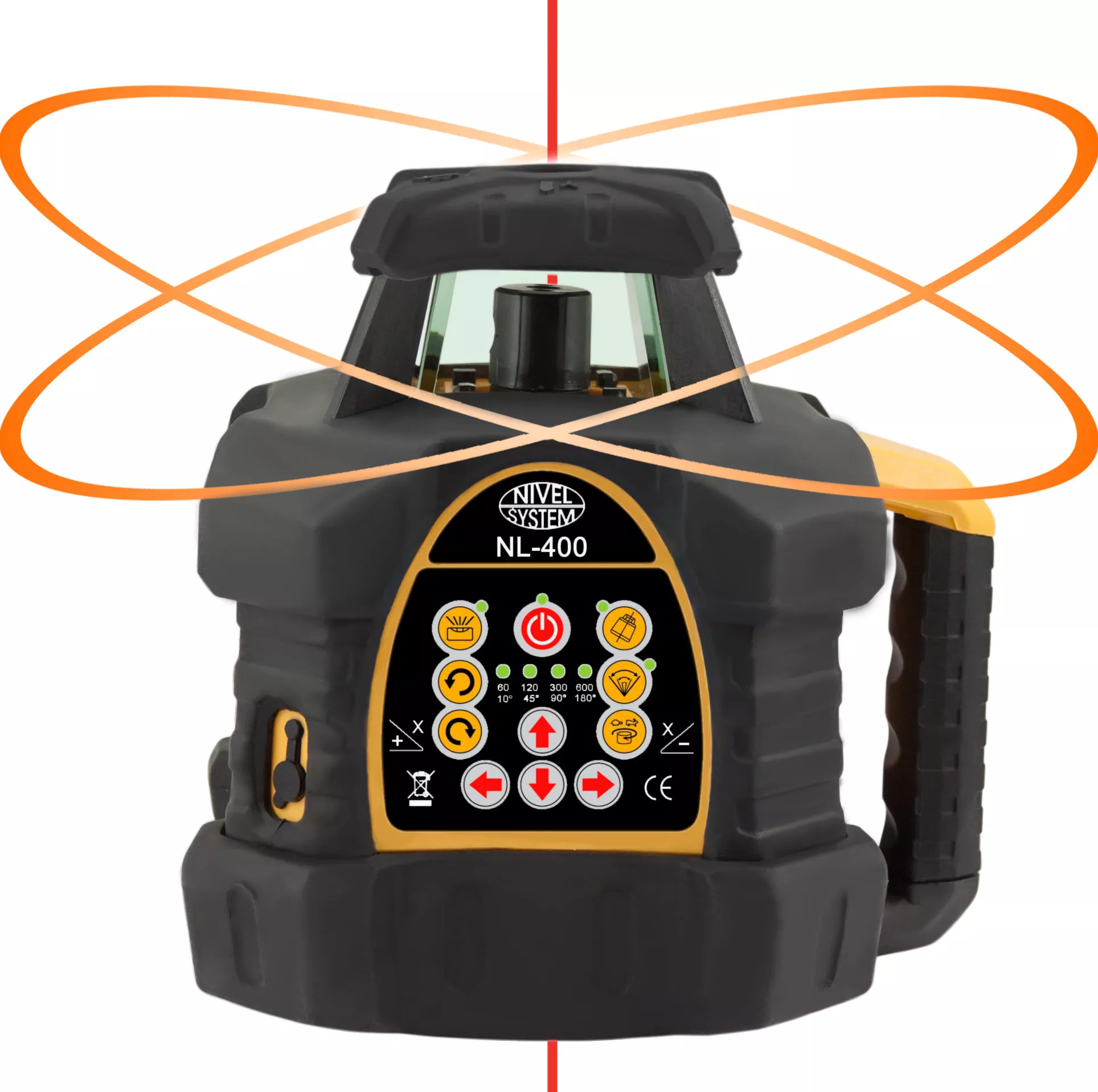

The NL400 laser level by Nivel System with a visible red laser beam is a precision tool that provides reliable and fast measurements in the construction industry. Works can be carried out inside the building and outside (with a sensor). The generated plane sets references for horizontal and vertical jobs with an accuracy of +/- 1 mm per 10 m. The laser plane can be tilted manually in one or two directions (+/- 8% on the X and Y axes). The laser ensures high accuracy of work carried out even over long distances (up to 500 m) and in severe field conditions. The NL400 level provides excellent functionality, making it ideal for smaller finishing works as well as for large investment projects (road construction)

Register the device on the manufacturer's website to extend the warranty from 12 to 24 months for free.

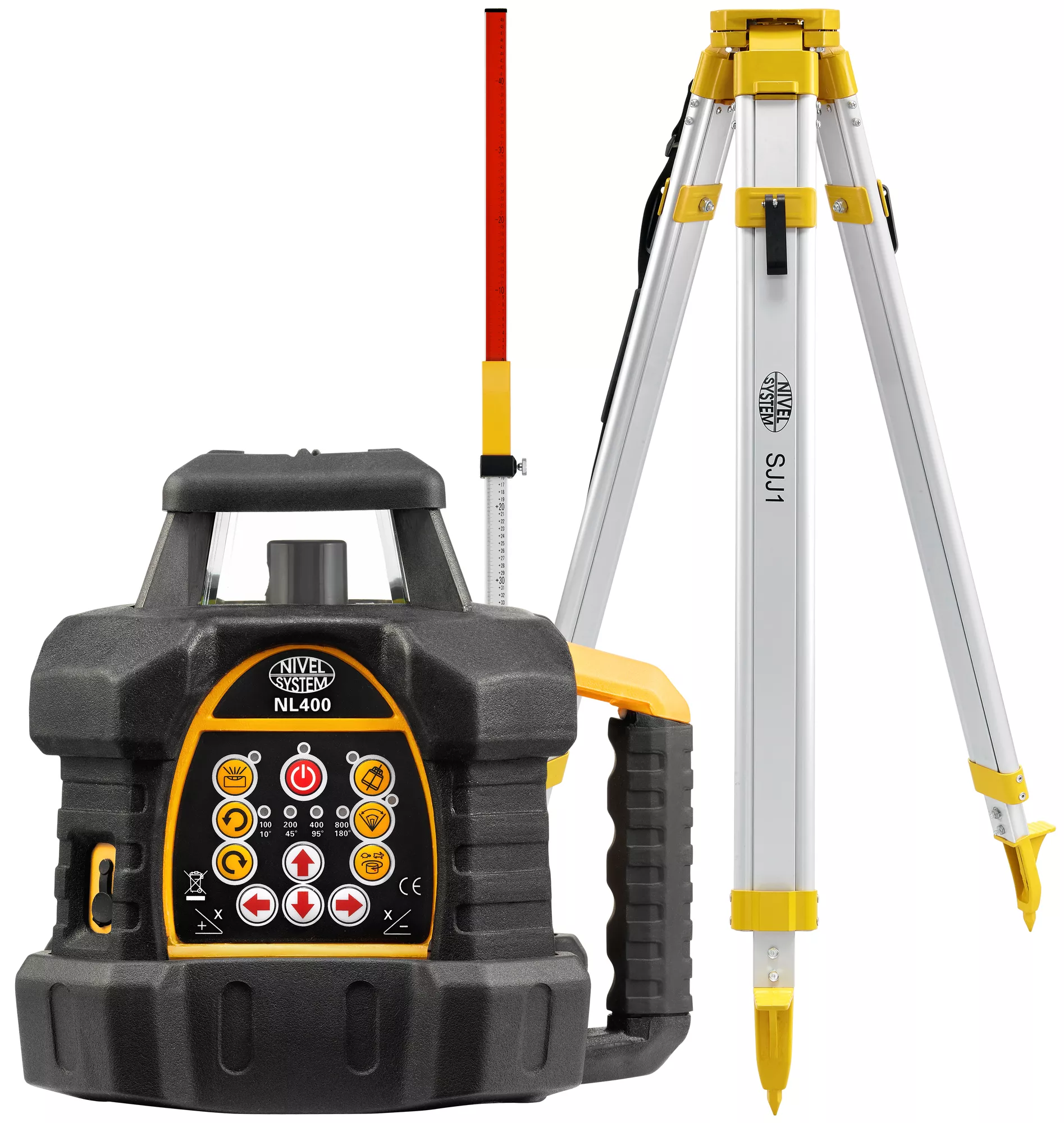

Variant description: Red laser beam, the set includes SJJ1 tripod and LS-24 stave

advantages

• Easy and quick measurements – levels have auto levelling function in the range +/- 5 ° after switching on the device will level automatically and will be immediately ready for work. The scanning function allows you to narrow the displayed beam in the selected range from 0° to 180° - in this way we get a reference laser line only where work is carried out. When working with the sensor and the laser staff, we get an accurate levelling set, and one person is enough to perform the measurement.
• Easy and convenient operation – levels have an intuitive control panel that ensures trouble-free operation even under challenging conditions. The level can be controlled by remote control or directly from the panel located on the device. Rechargeable batteries can power the lasers or directly from the network. Thanks to its compact size, the laser is handy, easy to install and transport.
• Accurate and reliable equipment – levels are built based on an electronic compensator, which eliminates vibrations and ensures precise levelling of the laser plane. The automatic compensator, compared to the magnetic one, is much more accurate, especially in the case of laser building measurements. Therefore, thanks to NL400, we will obtain reliable and precise measurements, even when working in the field, in the vicinity of heavy construction equipment. Levels are resistant to dust and water, confirmed by class IP64. Also, the rotary head is protected by a glass body, and the laser body has rubber shields to protect against damage due to impact.

Application

• Ground levelling,
• Masonry works – internal and external (foundations, walls, stairs, screeds, formwork),
• Paving works – making parking lots, driveways, terraces,
• Assembly and finishing work – assembly of wooden and aluminium constructions, suspended ceilings, tiling,
• Installation works – determination of the line lines, transfer of points,
• Carpentry works – furniture, buildings,
• Gardening, agriculture.

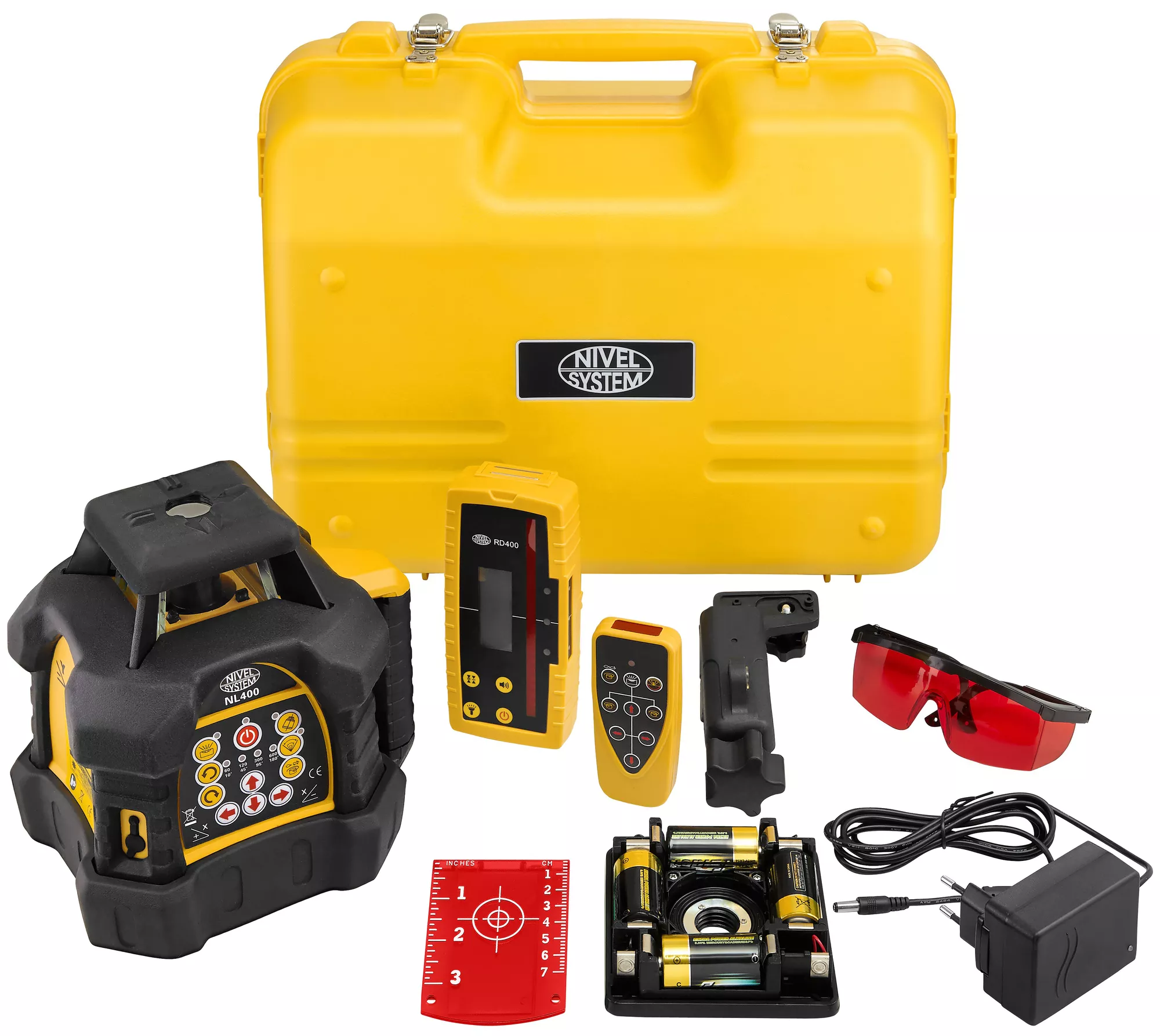

Set contains

• NL400 laser level,
• RD400 laser sensor,
• Patch sensor holder,
• Remote control,
• Rechargeable batteries,
• Charger,
• Additional battery tray,
• Laser glasses,
• Laser shield,
• Manual user instructions,
• Transport case,

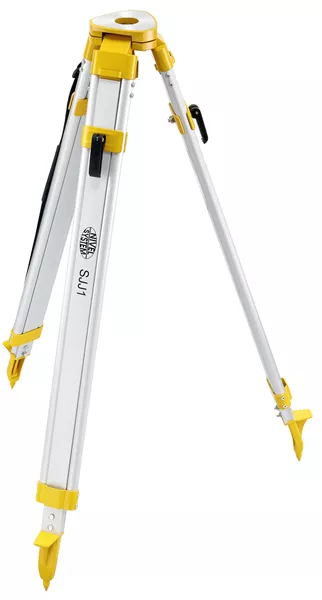

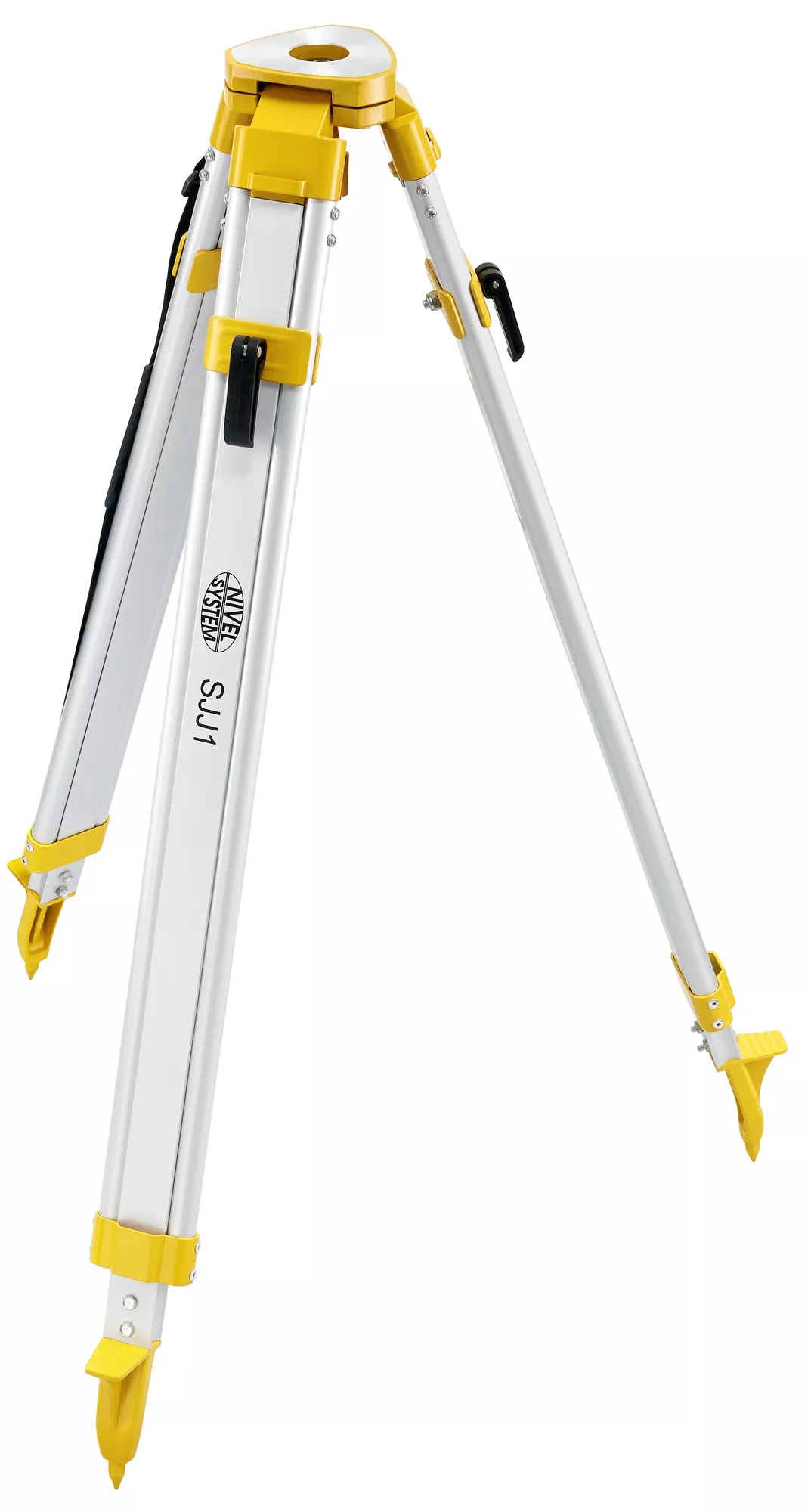

• Aluminum Nivel System SJJ1 tripod – a light tripod for clamps with a flat head. It has durable braces blocking the tripod legs, a comfortable carrying strap on the shoulder. Foot tips made of metal, provide the required stability on any surface,

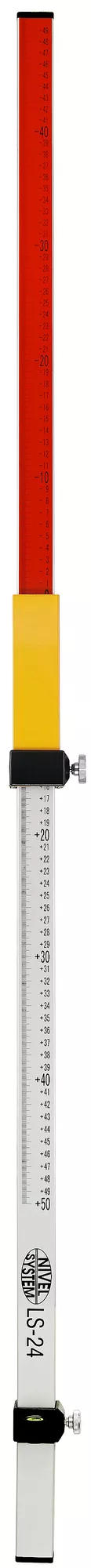

• Nivel System LS-24 laser stave – aluminium staff for standard measurements with a maximum height of 2.4 m - practical slider for sensor handle, levelling vial, transport case included.
