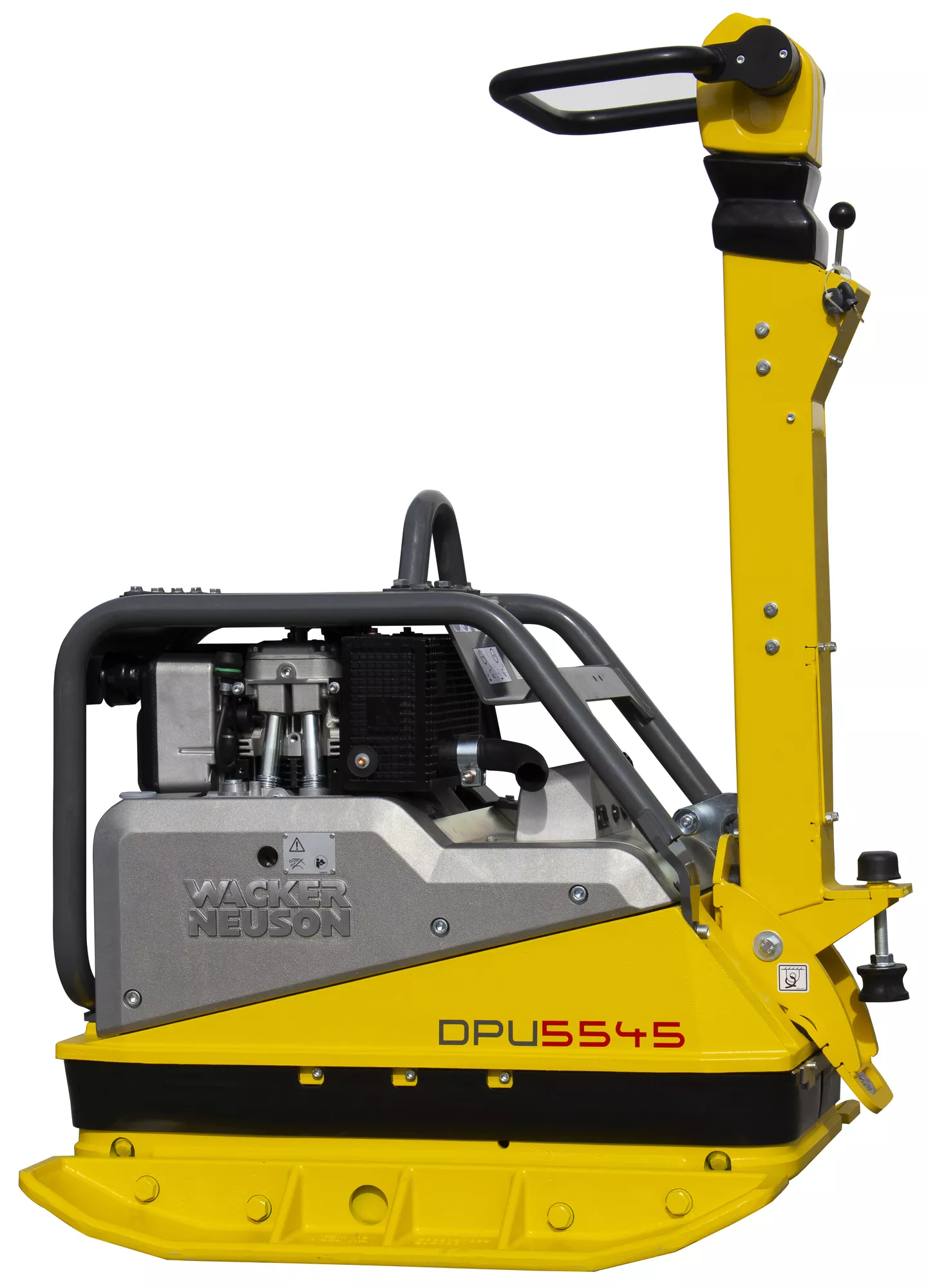

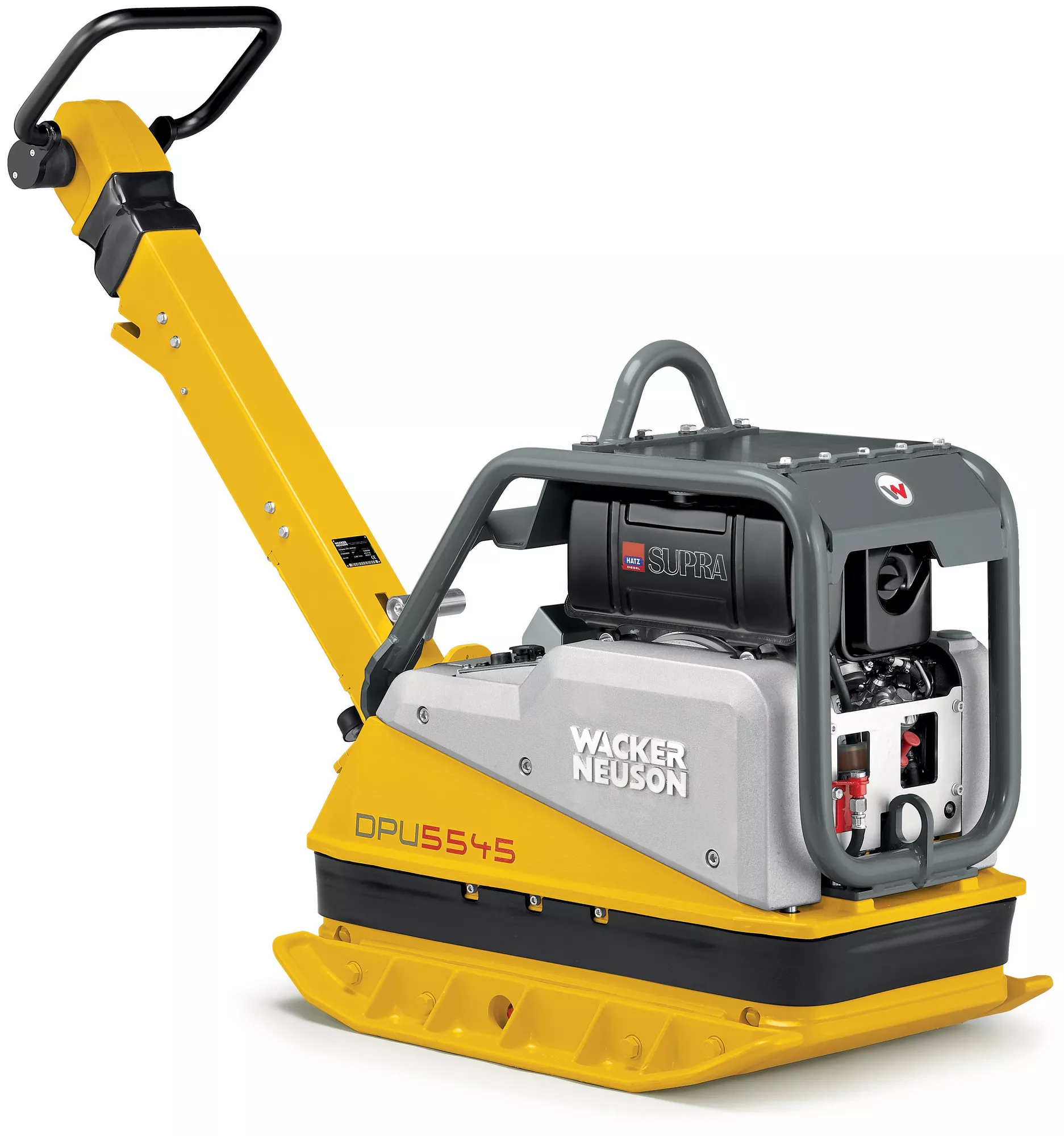

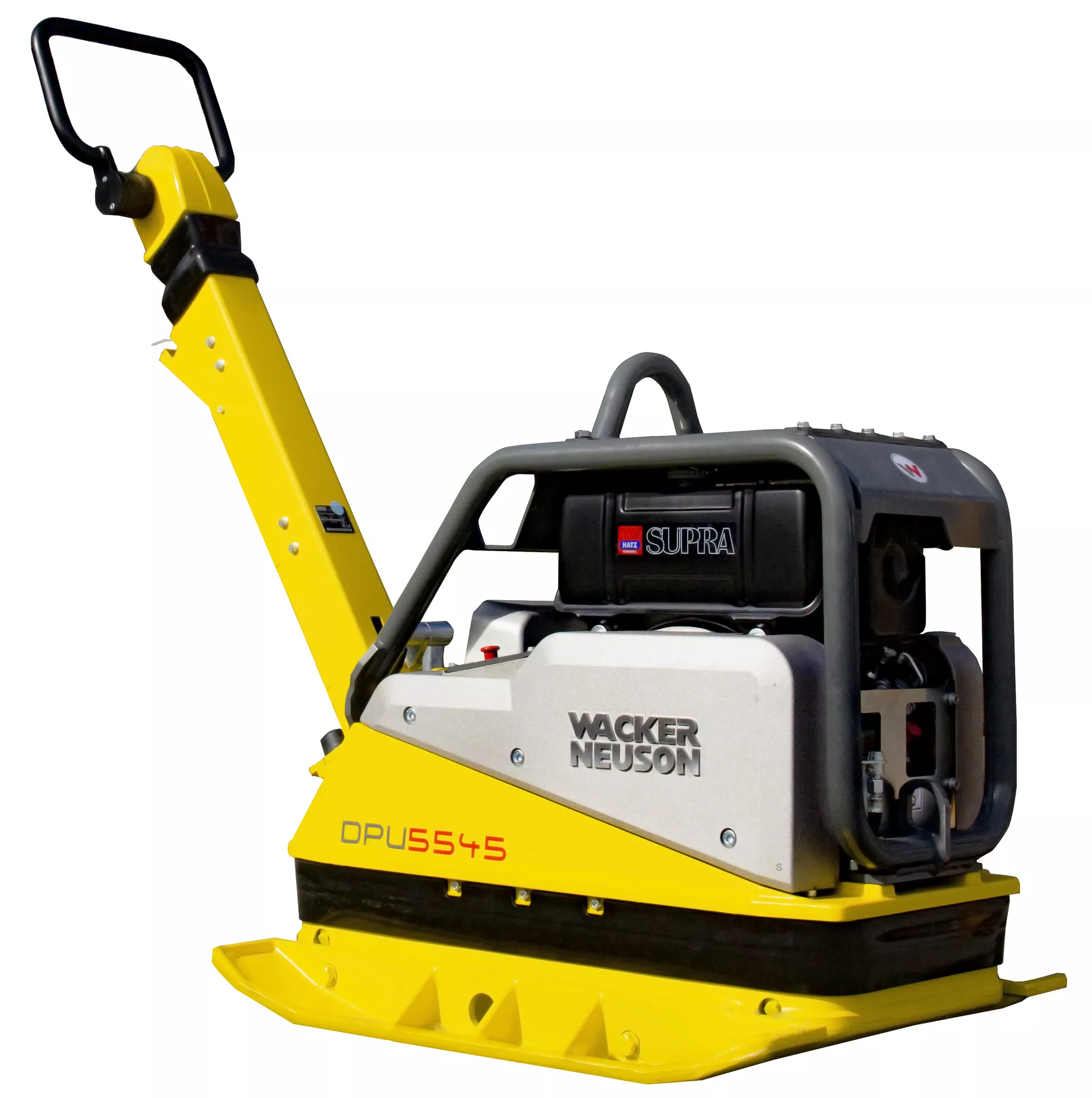

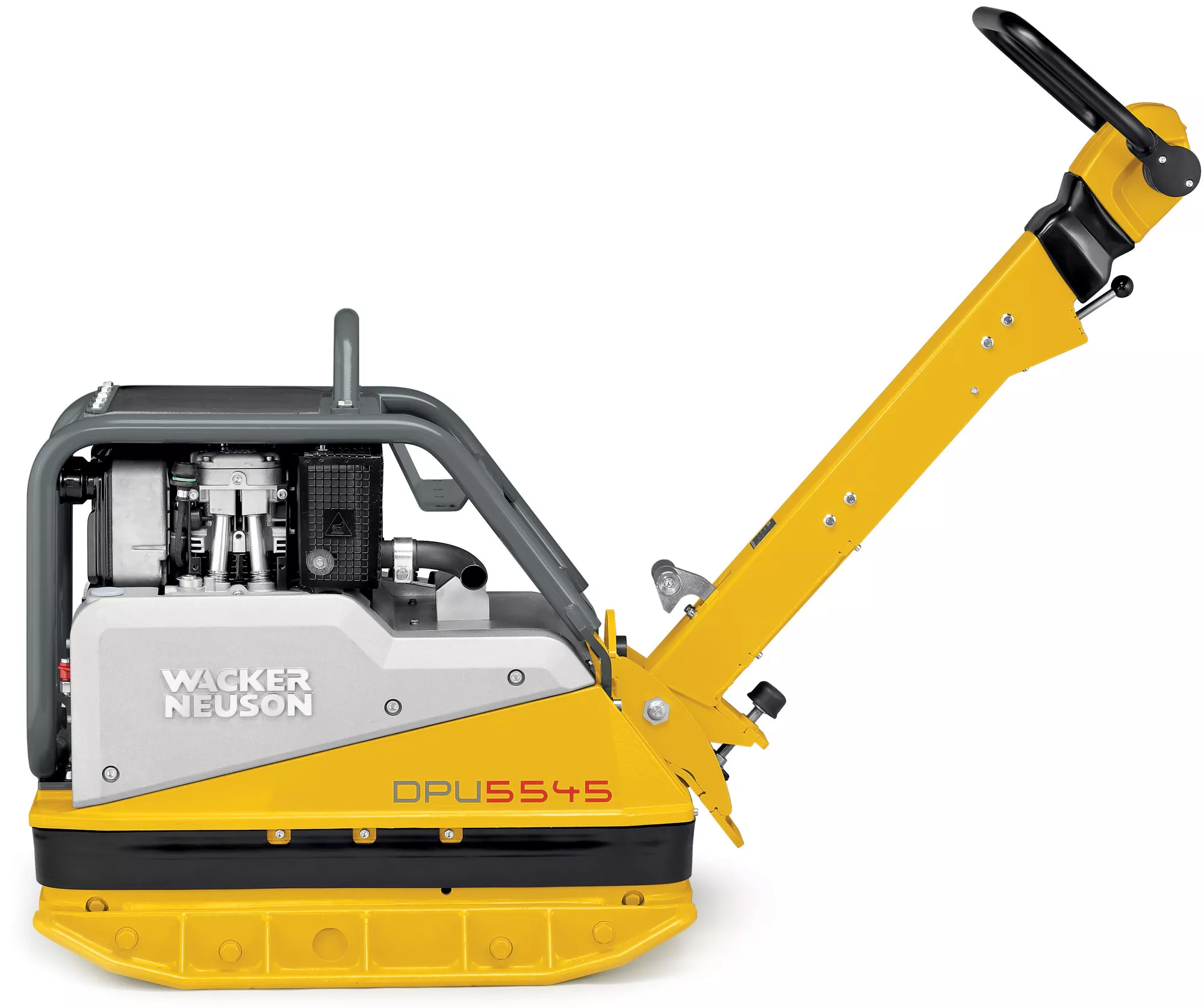

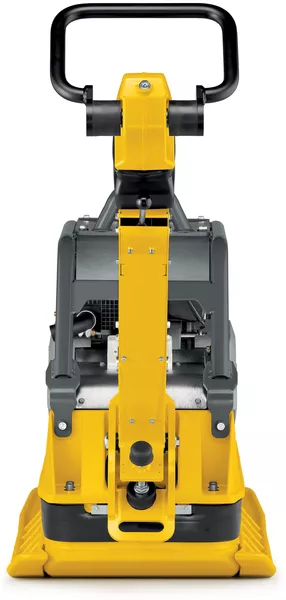

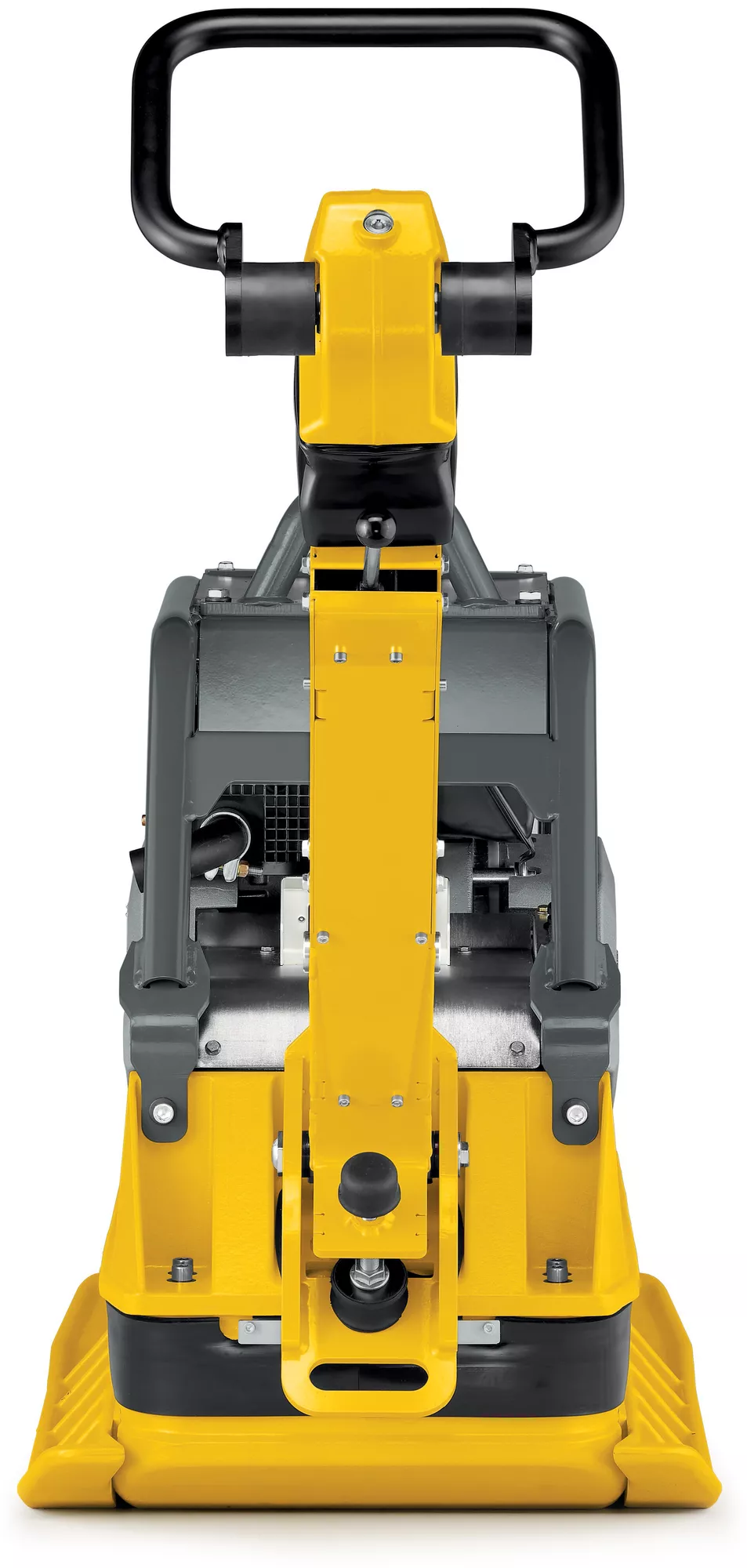

Reversible Vibratory Plate Wacker Neuson DPU 5545 Hehap
Catalogue number: 5100009654
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.
Specialist for heavy soil

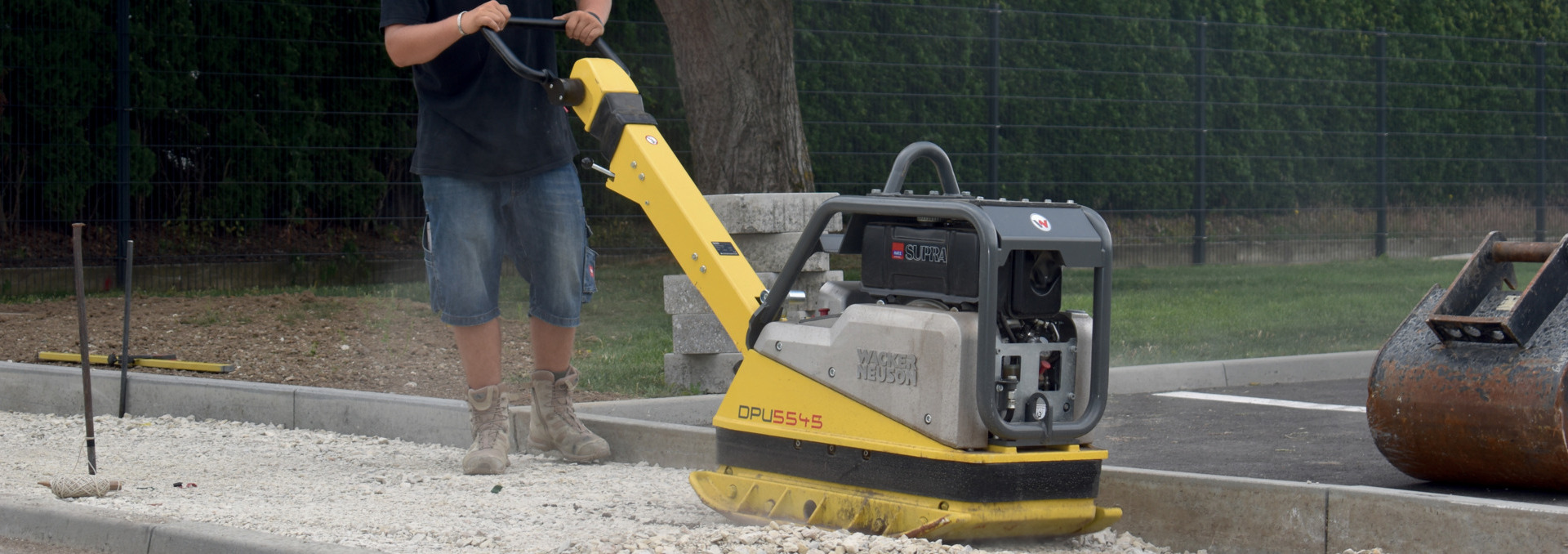

Thanks to its powerful compaction force combined with a quick forward and reverse travel direction, the DPU5545 offers a high level of productivity. It is an all-rounder for all job sites where high demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and subbases in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU 5545 is universally applicable and even reliably compacts medium-weight to heavy interlocking paving stones. The DPU 5545 Hec is equipped with Compatec, the compaction control from Wacker Neuson.
Variant description: Vibratory plate with Hatz diesel engine, electric starter, operating hour meter and extra-wide extension plates (operating width of 750 mm).
Technical characteristics
Operating width
750 mm (440 mm base plate + 2x extensions)
Extension width
310 mm (2x 155 mm)
Height of the protective frame
780 mm
Plate length
900 mm
Base plate thickness
12 mm
Engine type
Combustion (diesel)
Engine model & manufacturer
Hatz 1D 42S
Fuel tank capacity
5 l
Fuel consumption
1.6 l/h
Frequency
69 Hz
Engine displacement
445 cm³
Centrifugal force
55 kN
Advance travel (maximal)
27 m/min (depending on the soil and the external factors)
Surface capacity
980 m²/h
Engine power
7 kW / 9.39 KM
Engine performance
4.9 kW / 6.57 BP
Vibration level
< 2.5 m/s²
RPM
3600/min
Gradeability
57.7 %
Weight
447 kg

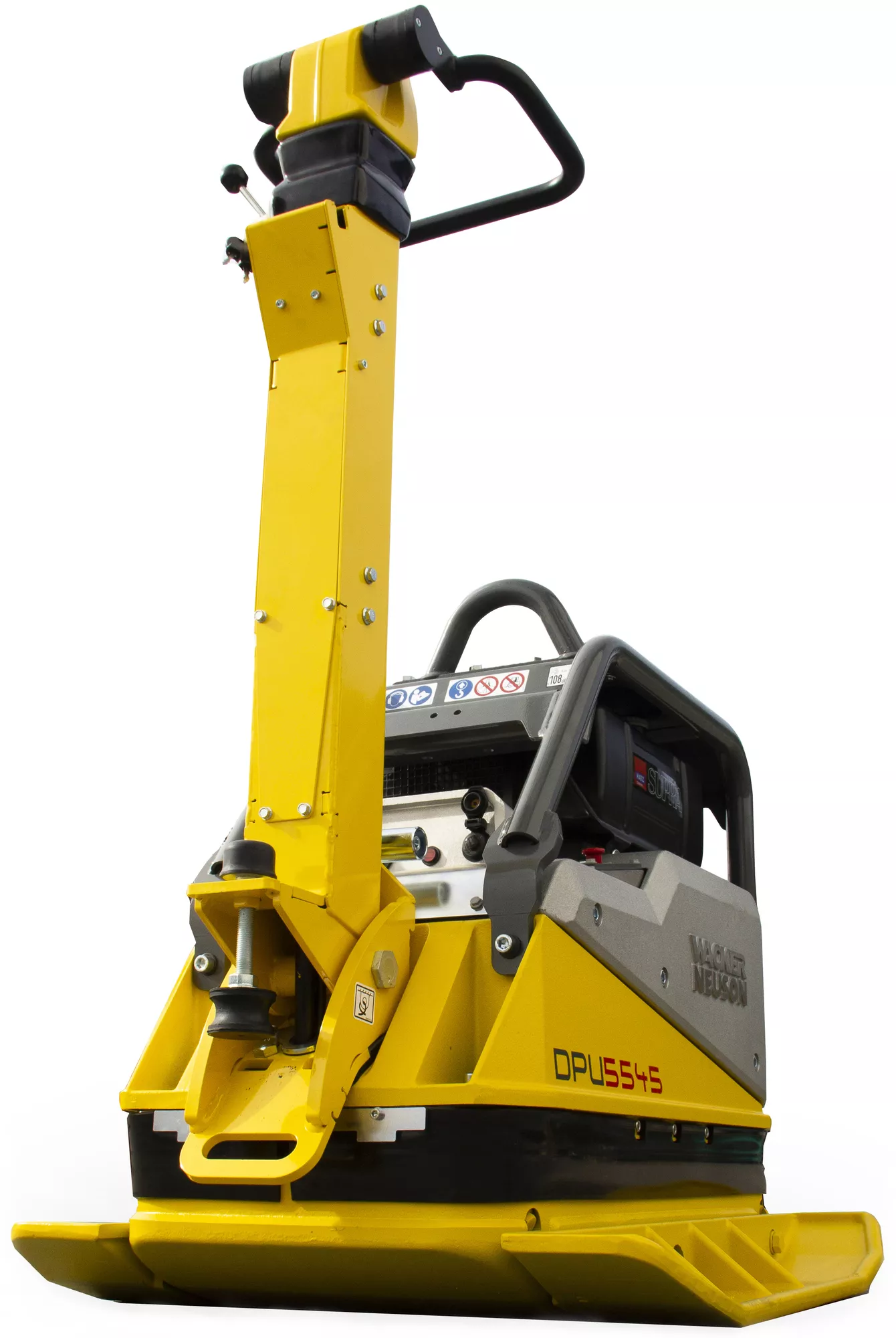

Very low hand-arm vibration (HAV)
The specially designed center pole from Wacker Neuson generates very low hand-arm vibration (HAV) below 2.5 m/s².
This allows for continuous operation all day long without impairment and without hazard to the end user.
All documentation requirements are omitted if an operator only works with equipment that has acceleration values below 2.5 m/s².

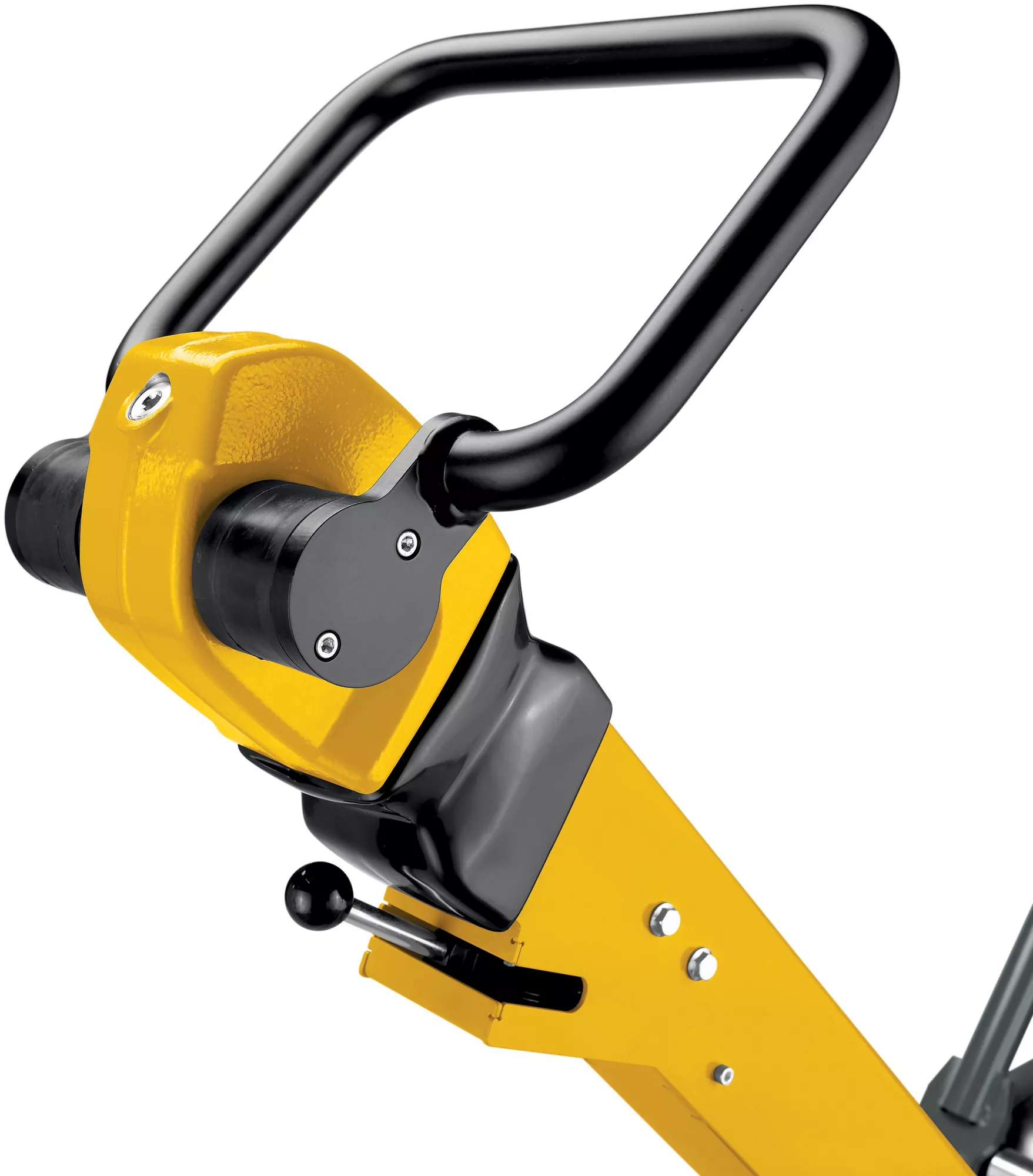

Intuitive control handle design
The speed is regulated and the travel direction is changed through the forward and backward movement of the handle.

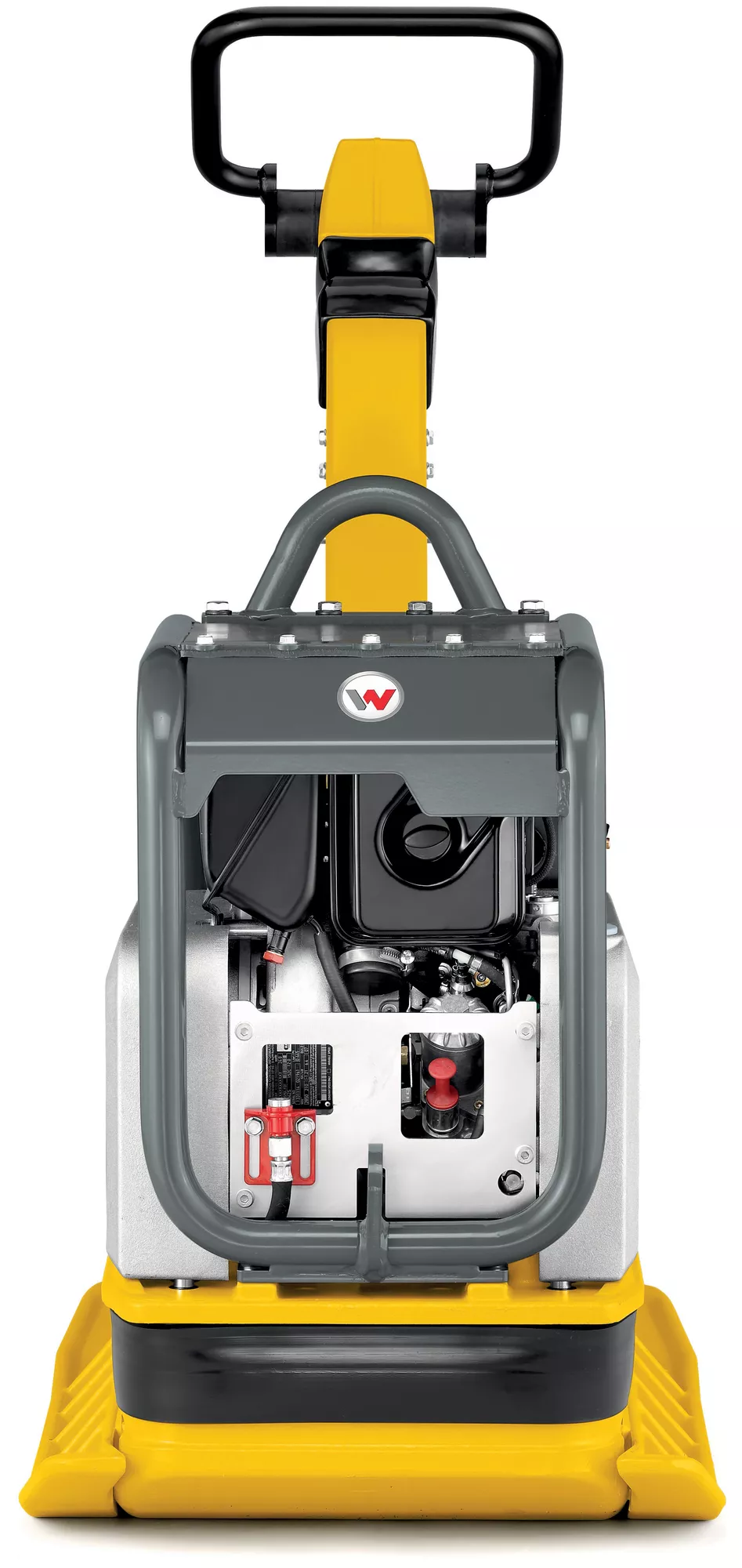

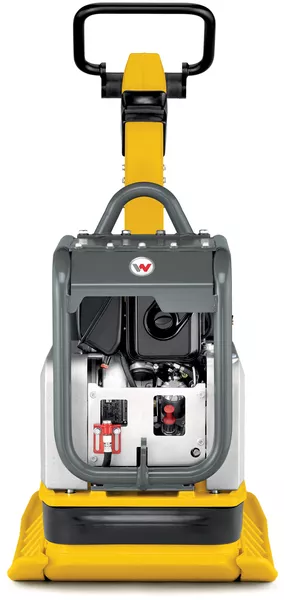

The control panel
- Built to be sturdy and therefore well-protected against dirt and moisture.
- All functions and displays in view and easily accessible: Ignition lock, operating light, charge control lamp, jump start pin, operating hour meter (optional).
Jump start pin
- Very easy to access for easy charging of the battery, for example after a winter break.
- No risk of dirt accumulation. The jump start pin is protected and is only pulled out if necessary.
advantages

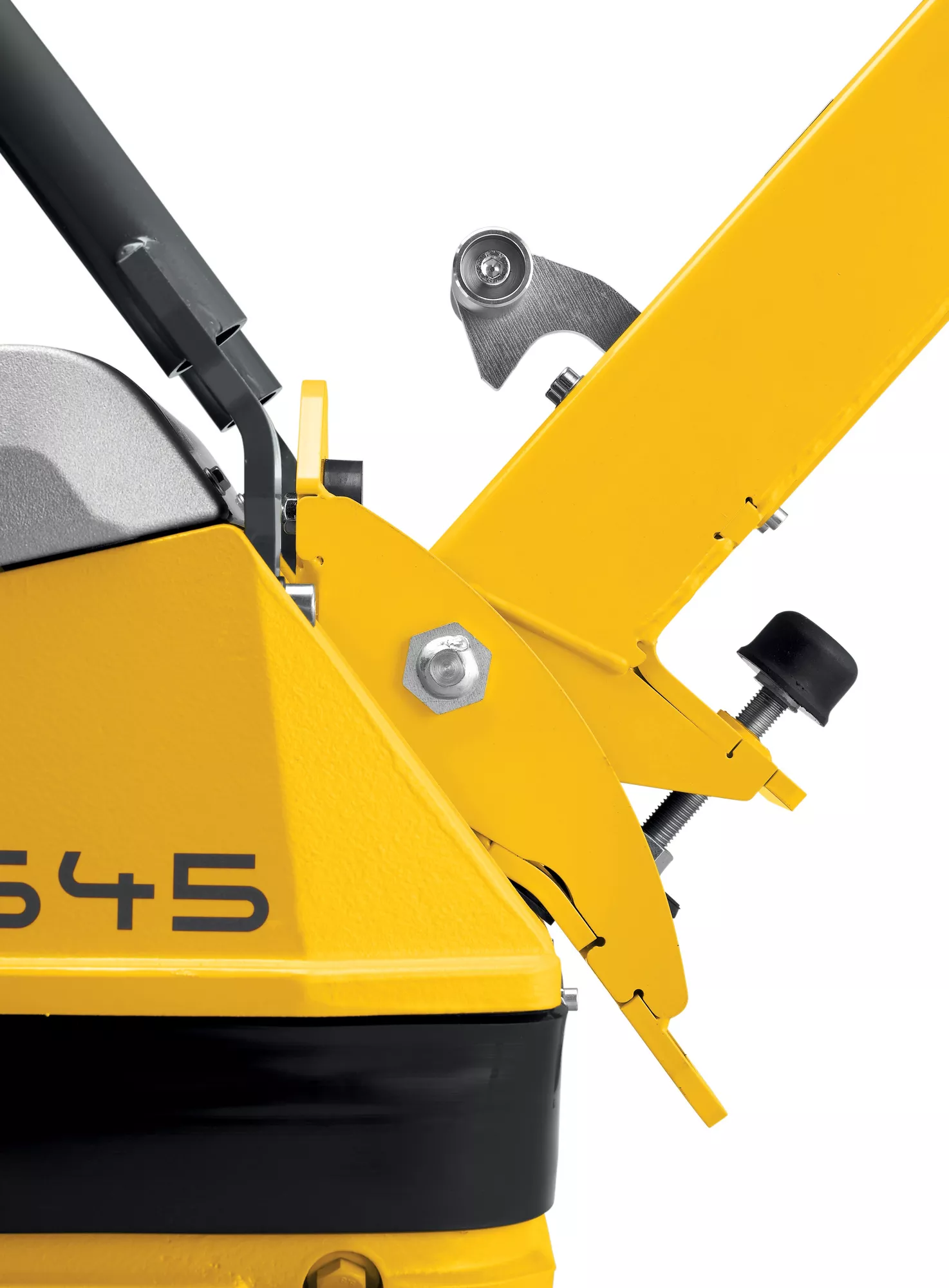

- The new centre drawbar reduces hand/arm vibrations (HAV) to a minimum, thus ensuring high operating comfort,
- Deadman function prevents the operator from being trapped between the device and the object during operation,
- Advanced features such as low oil shutdown, automatically adjustable V-belt, maintenance-free alternator, removable external start connector accessible from the outside,
- The large diesel engine offers large power reserves, ensures a high level of performance and a long service life.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
