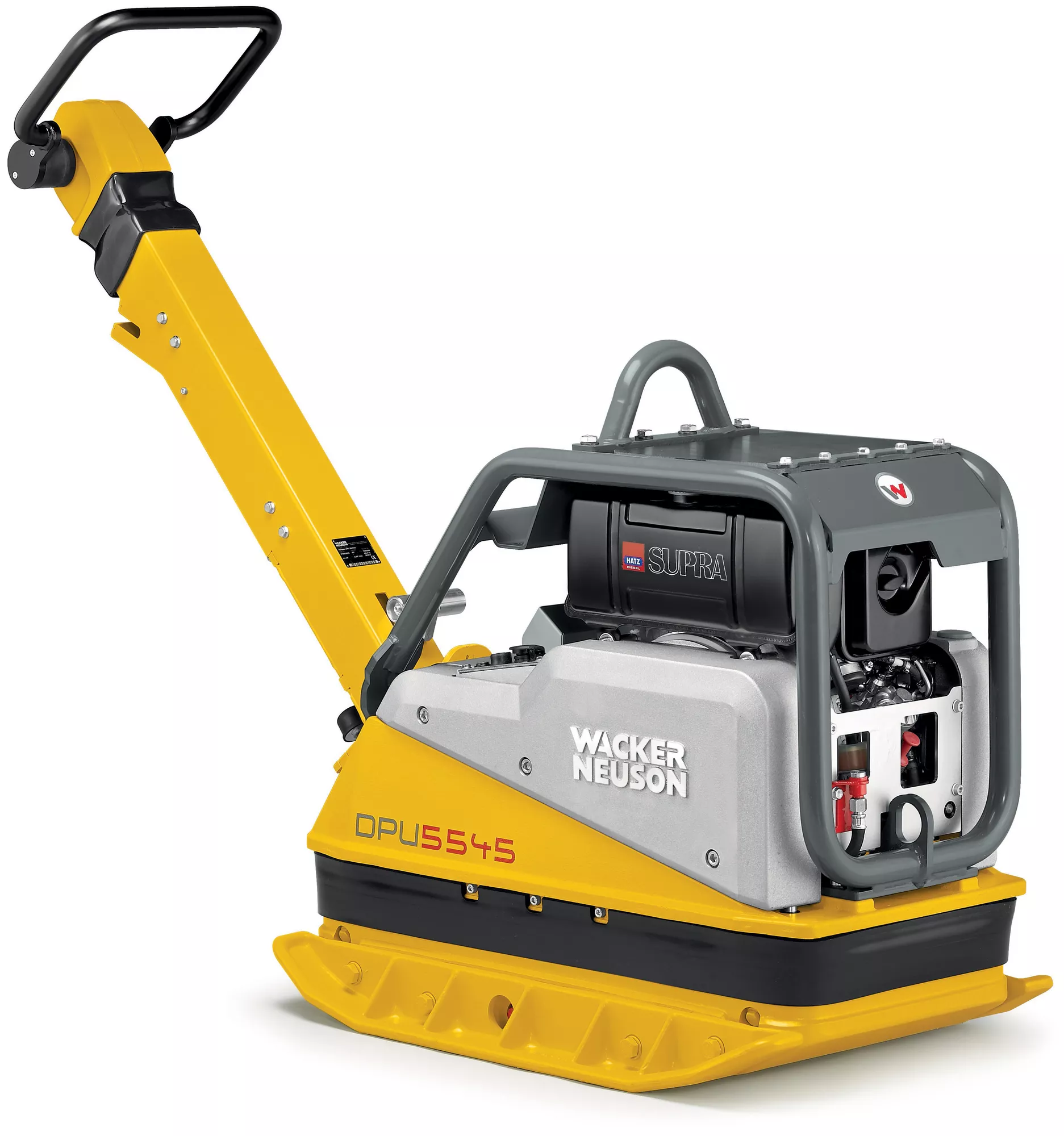

Thanks to its powerful compaction force combined with a quick forward and reverse travel direction, the DPU5545 offers a high level of productivity. It is an all-rounder for all job sites where high demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and subbases in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU 5545 is universally applicable and even reliably compacts medium-weight to heavy interlocking paving stones. The DPU 5545 Hec is equipped with Compatec, the compaction control from Wacker Neuson.
Variant description: Weight 424 kg, plate width 600 mm
Very low hand-arm vibration (HAV)
The specially designed center pole from Wacker Neuson generates very low hand-arm vibration (HAV) below 2.5 m/s².
This allows for continuous operation all day long without impairment and without hazard to the end user.
All documentation requirements are omitted if an operator only works with equipment that has acceleration values below 2.5 m/s².
Intuitive control handle design
The speed is regulated and the travel direction is changed through the forward and backward movement of the handle.
The control panel
- Built to be sturdy and therefore well-protected against dirt and moisture.
- All functions and displays in view and easily accessible: Ignition lock, operating light, charge control lamp, jump start pin, operating hour meter (optional).
Jump start pin
- Very easy to access for easy charging of the battery, for example after a winter break.
- No risk of dirt accumulation. The jump start pin is protected and is only pulled out if necessary.
- The new center pole reduces hand-arm vibration (HAV) to a minimum and therefore offers a high level of operating comfort at full compaction performance. No restriction for the time of operation and no documentation effort,
- A dead man function prevents the operator from being trapped between the equipment and an object when working in reverse,
- All maintenance points are quickly and easily accessible. Extensive comfort functions: such as low oil shutdown, self-tightening V-belt, maintenance-free alternator, pull-out external jump-start connection that is accessible from outside,
- A large dimensioned diesel engine offers high power reserves and ensures for a high level of efficiency and long service life,
- Compatec: Easy-to-read display of the relative compaction progress. Warning for overload and over-compaction. Brightness adjustment of the lights to the ambient light. Extremely sturdy and reliable.
