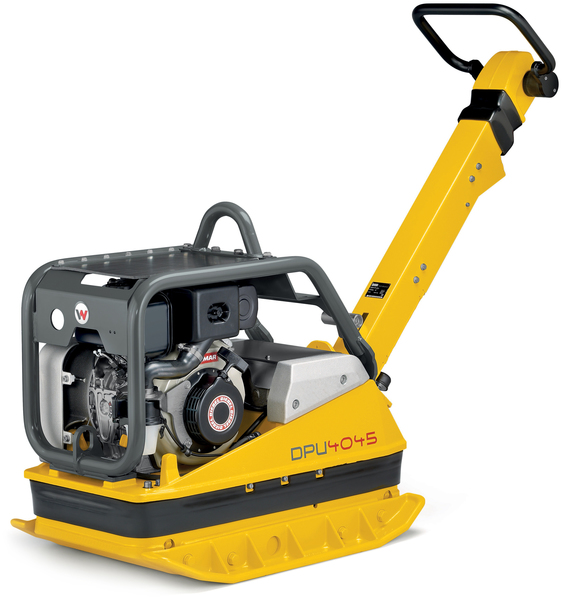

Reversible Vibratory Plate Wacker Neuson DPU 4045 Yeh

Reversible vibratory plate Wacker Neuson DPU 45Yeh

Catalogue number: 5100063123
Availability:  Discontinued product
Shipping time:  on requesti The shipping time for this product is determined individually.

Please contact Customer Service
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add comment
Catalogue number: 5100068380
Gross price
13 923,60 €
7 677,04 €
Sale
Net price: 6 241,50 €
Availability:  In stock
Shipping time:  24hi Orders are shipped within 24 hours of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year

Thanks to its excellent compaction force combined with a quick forward and reverse travel direction, the DPU4045 offers a high level of productivity. It is equipped with a Yanmar diesel engine and is an all-rounder for all job sites where high demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and subbases in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU4045 is universally applicable and even reliably compacts medium-weight interlocking paving stones.

Variant description: Electric starter, operating hour meter

Technical characteristics

Width x height
600 x 764 mm
Engine type
Diesel engine
Engine model & manufacturer
Yanmar L70N
Fuel tank capacity
3.3 l
Fuel consumption
1.4 l/h
Frequency
69 Hz
Base plate thickness
12 mm
Engine displacement
320 cm³
Centrifugal force
40 kN
Advance travel (maximal)
24 m/min (depending on the soil and the external factors)
Surface capacity
870 m²/h
Weight
376 kg
Starting
Electric
Engine power
4.5 kW / 6.03 HP
Plate width
440 mm
Plate length
900 mm
Operating width
600 mm (with extension plate)
Length x width x height
1514 x 1048 x 780 (transport)

Very low hand-arm vibration (HAV)

The specially designed center pole from Wacker Neuson generates very low hand-arm vibration (HAV) below 2.5 m/s².

This allows for continuous operation all day long without impairment and without hazard to the end user.

All documentation requirements are omitted if an operator only works with equipment that has acceleration values below 2.5 m/s².

Intuitive control handle design

The speed is regulated and the travel direction is changed through the forward and backward movement of the handle.

The control panel

  • Built to be sturdy and therefore well-protected against dirt and moisture.
  • All functions and displays in view and easily accessible: Ignition lock, operating light, charge control lamp, jump start pin, operating hour meter (optional).

Jump start pin

  • Very easy to access for easy charging of the battery, for example after a winter break.
  • No risk of dirt accumulation. The jump start pin is protected and is only pulled out if necessary.

advantages

  • The new center pole reduces hand-arm vibration (HAV) to a minimum and therefore offers a high level of operating comfort at full compaction performance. No restriction for the time of operation and no documentation effort,
  • A dead man function prevents the operator from being trapped between the equipment and an object when working in reverse,
  • All maintenance points are quickly and easily accessible. Extensive comfort functions: such as low oil shutdown, self-tightening V-belt, maintenance-free alternator, pull-out external jump-start connection that is accessible from outside,
  • A large dimensioned Yanmar diesel engine offers sufficient power reserves and ensures for a high level of efficiency and long service life,
  • New positioning of the operator's controls in a sturdy housing – better protection against dirt accumulation and damage.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
