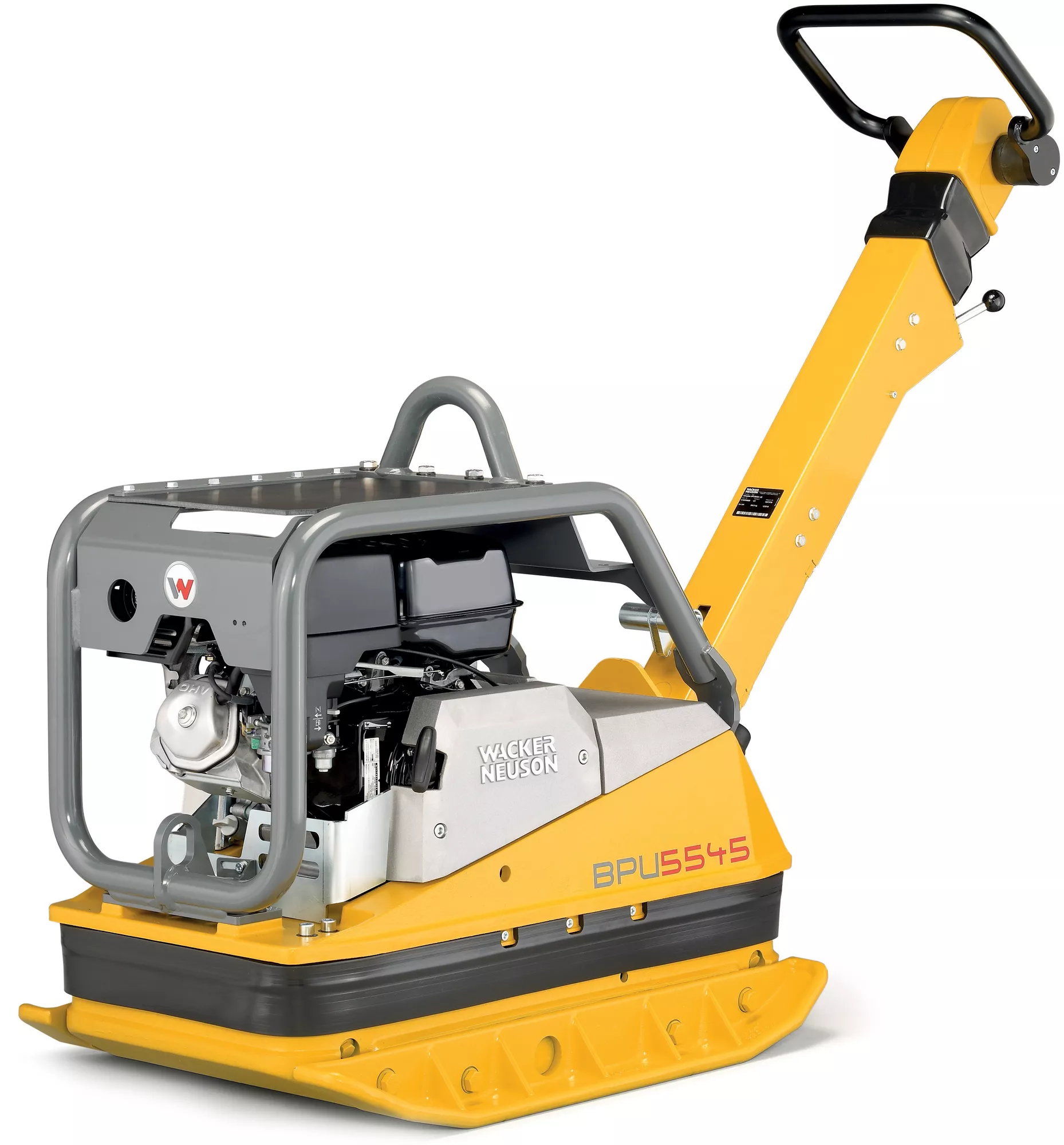

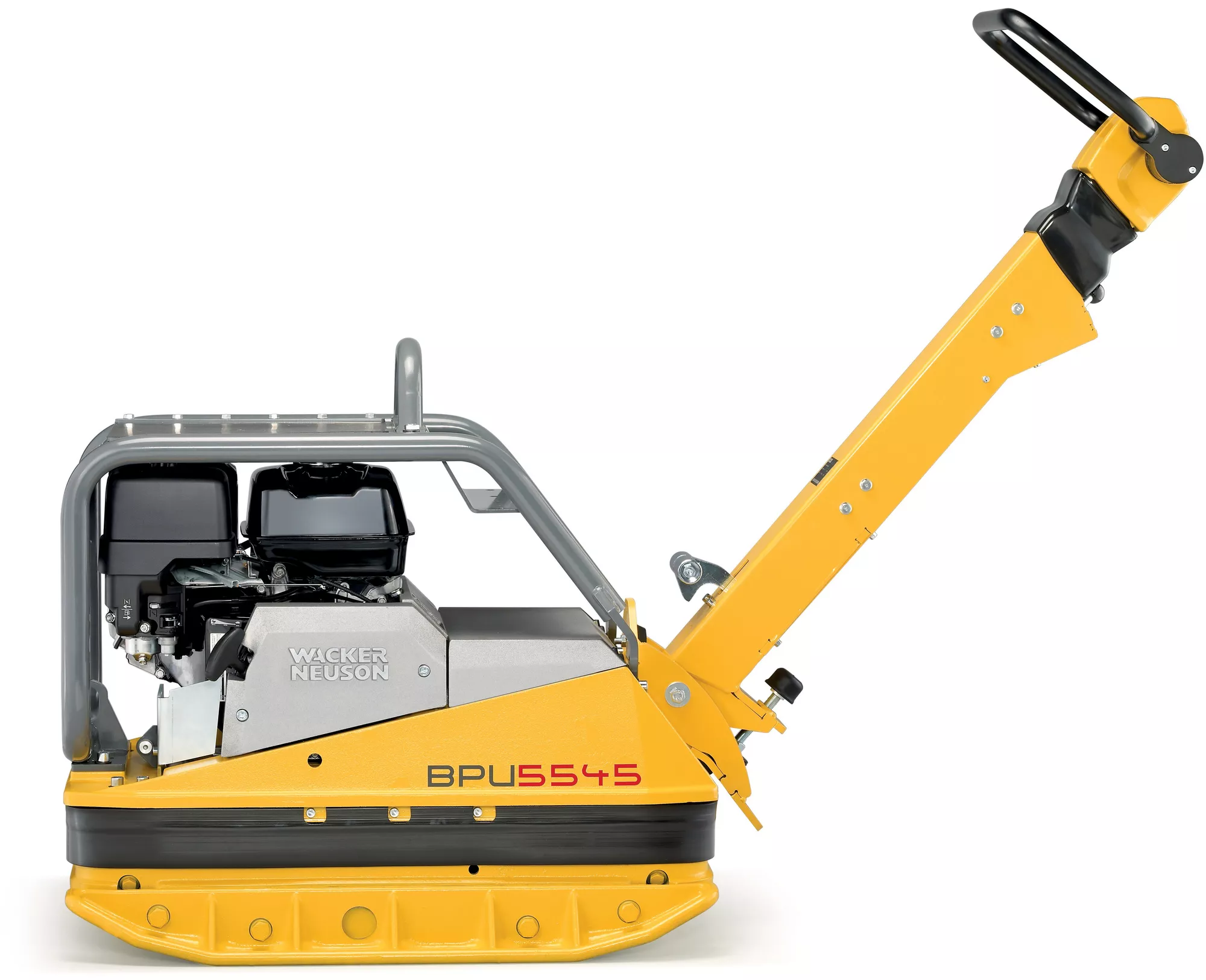

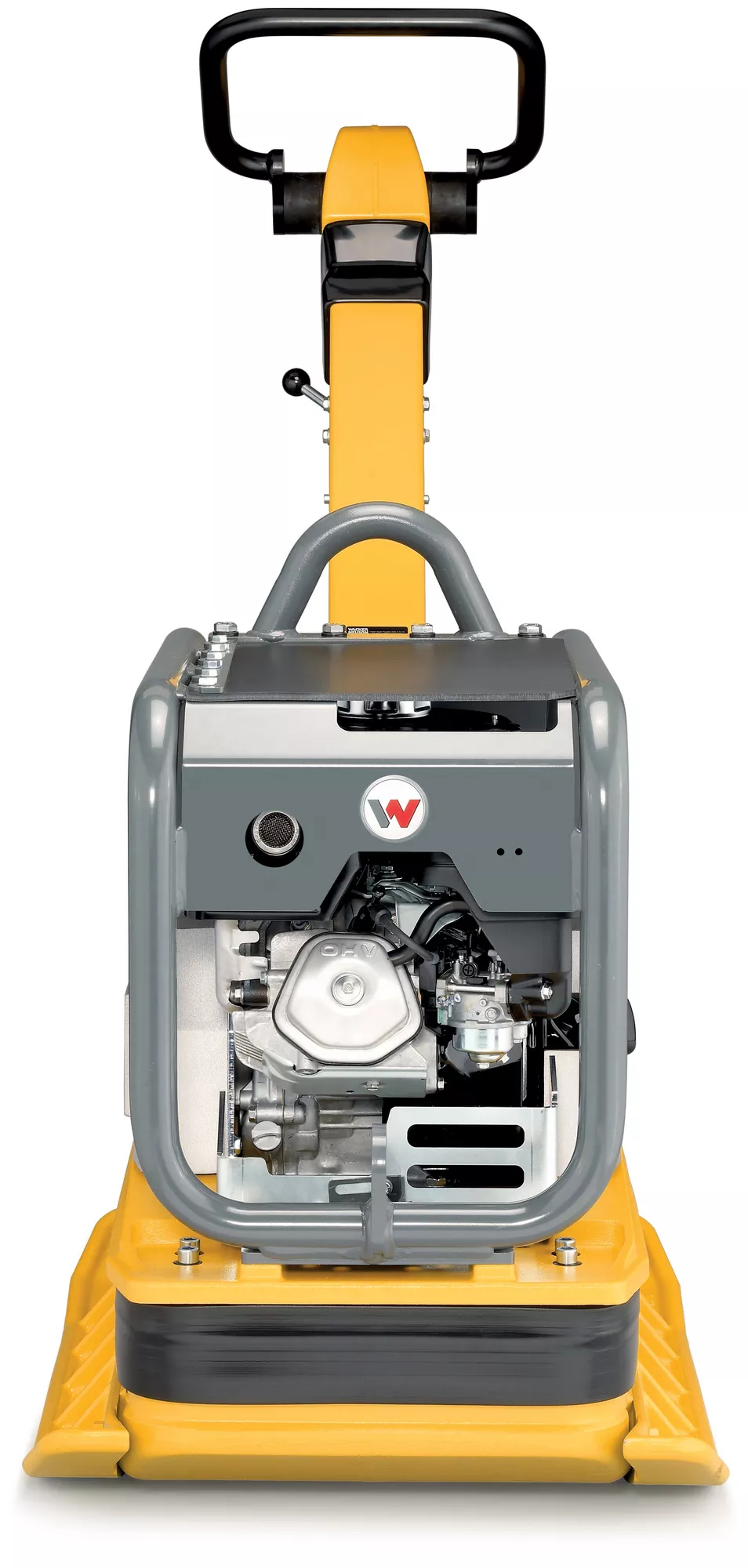

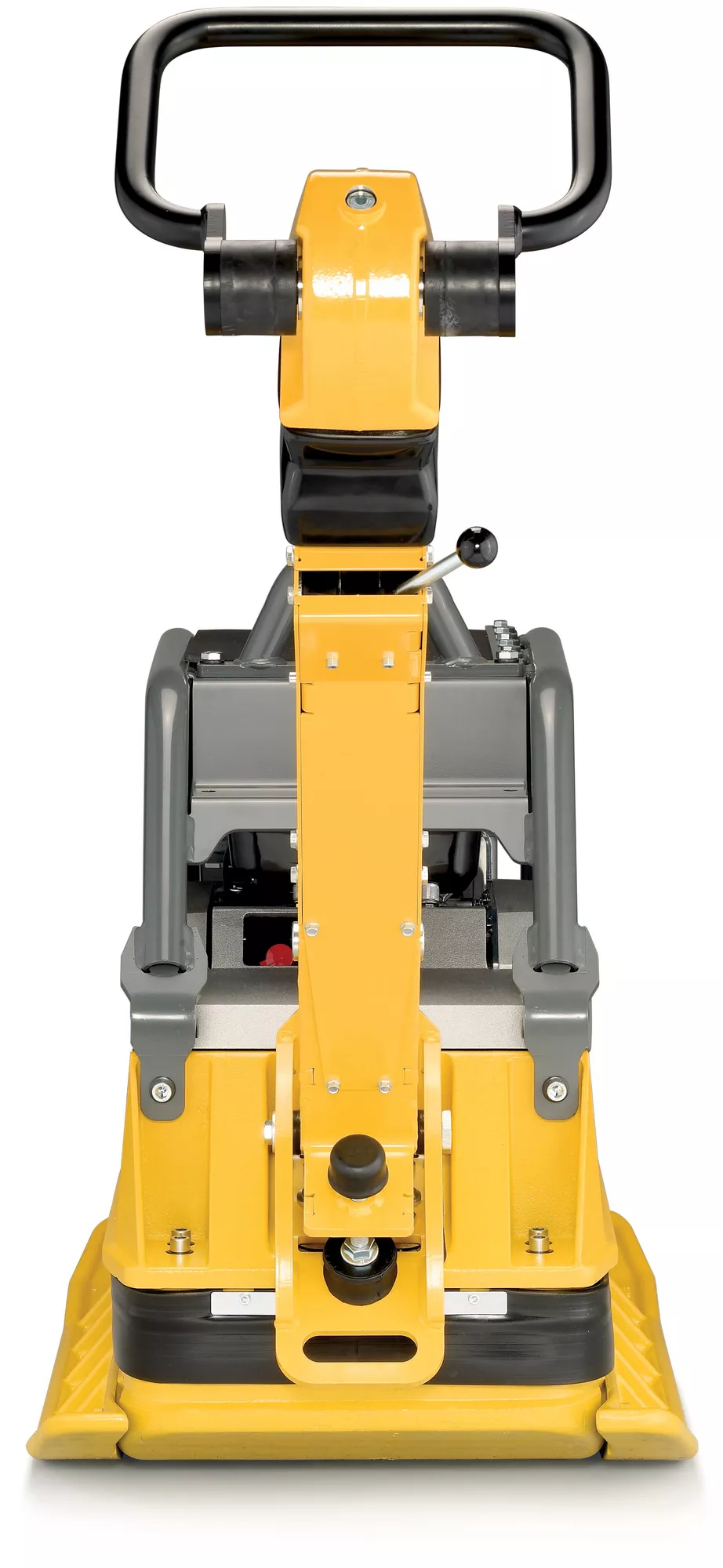

Reversible Vibratory Plate Wacker Neuson BPU 5545 A

Wacker Neuson
Catalogue number: 5100009657
You get: 448 pts.iAccess to our Loyalty Program is available only on the Polish-language version of the store.
Gross price
15 061,35 €
10 241,72 €
Net price: 12 245,00 € 8 326,60 €
Lowest price 30 days before the discount: 15 061,35 € brutto
Availability:  Available for order
Shipping time:  7-14 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.

High compaction force combined with fast forward and reverse travel means the BPU 5545 achieves great productivity. It is an all-around versatile plate for all job sites that place high demands on the machine's performance potential. Its other outstanding characteristics are high operator comfort and a long service life. It is perfectly suited for the compaction of building back-fill, and of frost and sub bases when constructing roads, paths and parking lots. The 69 Hz frequency makes the BPU 5545 suitable for all purposes and compacts even medium-weight and heavy interlocking paving stone reliably.

Technical characteristics

Operating width
600 mm (440 mm base plate + 2x extensions)
Extension width
160 mm (2x 80 mm)
Plate length
900 mm
Height of the protective frame
725 mm
Base plate thickness
12 mm
Engine type
Petrol engine
Engine model & manufacturer
Honda GX 390
Fuel tank capacity
6,1 l
Fuel consumption
2 l/h
69 Hz
Engine displacement
389 cm³
Centrifugal force
55 kN
Hand-arm vibrations
1,5 m/s²
Advance travel (maximal)
27 m/min (depending on the soil and the external factors)
Surface capacity
852 m²/h
340 kg
Engine power
6,4 kW / 8,7 KM

Very low hand-arm vibrations

The particularly designed Wacker Neuson guide handle provides a hand-arm vibration of under 2,5 m/s².

This allows for an all-day continuous operation without impairment and risk to the user.

All documentation requirements are omitted if an operator only works with equipment that has acceleration values below 2.5 m/s².

Intuitive guide handle design

Change the direction of travel and control speed simply by moving the handle forwards and backwards.


  • The innovative guide handle provides for very low hand-arm vibration and optimizes the user-friendliness,
  • Different extension plates provide a variety of operating widths,
  • Comprehensive comfort features: e.g. low oil shut off and maintenance-free alternator,
  • The large gasoline engine with its high reserve capacity ensures great efficiency and a long service life,
  • A safety cut-out mechanism prevents the operator getting trapped between machine and an obstruction when moving backwards.
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
