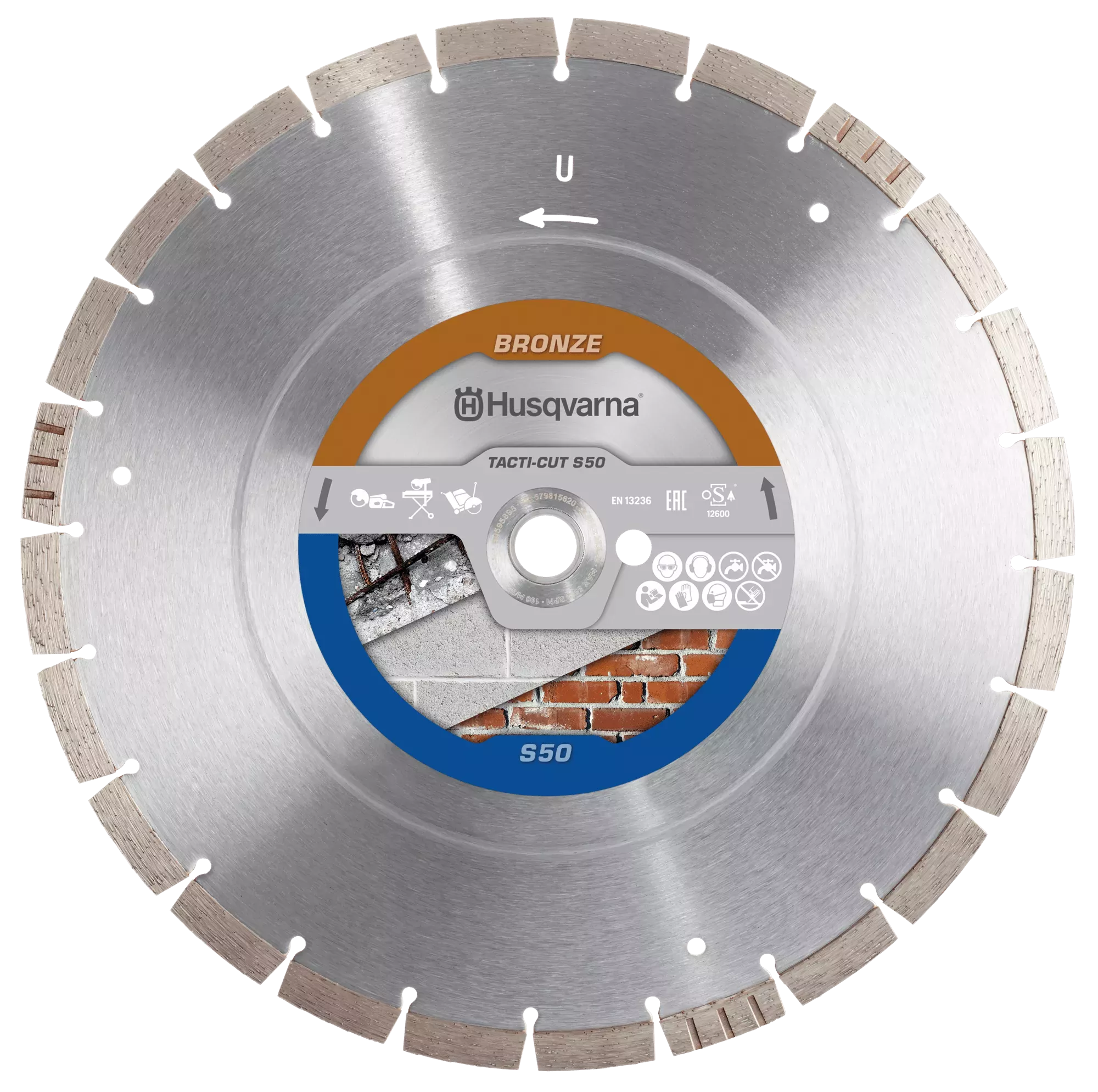

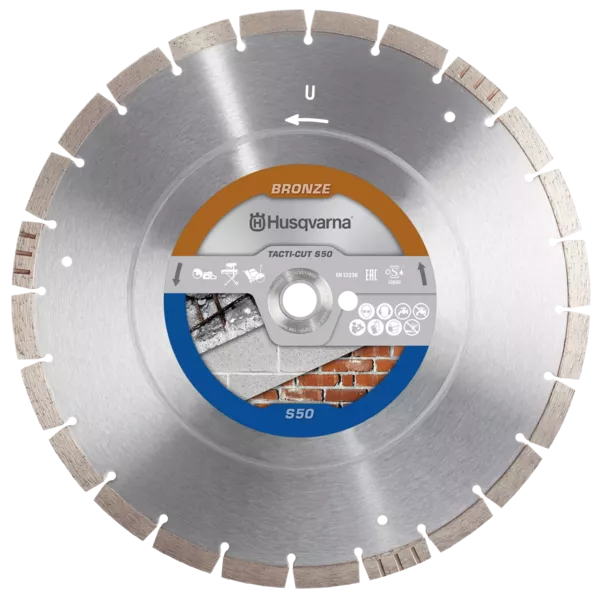

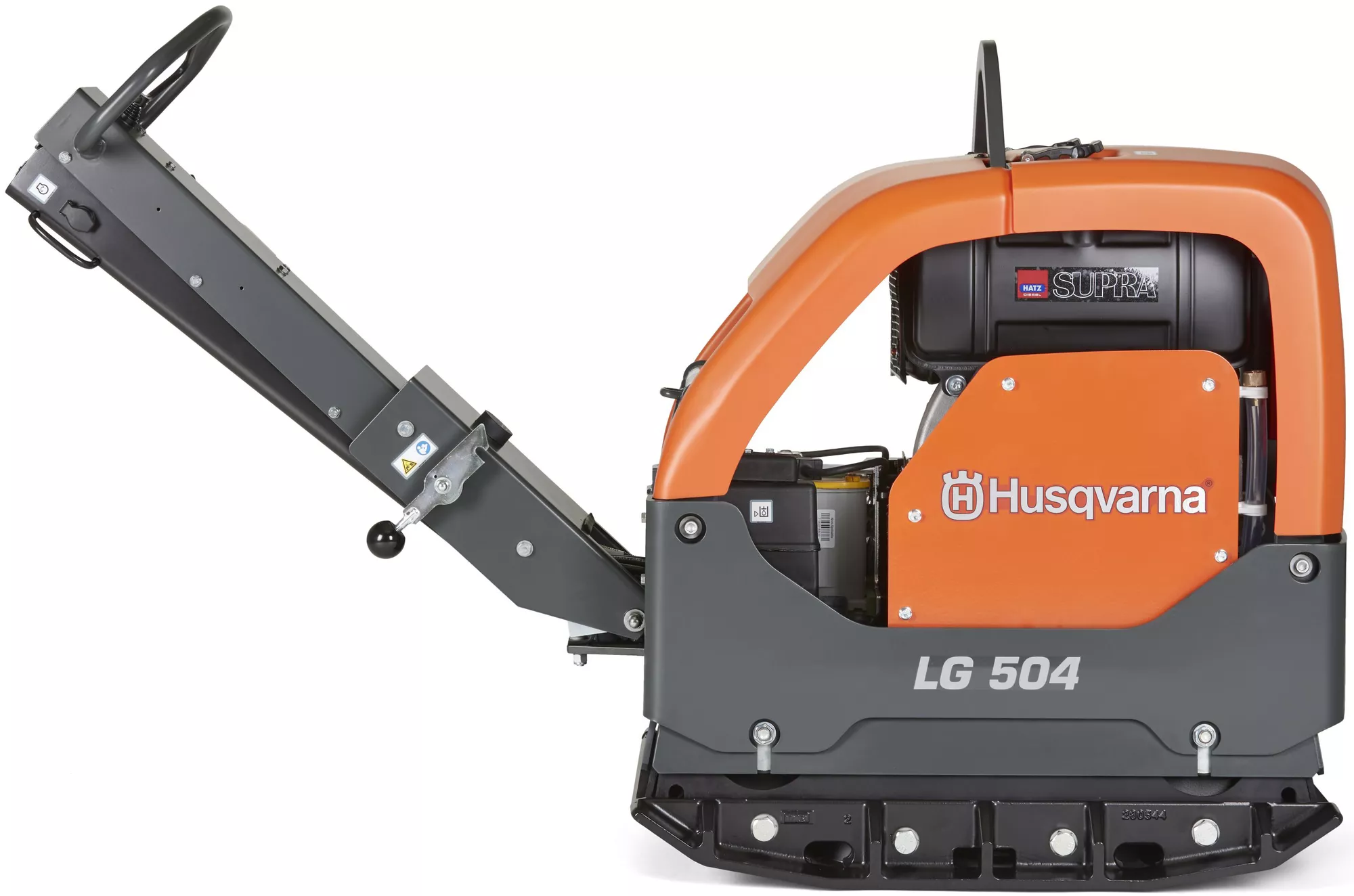

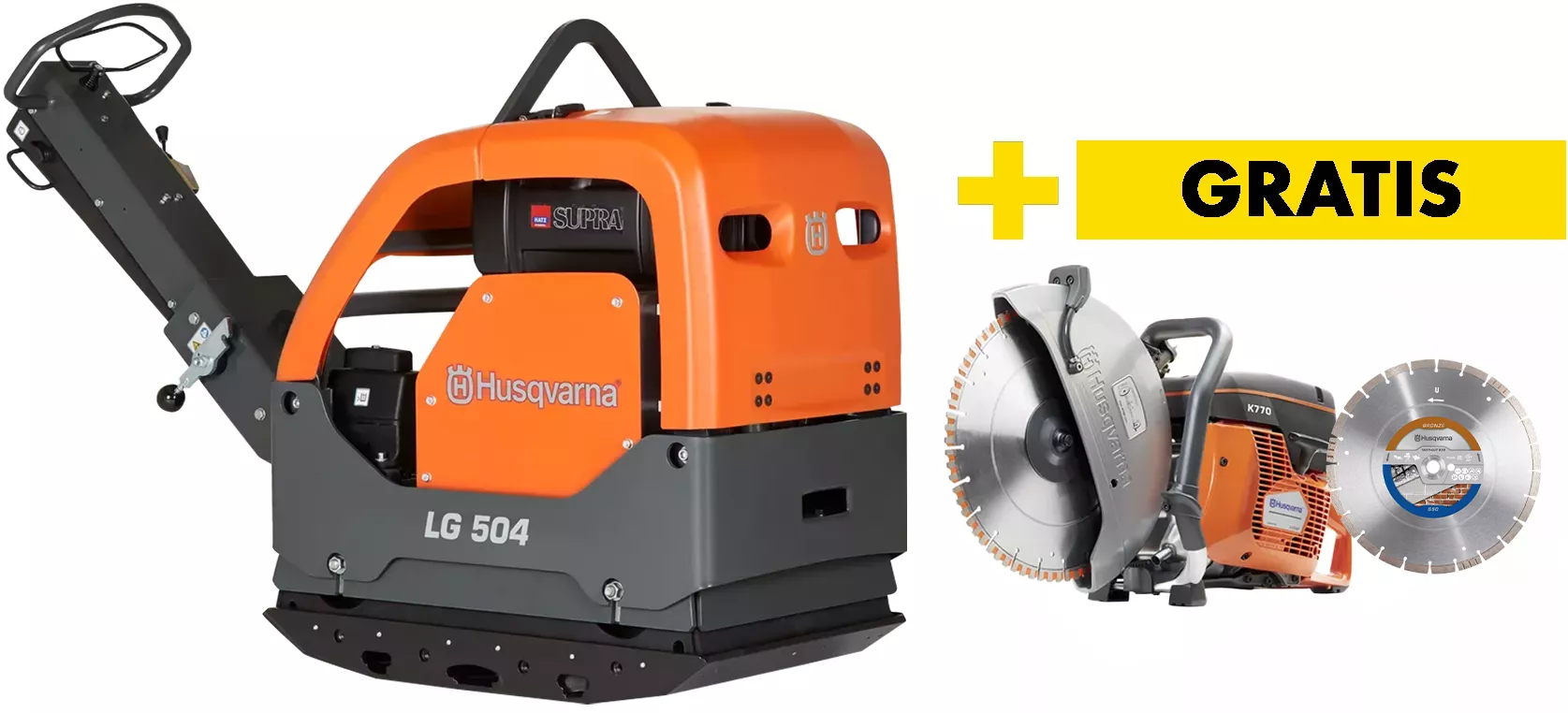

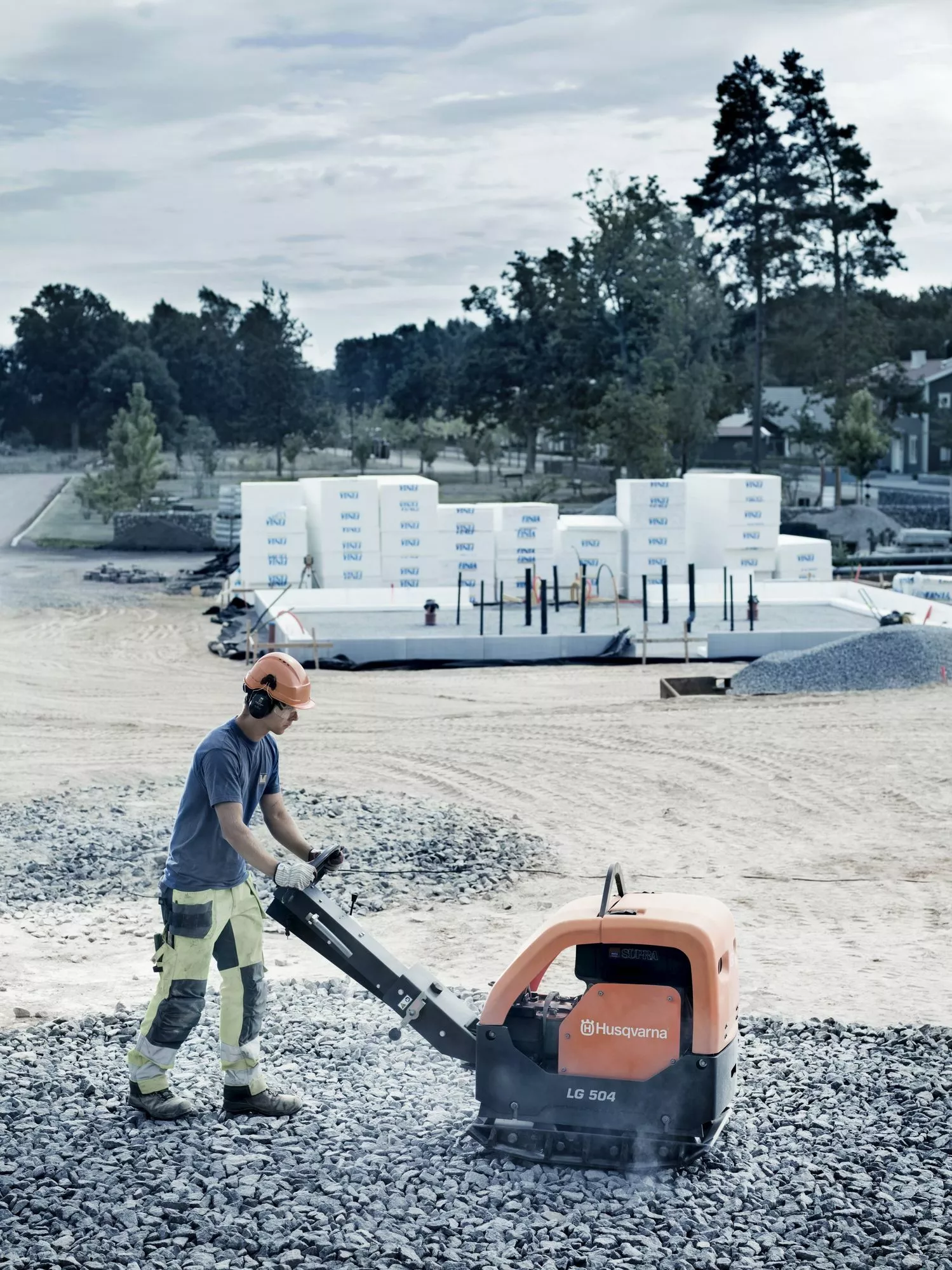

Reversible vibratory plate Husqvarna LG504 Hatz El CI, 550 mm + power cutter K 770 (350 mm) (+diamond blade)

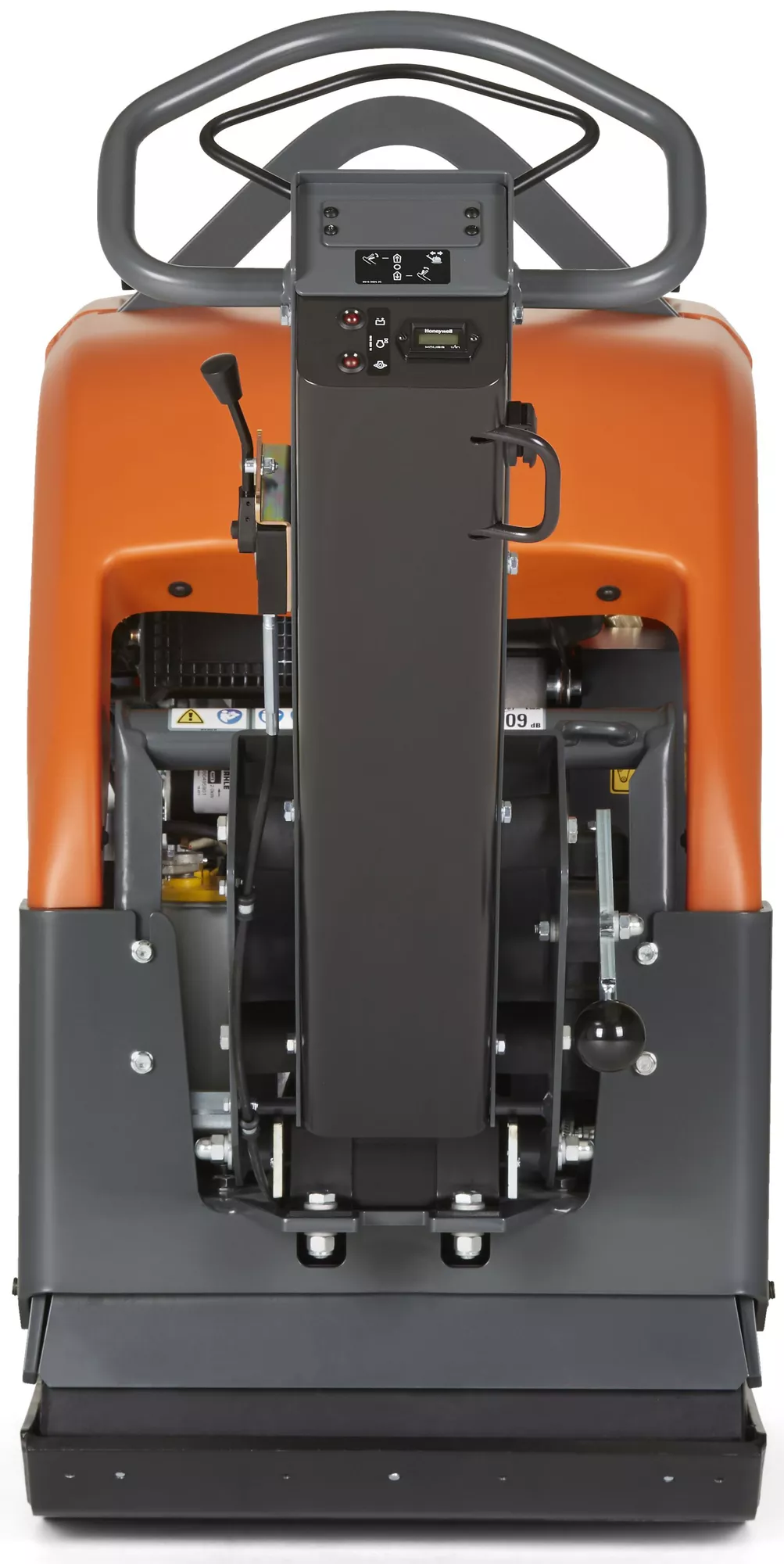

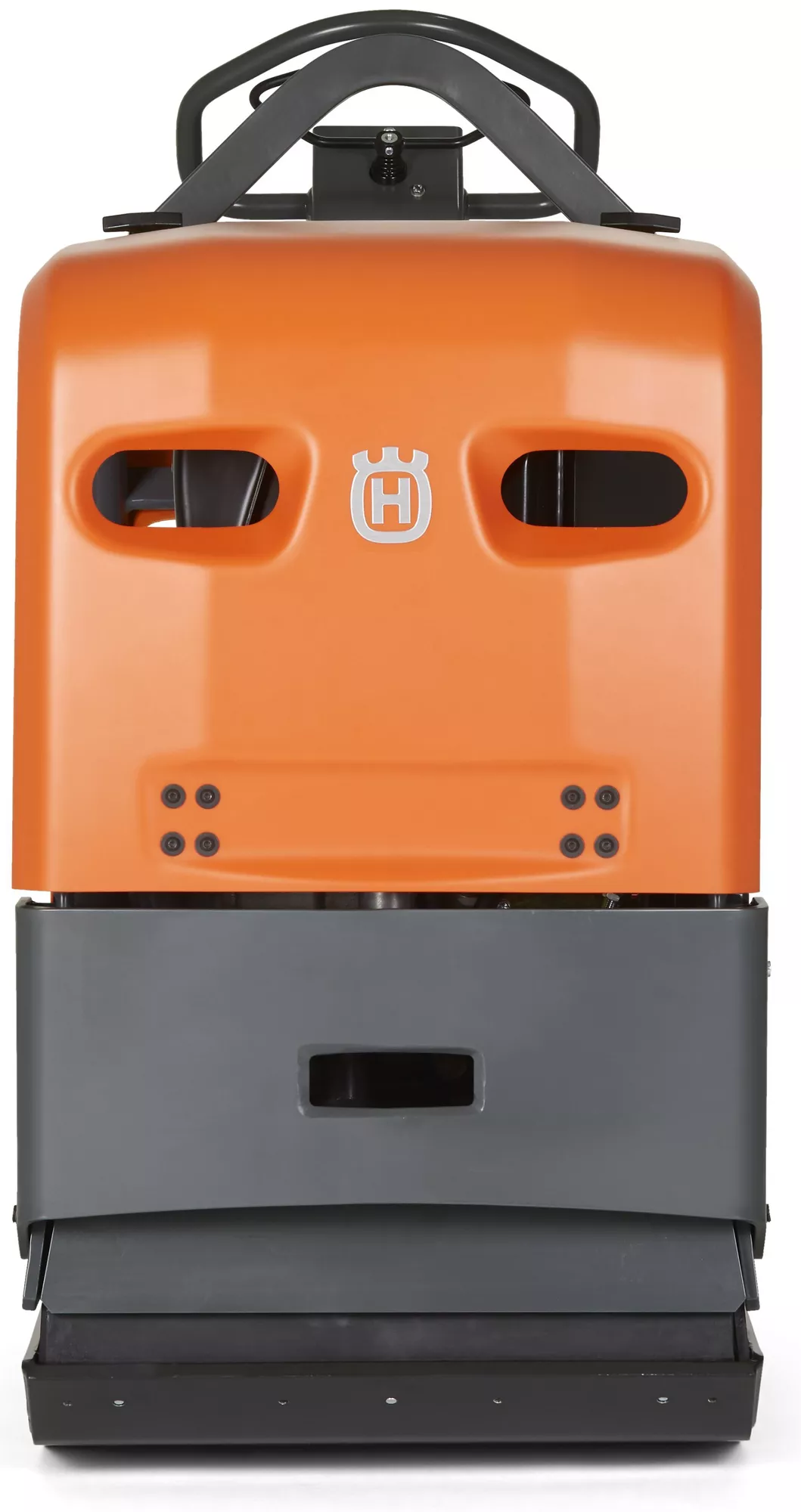

Reversible plate compactor 470 kg Husqvarna LG505 Hatz El CI, 550 mm + handheld cutter K 770 (350 mm) (+disc)

Reversible vibratory plate Husqvarna LG504 Hatz El CI, 550 mm + power cutter K 770 (350 mm) (+diamond blade) Product discontinued
Catalogue number: 967855504 [zestaw1]
Additional number: 967855504 (970720204), 970850301, 579815620
Check product substitute
This product is no longer available (discontinued)

Are you looking for a substitute product? Contact us and we will suggest you the most suitable alternative.
Comments: 0
Add comment
Reversible plate compactor 470 kg Husqvarna LG505 Hatz El CI, 550 mm + handheld cutter K 770 (350 mm) (+disc) Check product substitute
Catalogue number: 970720204 [zestaw1]
Additional number: 970720204 + 970850301 + 579815620
Gross price
18 577,81 €
10 795,70 €
Sale
Net price: 8 777,00 €
Availability:  Available for order
Shipping time:  ~5 daysi The shipping time for products is indicative and subject to change.

Applies to working days from the moment of accepting the order for processing.
Delivery price (in Poland): on request
Warranty: 1 year

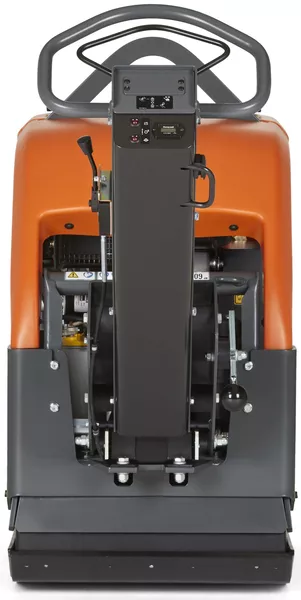

Variant description: Hatz 1D81Z diesel engine, working width 550 mm, weight 470 kg, electric start, set contains power cutter

Technical characteristics

Weight
470 kg
Sound pressure
96 dB(A)
Frequency
69 Hz
Length x Width x Height
1670 x 550 x 1190 mm
Engine power
9.1 kW / 12.2 HP
Fuel
Diesel
Vibrate level
2.5 m/s²
Advance travel (maximal)
30 m/min
Engine model & manufacturer
Hatz 1D81Z
Start
Electric
Centrifugal force
65 kN
Plate width
550 mm
Engine type
Combustion (diesel)

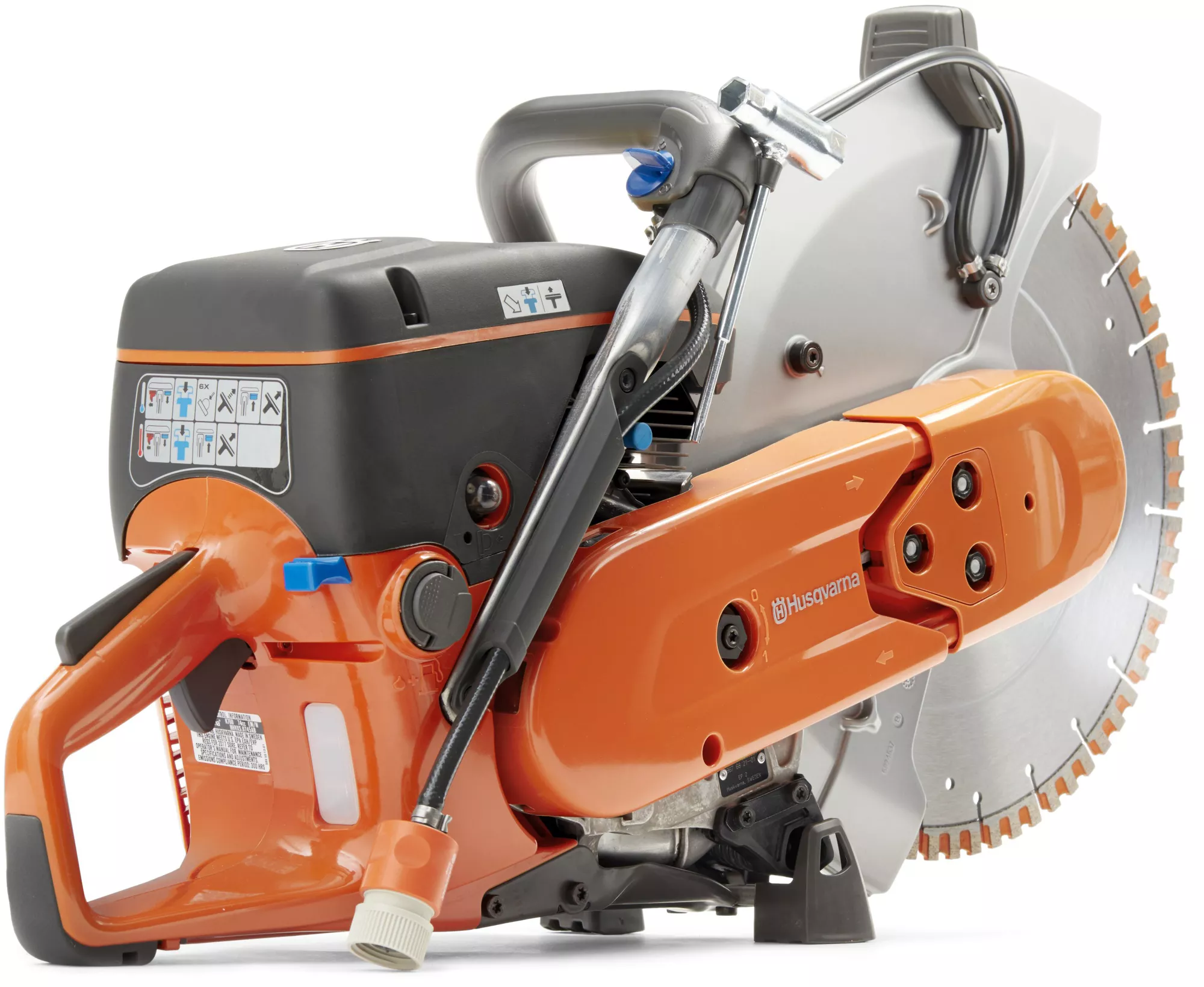

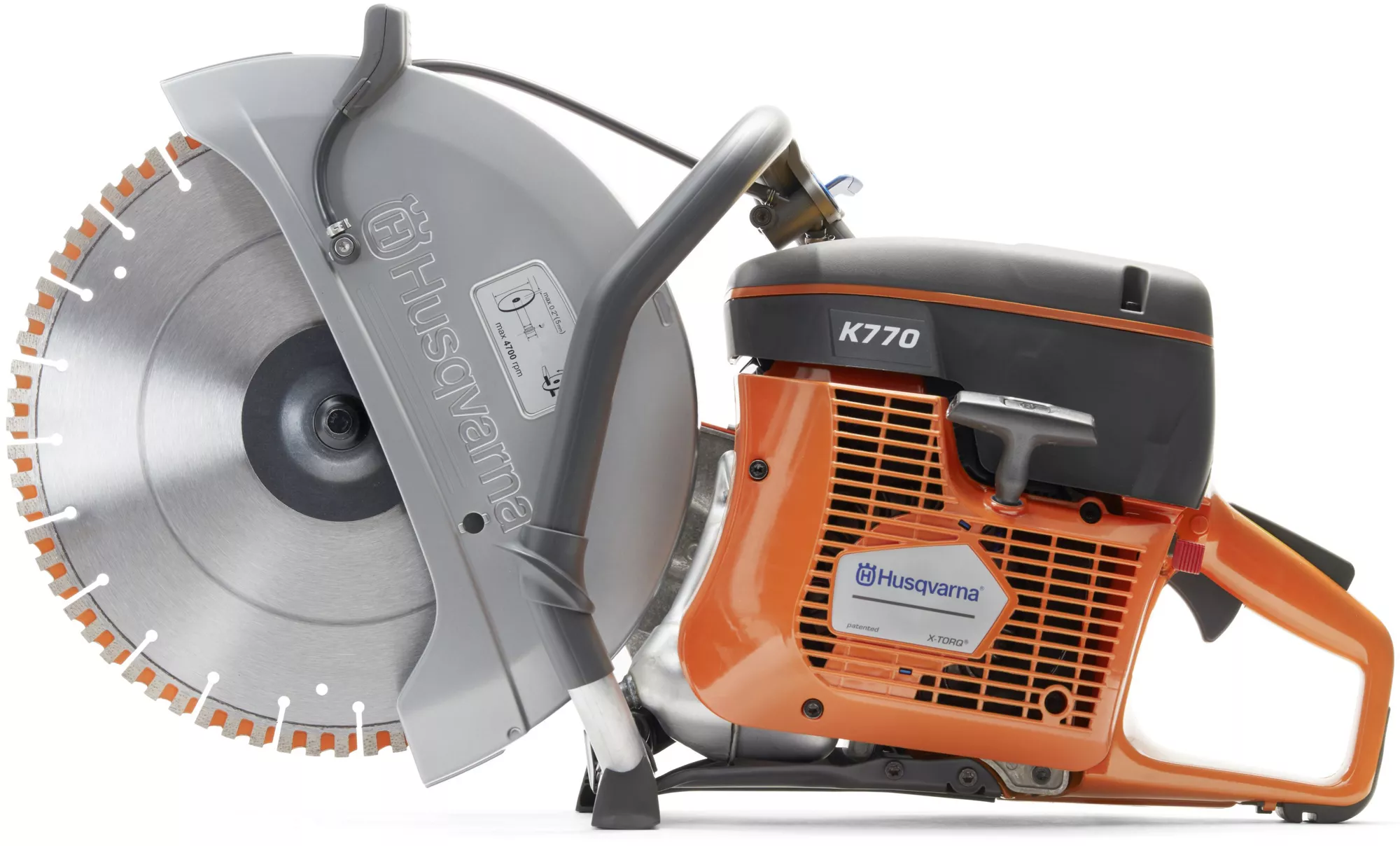

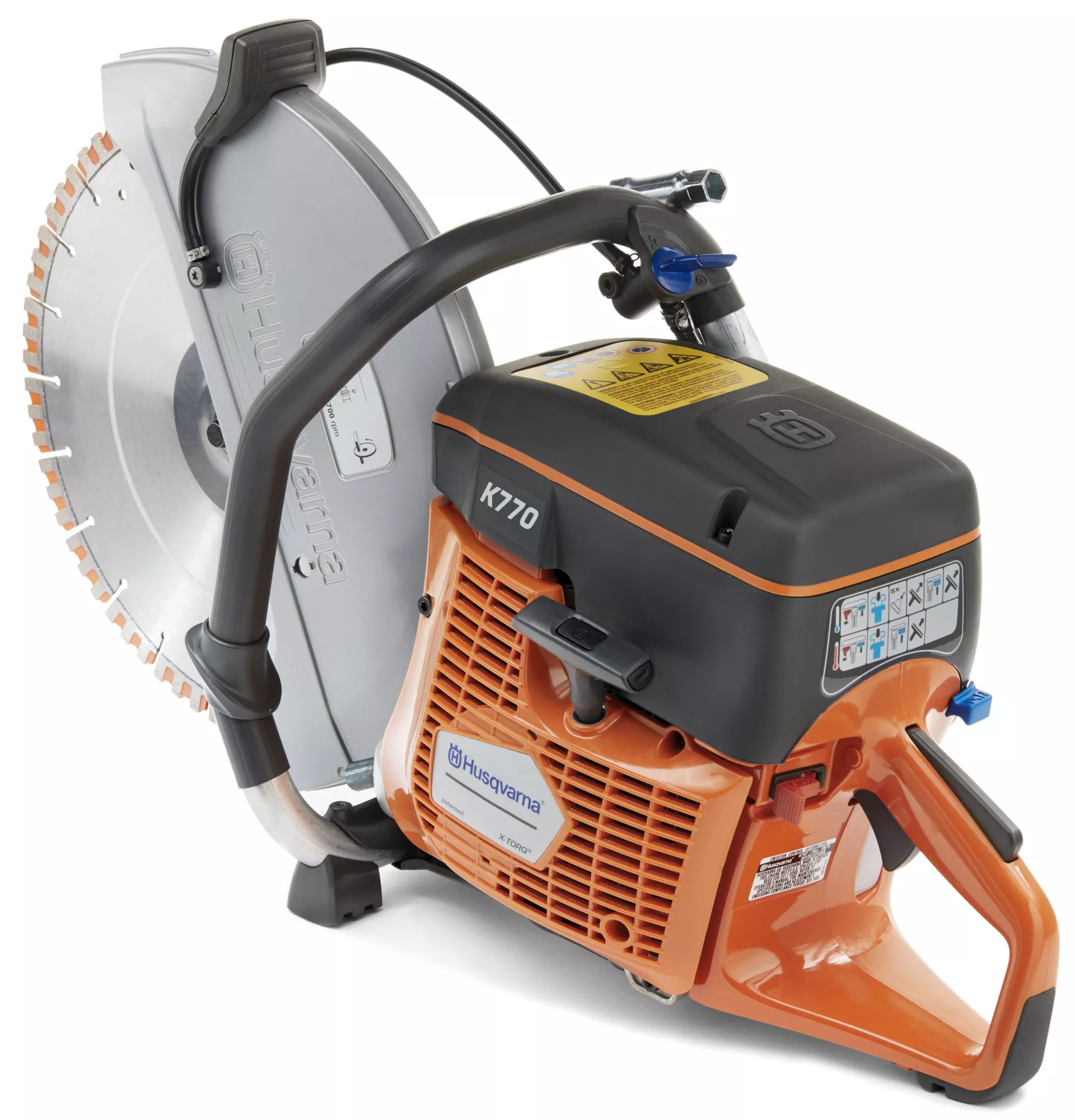

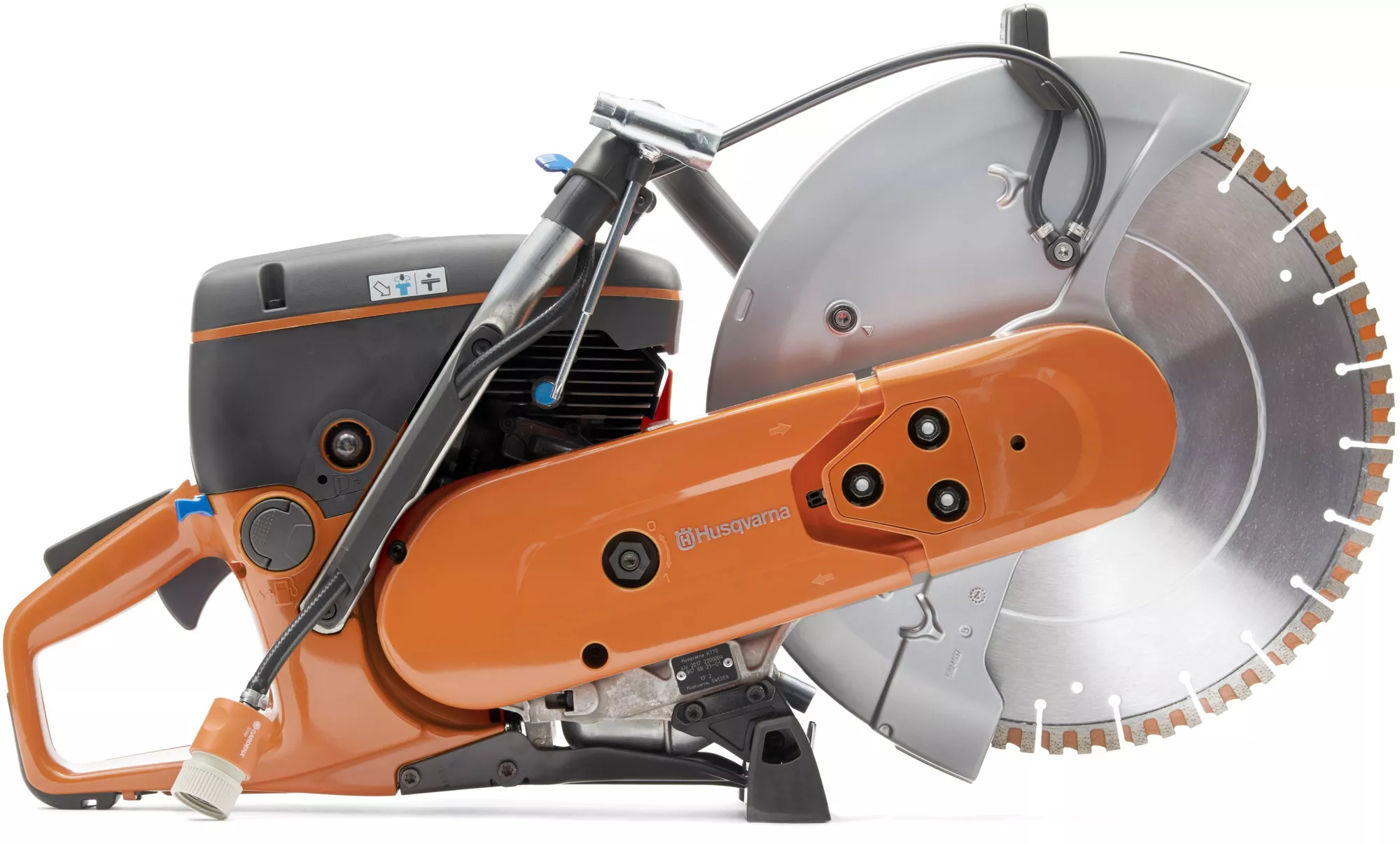

POWER CUTTER CHARACTERISTICS



SOUND PRESSURE

101 dB(A)

MAXIMUM CUTTING DEPTH

125 mm

BLADE DIAMETER MAX.

350 mm

SOUND POWER

115 dB(A)

ENGINE POWER

3.7 kW / 5 KM

ENGINE DISPLACEMENT

73.5 cm³

VIBRATE LEVEL

2 m/s² (left handle) / 2.3 m/s² (right handle)

REVOLUTIONS

90 m/s

DIAMETER MOUNTING HOLE DISK

20 / 25.4 mm

ENGINE TYPE

Combustiol (petrol), 2-stroke, air cooled

WEIGHT

10.1 kg

LENGTH X WIDTH X HEIGHT

605 x 225 x 415 mm
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
