Reversible vibratory plate Ammann APR 5920 DE ACEecon
Catalogue number: APR 5920 DE ACEecon
Comments: 0
Add commentiThe Seller does not verify the added statements (opinions, comments or any other statements), in particular, does not verify them in terms of whether they come from Customers who have purchased and used the Products.
Ammann APR 5920 DE ACE econ

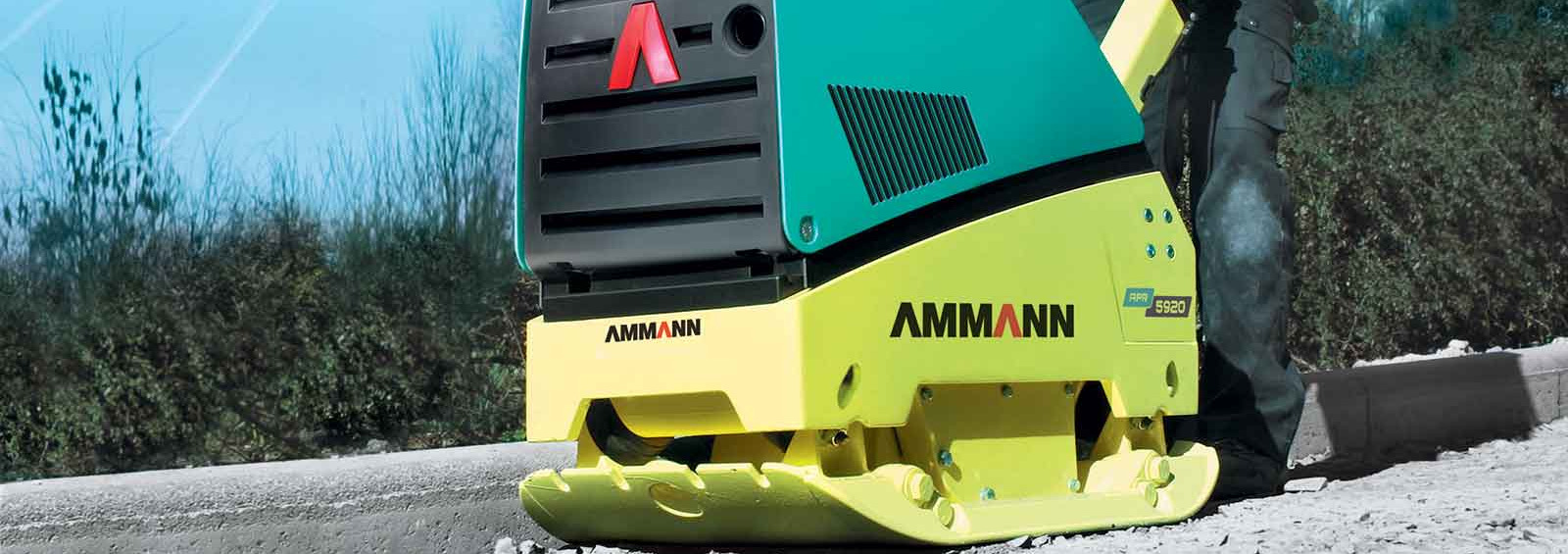

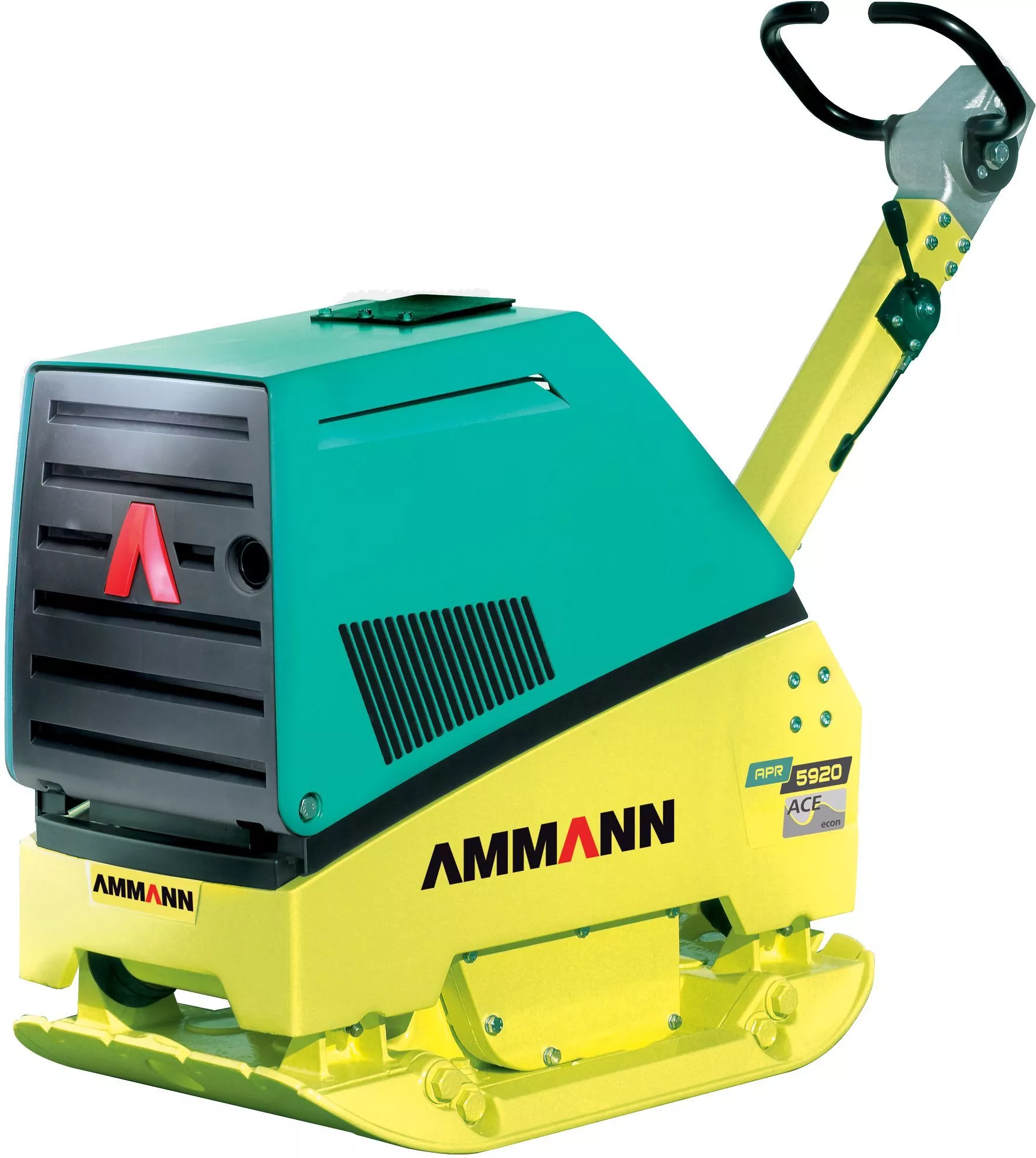

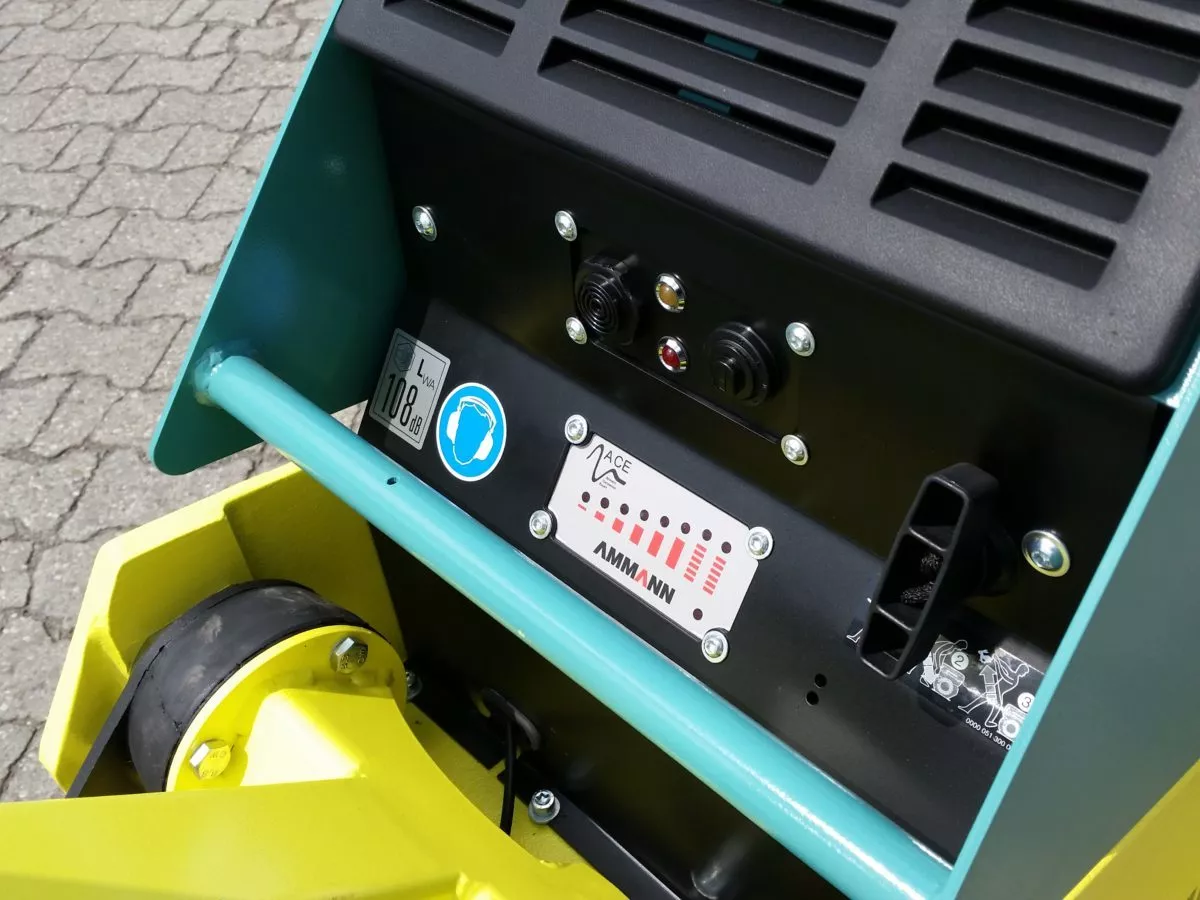

The Ammann APR 5920 DE ACEecon is a reversible compactor with exceptional manoeuvrability and the ability to overcome hills up to 30%. The ability to move forwards and backwards helps when working in hard-to-reach places. This is the most massive vibratory plate series APR weighing 440 kg. The engine power is 6.6 kW, and the machine provides 59 kN centrifugal force. The engine cover is very durable and allows quick access to the machine during service work. The machine's productivity can be increased with the optional 75 mm and 150 mm extensions. The APR 5920 DE ACEecon plate compactor is equipped with an ACEecon soil compaction indicator. The user is continuously informed about the progress of compaction, which allows the machine to be used to the maximum.
Varian description: Hatz 1B40 diesel engine, engine power 8.8 HP, electric start and "ACEecon" compaction measurement system
Technical characteristics
Compaction depth max.
65 cm
Maximum slant in each direction
25°
Fuel tank capacity
5 l
Fuel
Diesel
Gradeability
30 %
Fuel consumption
1,6 l/h
Length x width x height
898 x 450 x 850 mm
Frequency
65 Hz
Engine power
6,6 kW / 8.8 HP
Engine model & manufacturer
Hatz 1B 40
Centrifugal force
59 kN
Advance travel
0 – 30 m/min
Engine type
Combustion (diesel)
Start
Electric
Plate width
600 mm
Weight
484 kg
advantages
- User-friendly, vibration-damping folding handle for easy transport,
- Smooth, variable, hydrostatic forward and backward movement, including the ability to vibrate immediately on rough terrain,
- Easy, ergonomic operation,
- Friendly bi-directional exciter aggregate with long intervals between maintenance and long service life,
- Abrasion-resistant, self-cleaning base plate,
- Well protected, solid centrifugal clutch with wear-resistant V-belt,
- Strong gasoline or diesel engine,
- Other options such as a rubber mat for use on asphalt, an hour meter, an electric starter.
standard equipment
- User-friendly handle for easy transport and adaptation to the individual size of the operator
- A protective cover that protects functional elements from dirt and damage provides easy access for servicing

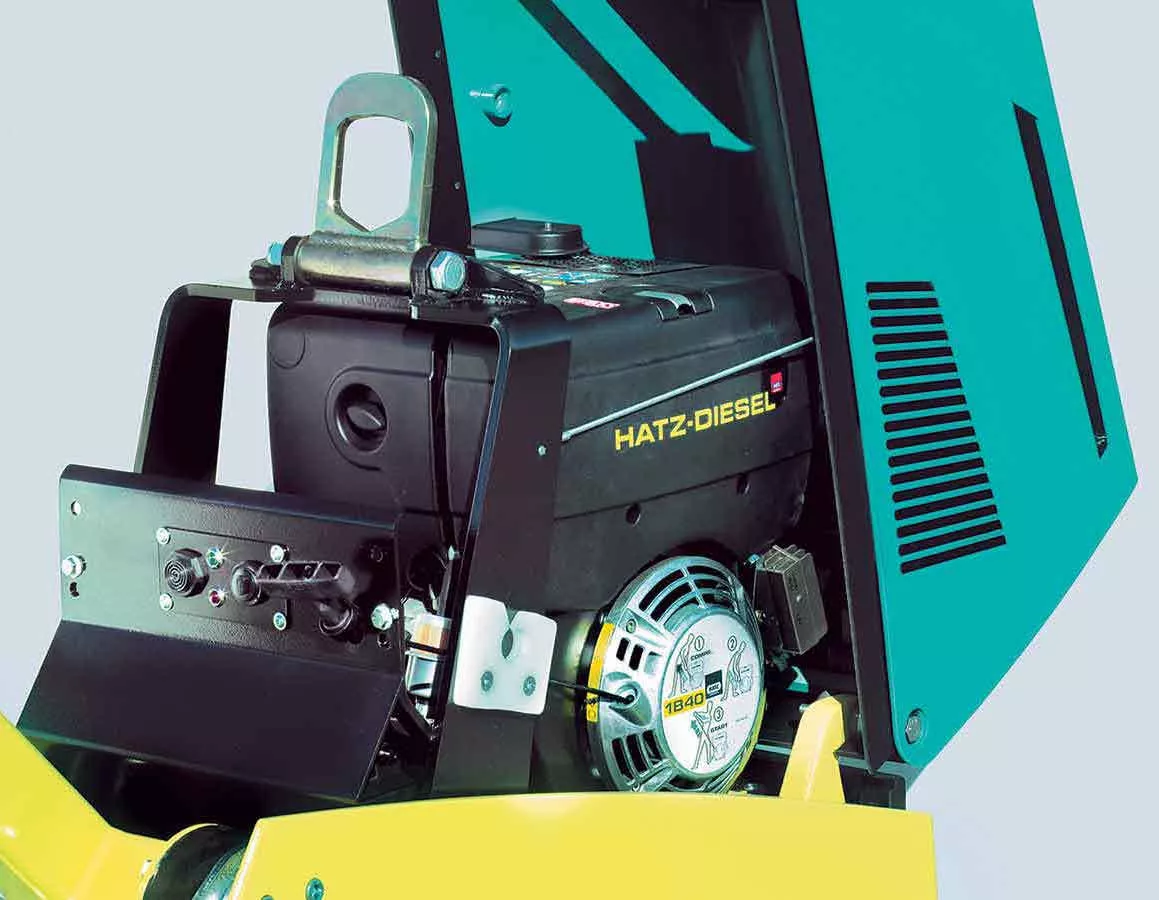

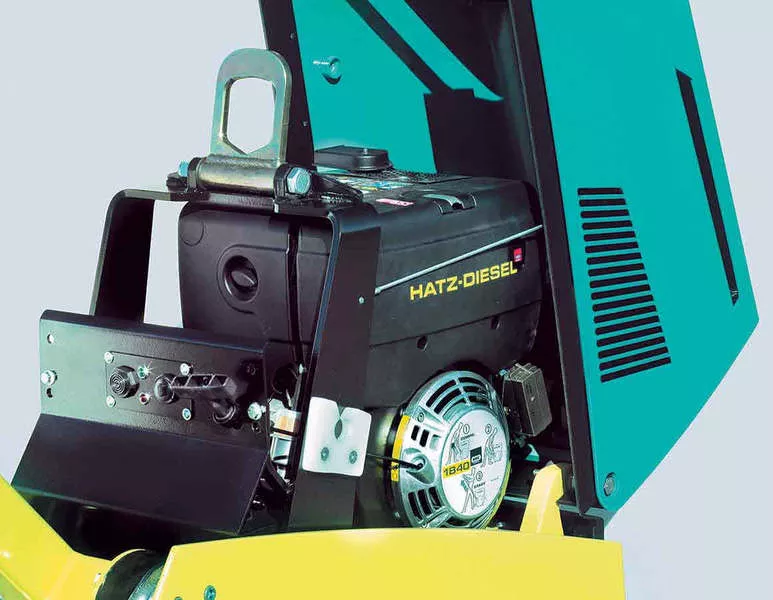

- Robust and reliable Hatz diesel engine
- 2-shaft exciter with extended service intervals
- Well protected, solid centrifugal clutch with wear-resistant V-belt
Additional equipment
- Elastomer mat for use when working on cobblestones
- Hour meter
- 3-year extended warranty
- Electric starter (on Hatz diesel engine)
- Extension plates (75/150 mm)
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
